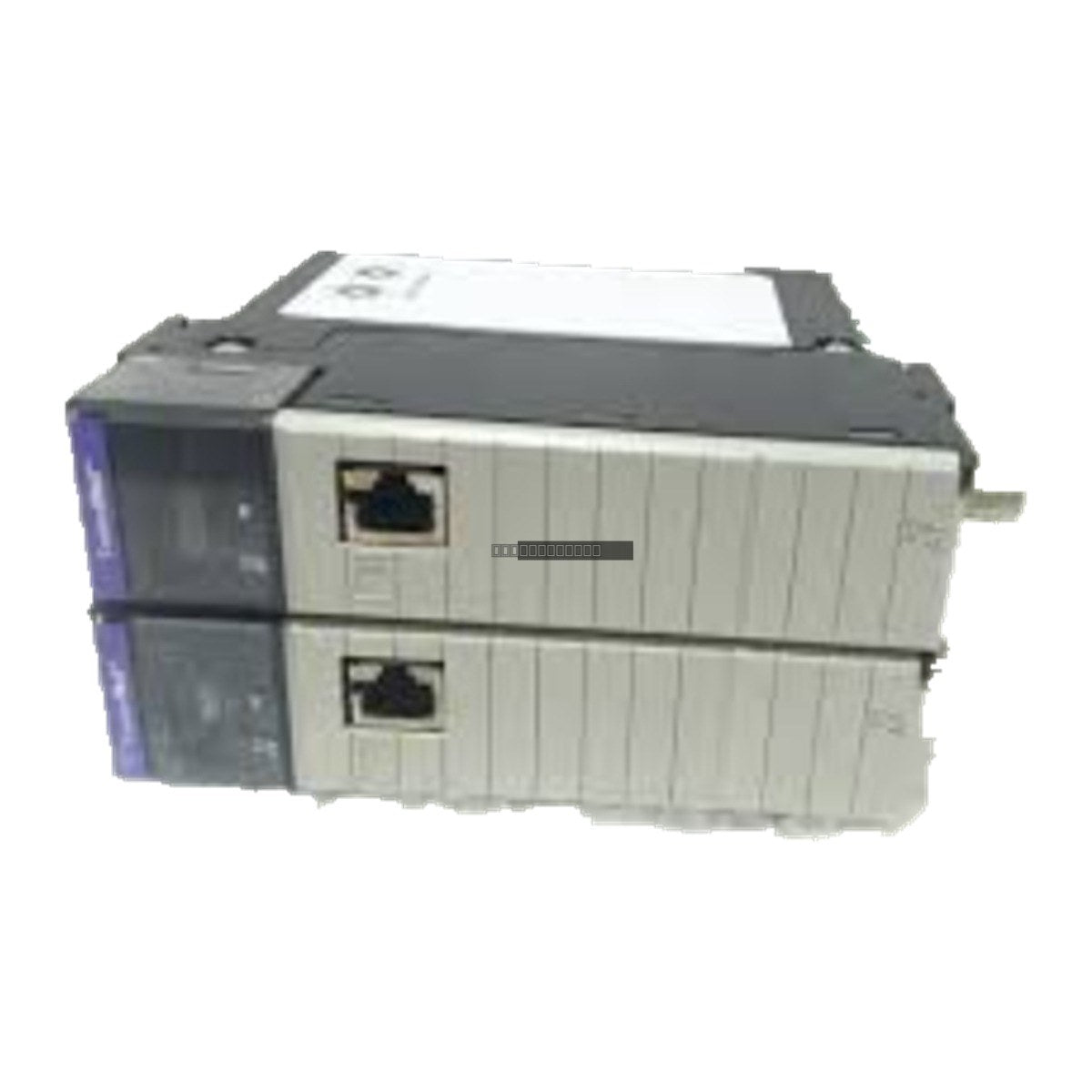

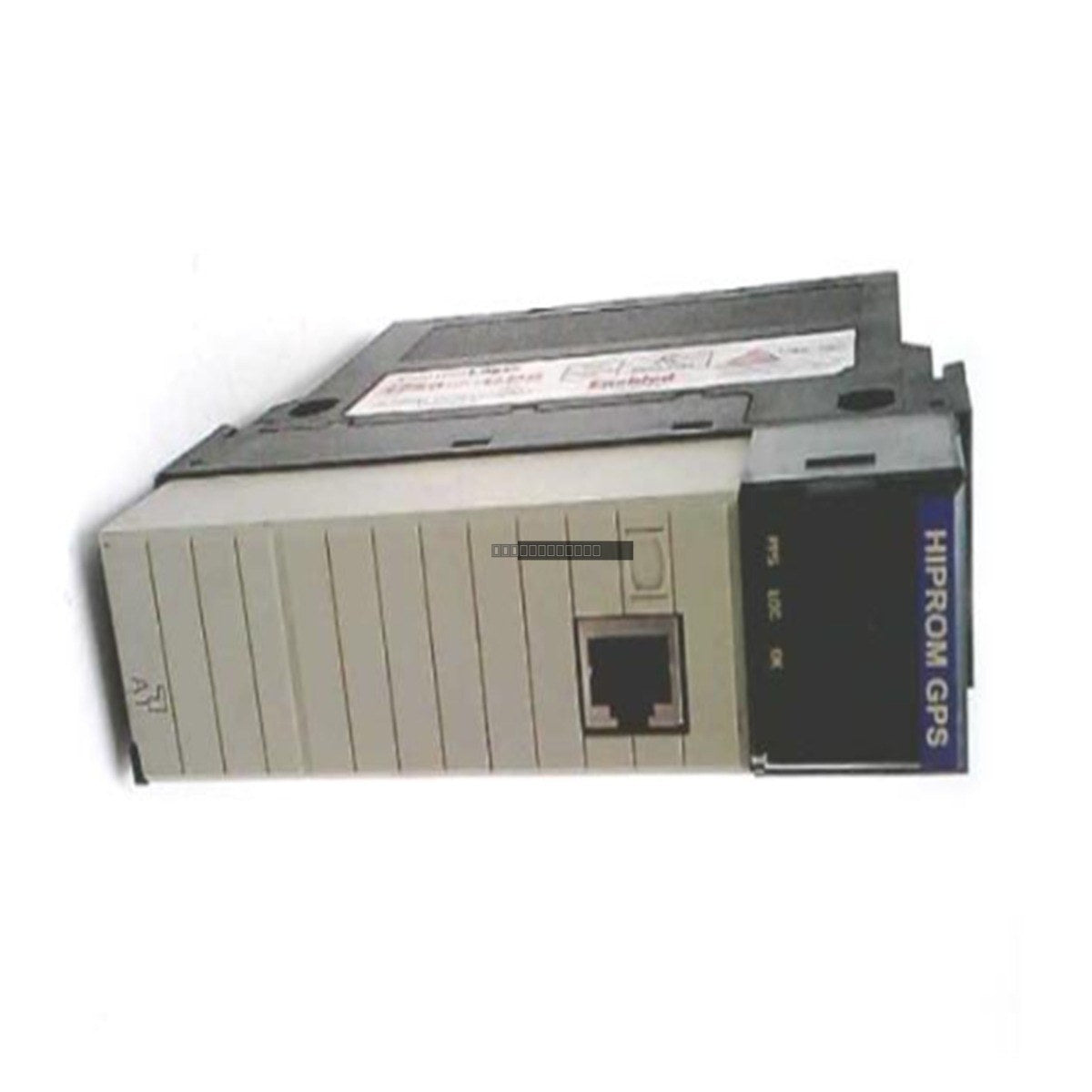

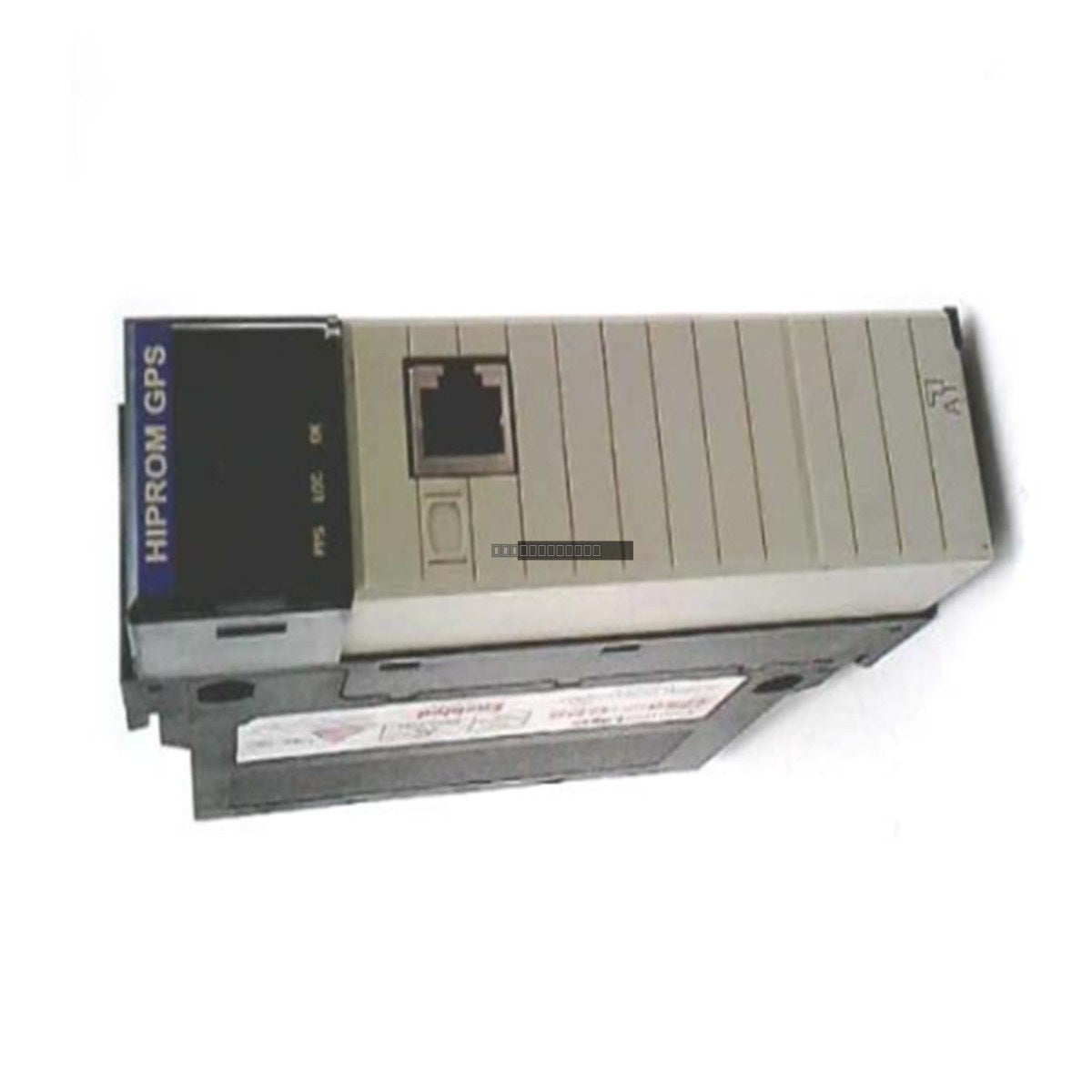

Allen-Bradley 1756HP-GPS HiProm GPS Module for ControlLogix

Allen-Bradley 1756HP-GPS HiProm Global Positioning System Module

التوفر: 0 متوفر في المخزون

The Allen-Bradley 1756HP-GPS, developed by HiProm as a Rockwell Automation Encompass Partner product, is a specialized interface module for the...

رمز المنتج: 1756HP-GPS

Manufacturer: Allen-Bradley
Product No.: 1756HP-GPS
Product Type: Communication Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 230g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

The Allen-Bradley 1756HP-GPS, developed by HiProm as a Rockwell Automation Encompass Partner product, is a specialized interface module for the ControlLogix platform. Designed to provide high-precision timing and location data, this module allows ControlLogix systems to utilize GPS satellite signals for master time synchronization and geographical tracking across industrial automation networks.

Features

Direct integration into the ControlLogix backplane for seamless data exchange with the PAC.
Provides microsecond-level time synchronization across distributed control systems.
Supports precise Sequence of Events (SOE) logging for root cause analysis in wide-area SCADA networks.
Delivers location telemetry including latitude, longitude, and altitude directly to controller tags.
Features an external antenna port for reliable satellite signal acquisition.

Applications

This module is ideal for applications requiring synchronized timing across geographically dispersed infrastructure. Typical use cases include pipeline leak detection systems, utility grid monitoring, and wide-area industrial SCADA platforms where millisecond-accurate event time-stamping is essential for system diagnostics.

Technical Specifications

Model	1756HP-GPS
Platform	ControlLogix
Manufacturer	HiProm (Rockwell Encompass Partner)
Module Type	GPS / Time Synchronization
Slot Width	1 standard chassis slot
Cooling	Natural convection (fanless)
Data Output	UTC time, coordinates, velocity, satellite status
Weight	0.23 kg

Installation Guidelines

Ensure the ControlLogix chassis is powered down before inserting or removing the module.
Install the module into any available standard slot in the chassis backplane.
Route the external GPS antenna cable to a location with a clear view of the sky, ensuring minimal interference from nearby structures.
Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.
Verify that the antenna connection is secure to ensure consistent satellite lock and timing accuracy.

FAQ

What is the primary purpose of the 1756HP-GPS module?

The 1756HP-GPS is designed to provide highly accurate UTC time synchronization and geographical location data to a ControlLogix system, enabling precise event time-stamping and asset tracking.

Is this module compatible with all ControlLogix chassis?

Yes, the module is designed to fit into any standard ControlLogix chassis slot, occupying a single slot width.

Does this module require external hardware?

Yes, it requires an external GPS antenna connected to the module's dedicated interface port to receive satellite signals.
