Schneider ASB824016 Modicon 800 Series Digital Output Module

Schneider Modicon 800 Series ASB824016 Digital Output Module

التوفر: 7 متوفر في المخزون

DescriptionThe Schneider Electric ASB824016, also designated as the B824-016, is a robust digital output module designed for the Modicon 800...

رمز المنتج: ASB824016

Manufacturer: Schneider
Product No.: ASB824016
Product Type: Digital Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 1200g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Description

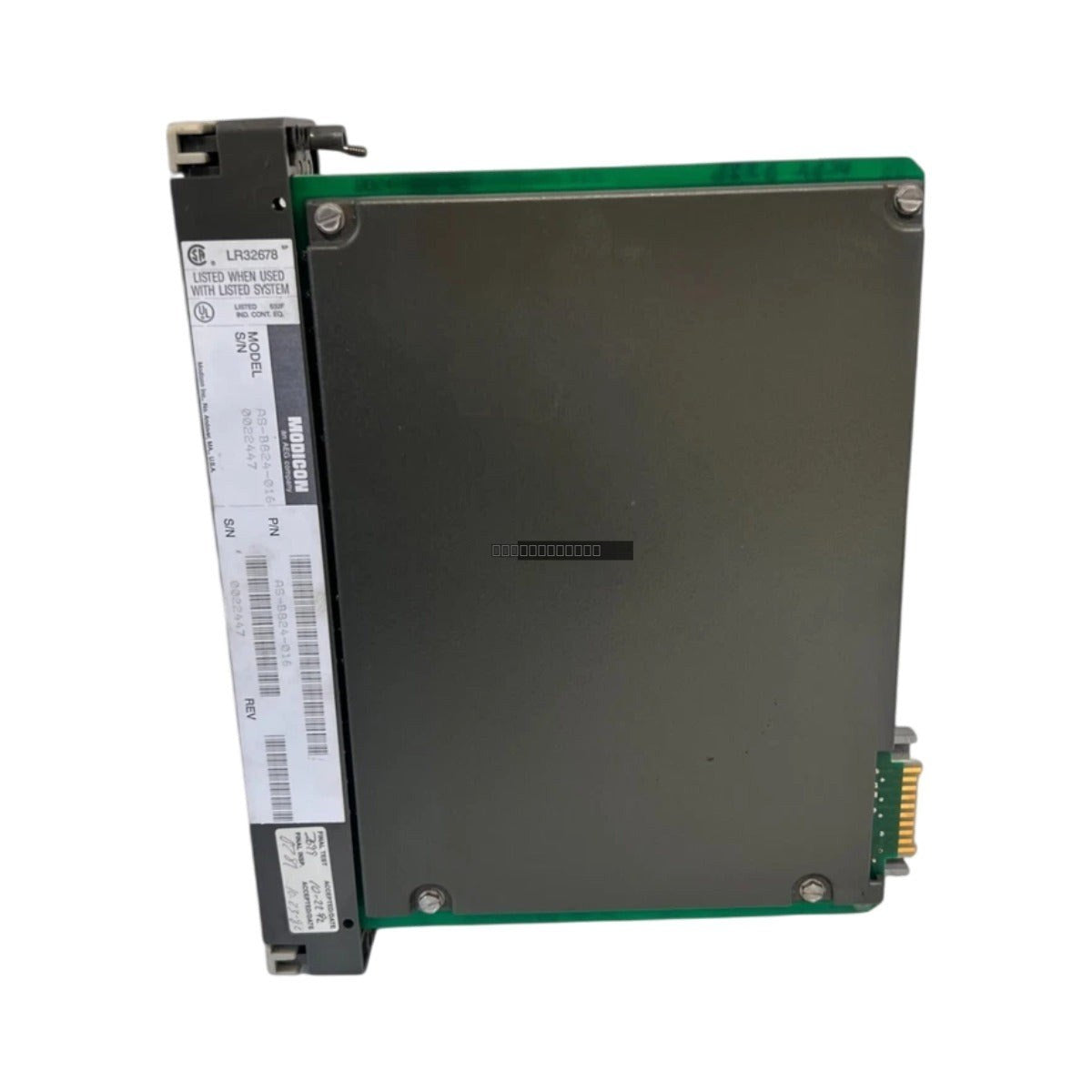

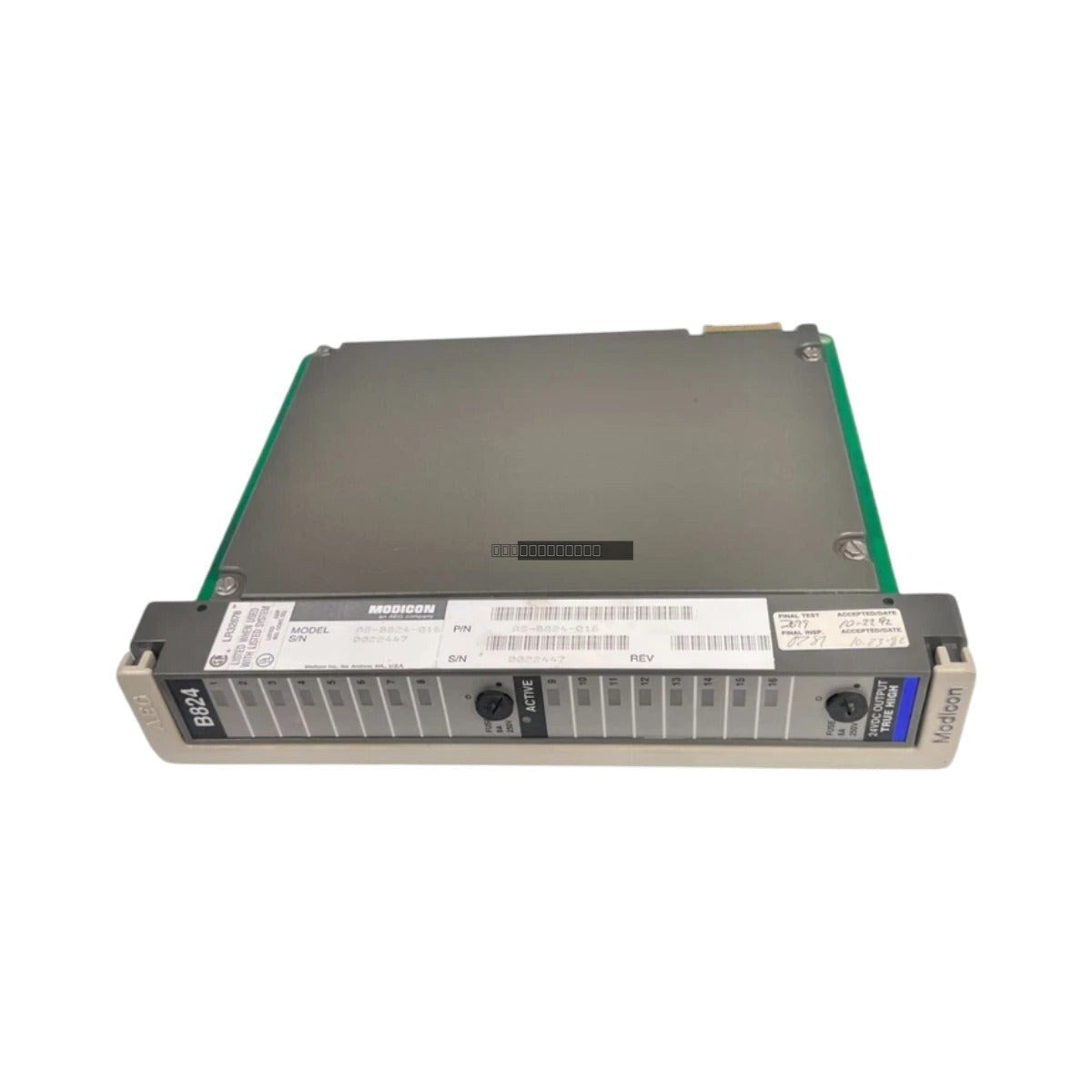

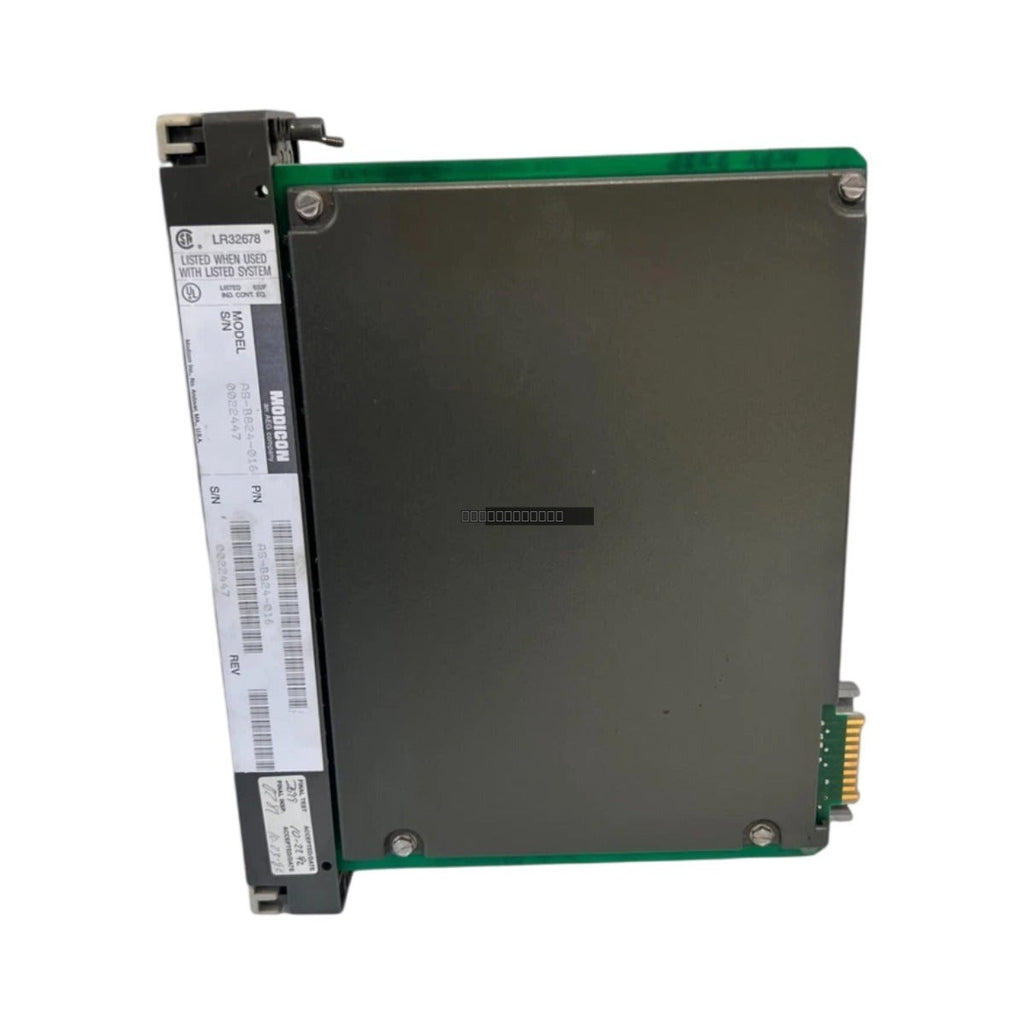

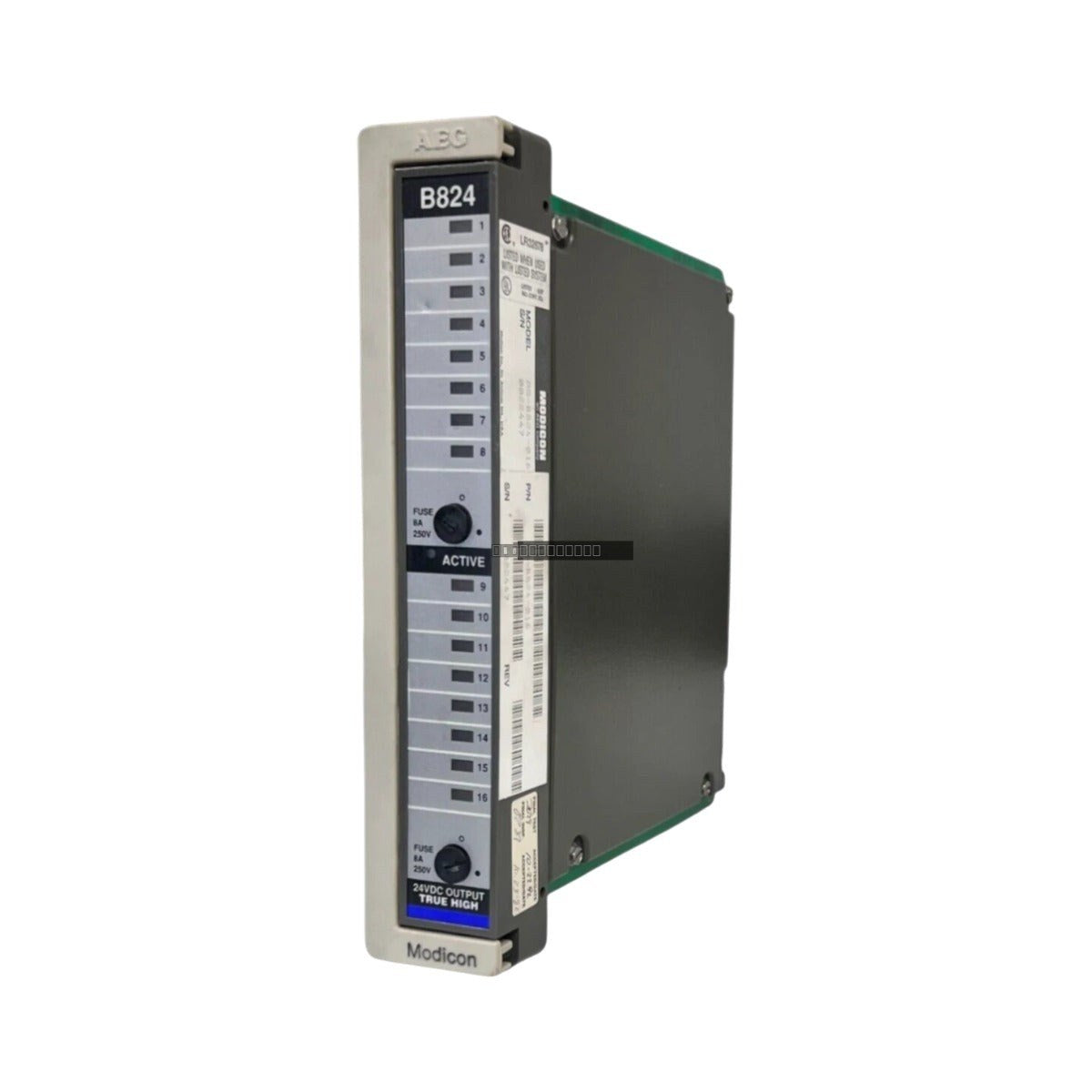

The Schneider Electric ASB824016, also designated as the B824-016, is a robust digital output module designed for the Modicon 800 Series I/O platform. This unit serves as a high-capacity discrete interface, allowing for the direct switching of industrial field loads. By enabling direct control of solenoids and motor starters without the need for additional interposing relays, this module simplifies control loop architecture and enhances system reliability in demanding industrial settings such as power generation and resource extraction.

Features

16 independent discrete output channels.
High-current switching capability designed for inductive loads and inrush current handling.
Fused output grouping to isolate faults and prevent cascading failures across channels.
Direct backplane integration for efficient communication with the Modicon 800 controller.
Solid-state design optimized for high-cycle industrial environments.
Integrated field-to-bus isolation to protect internal control logic from electrical transients.

Applications

This module is frequently deployed in heavy-duty industrial automation applications, including:

Control of large inductive solenoids and actuators.
Direct switching of motor starter coils in manufacturing lines.
Driving high-current industrial indicators and signaling devices.
Automation systems in thermal power plants and refineries requiring high-reliability switching.

Technical Specifications

Model	ASB824016 (B824-016)
Number of Outputs	16 Channels
Output Voltage	24 VDC Nominal (20-30 VDC Range)
Max Current Per Point	2.0 A Continuous
Max Current Per Module	16.0 A Total
Backplane Power	350 mA at 5 VDC
Isolation	1500 VAC (Field-to-Bus)
Operating Temperature	0 to 60 deg C
Storage Temperature	-40 to 85 deg C
Relative Humidity	5 to 95% non-condensing

Installation Guidelines

Ensure the system power is disconnected before installing or removing the module from the backplane.
Verify that the module is correctly seated in the Modicon 800 rack to ensure proper bus contact.
Maintain adequate ventilation around the rack assembly to ensure operation within the specified 0 to 60 deg C range.
Use appropriate wire gauges for the field connections to accommodate the 2.0 A per-point current rating.
Ensure field wiring is properly routed away from high-EMI sources to maintain signal integrity.
Handle the module using electrostatic discharge (ESD) prevention practices to protect internal components.

FAQ

Is this module compatible with other Modicon series?
The ASB824016 is specifically engineered for the Modicon 800 Series. Compatibility with other series should be verified against your specific system backplane documentation.

Does this module require external relays?
No, the B824-016 is designed as a True High Output module, capable of switching field loads of up to 2.0 A per point directly, which often removes the need for interposing relays.

What is the total current capacity for the module?
The module supports a maximum total current of 16.0 A across all 16 channels simultaneously.
