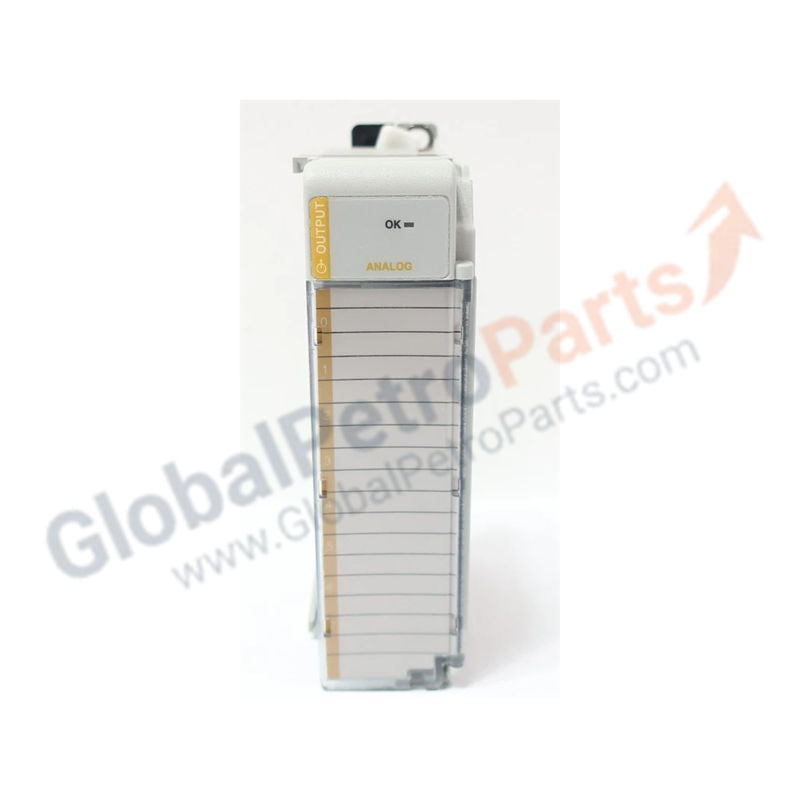

Allen-Bradley 1769-OF5 CompactLogix Analog Output Module

Availability: 99 left in stock

Product Overview The 1769-OF5 is a high-performance analog output expansion module for Allen-Bradley CompactLogix and MicroLogix 1500 systems. Featuring a...

SKU: 1769-OF5

Manufacturer: Allen Bradley
Product No.: 1769-OF5
Product Type: CompactLogix Analog Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 220g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The 1769-OF5 is a high-performance analog output expansion module for Allen-Bradley CompactLogix and MicroLogix 1500 systems. Featuring a 4+1 channel configuration, it provides four configurable voltage/current channels plus one dedicated current-only output, enabling mixed-signal control in a single slot.

Technical Specifications

Item	Specification
Module Identifier	1769-OF5
Voltage Ranges	±10V DC, 0–10V DC, 0–5V DC, 1–5V DC
Current Ranges	0–20 mA, 4–20 mA
Resolution	14-bit or 15-bit (range dependent)
Backplane Current	120 mA @ 5.1V DC / 160 mA @ 24V DC
DAC Type	Resistor String
Full Scale Ranges	0–21 mA, 0–10.5V DC, ±10.5V DC
Conversion Rate	2.5 ms per channel
Output Impedance	<15 Ω (Voltage) / >1 MΩ (Current)
Resistive Load	0–500 Ω (Current) / >1000 Ω (Voltage)
Power Supply Distance Rating	8 modules from power supply
Heat Dissipation	3.61 W max
Dimensions (W × H × D)	118 × 35 × 87 mm
Weight	0.22 kg

Functional Integration

Control Flexibility: First four channels software-configurable for voltage or current.
High Precision: 15-bit resolution for granular control in sensitive applications.
System Protection: Open-circuit detection for current outputs; short-circuit protection for voltage outputs.
Application: Ideal for final control elements in automated loops, such as chemical dosing or precision heating.

Installation Best Practices

Cabling: Use shielded twisted-pair (STP) cables; ground shield at module end.
Removable Terminal Block (RTB): Allows module replacement without disconnecting field wiring.
Slot Placement: Must be within 8 slots of the power supply to ensure signal integrity.

Common Technical Questions

What is the difference between the 1769-OF5 and 1769-OF4?
The OF4 has four identical channels, while the OF5 adds a fifth dedicated current output, providing higher density and mixed signal capability.

Does the 1769-OF5 support "Hold Last State" on CPU fault?
Yes. The module can hold the last output value or transition to a user-defined "Safe Value" if the controller enters Program Mode or experiences a fault.
