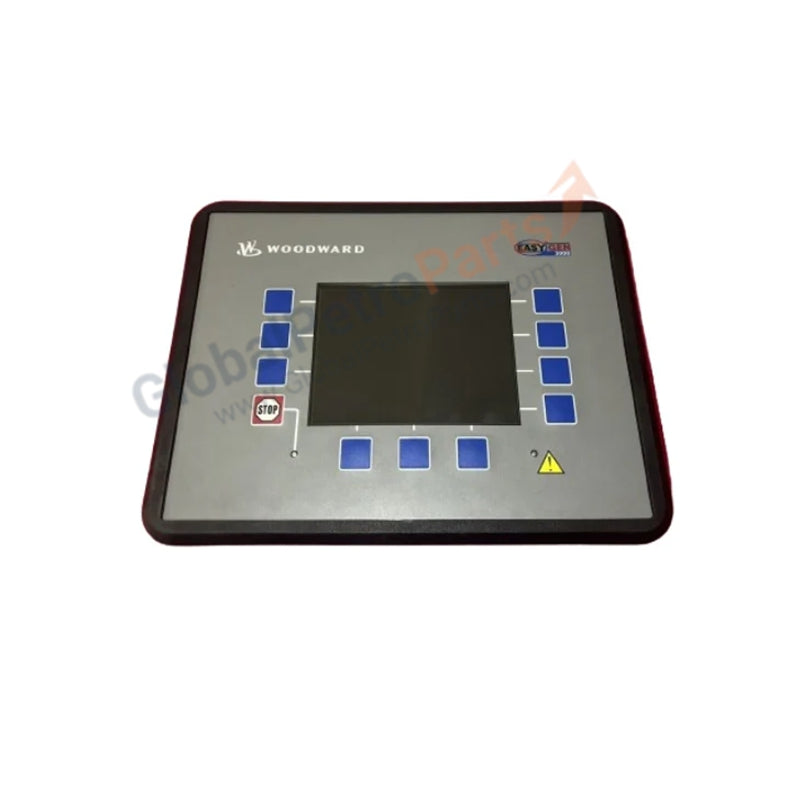

8440-1831 | Woodward easYgen-3200-5 Control Unit Tested Good

Availability: 10 left in stock

Woodward 8440-1831 H easYgen-3200-5 Genset Control & Operator Interface The 8440-1831 (Model: 8440-1831) is a sophisticated genset management controller and operator interface...

SKU: 8440-1831

Manufacturer: Woodward
Product No.: 8440-1831
Product Type: Operator Interface / Genset Controller
Product Origin: USA
Payment:T/T, Western Union
Weight: 953g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Woodward 8440-1831 H easYgen-3200-5 Genset Control & Operator Interface

The 8440-1831 (Model: 8440-1831) is a sophisticated genset management controller and operator interface within Woodward’s easYgen-3200 series. Designed as a comprehensive Human-Machine Interface (HMI), it provides localized control and monitoring for complex power generation systems, including single-unit and multiple-unit load sharing. The 8440-1831 (Part Number: 8440-1831) features a clear 4.5 x 3.5-inch screen that offers real-time visualization of engine parameters, electrical values, and system status.

Beyond a simple display, the 8440-1831 (Model: 8440-1831) incorporates FlexIn technology, allowing it to interface with various analog sensor types (0/4–20 mA, resistive, or VDO) without requiring external signal converters. It is specifically rated for 0.5A CT secondary and 100-400 VAC PT secondary inputs, making it ideal for standard industrial generator configurations. With integrated Modbus communication, the unit seamlessly bridges field-level generator data to higher-level SCADA or building management systems.

Detailed Technical Specifications

The 8440-1831 (Model: 8440-1831) is engineered for deterministic power management and precise electrical measurement.

Feature	Details
Manufacturer	Woodward
Model Number	8440-1831
Product Series	easYgen-3200-5
Product Type	Operator Interface / Genset Controller
Display Screen	4.5 x 3.5 inch Monochrome LCD
Input Power Supply	12/24 VDC (Operating range: 8–40 VDC)
CT Secondary Rating	0.5 A
PT Secondary Rating	100–400 V AC
Measuring Frequency	50/60 Hz (Range: 40–85 Hz)
Analog Inputs	3 Channels (FlexIn: VDO, resistive, 0/4–20 mA)
Relay Outputs	Configurable isolated relays
Communication	Modbus RTU (RS-485), CANbus (Load Share)
Operating Temp	–20°C to +70°C
Dimensions	280 mm $\times$ 130 mm $\times$ 60 mm
Weight	0.953 kg (2.10 lbs)
