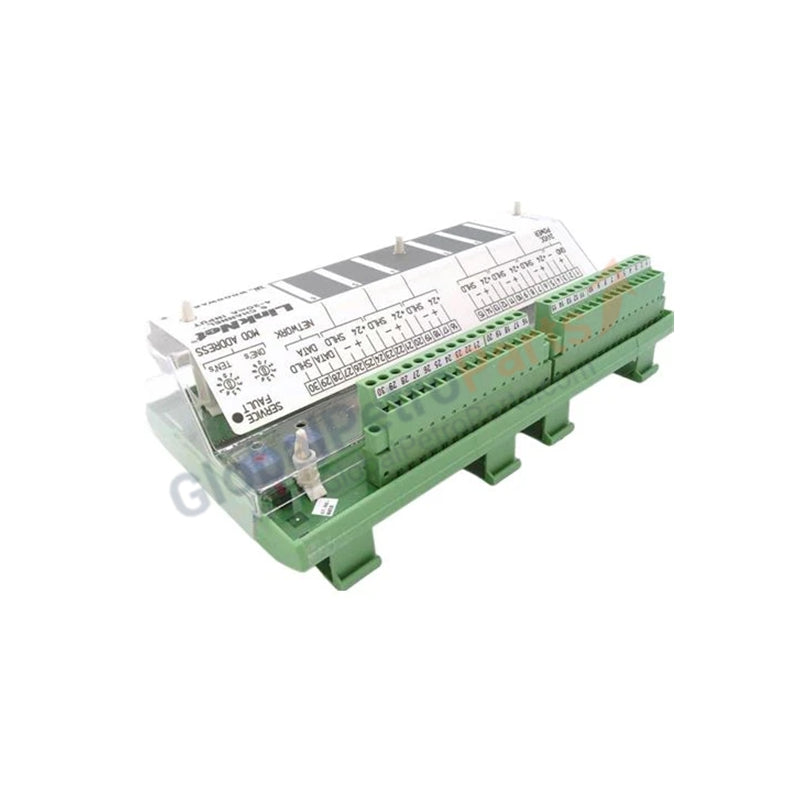

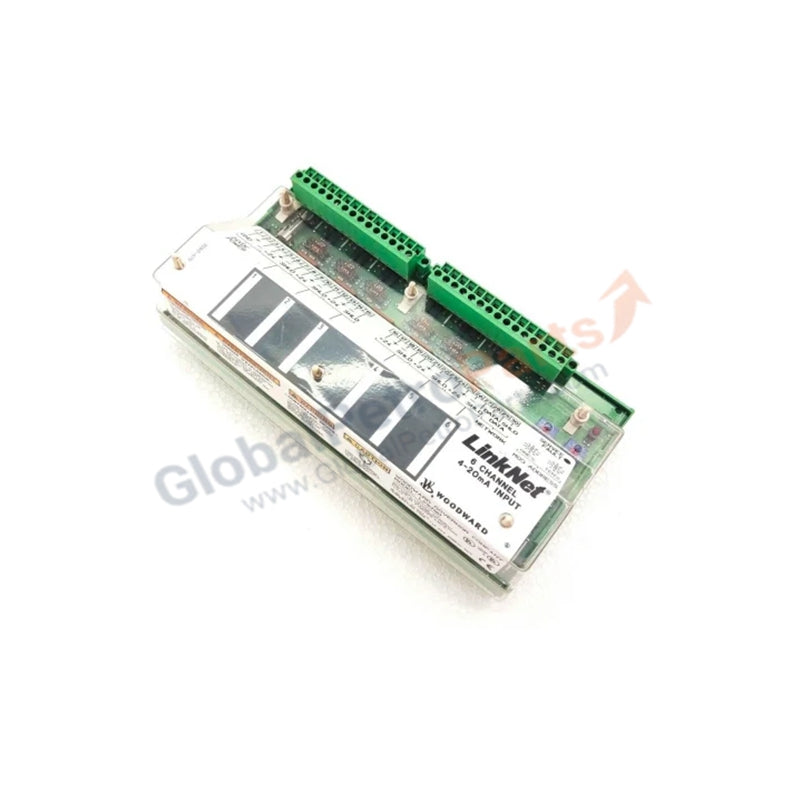

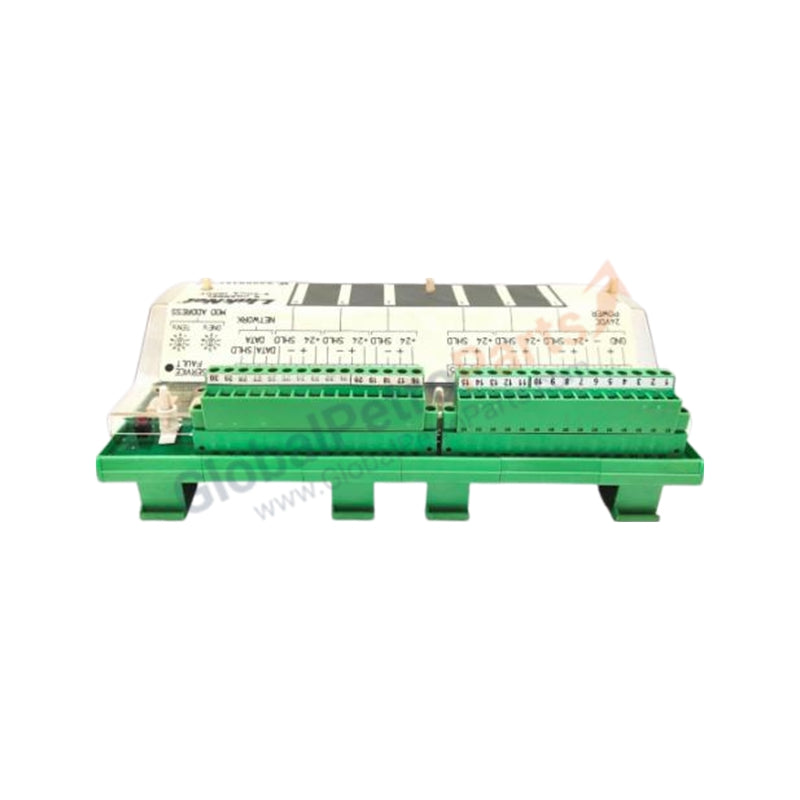

9905-969 | Woodward LinkNet Analog Module 4-20mA 24VDC

Availability: 10 left in stock

Woodward 9905-969 LinkNet 6-Channel Analog Input Module The 9905-969 (Model: 9905-969) is a specialized distributed I/O module within Woodward’s LinkNet architecture. It...

SKU: 9905-969

Manufacturer: Woodward
Product No.: 9905-969
Product Type: LinkNet Analog Module 4-20mA 24VDC
Product Origin: USA
Payment:T/T, Western Union
Weight: 590g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Woodward 9905-969 LinkNet 6-Channel Analog Input Module

The 9905-969 (Model: 9905-969) is a specialized distributed I/O module within Woodward’s LinkNet architecture. It is primarily engineered for industrial control systems like MicroNet and Atlas, where high-density, remote signal acquisition is required. Unlike digital speed controllers, the 9905-969 (Part Number: 9905-969) functions as a high-precision interface for six independent analog input channels, facilitating the monitoring of critical process variables such as pressure, temperature, and position via standard current loops.

This module is a "Smart" I/O solution that features integrated 24 V DC loop power. This internal power source allows the 9905-969 (Model: 9905-969) to energize two-wire field transmitters directly, significantly reducing the complexity of cabinet wiring and the need for external power distribution blocks. Communicating via a high-speed serial LinkNet bus, it provides the main control CPU with deterministic data updates and comprehensive loop diagnostics, ensuring that turbine and engine control logic operates on reliable, real-time information.

Detailed Technical Specifications

The 9905-969 (Model: 9905-969) provides optimized signal conditioning for demanding industrial environments.

Feature	Details
Manufacturer	Woodward
Model Number	9905-969
Series	LinkNet Distributed I/O
Product Type	Analog Input Module
Input Channels	6 Independent Channels
Signal Range	4–20 mA DC
Loop Power	24 V DC (Integrated for field sensors)
Power Consumption	3.1 W (Maximum)
Communication Bus	Proprietary LinkNet Serial Interface
Operating Temperature	–40°C to +70°C
Isolation	Channel-to-Bus Galvanic Isolation
Dimensions	12.7 cm $\times$ 2.5 cm $\times$ 20.3 cm
Weight	0.59 kg (1.21 lbs)
Origin	USA
