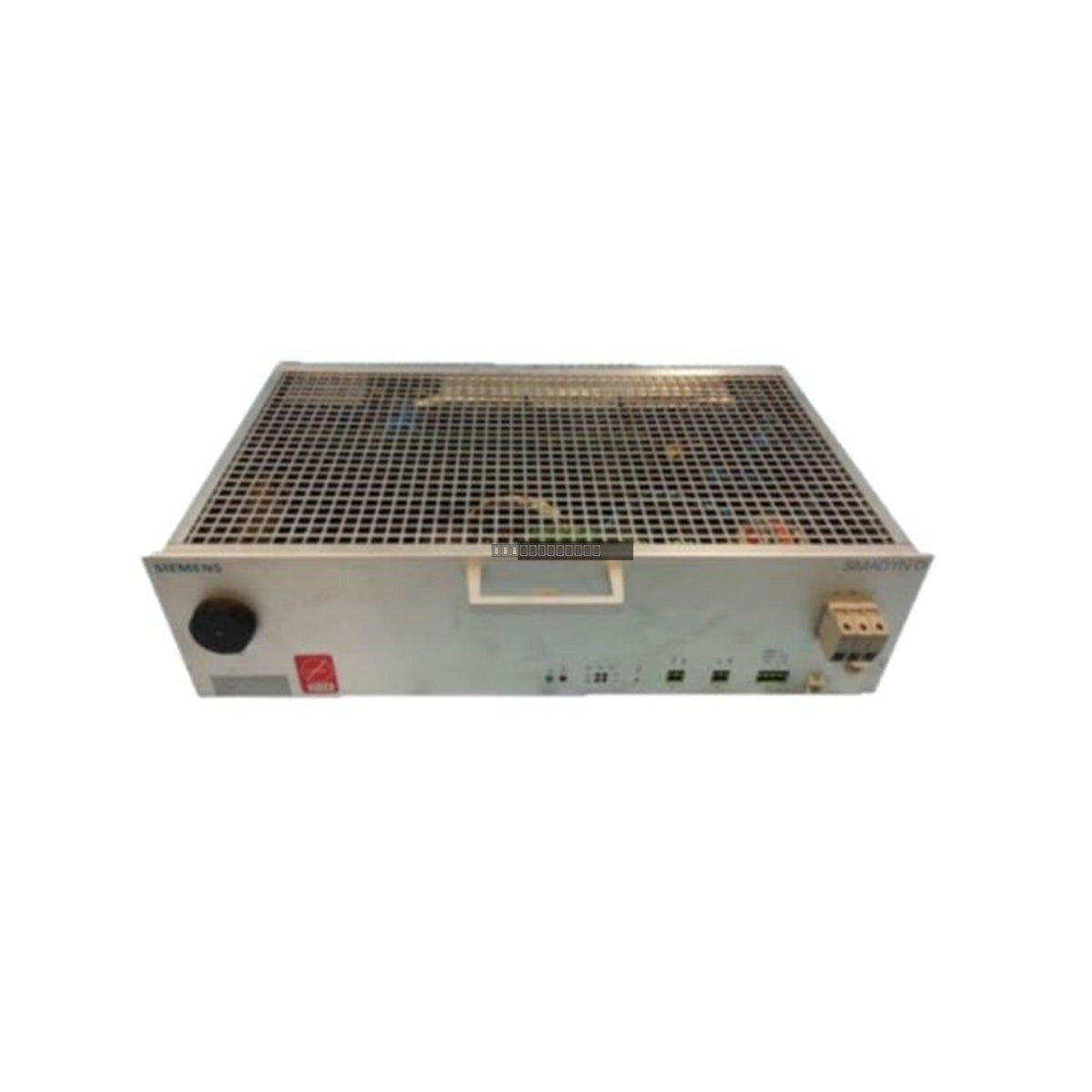

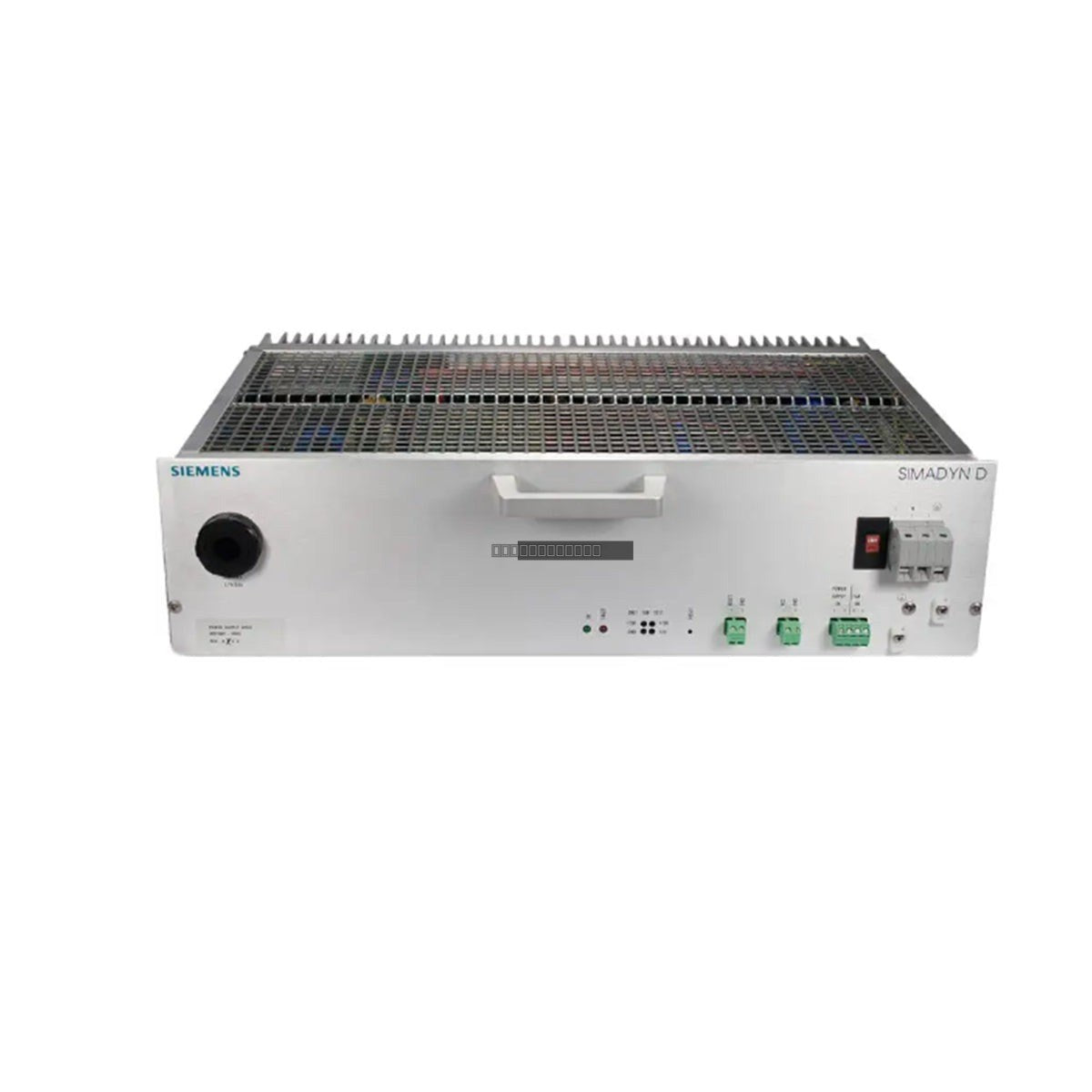

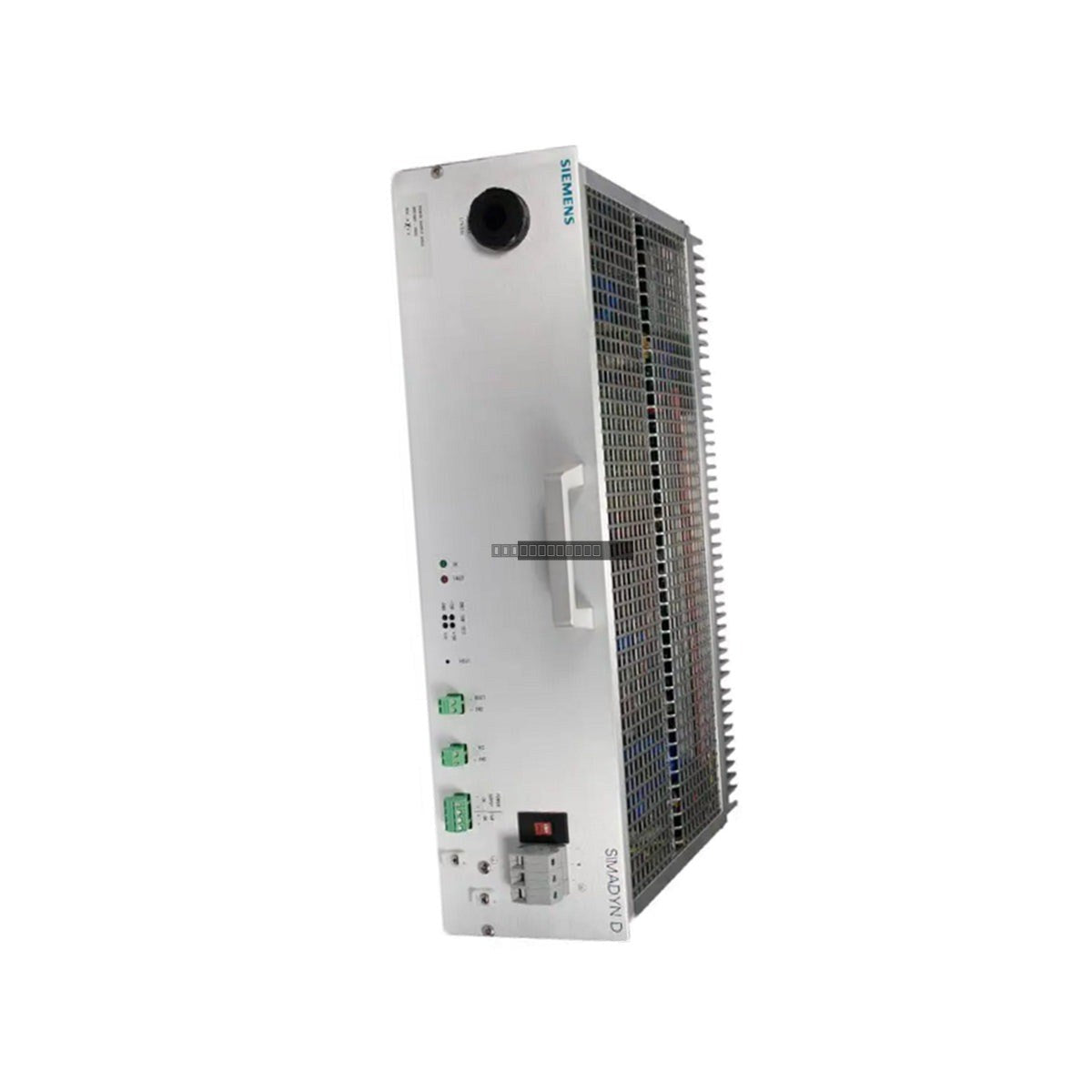

Siemens 6DD1683-0BC5 SIMADYN D SP8.5 Power Supply Unit

Siemens 6DD1683-0BC5 SIMADYN D Power Supply Unit SP8.5

Disponibilidad: 6 Quedan en stock

The Siemens 6DD1683-0BC5, identified as the SP8.5 power supply unit, is a critical component within the SIMADYN D control system...

Código: 6DD1683-0BC5

Manufacturer: Siemens
Product No.: 6DD1683-0BC5
Product Type: Power Supply Unit
Product Origin: Germany
Payment:T/T, Western Union
Weight: 7700g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

The Siemens 6DD1683-0BC5, identified as the SP8.5 power supply unit, is a critical component within the SIMADYN D control system architecture. Designed for high-performance industrial automation, this module provides the necessary stable DC power required for complex multiprocessor control environments. It is engineered to maintain consistent output levels even under demanding load conditions, making it suitable for heavy-duty applications such as rolling mills, large-scale mining infrastructure, and power generation facilities.

Features

Robust power delivery designed for high-speed SIMADYN D control systems.
Dual-input capability supporting 115/230 VAC at 50/60 Hz.
Primary output of 5 VDC at 52A, ensuring sufficient current for high-density logic and control boards.
Secondary 15 VDC output for auxiliary control circuits.
Integrated active cooling via a built-in fan to manage thermal loads during continuous operation.
Designed for integration into standard SIMADYN D subrack systems.

Applications

This power supply unit is primarily utilized in sectors requiring high-reliability control, including:

Metal processing and rolling mill drive systems.
Large-scale excavation and heavy mining equipment.
Industrial power distribution and grid management systems.
Continuous production lines where stable voltage regulation is essential to prevent process downtime.

Technical Specifications

Model	6DD1683-0BC5
Brand	Siemens
Series	SIMADYN D
Input Voltage	115/230 VAC (Switchable/Auto-ranging)
Input Frequency	50/60 Hz
Output 1	5 VDC / 52A
Output 2	15 VDC
Cooling	Forced-Air Fan
Operating Temperature	0 to 55 deg C
Storage Temperature	-40 to 70 deg C
Protection Rating	IP20

Installation Guidelines

Ensure the subrack is powered down before inserting or removing the SP8.5 module to prevent electrical damage.
Verify that the input voltage selector matches the local supply (115V or 230V) before applying power.
Maintain clear airflow paths around the module to allow the integrated fan to dissipate heat effectively.
Ensure the module is securely seated in the rack and that all terminal connections are tightened according to standard industrial practices.
Use shielded cabling for output power distribution to minimize electromagnetic interference (EMI) with adjacent signal modules.

FAQ

What is the primary function of the 6DD1683-0BC5 in the SIMADYN D system?
This unit serves as the main power supply for the controller subrack, converting AC mains voltage into the stable 5 VDC and 15 VDC levels required for the system's processors and logic modules.

Is the cooling fan user-replaceable?
The unit features an integrated fan system designed for long-term reliability. If the fan fails, the entire module typically requires assessment or replacement to maintain thermal compliance.

Can this unit operate in high-temperature environments?
The module is rated for operation up to 55 deg C. Ensure the cabinet or subrack is adequately ventilated to stay within this specified operating range.
