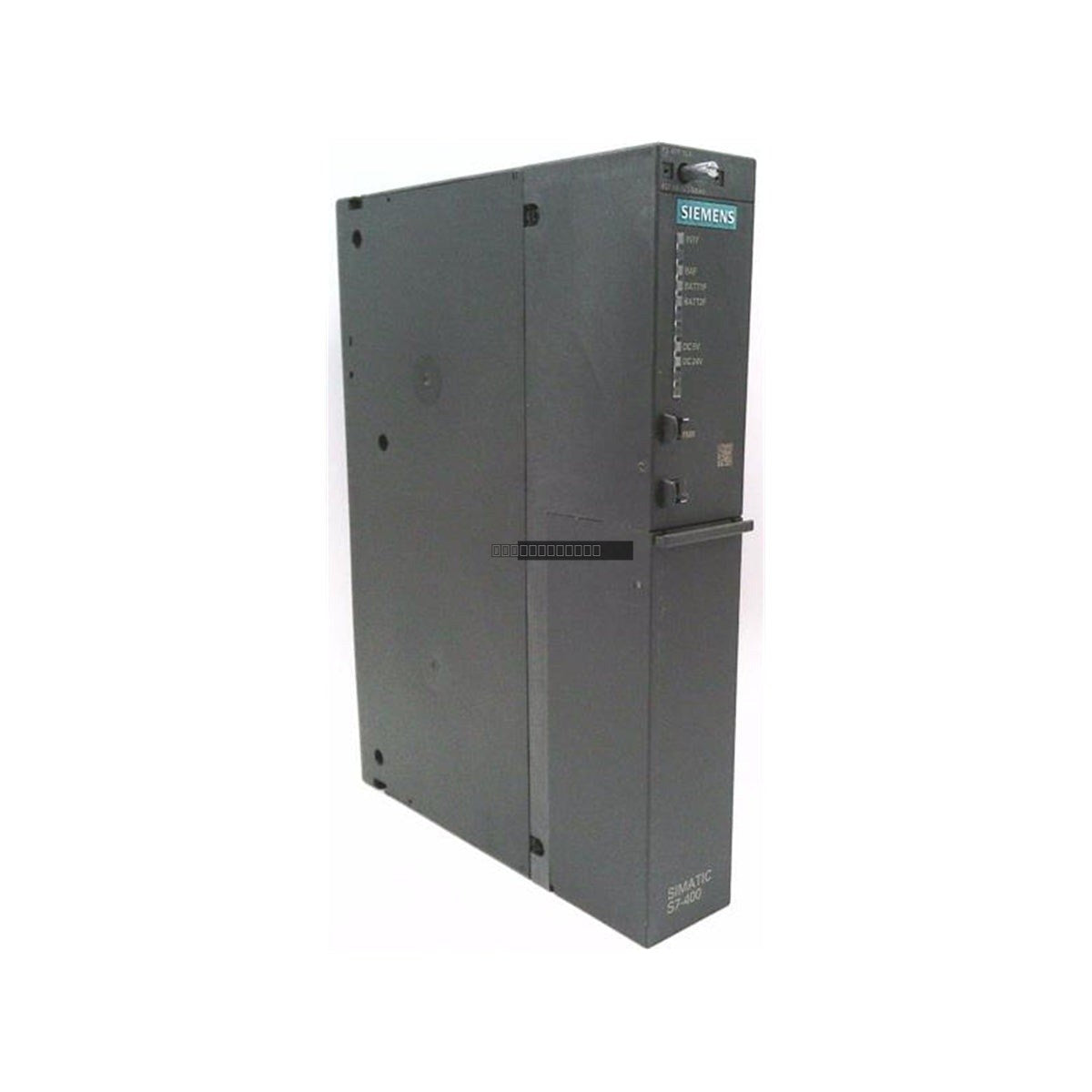

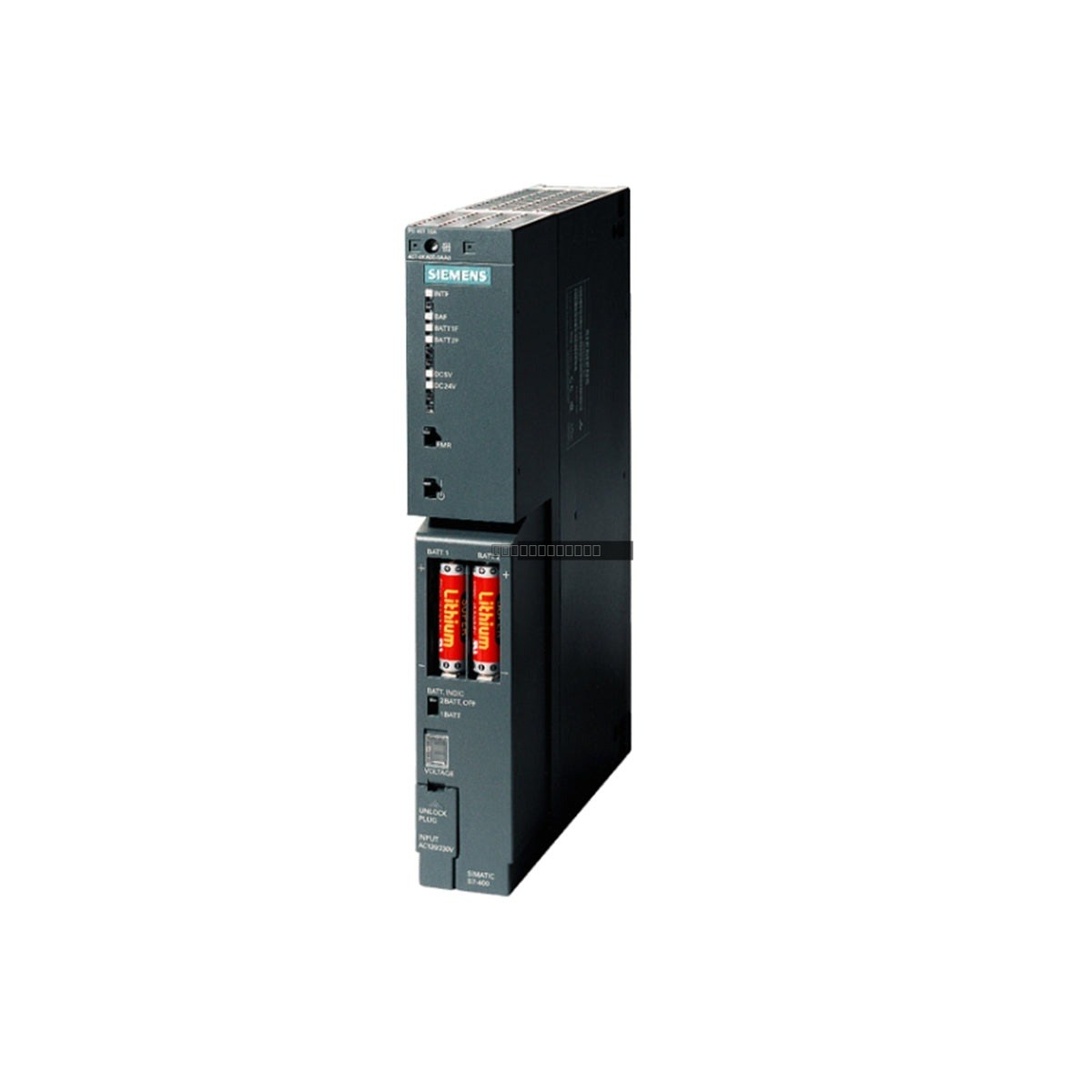

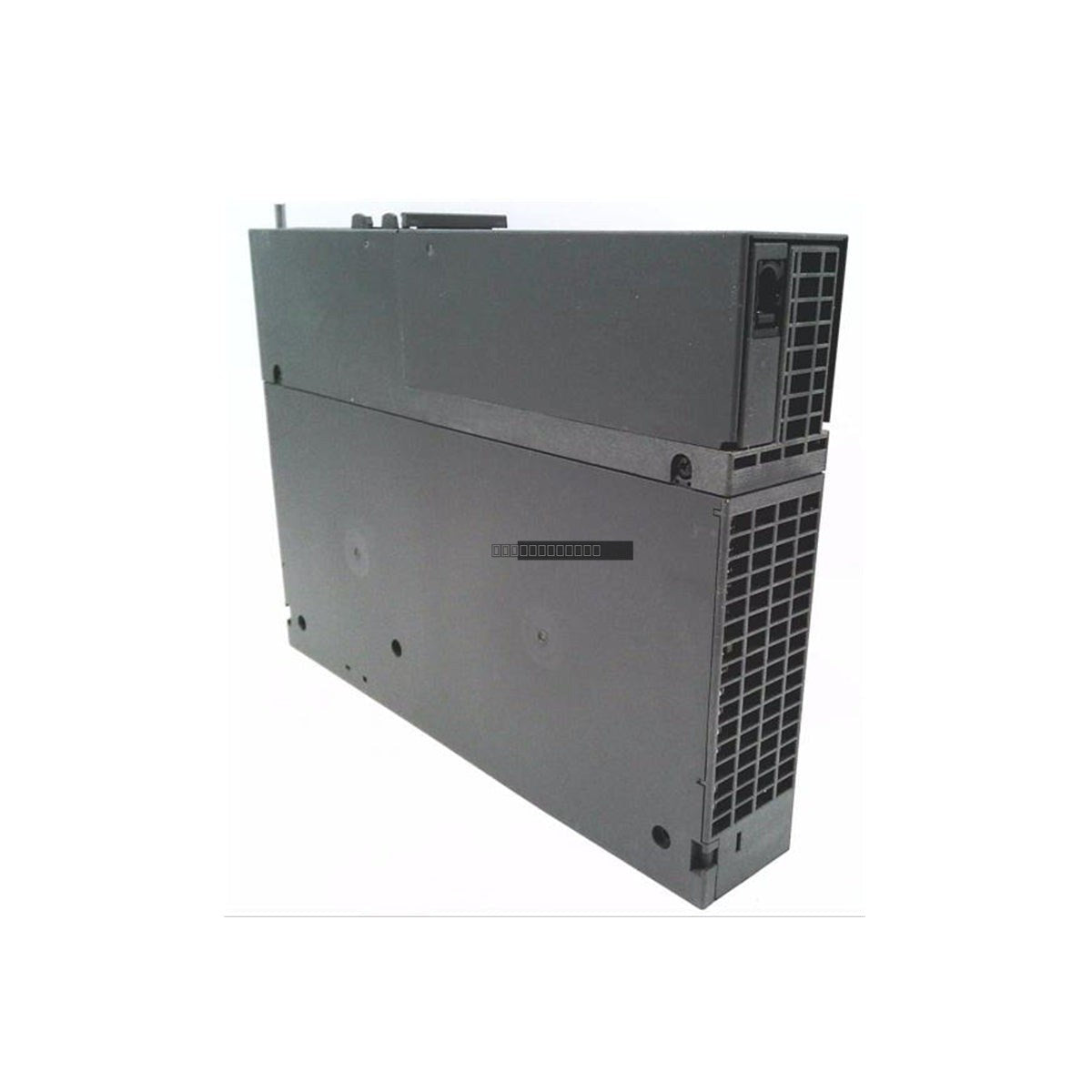

Siemens 6ES7407-0KA02-0AA0 S7-400 PS 407 10A Power Supply

Siemens 6ES7407-0KA02-0AA0 SIMATIC S7-400 Power Supply Module PS 407 10A

Disponibilidad: 4 Quedan en stock

The Siemens 6ES7407-0KA02-0AA0 is a high-performance power supply module designed specifically for the SIMATIC S7-400 automation platform. As a PS...

Código: 6ES7407-0KA02-0AA0

Manufacturer: Siemens
Product No.: 6ES7407-0KA02-0AA0
Product Type: PLC Power Supply Module
Product Origin: Germany
Payment:T/T, Western Union
Weight: 1150g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

The Siemens 6ES7407-0KA02-0AA0 is a high-performance power supply module designed specifically for the SIMATIC S7-400 automation platform. As a PS 407 series unit, it is engineered to deliver reliable, regulated DC power to the S7-400 backplane, ensuring stable operation for CPUs, communication processors, and I/O modules in complex industrial control systems.

Features

Designed for SIMATIC S7-400 PLC backplane power distribution
Wide-range input support: 120/230 V AC and 120/230 V DC
Output capacity: 5 V DC / 10 A for system logic, plus 24 V DC auxiliary output
Integrated protection against short-circuits and overloads
Galvanic isolation between primary and secondary circuits
Maintains system operation during brief power dips with a 20 ms buffering time

Applications

Automotive manufacturing and robotics control
Chemical processing and pharmaceutical plant automation
Food and beverage material handling and packaging lines
Infrastructure management for water and sewage treatment facilities
Energy sector SCADA and substation monitoring

Technical Specifications

Model	6ES7407-0KA02-0AA0
Input Voltage (DC)	88 V to 300 V
Input Frequency	47 Hz to 63 Hz
Output Current	10 A (5 V DC)
Buffering Time	20 ms
Typical Power Consumption	95 W
Manufacturer	Siemens
Weight	1.15 kg

Installation Guidelines

The module must be mounted in the leftmost slot of the S7-400 rack.
Hook the module onto the bottom rail of the rack and pivot it upward until the top locking mechanism engages.
Secure the module using the integrated screw at the bottom.
Maintain a minimum clearance of 20 mm above and below the unit to facilitate natural convection cooling.
Ensure the system is powered down before inserting or removing the module to prevent electrical damage.

FAQs

What is the primary function of the 6ES7407-0KA02-0AA0?

This module acts as the primary power source for the S7-400 backplane bus, converting standard industrial AC/DC voltages into the required 5 V DC and 24 V DC levels for the PLC system.

Does this unit support redundant power configurations?

No, this is a standard power supply module. For redundant power configurations, you must utilize the specific 6ES7407-0KR02-0AA0 model.

What battery is required for memory backup?

This power supply supports the use of a 3.6 V / 2.3 Ah AA lithium battery to maintain RAM contents and system parameters during power loss.

What are the input voltage tolerances?

The module accepts a wide range of inputs, specifically 88 V to 300 V DC and standard 120/230 V AC mains.
