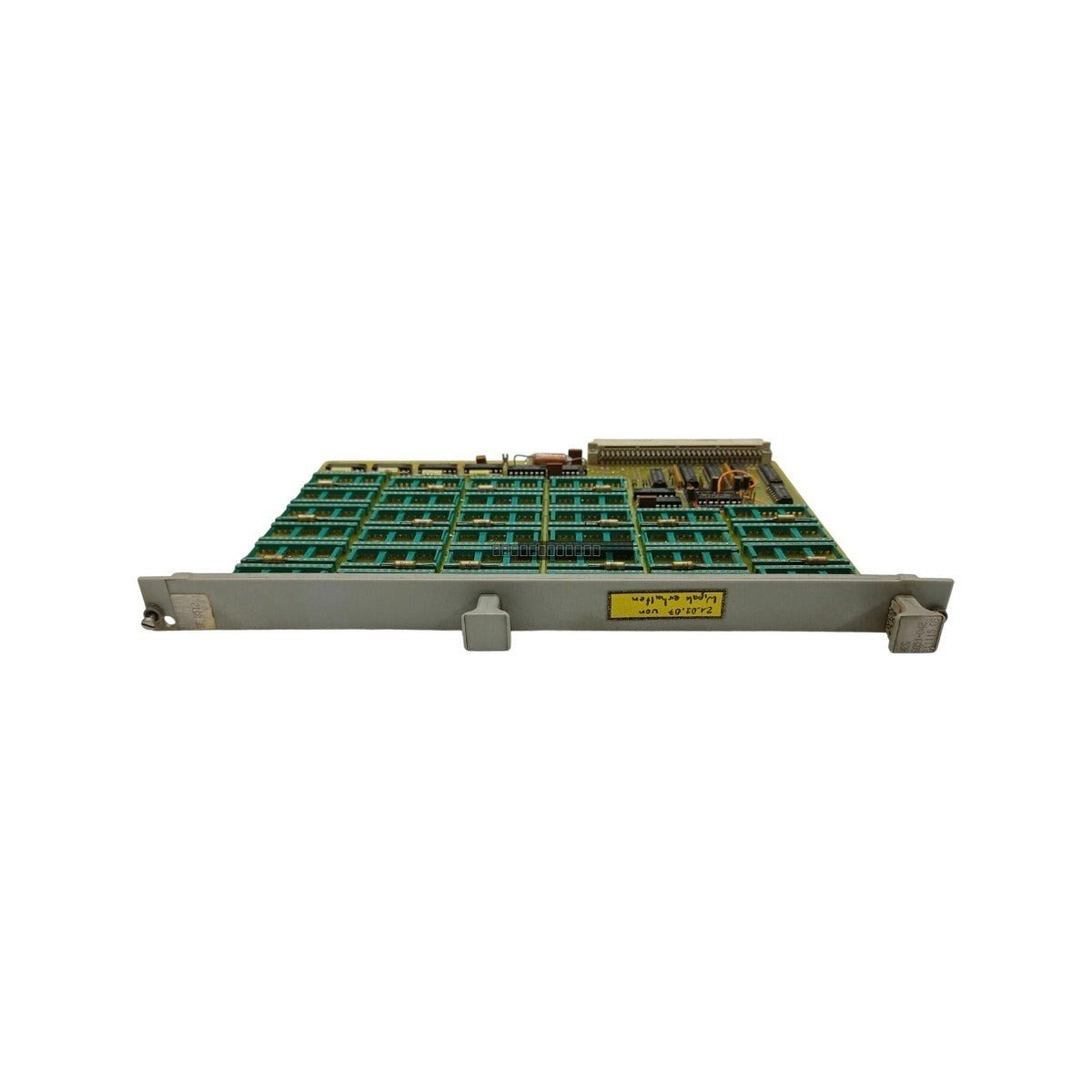

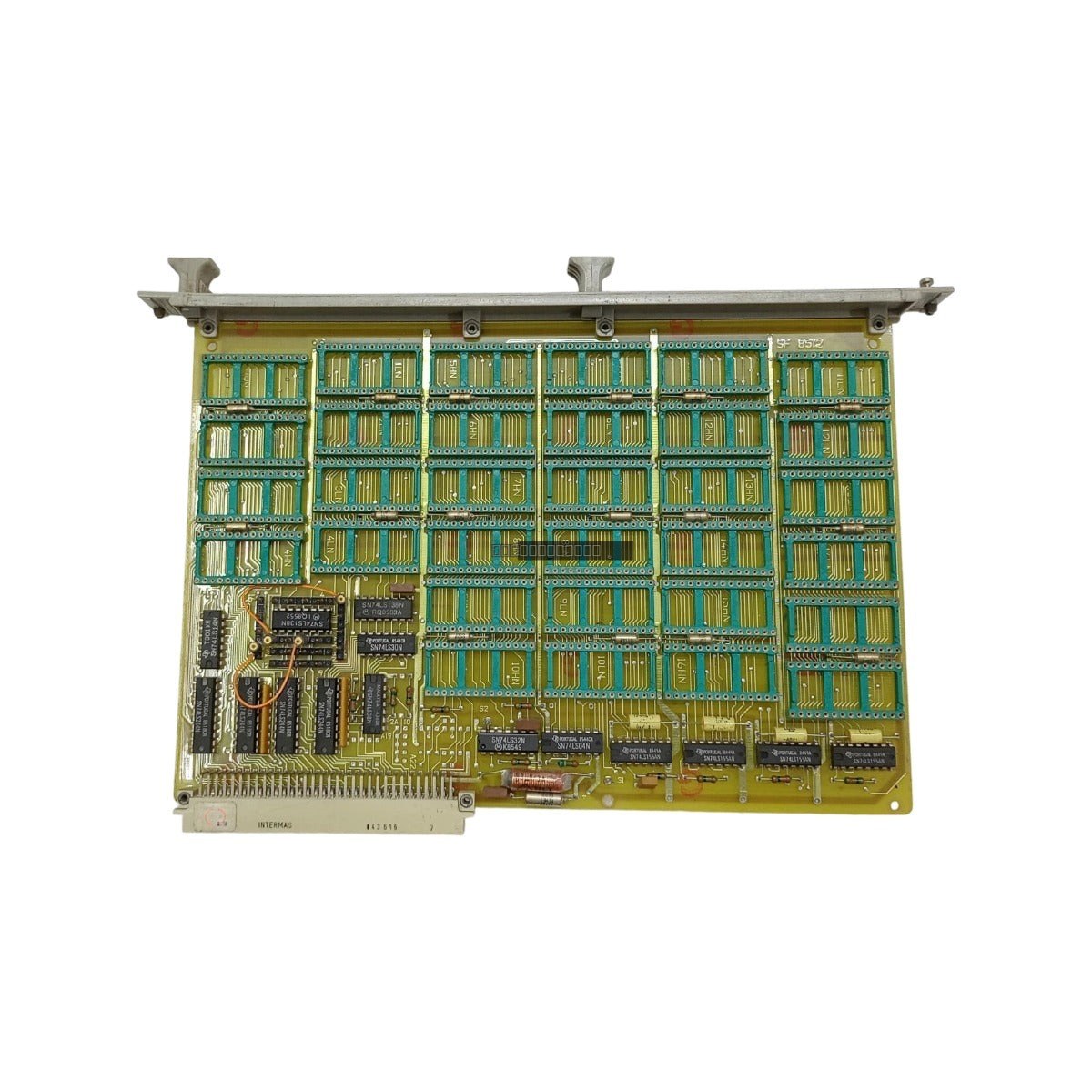

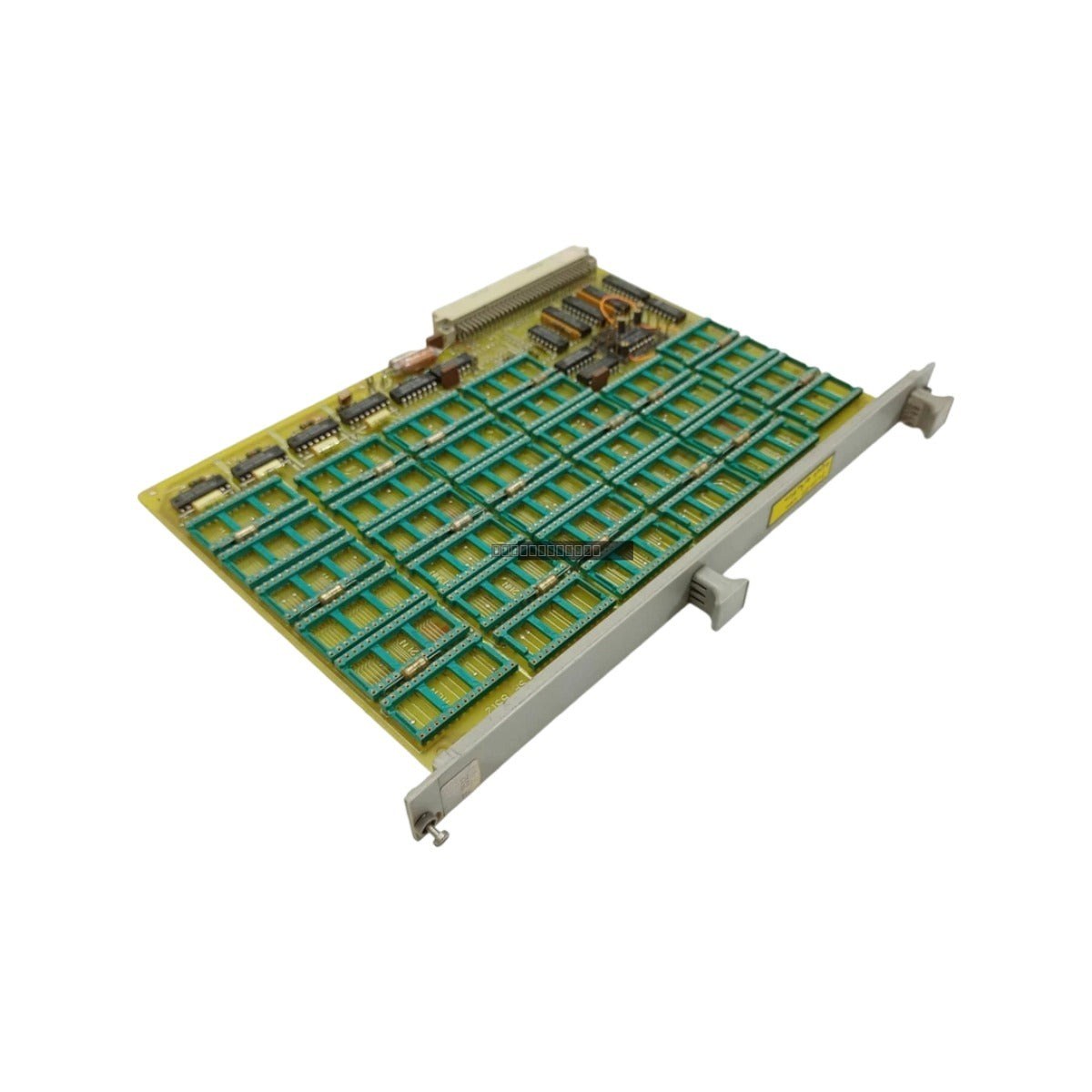

Schneider Electric AEG Modicon SF 8512 Power Supply Module

Schneider Electric AEG Modicon SF 8512 Power Supply Module

Disponibilidad: 4 Quedan en stock

DescriptionThe SF 8512 is a high-reliability power supply module designed for the AEG Schneider Electric Modicon automation platform. This module...

Código: SF 8512

Manufacturer: Schneider
Product No.: SF 8512
Product Type: Power Supply Module
Product Origin: Germany
Payment:T/T, Western Union
Weight: 1650g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Description

The SF 8512 is a high-reliability power supply module designed for the AEG Schneider Electric Modicon automation platform. This module converts raw AC line voltage into regulated DC potentials required for backplane logic circuitry and field instrumentation. Engineered for heavy-duty industrial environments, it provides essential power conditioning, galvanic isolation, and surge protection to ensure the stability and availability of critical control systems.

Features

Advanced switch-mode power conversion for high thermal efficiency.
Supports parallel load-sharing configurations for redundant, fault-tolerant power bus architectures.
Integrated diagnostic LED cluster for real-time monitoring of input status, output voltage (OK), and fault conditions (over-temperature/overload).
Comprehensive protection features including overvoltage clamping, short-circuit current limiting, and galvanic mains isolation.
Universal auto-ranging AC input capability.

Applications

This module is suitable for use in demanding industrial sectors, including chemical processing, petroleum refining, thermal power generation, and mining operations where continuous, stable power delivery is critical to process uptime.

Technical Specifications

Model	SF 8512
Input Voltage Range	95 to 264 V AC (auto-ranging)
Input Frequency	47 to 63 Hz
Output 1	5 V DC / 12 A
Output 2	24 V DC / 5 A
Total Power Output	180 W
Efficiency	> 85%
Operating Temperature	0 to 60 deg C
Storage Temperature	-40 to 85 deg C
Relative Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20

Installation Guidelines

Ensure the module is installed in a clean, dry environment with adequate ventilation to maintain operating temperatures within the specified range.
Always disconnect power before installing or removing the module from the rack to prevent electrical shock or damage to backplane components.
Use appropriate wire gauges for high-current screw terminals to ensure secure connections and minimize voltage drop.
Ensure proper grounding of the module chassis to the system common to mitigate EMI and ensure safety.
Verify that the input voltage is within the specified 95-264 V AC range before energizing.

FAQ

What is the primary function of the SF 8512 module?

The SF 8512 acts as a power supply unit for the Modicon automation system, providing regulated 5V DC for internal logic and 24V DC for field devices while protecting against line-side surges.

Does this module support redundant power configurations?

Yes, the SF 8512 supports parallel load-sharing, allowing multiple units to be connected to a common power bus for high-availability applications.

What do the diagnostic LEDs indicate?

The front-mounted LEDs provide visual confirmation of input power status, healthy output voltage (OK), and fault conditions such as over-temperature or overload, facilitating rapid troubleshooting.
