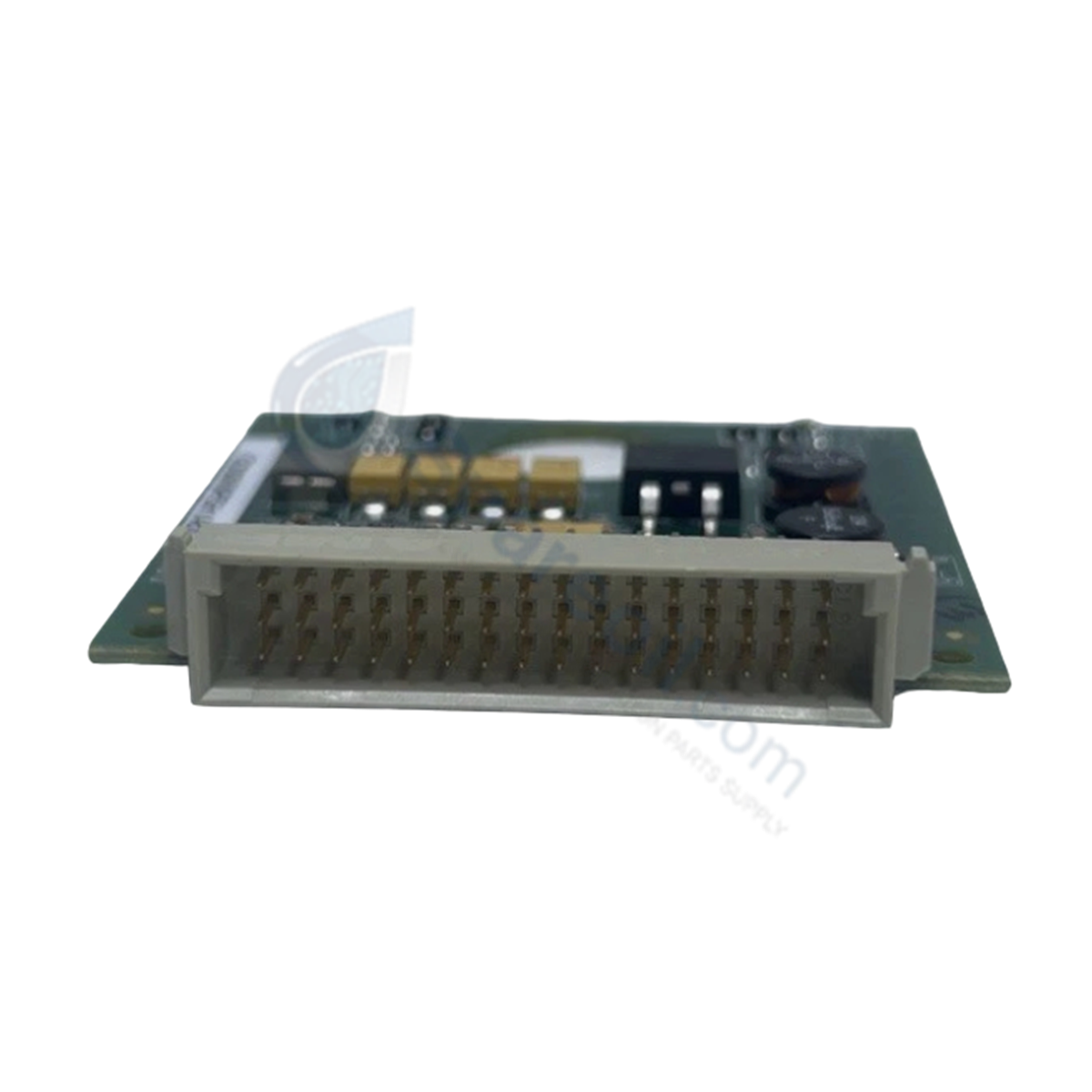

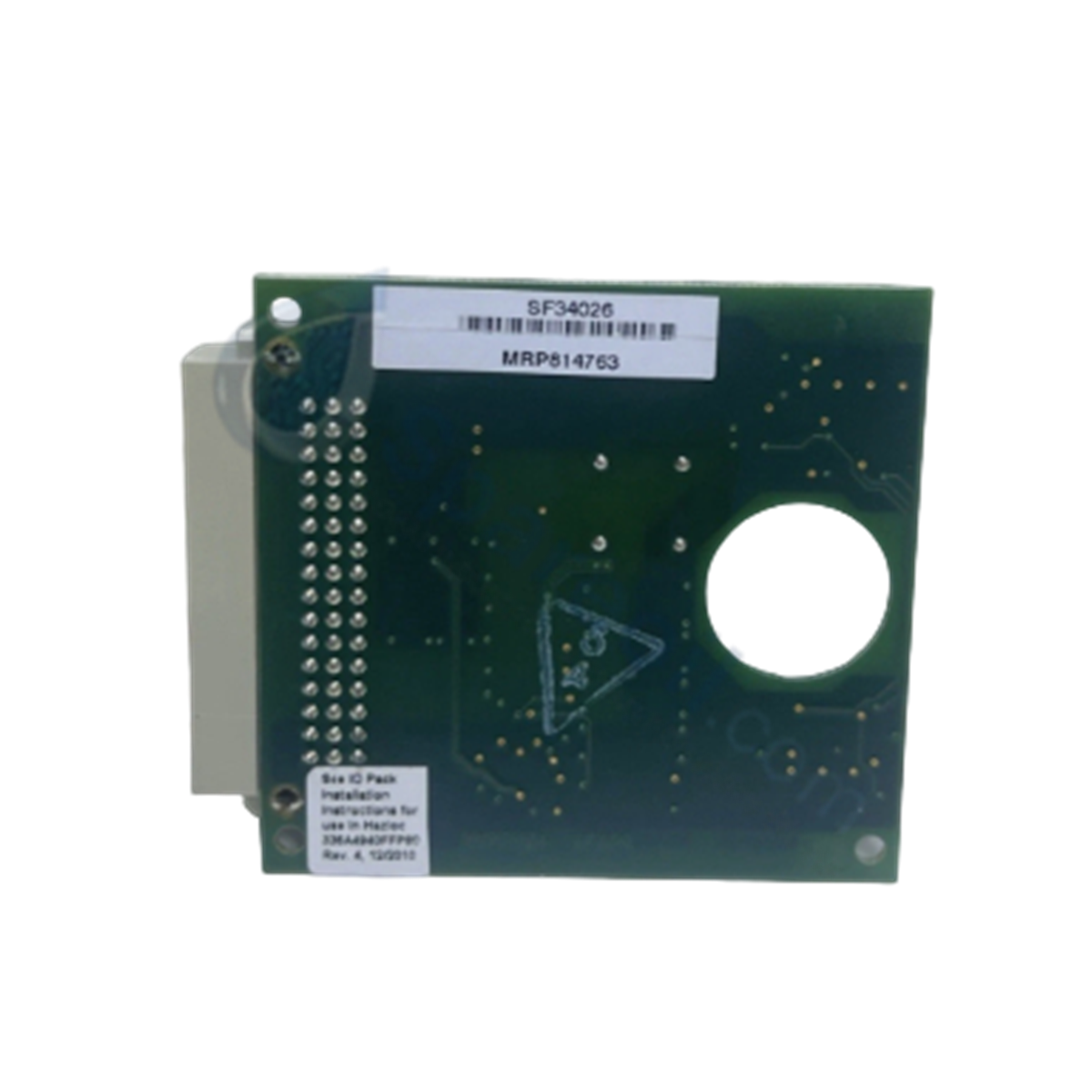

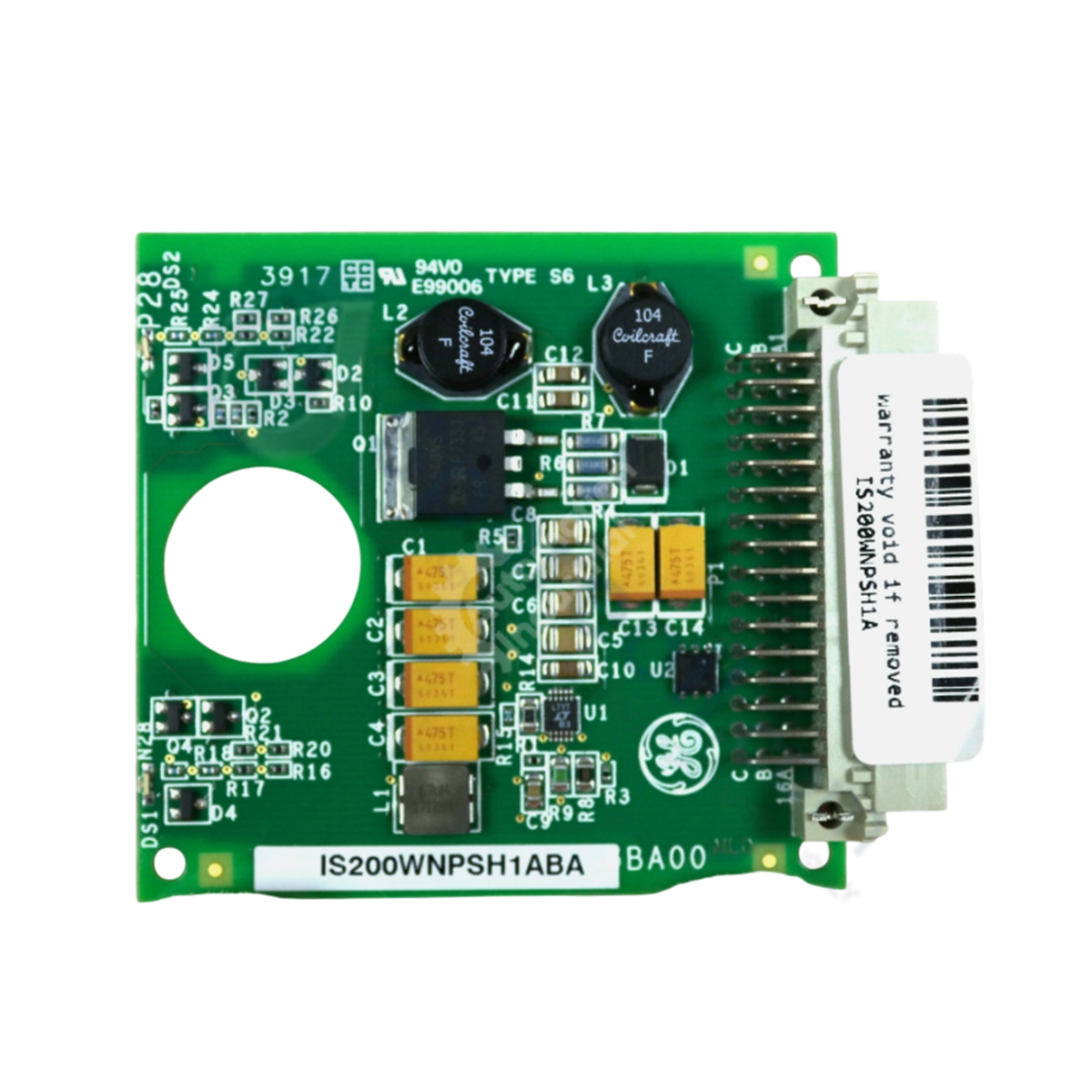

IS200WNPSH1ABA GE Power Supply Board

IS200WNPSH1ABA Mark VI Power Supply Daughter Card | GE Fanuc

IS200WNPSH1ABA Mark VI Power Supply Daughter Card | GE Fanuc

Disponibilidad: 10 Quedan en stock

Configured for internal power distribution and voltage regulation in GE Mark VI Speedtronic control systems, the GE IS200WNPSH1ABA (IS200WNPS Power...

Código: IS200WNPSH1ABA

Manufacturer: General Electric
Product No.: IS200WNPSH1ABA
Product Type: Power Supply Boards
Product Origin: China
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Configured for internal power distribution and voltage regulation in GE Mark VI Speedtronic control systems, the GE IS200WNPSH1ABA (IS200WNPS Power Supply Daughter Card) provides direct physical/electrical execution. The board uses integrated voltage-limiting passive and active components—including capacitors, transistors, resistors, and diodes—to manage stable power delivery across daughter card interfaces.

Hardware Specifications

Parameter	Specification
Model	IS200WNPSH1ABA
Brand	GE
Origin	USA
Weight	0.45 kg
Dimensions	Standard Mark VI Daughter Card Form Factor
Operating Temp	-30 to +65 deg C
Power Consumption	15 W (Internal system bus)
System Compatibility	GE Mark VI Speedtronic Control System
Board Type	Power Supply Daughter Card
Circuit Protection	Type A Conformal PCB Coating
Revision Structure	A-rated primary, B-rated artwork, A-rated assembly

Backplane Bus Communication Velocity and Firmware Integration

The IS200WNPSH1ABA supports backplane bus communication velocity across the host module chassis to ensure real-time power regulation feedback. Onboard circuit paths maintain firmware flash compatibility with main controller processors, preventing power fluctuations from disrupting I/O density scaling and processing cycles across connected Mark VI control racks.

Frequently Asked Questions

Q: Are all revision levels of the IS200WNPSH1ABA backwards-compatible with earlier releases?

A: No. Only the first two revision iterations maintain direct backward-compatibility due to shared functional hardware configurations in the Mark VI Series.

Q: What protection level does the conformal coating provide on the IS200WNPSH1ABA PCB?

A: The board features a thin, fully applied protective coating that insulates conductive traces against environmental contaminants, moisture, and airborne particulates.

Q: How is the IS200WNPSH1ABA physically secured to its primary host board?

A: The board contains four factory-drilled corner mounting holes for physical mounting onto standoffs within the main assembly.

Field Installation Guidelines

Align the mounting holes on the IS200WNPSH1ABA with the corresponding standoffs on the primary host module. Press the daughter card firmly into place to engage the multi-pin interface connectors without bending terminal pins. Secure the card using non-conductive mounting screws. Ensure all system power supplies are completely de-energized before installing or removing the daughter card from the assembly chassis.
