21000-16-05-15-098-03-02 Bently Nevada Housing

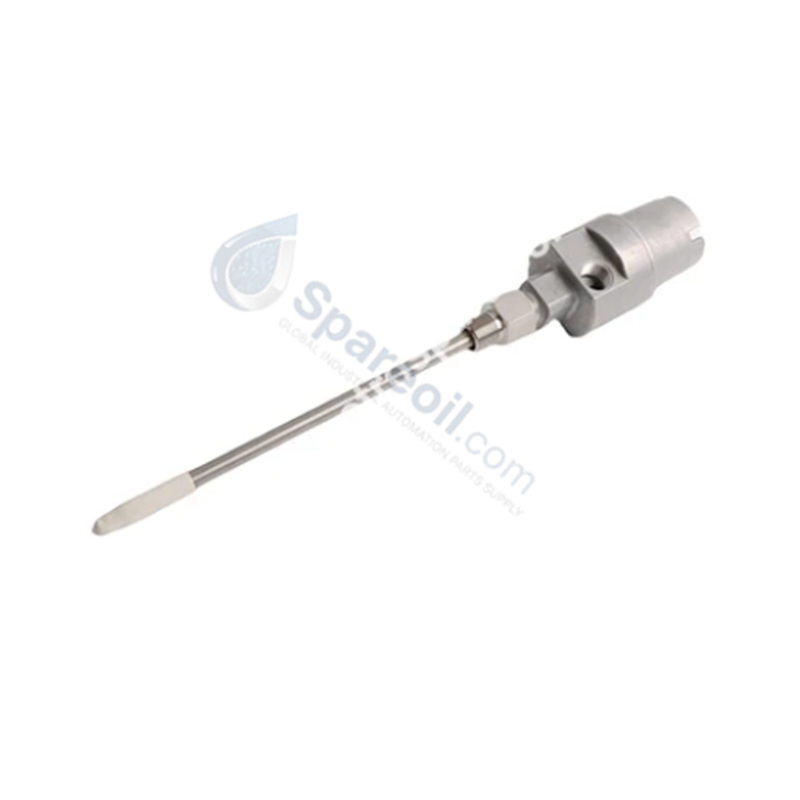

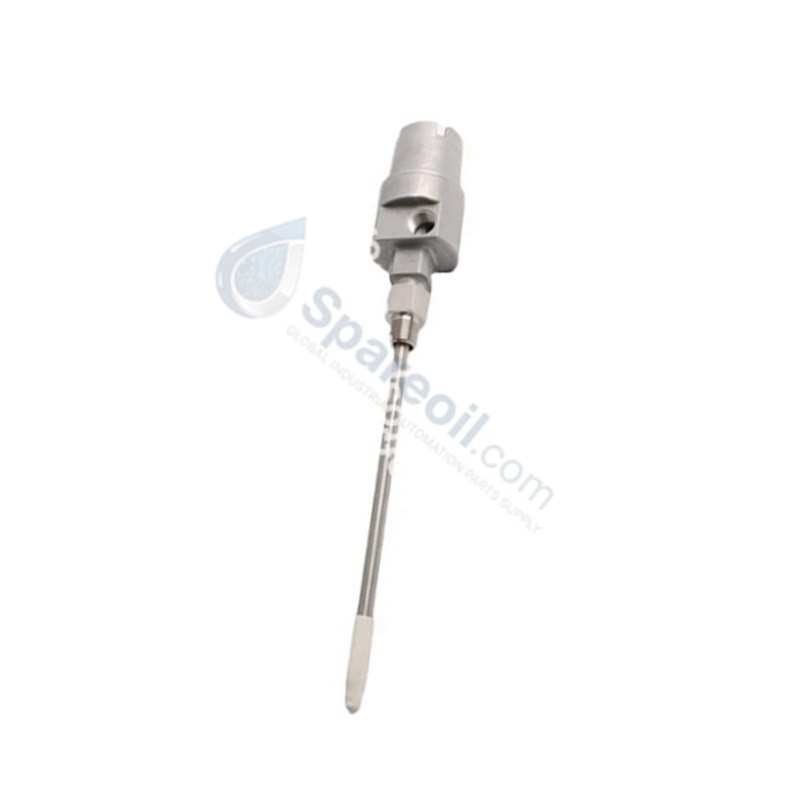

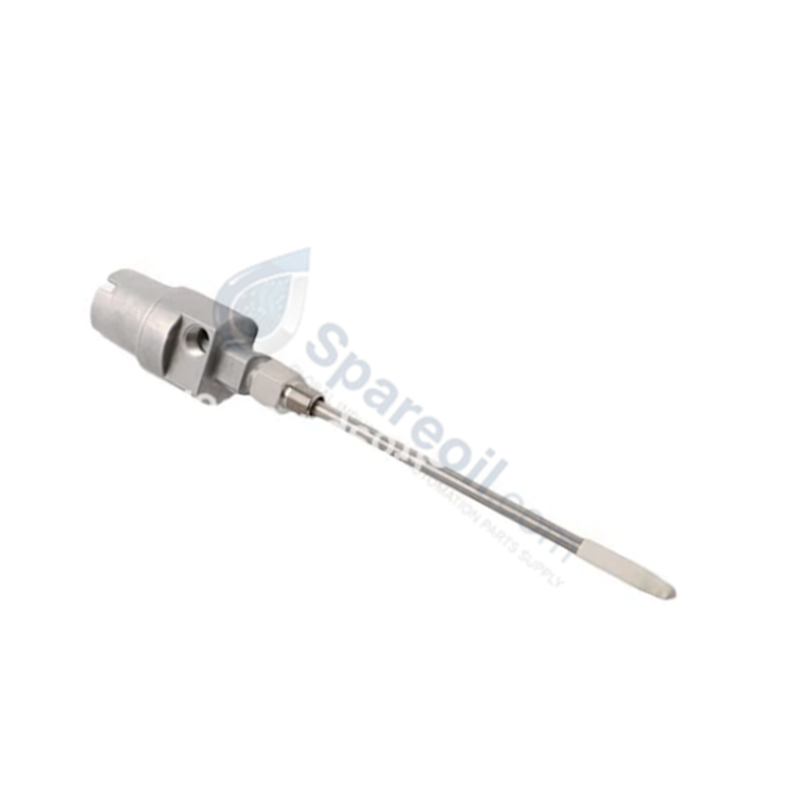

Bently Nevada 21000-16-05-15-098-03-02 Proximity Probe Housing Assembly

Bently Nevada 21000-16-05-15-098-03-02 Proximity Probe Housing Assembly

Disponibilidad: 10 Quedan en stock

Configured for mechanical support and environmental protection of vibration monitoring sensors, the Bently Nevada 21000-16-05-15-098-03-02 (21000 Proximity Probe Housing Assembly)...

Código: 21000-16-05-15-098-03-02

Manufacturer: Bently Nevada
Product No.: 21000-16-05-15-098-03-02
Product Type: Proximity Probe Housing Assemblies
Product Origin: USA
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Configured for mechanical support and environmental protection of vibration monitoring sensors, the Bently Nevada 21000-16-05-15-098-03-02 (21000 Proximity Probe Housing Assembly) provides direct physical execution for housing 3300 XL 8 mm probes within industrial monitoring networks.

Suffix Breakdown & Model Matrix

Suffix	Description
21000	Base Model: Proximity Probe Housing Assembly
16	Probe Option: 3300 XL 8 mm probe
05	Cable Length: 0.5 m (20 in)
15	Standoff Adapter: Minimum length 1.5 in (38 mm)
098	Probe Penetration: 9.8 in
03	Fittings: 3/4-14 NPT plug, 3/4-14 to 1/2-14 NPT reducer, cable seal grip
02	Mounting Thread: 3/4-14 NPT

Hardware Specifications

Parameter	Specification
Model	21000-16-05-15-098-03-02
Brand	Bently Nevada
Origin	USA
Weight	1.1 kg (typical, without fittings)
Dimensions	67.72 cm x 8.33 cm x 8.33 cm
Operating Temp	-40 deg C to +177 deg C
Power Consumption	N/A (Passive mechanical component)
Material	Aluminum body, 304 stainless steel sleeve

Rotor Dynamics and Gap Voltage Validation

The 21000 assembly ensures the mechanical stability required for accurate rotor dynamics monitoring. Proper probe positioning is mandatory to capture shaft vibration and position data within the linear range of the transducer. During installation, technicians must perform gap voltage validation to confirm the probe tip is set to the target -10 VDC at the monitor input. This housing is designed to minimize structural resonance, ensuring that the sensor maintains a fixed physical reference against the shaft. Proper installation prevents measurement errors caused by probe-to-shaft contact or excessive gap fluctuation under varying machine load conditions.

Frequently Asked Questions

Q: Can the cable seal grip be utilized for multiple cable diameters?

A: Yes, the included cable seal grip is equipped with interchangeable grommets to accommodate cable sizes ranging from 1/8 in to 3/8 in. Ensure the correct grommet is selected to maintain the environmental seal integrity.

Q: Is the 3/4-14 NPT mounting thread compatible with all machine cases?

A: The mounting thread selection must match the machine case port. If the port size differs, the specified NPT reducer and adapter configurations must be verified to ensure mechanical alignment and sealing.

Field Installation Guidelines

Apply a compatible thread sealant to all NPT-threaded connections to ensure a pressure-tight seal and prevent oxidation in industrial environments.
Ensure the probe sleeve is properly adjusted to the required 9.8 in penetration depth and secured with the lock nut to prevent movement during machine operation.
Install the conduit fittings and cable grip to ensure the internal probe wiring is protected from physical stress and ambient moisture.
Verify that the housing assembly is mounted perpendicular to the target surface to maintain consistent eddy-current response across the probe face.
