330101-00-12-05-02-05 Bently Nevada Proximity Probe

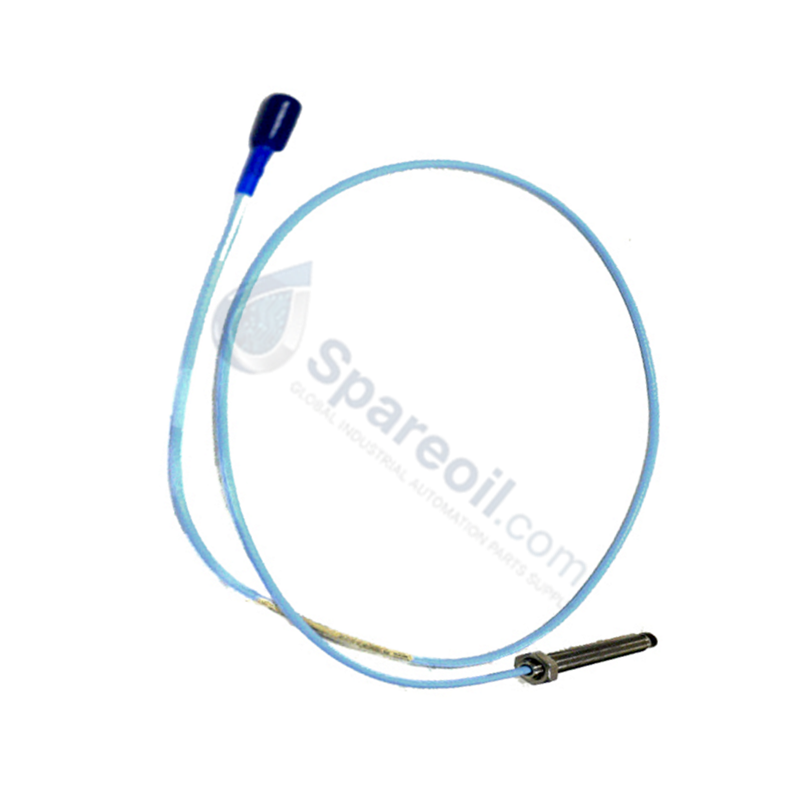

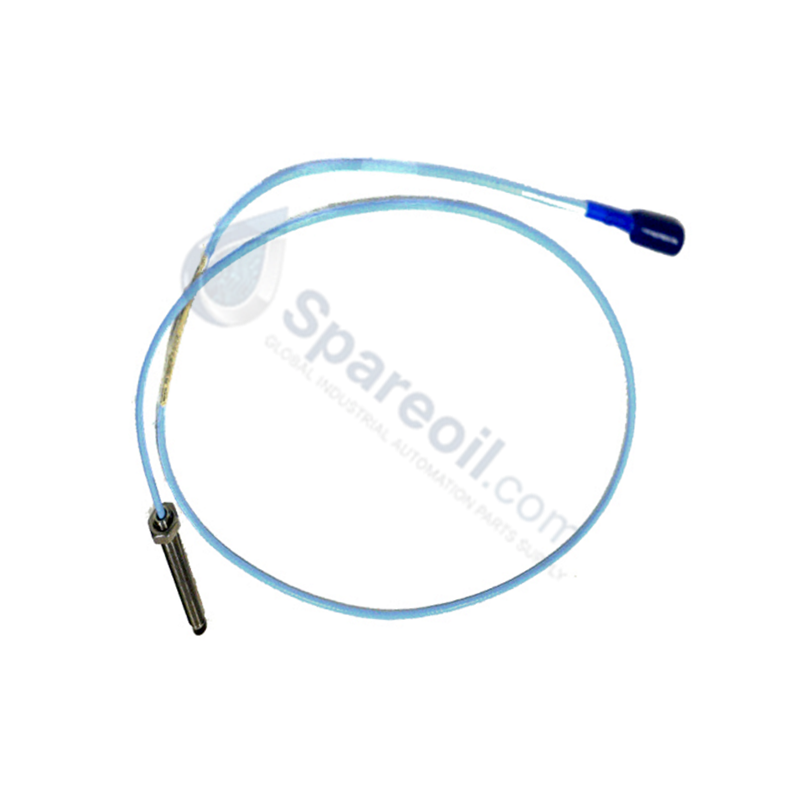

Bently Nevada 330101-00-12-05-02-05 Proximity Probe

Bently Nevada 330101-00-12-05-02-05 Proximity Probe

Disponibilidad: 10 Quedan en stock

Configured for precision vibration sensing in mechanical monitoring networks, the Bently Nevada 330101-00-12-05-02-05 (330101 Proximity Probe) provides direct electrical translation...

Código: 330101-00-12-15-02-05

Manufacturer: Bently Nevada
Product No.: 330101-00-12-15-02-05
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 323g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Configured for precision vibration sensing in mechanical monitoring networks, the Bently Nevada 330101-00-12-05-02-05 (330101 Proximity Probe) provides direct electrical translation of shaft displacement for integration with machine protection platforms.

Suffix Breakdown & Model Matrix

Suffix	Description
330101	Base Model: 3300 XL 8 mm Probe, 3/8-24 UNF thread, no armor
00	Unthreaded Length: 0.0 in
12	Overall Case Length: 1.2 in
05	Total Length: 0.5 m (1.6 ft)
02	Connector: Miniature coaxial ClickLoc connector, standard cable
05	Agency Approval: CSA, ATEX, IECEx

Hardware Specifications

Parameter	Specification
Model	330101-00-12-05-02-05
Brand	Bently Nevada
Origin	USA
Dimensions	1.2 in case length, 0.5 m cable
Operating Temp	-51 deg C to +177 deg C
Power Consumption	N/A (Passive transducer)
Probe Diameter	8 mm
Mounting Thread	3/8-24 UNF

Eddy-Current Probe Scaling and Rotor Dynamics

The 330101 probe utilizes eddy-current technology to measure the gap between the probe tip and the metallic target surface. Correct rotor dynamics analysis depends on precise adherence to the factory-calibrated eddy-current probe scaling (typically 7.87 V/mm). During installation, the probe must be adjusted to achieve a gap voltage validation target of -10 VDC when the machine is in a nominal operating state. This ensures the transducer is centered within its linear operating range. Cross-talk suppression is maintained via the coaxial cable design; however, the shield must be correctly terminated at the monitor interface to prevent signal interference from external electromagnetic fields.

Frequently Asked Questions

Q: Can this probe be used in hazardous environments?

A: Yes, the 05 suffix indicates that this model includes CSA, ATEX, and IECEx approvals. Always verify the specific zone classification on site documentation and ensure proper barrier or isolator usage according to local safety regulations.

Q: Is the ClickLoc connector compatible with non-3300 XL extension cables?

A: No. The ClickLoc connector is specific to the 3300 XL series. Mating this probe with non-compatible cables will cause impedance mismatches, leading to significant signal degradation and inaccurate vibration readings.

Field Installation Guidelines

Ensure the mounting threads (3/8-24 UNF) are clean and free of debris. Use a non-conductive thread sealant if required by the machine installation manual.
Verify the probe gap using a precision feeler gauge or the monitoring system's DC voltage output; target the manufacturer's recommended gap voltage to ensure the probe remains in the linear measurement zone.
Hand-tighten the probe until contact with the target is made, then back off according to the specified gap distance; torque the lock nut securely to prevent movement during machine operation.
Route the 0.5 m miniature coaxial cable along the machine case using approved cable clips to prevent vibration-induced fatigue and potential cable breakage.
