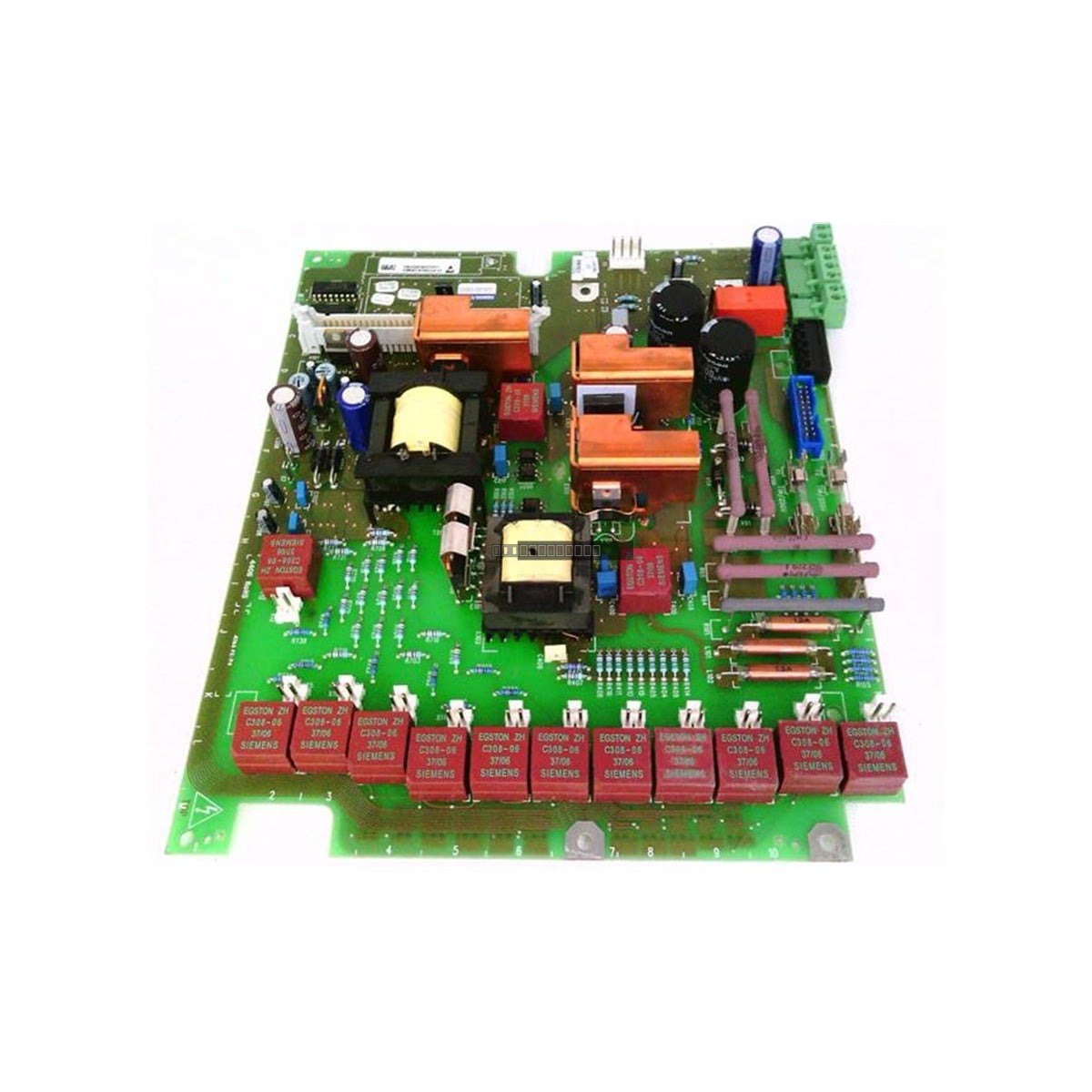

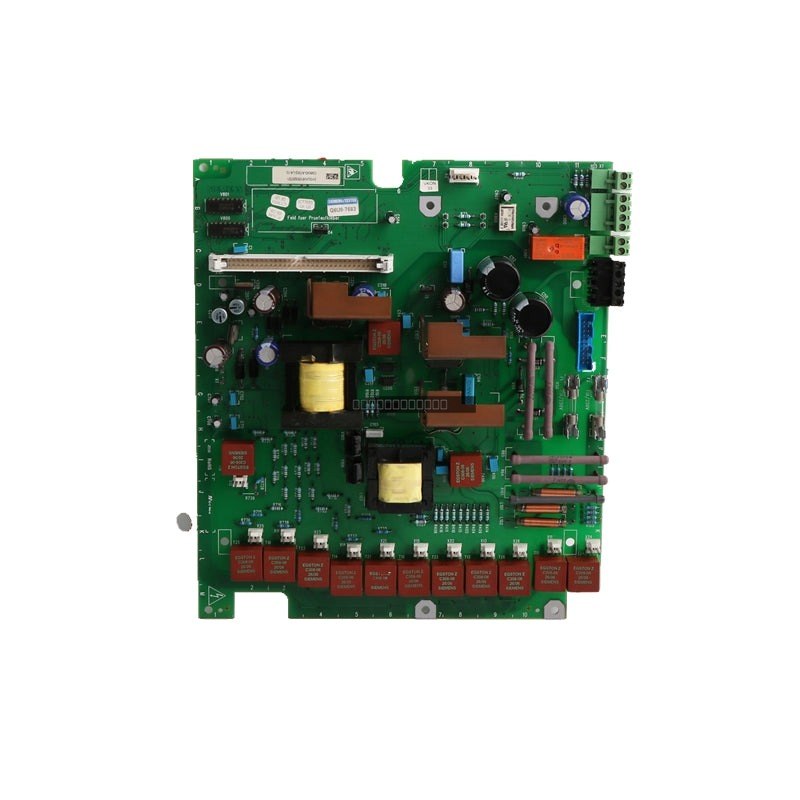

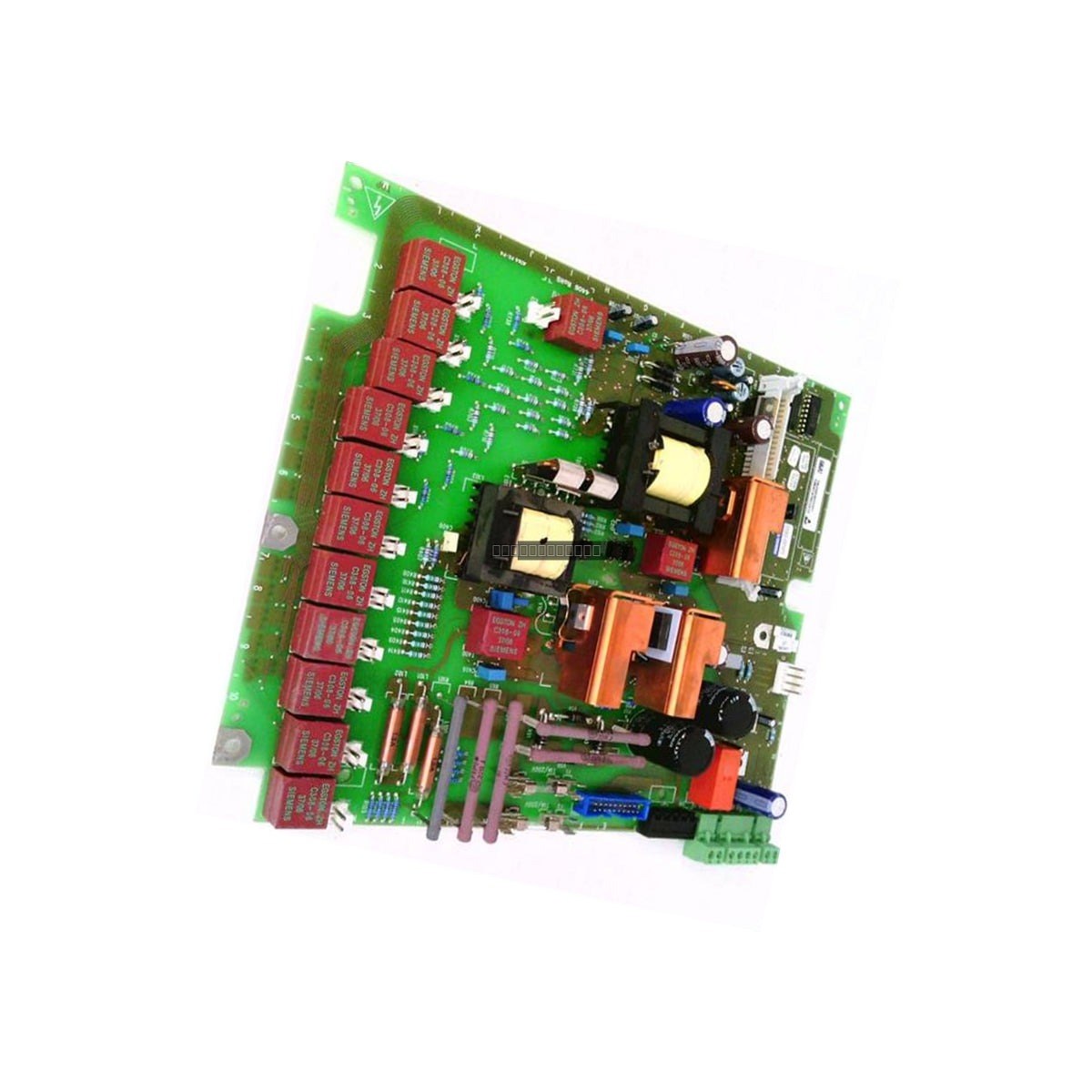

Siemens C98043-A7002-L4-12 Power Interface Board

Siemens C98043-A7002-L4-12 SIMOVERT Power Interface Board

Disponibilidad: 7 Quedan en stock

The Siemens C98043-A7002-L4-12 is a specialized power interface board designed for SIMOVERT drive systems. This component serves as a critical...

Código: C98043-A7002-L4-12

Manufacturer: Siemens
Product No.: C98043-A7002-L4-12
Product Type: Power Interface Board
Product Origin: Germany
Payment:T/T, Western Union
Weight: 840g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

The Siemens C98043-A7002-L4-12 is a specialized power interface board designed for SIMOVERT drive systems. This component serves as a critical link in the power management and signal distribution architecture, ensuring reliable operation of the inverter assembly. It is supplied complete with terminals for immediate integration into your control cabinet.

Features

Designed for seamless compatibility with SIMOVERT inverter platforms.
Integrated terminal blocks for secure field wiring.
Supports standard 24 V DC control logic for digital I/O.
Capable of handling contact ratings up to 5 A at 250 V AC/DC.
Robust construction suitable for industrial cabinet mounting.

Technical Specifications

Model Number	C98043-A7002-L4-12
Spare Part Number	6RY1703-0DA02
Supply Voltage	24 V DC (±15%)
Current Consumption	≤2 A
Digital I/O	24 V DC-compatible
Analog Inputs	±10 V / 4–20 mA (optional)
Contact Ratings	≤5 A, 250 V AC/DC
Operating Temperature	0 to 55 degC (derate above 40 degC)
Relative Humidity	≤93% (non-condensing)

Installation Guidelines

Ensure all power is disconnected from the drive system before attempting to remove or install this interface board.
Use ESD-safe handling procedures to prevent electrostatic damage to the sensitive onboard components.
Verify that the terminal connections are tightened to the specified torque to prevent intermittent signal loss or overheating.
Route low-voltage signal cables away from high-voltage power lines to minimize electromagnetic interference (EMI).
Maintain adequate airflow within the cabinet to ensure the ambient temperature remains within the specified operating range.

FAQ

What is the primary function of the C98043-A7002-L4-12 board?
This board acts as a power interface for the SIMOVERT inverter, managing signal distribution and power regulation for the associated drive electronics.

Does this unit include the necessary terminals?
Yes, the module is supplied with the required terminals to facilitate connection.

What should I do if the ambient temperature exceeds 40 degC?
The unit is rated for up to 55 degC; however, performance derating is required for any operation exceeding 40 degC to ensure long-term reliability.
