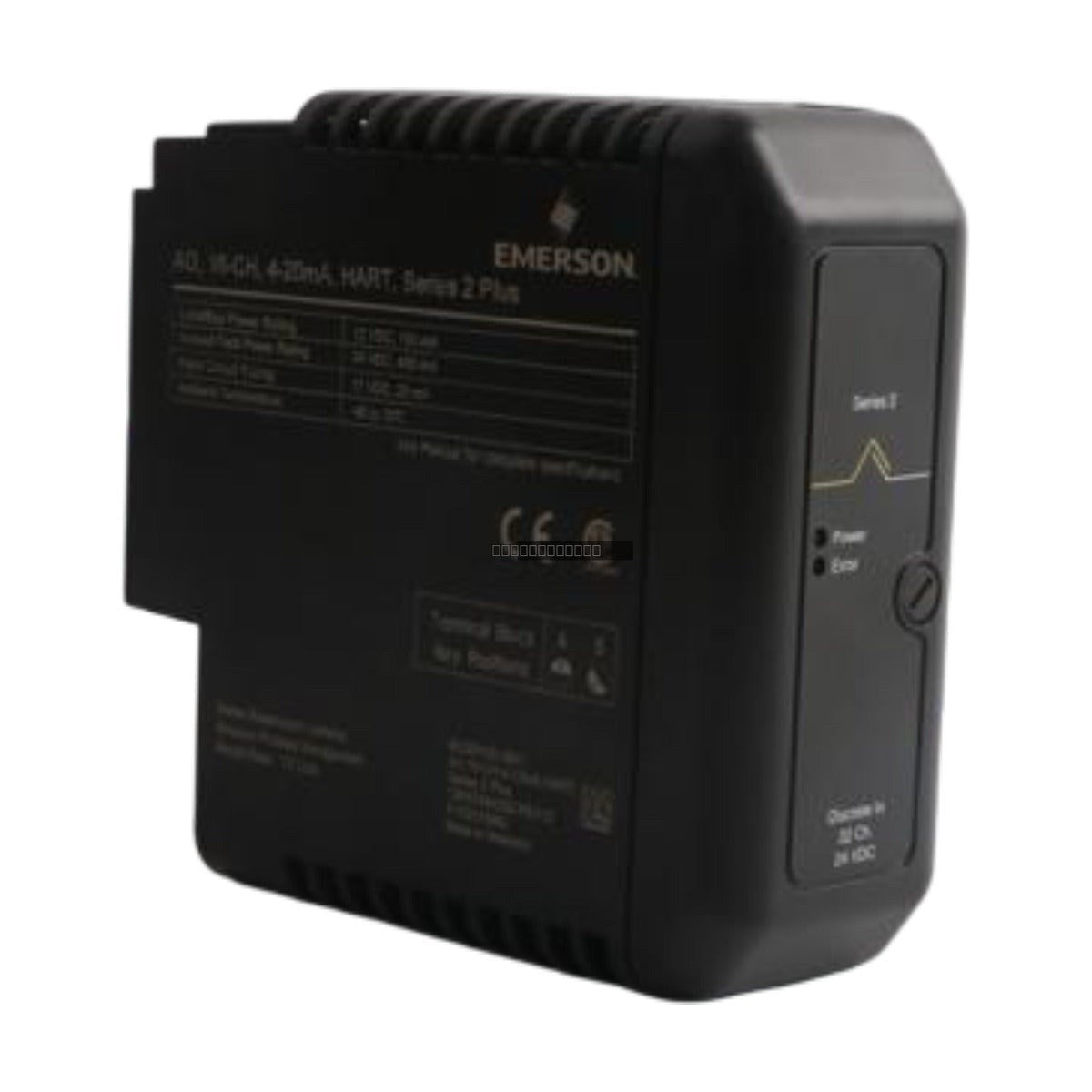

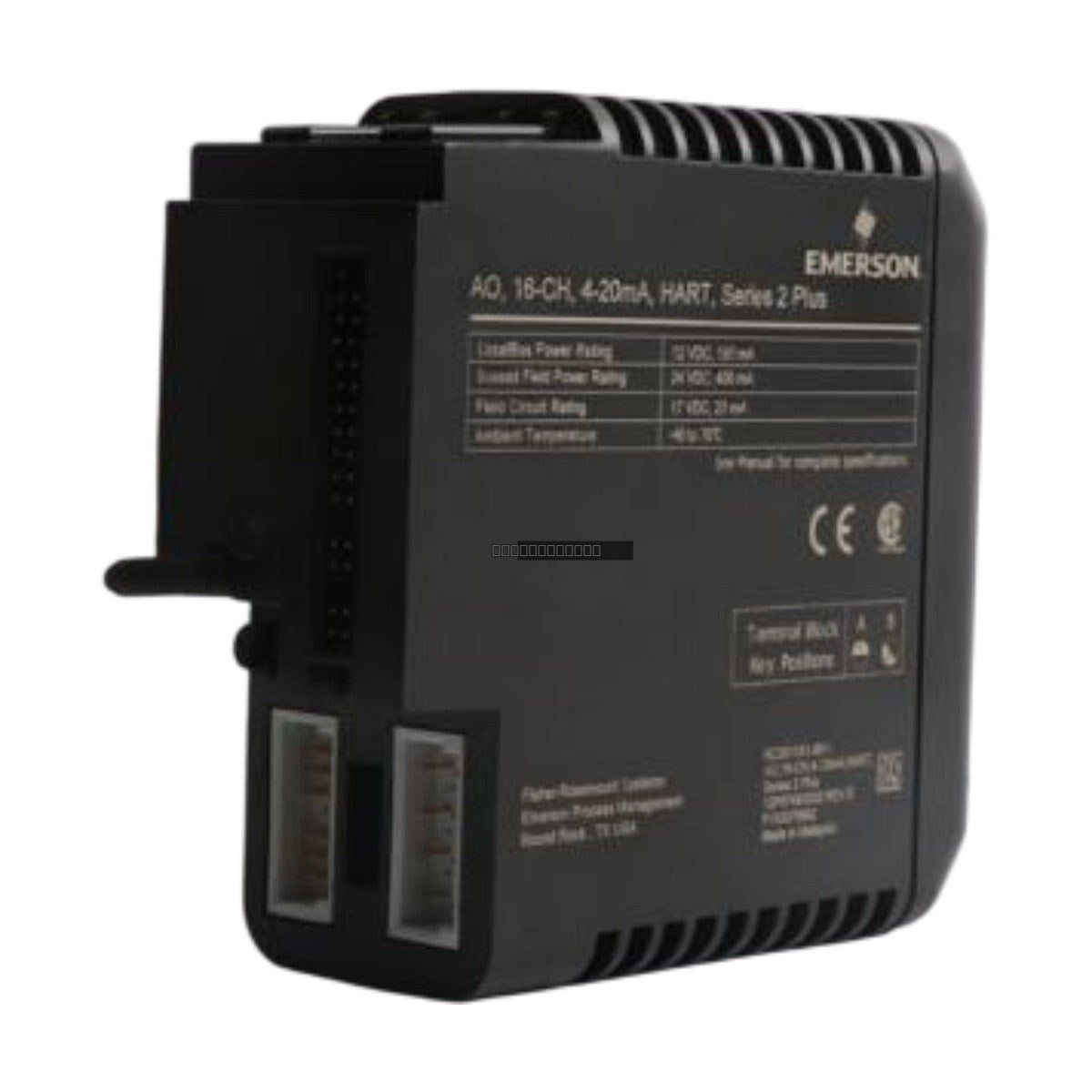

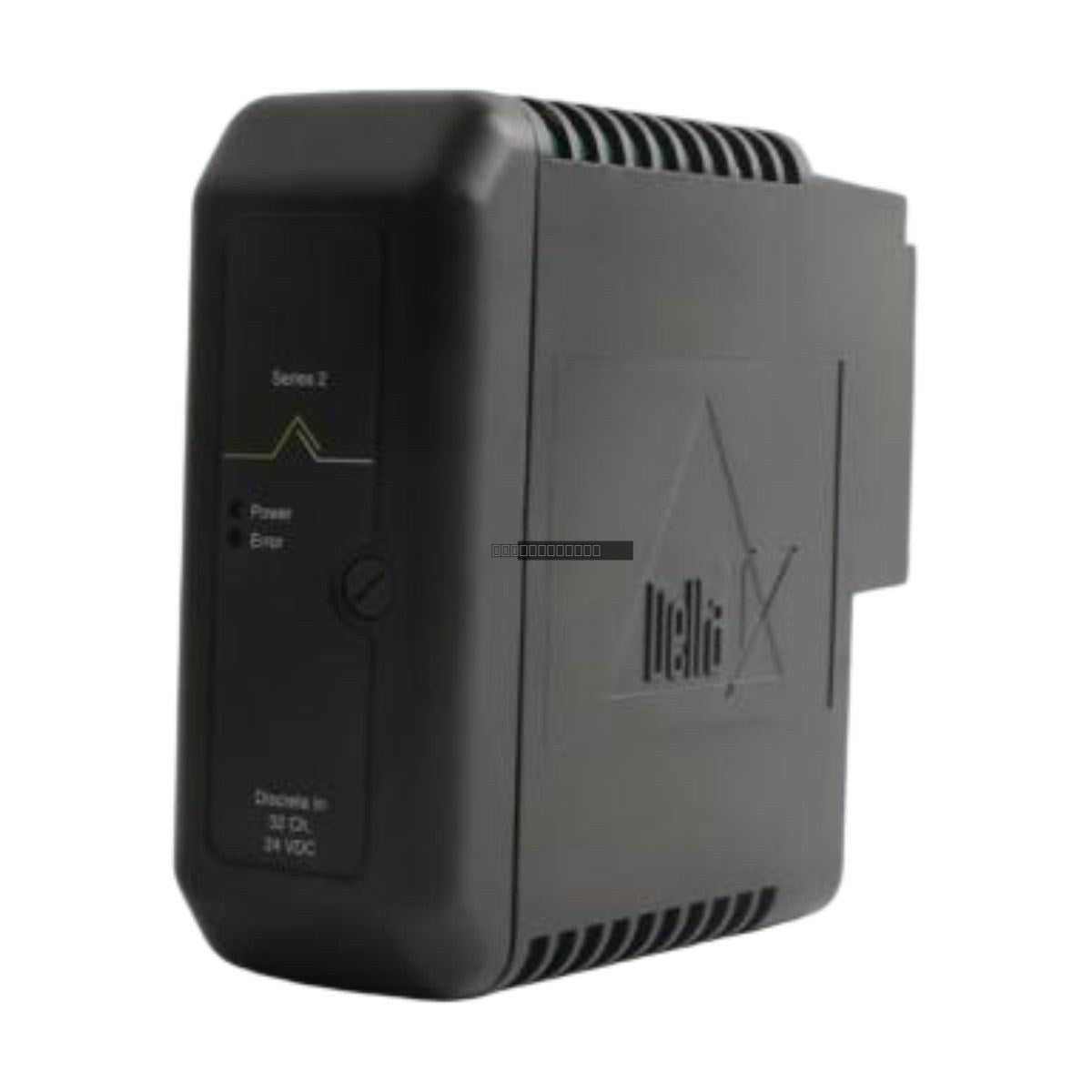

Emerson DeltaV KC3011X1-BA1 16-Channel Analog Output Module

Emerson DeltaV KC3011X1-BA1 16-Channel Analog Output Module

Disponibilidad: 8 Quedan en stock

DescriptionThe Emerson DeltaV KC3011X1-BA1 is a high-density 16-channel Analog Output (AO) Plus module, specifically engineered for the DeltaV S-series distributed...

Código: KC3011X1-BA1

Manufacturer: Emerson
Product No.: KC3011X1-BA1
Product Type: Analog Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 250g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Description

The Emerson DeltaV KC3011X1-BA1 is a high-density 16-channel Analog Output (AO) Plus module, specifically engineered for the DeltaV S-series distributed control system. This module provides precise 4-20 mA control signals and supports integrated HART communication, facilitating real-time diagnostics and configuration for connected field instruments. Designed for demanding process automation sectors—including chemical processing, oil and gas, and power generation—the KC3011X1-BA1 is built to maintain high operational availability and signal integrity in complex control loops.

Features

16 isolated analog output channels for high-density I/O configurations.
Integrated HART communication support for advanced field device management.
Designed for the DeltaV S-series platform with A5 rotary keying for secure terminal block alignment.
Robust construction compliant with ISA-S71.04-1985 Class G3 standards for protection against corrosive environments.
Hazardous area certification (II 3 G Ex nA IIC Gc) for safe operation in Zone 2 environments.

Applications

This module is primarily utilized in industrial control cabinets to modulate control valves, positioners, and other 4-20 mA actuators. Its HART-enabled architecture allows for seamless integration into asset management systems, making it suitable for plants requiring proactive maintenance and remote device monitoring.

Technical Specifications

Brand	Emerson
Model	KC3011X1-BA1
Platform	DeltaV S-series
Channels	16
Signal Range	4-20 mA (HART)
Local Bus Power	12 VDC @ 160 mA
Bussed Field Power	24 VDC @ 400 mA
Field Circuit Load	17 VDC @ 23 mA
Operating Temperature	-40 to +70 deg C
Storage Temperature	-40 to +85 deg C
Shock Resistance	10 g (11 ms half-sine)
Hazardous Rating	II 3 G Ex nA IIC Gc

Installation Guidelines

Ensure all system and field power is disconnected before installing or removing the module to prevent electrical hazards.
Verify that the rotary keying is set to position A5 to ensure compatibility with the associated terminal block.
Mount the module in a clean, dry environment; ensure proper ventilation to maintain operating temperatures within the specified -40 to +70 deg C range.
Use shielded cabling for all analog signals to minimize electromagnetic interference (EMI) and maintain signal accuracy.
Follow standard industrial grounding procedures for the S-series carrier to ensure proper noise immunity.

FAQ

Is this module compatible with standard 4-20 mA devices?

Yes, the KC3011X1-BA1 is fully compatible with standard 4-20 mA loops and additionally provides HART communication support for smart devices.

What does the A5 keying position indicate?

The rotary keying system at position A5 is a physical safety feature that ensures the module is only inserted into a terminal block wired for the correct I/O type, preventing accidental miswiring during maintenance.

Does this module require external power?

The module receives local bus power from the carrier and requires bussed field power (24 VDC) to drive the analog output loops.
