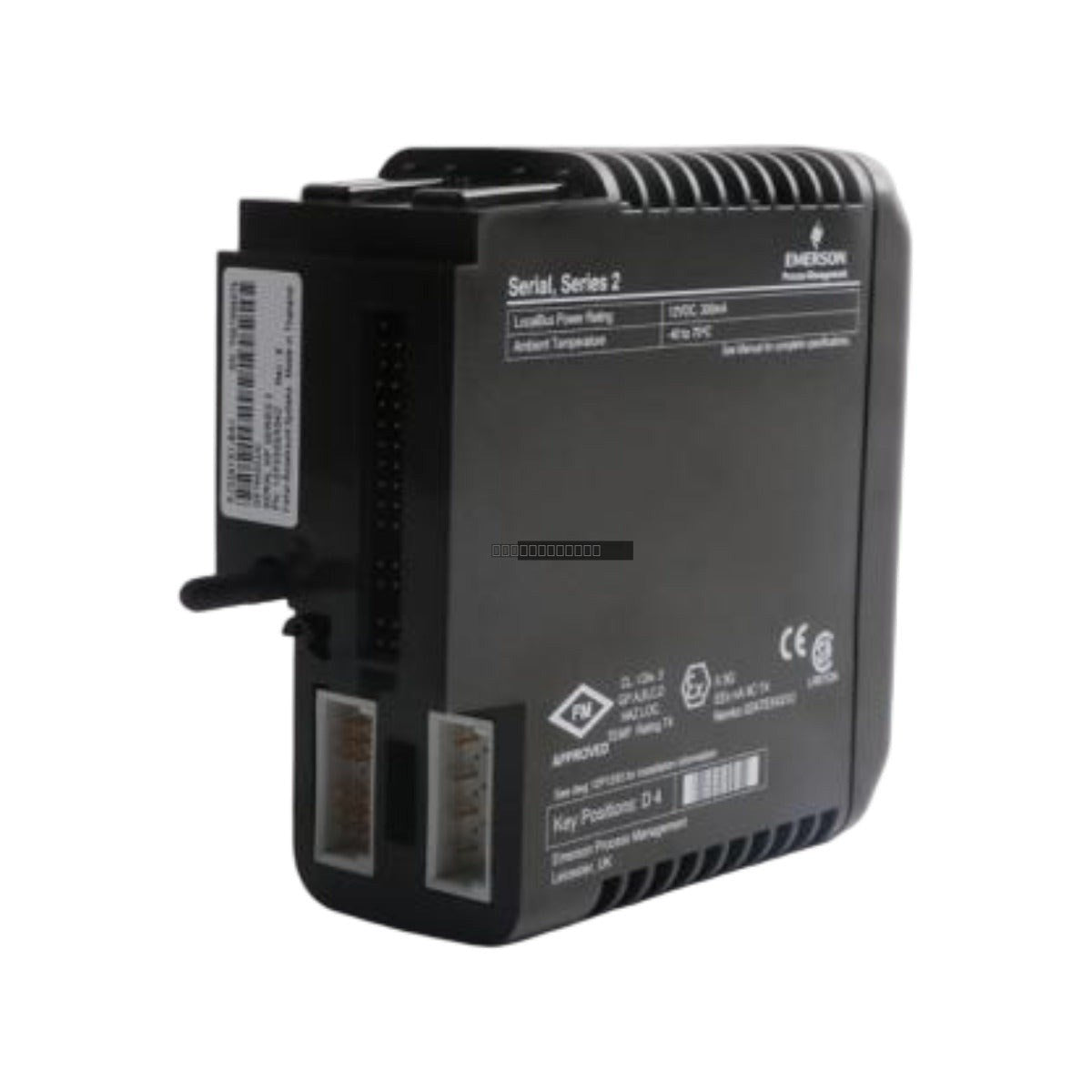

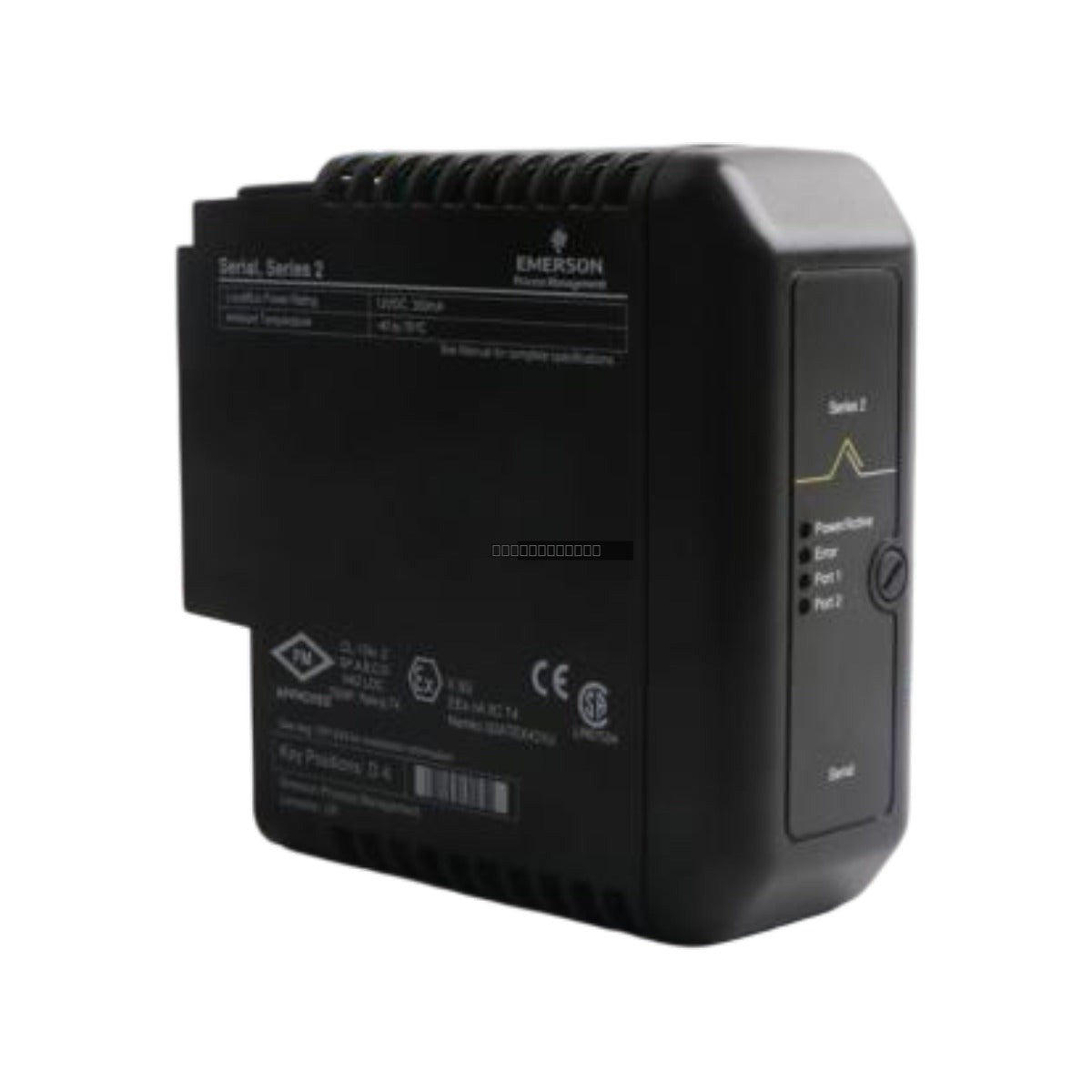

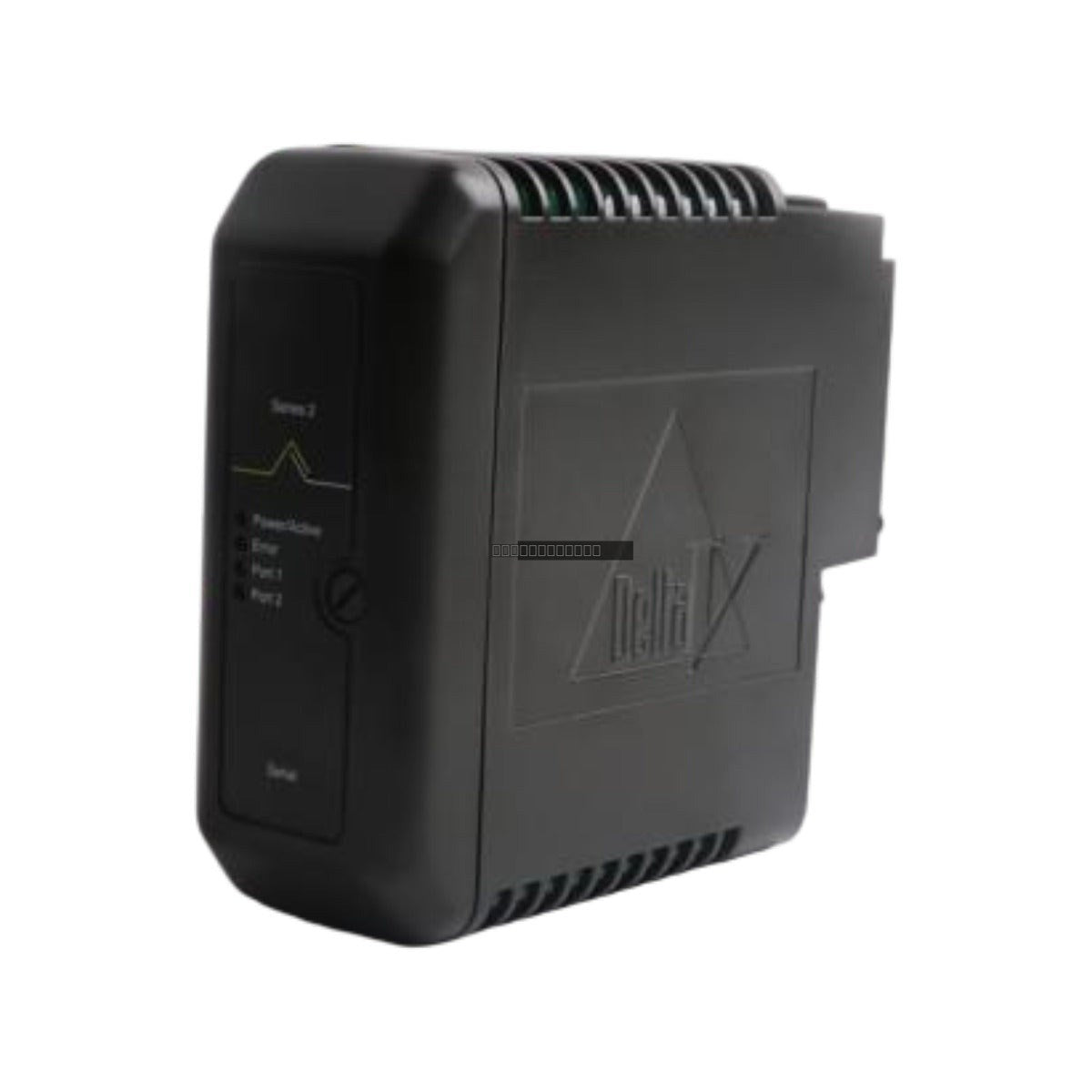

Emerson VE4006P2 KJ3241X1-BA1 Serial Interface Module

Disponibilidad: 3 Quedan en stock

DescriptionThe Emerson VE4006P2 (KJ3241X1-BA1) is a high-performance serial interface module engineered for the DeltaV M-Series distributed control system. This module...

Código: VE4006P2 KJ3241X1-BA1

Manufacturer: Emerson
Product No.: VE4006P2 KJ3241X1-BA1
Product Type: Serial Interface Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 250g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Description

The Emerson VE4006P2 (KJ3241X1-BA1) is a high-performance serial interface module engineered for the DeltaV M-Series distributed control system. This module facilitates robust, redundant communication between the DeltaV controller and various external serial-based devices. Built for demanding industrial applications, it ensures high availability and reliable data integration in critical sectors such as power generation, petrochemical refining, and large-scale chemical manufacturing.

Features

Supports redundant communication pathways to maintain system uptime and data integrity.
Designed for integration into DeltaV M-Series I/O subsystems.
Mechanical rotary keying (Position D4) ensures correct terminal block alignment and prevents installation errors.
Engineered for harsh environments with robust resistance to shock and vibration.
Rated for ISA-S71.04-1985 Class G3, providing protection against corrosive airborne contaminants.

Technical Specifications

Model	KJ3241X1-BA1 (VE4006P2)
Power Requirements	12 VDC at 300 mA (Local Bus)
Operating Temperature	-40 to +70 deg C
Relative Humidity	5 to 95 percent (Non-Condensing)
Hazardous Area Rating	II 3G Ex nA nC IIC Gc
Certifications	ATEX (FM12ATEX0090U), IECEx (IECEx FMG 12.0035U)
Shock Resistance	10g 1/2 Sinewave for 11 msec
Vibration Resistance	1 mm P-P (2-13.2 Hz); 0.7g (13.2-150 Hz)
Terminal Keying	Position D4

Installation Guidelines

Ensure the system power is de-energized before installing or removing the module from the carrier.
Verify the mechanical rotary keying is set to Position D4 before seating the module into the terminal block.
Maintain proper ventilation in the cabinet to ensure the module operates within its rated temperature range of -40 to +70 deg C.
Use shielded cables for serial communication to minimize electromagnetic interference (EMI) in noisy industrial environments.
Handle the module using ESD-safe practices to prevent damage to internal electronic components.

FAQ

Is this module suitable for hazardous locations? Yes, the VE4006P2 is rated II 3G Ex nA nC IIC Gc and carries both ATEX and IECEx certifications for use in specified hazardous atmospheres.

What is the purpose of the rotary keying? The mechanical rotary keying at position D4 is a safety feature that prevents the installation of an incompatible module into a designated terminal block slot, protecting the system from wiring mismatches.

Does this module support redundancy? Yes, it is specifically designed as a redundant serial interface card to provide seamless failover and continuous process monitoring.
