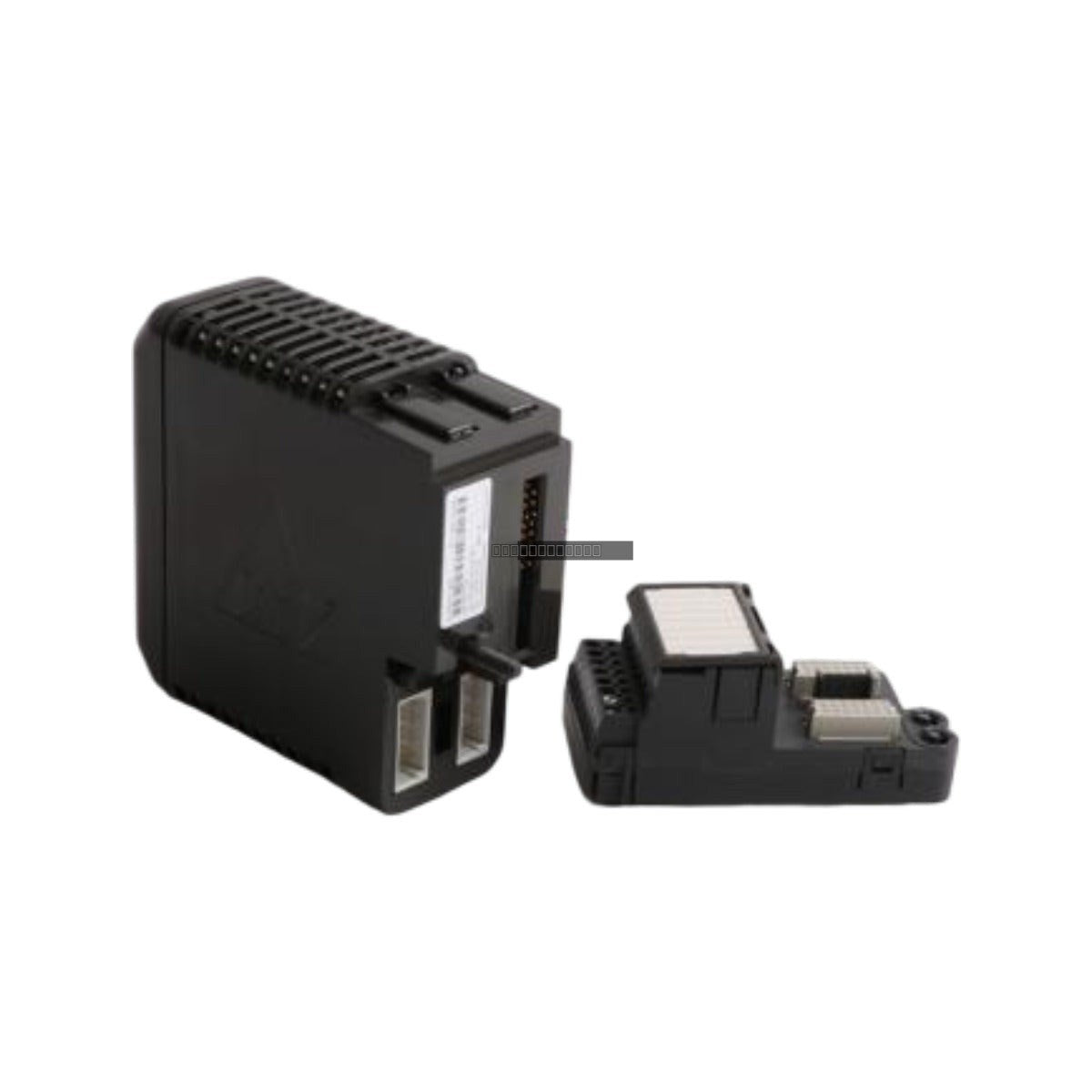

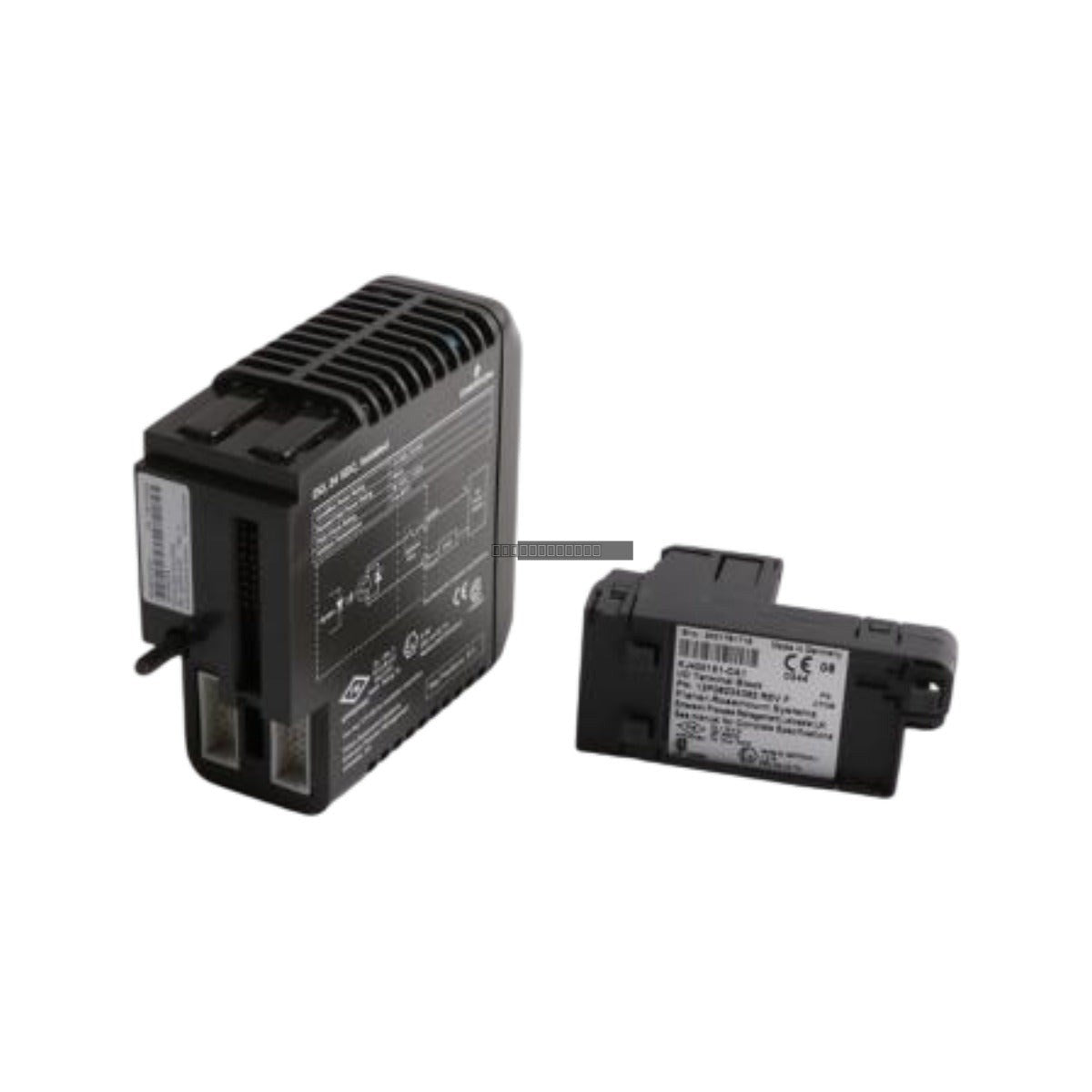

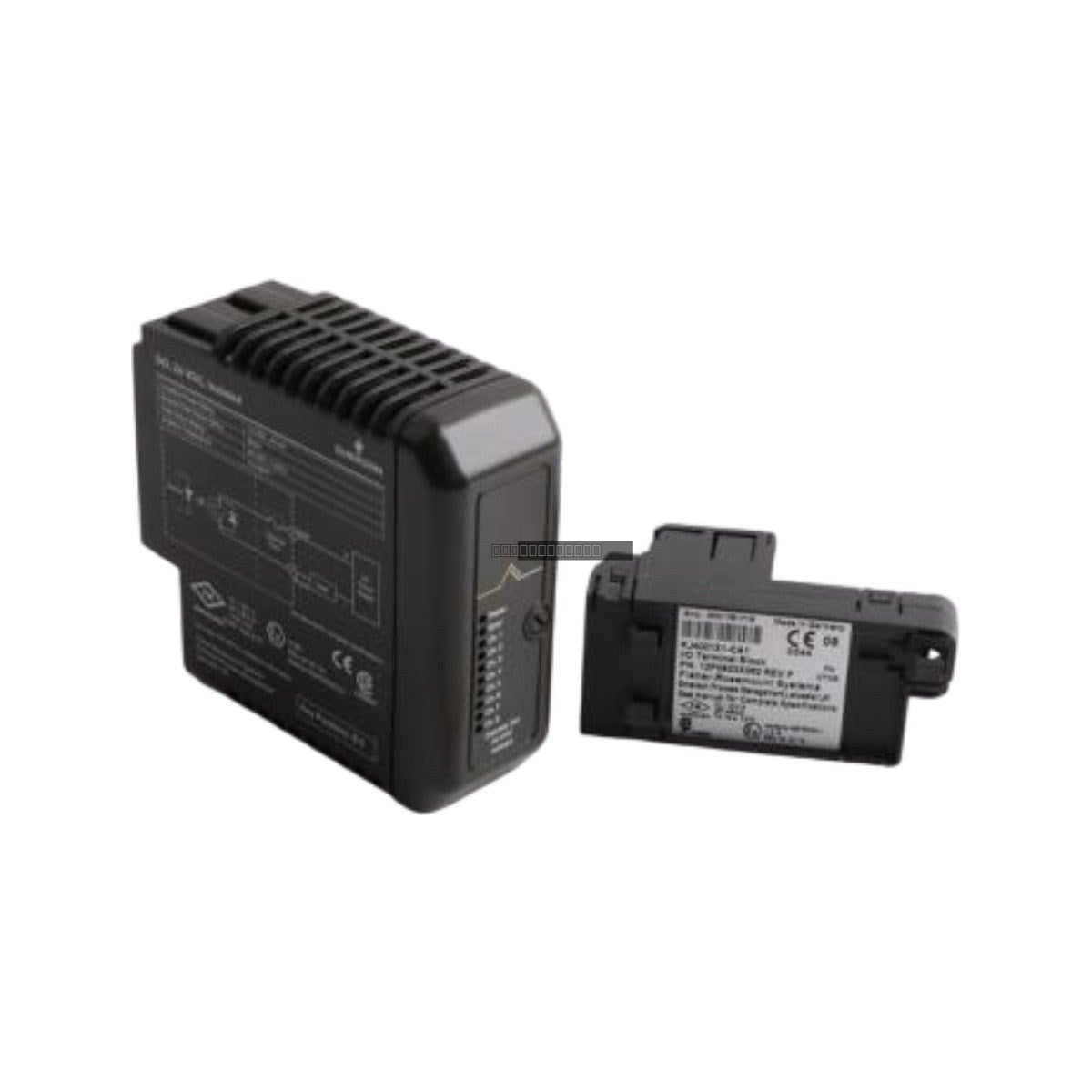

Emerson DeltaV VE4002S1T1B2 Digital Output Module

Emerson VE4002S1T1B2 KJ3001X1-BG1 12P0557X162

Emerson DeltaV VE4002S1T1B2 KJ3001X1-BG1 12P0557X162 Digital Output Module

Disponibilidad: 6 Quedan en stock

DescriptionThe Emerson DeltaV VE4002S1T1B2, also identified by part number 12P0557X162 and order code KJ3001X1-BG1, is a specialized digital output isolated...

Código: VE4002S1T1B2 KJ3001X1-BG1 12P0557X162

Manufacturer: Emerson
Product No.: VE4002S1T1B2 KJ3001X1-BG1 12P0557X162
Product Type: Digital Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 250g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Description

The Emerson DeltaV VE4002S1T1B2, also identified by part number 12P0557X162 and order code KJ3001X1-BG1, is a specialized digital output isolated terminal block. Engineered for the DeltaV distributed control system architecture, this module acts as a secure interface between control logic and field-mounted actuators. It provides eight channels of isolated discrete signaling, specifically designed to maintain signal integrity and electrical protection in high-stakes industrial environments such as chemical processing, oil and gas, and utility power generation.

Features

Isolated Channel Architecture: Offers galvanic separation between field-side loads and the internal controller backplane, effectively mitigating ground loops and reducing the risk of EMI-related interference.
Diagnostic Monitoring: Equipped with integrated LED indicators for each of the eight output channels, allowing for immediate visual status verification and simplified field maintenance.
System Compatibility: Designed for integration into DeltaV S-series and M-series hardware environments.
Hot-Swappable Design: Supports removal and replacement while the system is energized, minimizing process downtime during routine maintenance or module replacement.

Applications

This module is intended for use in demanding process control applications where electrical isolation is required to protect sensitive controller hardware from field-side transients. It is commonly deployed to drive discrete actuators, relays, and solenoid valves within the DeltaV ecosystem.

Technical Specifications

Model	VE4002S1T1B2 / KJ3001X1-BG1
Part Number	12P0557X162
Module Type	Digital Output Isolated Terminal Block
Number of Channels	8
Isolation Voltage	250 VAC
Input Power	24 VDC
Operating Temperature	-40 to 70 deg C
Storage Temperature	-40 to 85 deg C
Relative Humidity	5 to 95 percent (non-condensing)

Installation Guidelines

Power Status: While the module supports hot-swapping, ensure the specific slot is configured for such operations within the DeltaV system software before removal.
ESD Precautions: Always utilize an anti-static wrist strap or appropriate ESD-safe workstation practices when handling the module to prevent damage to internal circuitry.
Wiring Integrity: Ensure all field wiring is properly secured to the terminal block. Verify that cable shielding is correctly grounded to prevent noise coupling.
Environment: Install in a clean, dry environment within the specified temperature range to ensure optimal longevity and performance.

FAQ

Is the VE4002S1T1B2 compatible with older M-series controllers? Yes, this module is designed for compatibility within the broader DeltaV controller ecosystem, including M-series and S-series hardware.

What is the primary function of the isolation on this module? The isolation prevents electrical transients from the field side from reaching the system backplane, protecting the main controller from potential damage due to short circuits or high-voltage spikes.
