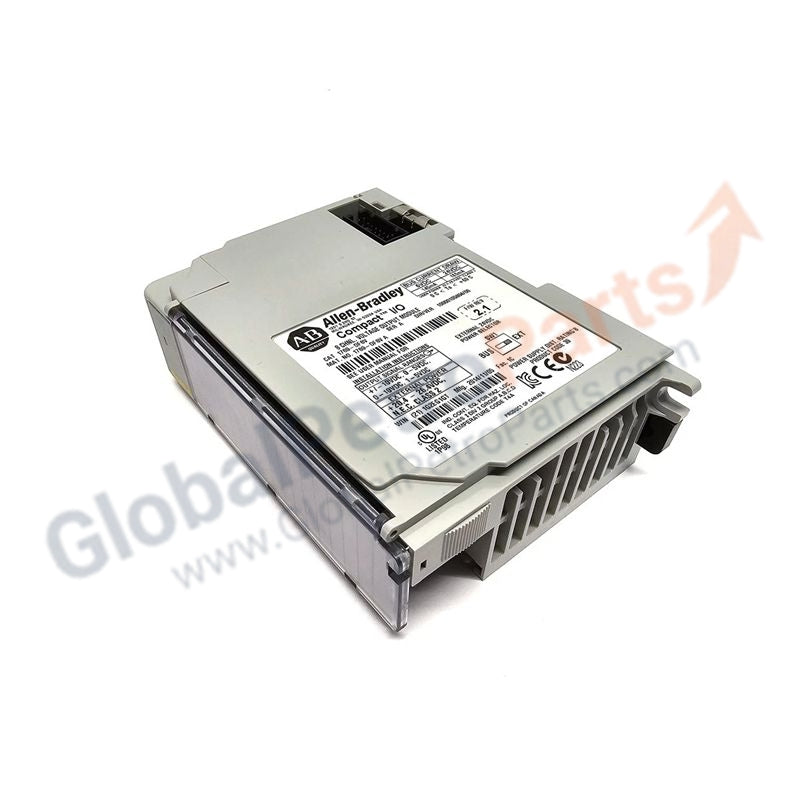

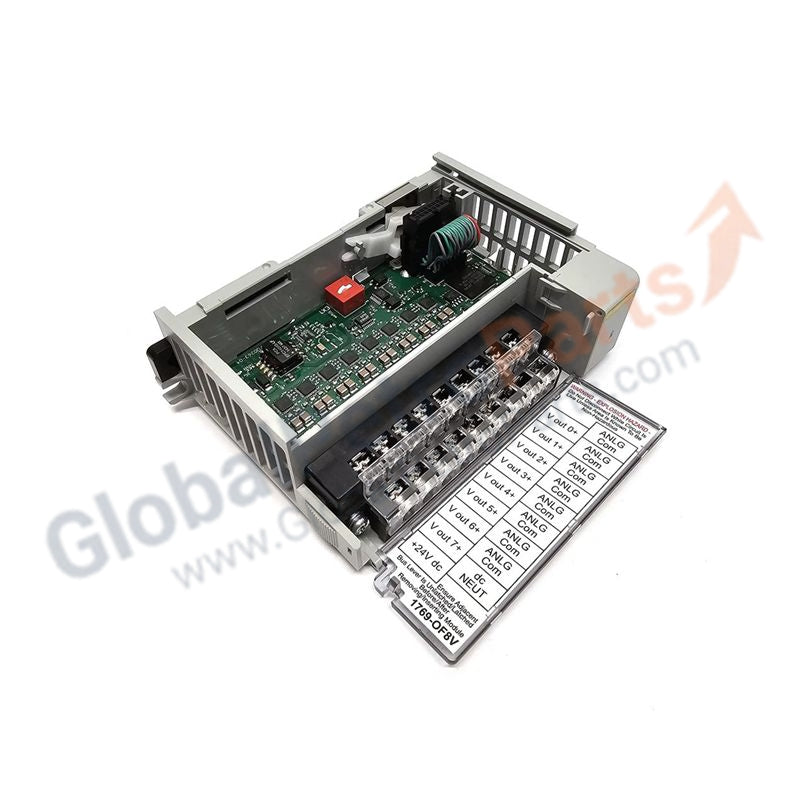

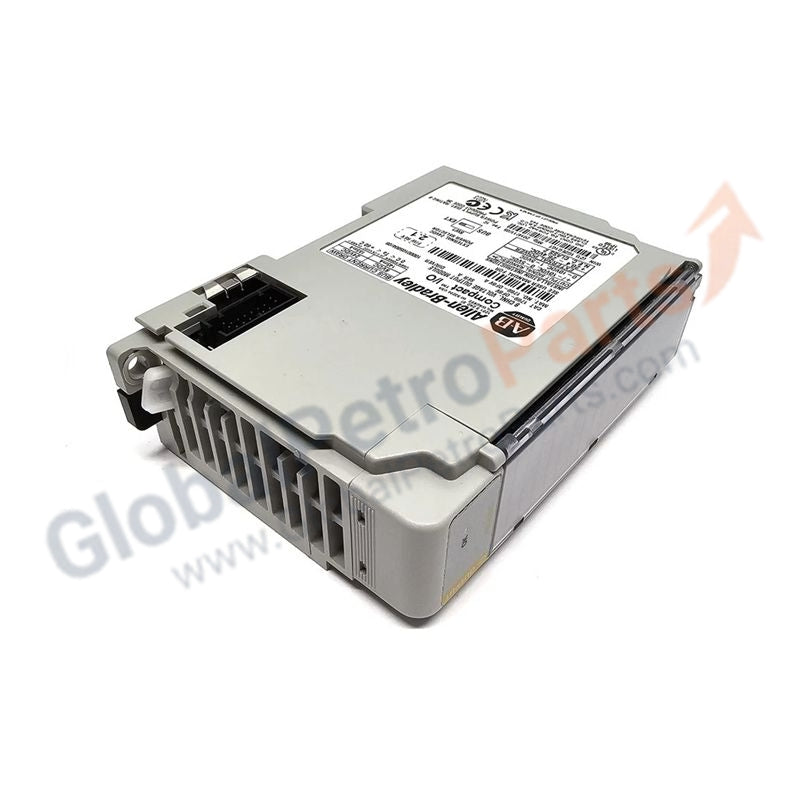

1769-OF8V Allen Bradley CompactLogix Analog Output Module

Availability: 99 left in stock

Product Description The 1769-OF8V is an 8-channel analog voltage output module for Allen-Bradley CompactLogix and MicroLogix 1500 systems. Each channel provides high-precision voltage outputs (0–10 V...

SKU: 1769-OF8V

Manufacturer: Allen Bradley
Product No.: 1769-OF8V
Product Type: Analog Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 800g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Description

The 1769-OF8V is an 8-channel analog voltage output module for Allen-Bradley CompactLogix and MicroLogix 1500 systems. Each channel provides high-precision voltage outputs (0–10 V or ±10 V) for controlling devices such as VFDs, actuators, and valve positioners. Compact and 1.5-slot wide, it features per-channel configuration, integrated DACs, and short-circuit protection, making it ideal for tight enclosures and electrically noisy environments.

Technical Specifications

Item	Specification
Catalog Number	1769-OF8V
Outputs	8 Analog Voltage Channels
Output Range	0–10 V DC or ±10 V DC
Resolution	16-bit unipolar, 15-bit + sign bipolar
Backplane Current	145 mA @ 5.1 V DC, 125 mA @ 24 V DC
D/A Conversion	Successive Approximation
Step Response	2.9 ms to 95% full scale
Full Scale Error	±0.5% @ 25 °C
Temperature Drift	±0.005% per °C
Max Heat Dissipation	3.16 W
Output Protection	Short-circuit protected, 21 mA current limit
Isolation Voltage	30 V DC continuous; tested 710 V DC / 1 s
Power Supply Distance Rating	8 modules (must be within 8 slots of 1769 power supply)
Terminal Block	Removable Terminal Block (RTB)
Dimensions (H×W×D)	118 × 52.5 × 87 mm
Wiring Recommendation	Shielded twisted-pair, grounded at one end only

Key Notes

Voltage outputs only; for 4–20 mA current outputs, use 1769-OF8C
Supports Hold Last State on communication loss via programming
Factory-calibrated, with optional software offset/gain adjustments
Powered entirely from the 1769 backplane, no external 24 V DC required
