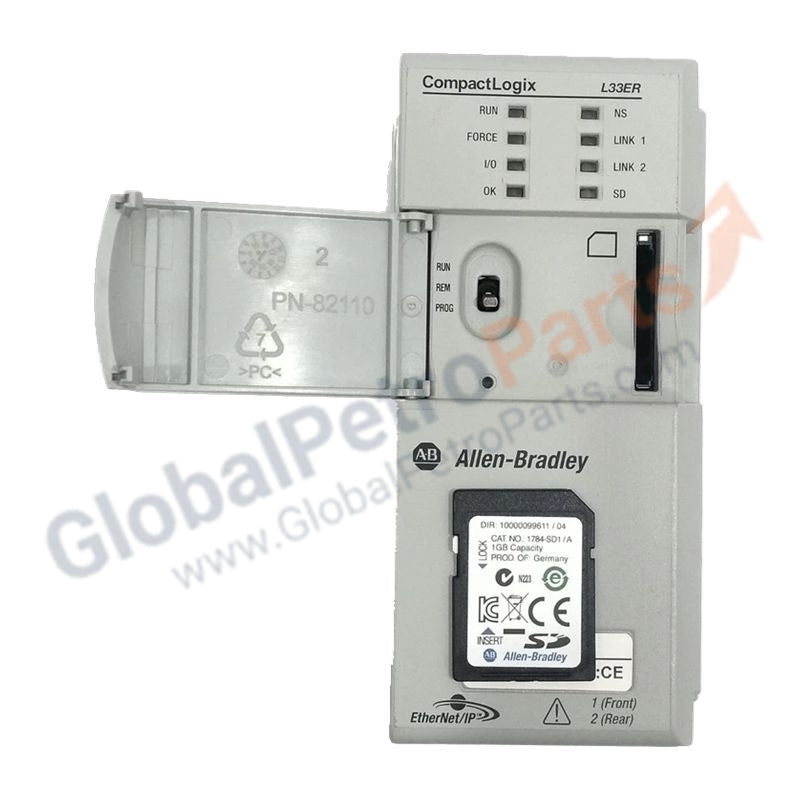

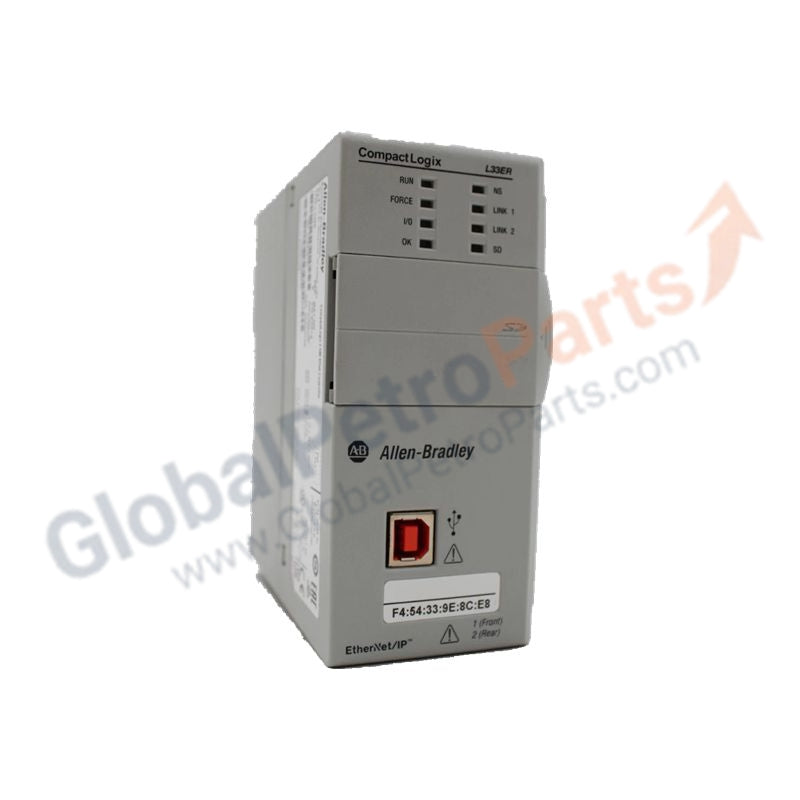

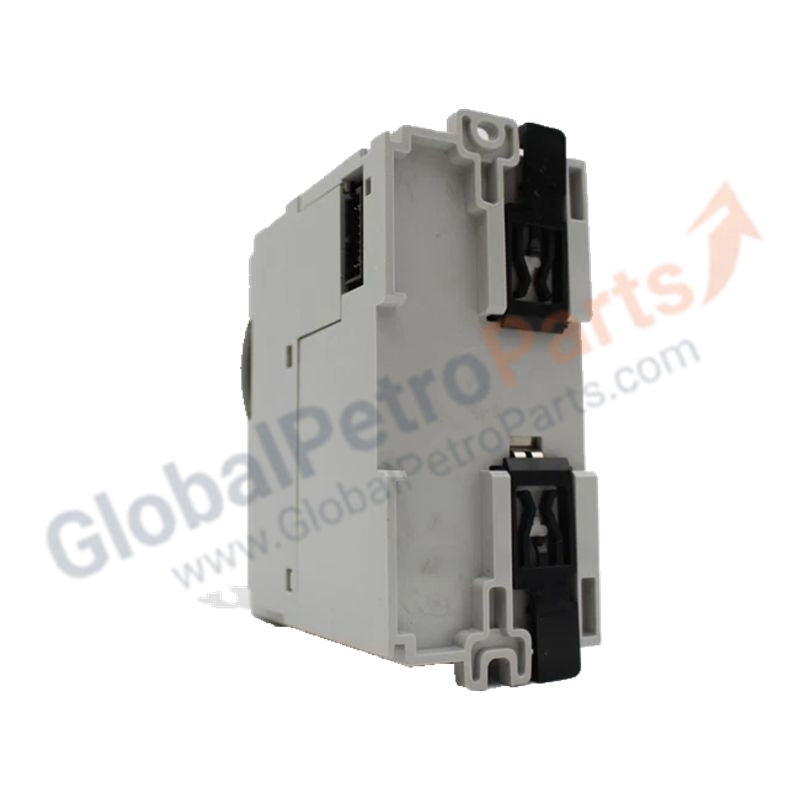

Allen Bradley 1769-L33ER CompactLogix Ethernet Processor

Availability: 99 left in stock

Product Description The 1769-L33ER is a mid-range CompactLogix 5370 L3 controller combining high-speed logic, Integrated Motion, and dual-port Ethernet/IP connectivity. It is designed for...

SKU: 1769-L33ER

Manufacturer: Allen Bradley
Product No.: 1769-L33ER
Product Type: CompactLogix Ethernet Processor
Product Origin: USA
Payment:T/T, Western Union
Weight: 850g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Description

The 1769-L33ER is a mid-range CompactLogix 5370 L3 controller combining high-speed logic, Integrated Motion, and dual-port Ethernet/IP connectivity. It is designed for modern industrial applications requiring scalable control, precise motion coordination, and enterprise-level network integration. Maintenance-free operation is provided via an internal energy storage module, eliminating the need for a battery while preserving program data during power interruptions.

Technical Specifications

Item	Specification
Catalog Number	1769-L33ER
User Memory	2 MB volatile
Local I/O Capacity	Up to 16 1769 Compact I/O modules
Ethernet Ports	2 × 10/100 Mbps Ethernet/IP (DLR-capable, integrated switch)
Programming Port	1 × USB 1.1 (high-speed)
Network Nodes	Up to 32 EtherNet/IP nodes
Integrated Motion	Up to 8 axes on EtherNet/IP
Controller Tasks	32 tasks, 100 programs per task
Power Supply Distance Rating	4 modules (must be within 4 slots of power supply)
Current Draw	560 mA @ 5V DC; 225 mA @ 24V DC
Operating Temperature	0–60 °C (32–140 °F)
Dimensions (HxWxD)	132 x 55 x 105 mm

Key Features

Dual Ethernet/IP Ports: Create Device Level Ring (DLR) topologies or linear/star networks.
Integrated Motion Support: Synchronize up to 8 axes of motion without dedicated modules.
Maintenance-Free: Internal energy storage module preserves logic without a 1769-BA battery.
High I/O Density: Supports up to 16 local Compact I/O modules.

FAQs

Q: Does this processor require a battery?
A: No, the internal energy storage module handles program preservation during power loss.

Q: Can the dual Ethernet ports use different IP addresses?
A: No, both ports share a single IP address and act as an integrated switch.

Q: Is this controller compatible with RSLogix 5000?
A: No, configuration requires Studio 5000 Logix Designer (v20 or higher).
