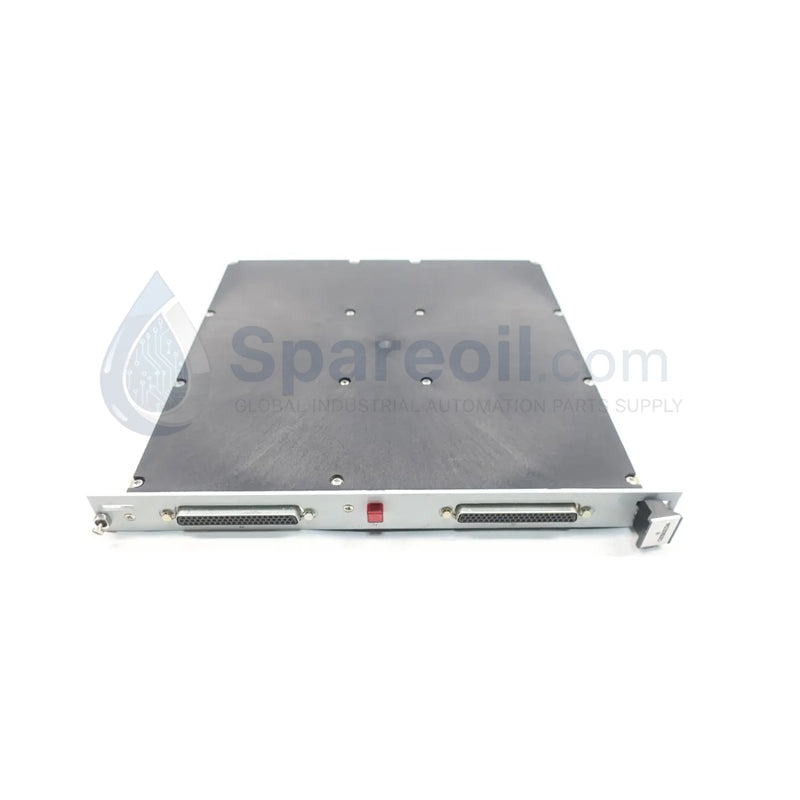

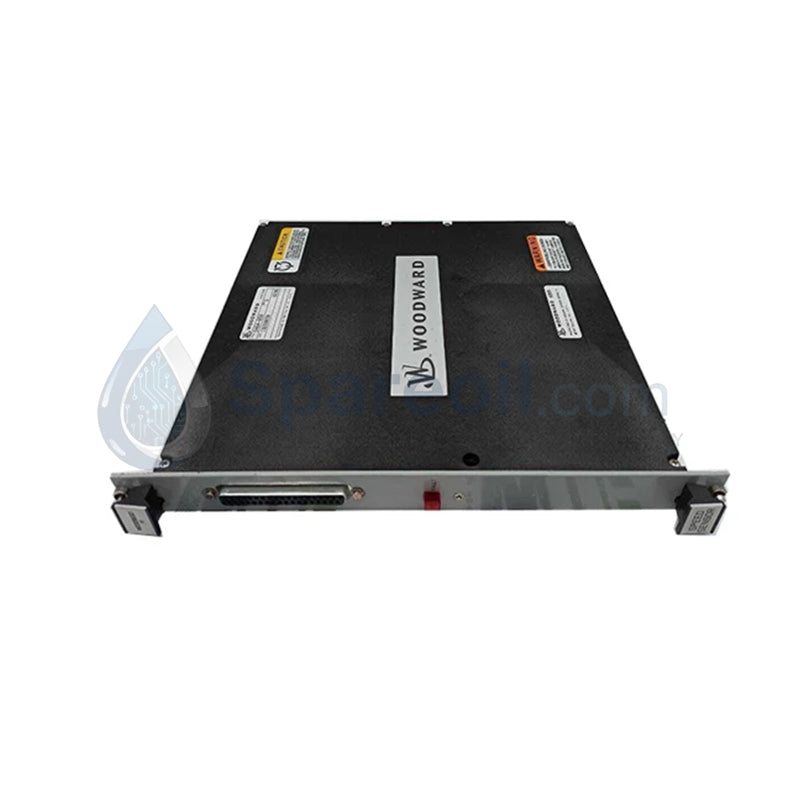

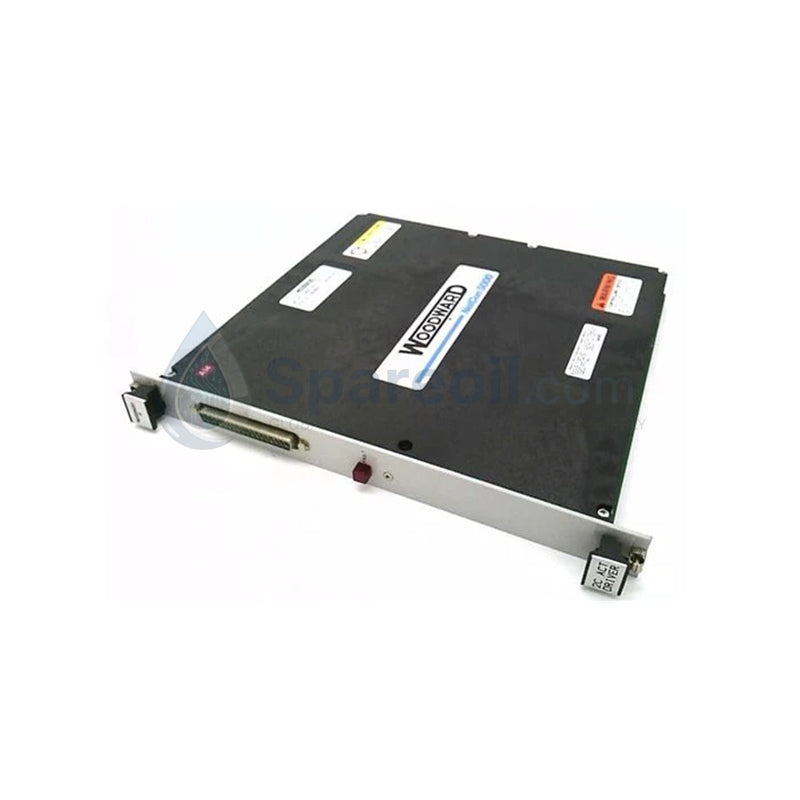

5466258 5466-258 Woodward Vertex-Pro Discrete I/O Module

Availability: 10 left in stock

Product Overview The Woodward 5466-258 (5466258) is a high-density simplex discrete input/output module designed for the MicroNet Digital Control and Vertex-Pro systems....

SKU: 5466-258

Manufacturer: Woodward
Product No.: 5466-258
Product Type: Discrete I/O Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 862g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Woodward 5466-258 (5466258) is a high-density simplex discrete input/output module designed for the MicroNet Digital Control and Vertex-Pro systems. This module serves as a critical interface between the central processing unit and external field devices, managing 48 discrete inputs and 24 discrete outputs. Engineering with Revision L specifications, this unit provides enhanced reliability for binary signal processing in mission-critical applications. It is specifically built for industrial environments where high channel density is required to minimize chassis footprint while maintaining high-speed signal integrity for turbine and compressor control.

Technical Specifications

Parameter	Specification Details
Model Number	5466-258 (5466258)
I/O Configuration	Simplex (Non-Redundant)
Discrete Inputs	48 Channels
Discrete Outputs	24 Channels
Input Signal Range	24 VDC Typical (Binary ON/OFF)
Output Type	Discrete Low-Side or High-Side (Application Dependent)
Diagnostics	Front-panel Red LED for Fault Status
Isolation	Optical Isolation between I/O and System Backplane
Chassis Compatibility	MicroNet Simplex, MicroNet Plus, Vertex-Pro
Operating Weight	862g (1.9 lbs)
Environmental Rating	Pollution Degree 2, Industrial Grade
Compliance	UL Listed, ATEX Approved for Hazardous Areas
