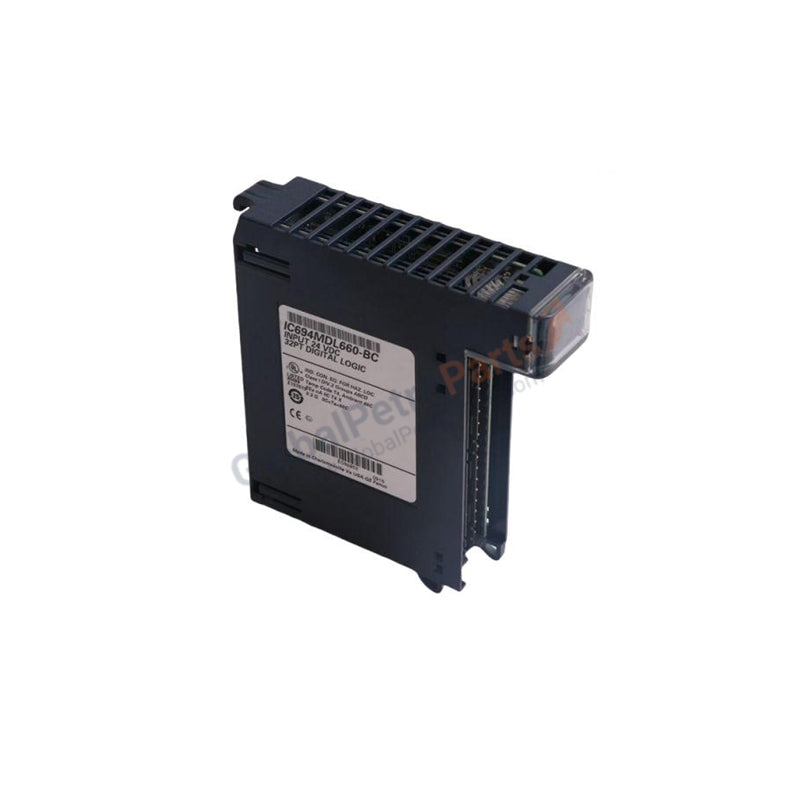

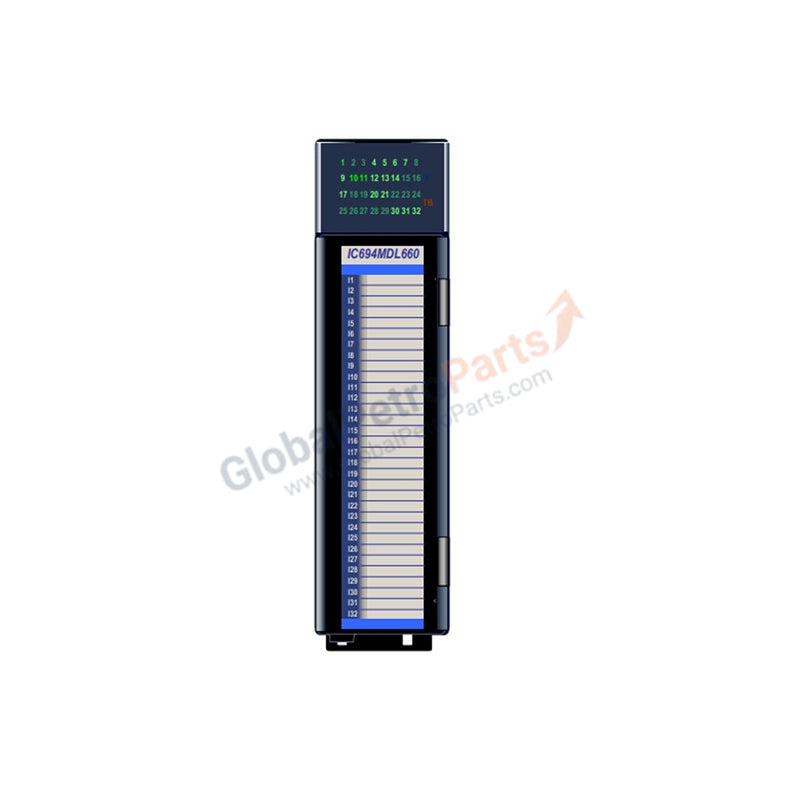

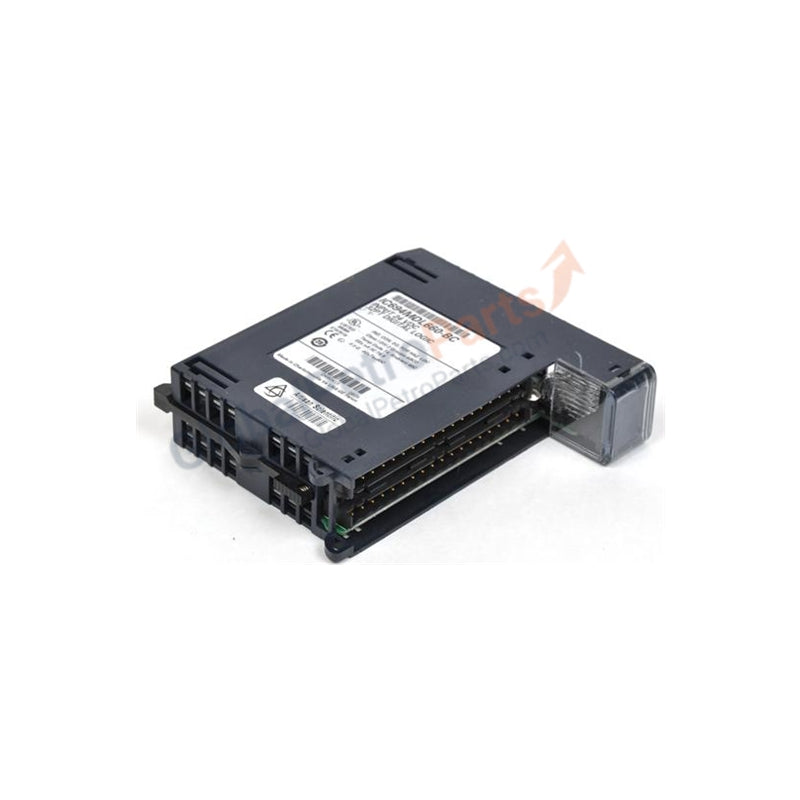

IC694MDL660 RX3i Input Module | GE Fanuc PLC Hardware

Availability: 99 left in stock

Product Description Overview The GE Fanuc IC694MDL660 is a 32-point discrete DC input module designed for the PACSystems RX3i programmable automation controller platform. It...

SKU: IC694MDL660

Manufacturer: GE Fanuc
Product No.: IC694MDL660
Product Type: Discrete DC Input Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Description

Overview

The GE Fanuc IC694MDL660 is a 32-point discrete DC input module designed for the PACSystems RX3i programmable automation controller platform. It provides reliable sensing of 24 VDC field signals from devices such as proximity switches, pushbuttons, limit switches, and solid-state sensors.

Designed with four isolated input groups and robust optical isolation, the IC694MDL660 ensures safe signal acquisition in electrically noisy industrial environments. Its high input density makes it well suited for control panels requiring efficient use of rack space while maintaining clear diagnostics and system integrity.

Technical Specifications

Parameter	Details
Model / Part Number	IC694MDL660
Manufacturer	GE Fanuc Emerson
Product Line	PACSystems RX3i
Product Type	Discrete DC Input Module
Input Points	32
Input Grouping	4 isolated groups of 8 inputs
Nominal Input Voltage	24 VDC
Input Voltage Range	0 to 30 VDC
Logic Type	Positive / Negative logic compatible
Input Current	7 mA per point (typical)
On-State Voltage	11 VDC to 30 VDC
Off-State Voltage	0 to 5 VDC
Isolation (Field to Backplane)	250 VAC continuous, 1500 VAC for 1 minute
Isolation (Group to Group)	250 VAC continuous, 1500 VAC for 1 minute
Response Time	Approx. 1 ms to 10 ms (filter dependent)
Backplane Power Consumption	300 mA @ 5 VDC (all inputs ON)
Indicators	Individual LED per input point
Connector Type	Removable terminal block
Operating Temperature	0 °C to +60 °C
Storage Temperature	–40 °C to +85 °C
Dimensions (WxHxD)	34 × 145 × 140 mm
Weight	0.45–0.9 kg
Compatibility	PACSystems RX3i racks and backplanes
Lifecycle Status	Active
