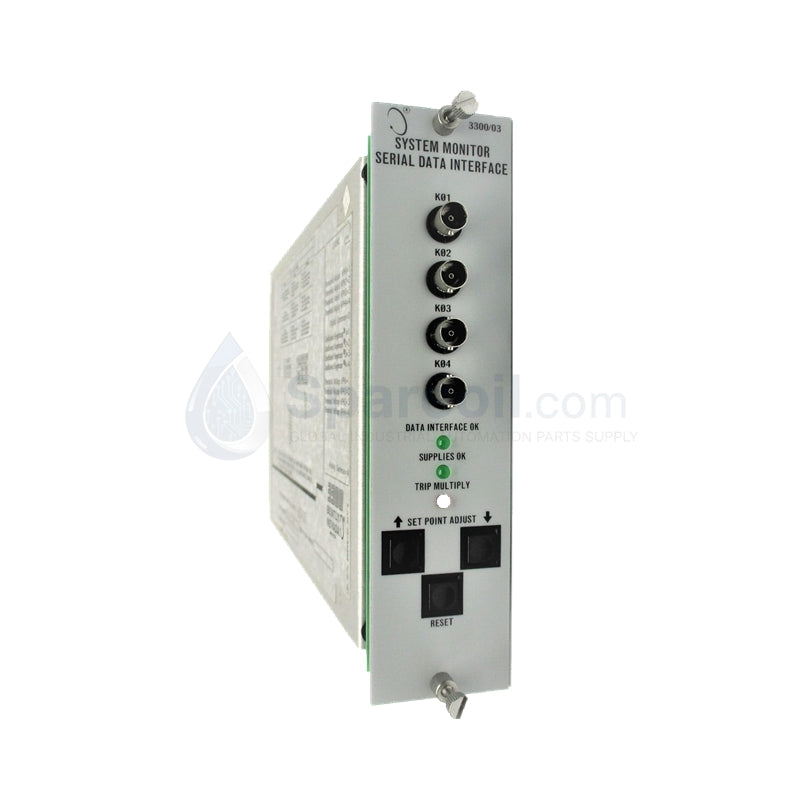

Bently Nevada 3300/03-01-00 RS232 System Monitor Interface

Bently Nevada 3300/03-01-00 RS232 System Monitor Interface

Availability: 10 left in stock

Bently Nevada 3300/03-01-00 System Monitor and Keyphasor Module Product Description The Bently Nevada 3300/03 (Part Number: 3300/03-01-00) is a fundamental component of...

SKU: 3300/03

Manufacturer: Bently Nevada
Product No.: 3300/03
Product Type: System Monitor Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 700g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Bently Nevada 3300/03-01-00 System Monitor and Keyphasor Module

Product Description

The Bently Nevada 3300/03 (Part Number: 3300/03-01-00) is a fundamental component of the 3300 Machinery Protection System, serving as the system's primary diagnostic interface and Keyphasor® signal processor. While the 3300/01 manages rack power, the 3300/03-01-00 specializes in providing synchronized timing signals and managing the serial communication backbone for the entire rack. It effectively bridges the gap between raw field transducer data and the operator's analysis tools, ensuring that shaft speed and phase angle measurements are integrated accurately for machinery protection.

A critical correction to common misconceptions: the 3300/03 is a rack-based module that provides Keyphasor power and RS232 communication, rather than a field-mounted Proximitor® sensor. It enables the system to perform phase-synchronous vector analysis by providing a common timing reference across the backplane. This allows other monitoring modules in the rack to calculate complex variables like 1X vibration amplitude and phase. Built to satisfy API 670 standards, the 3300/03-01-00 is essential for any 3300 system requiring data export to a host computer or precise rotational speed measurements.

Technical Specifications

Detailed hardware parameters and operational ratings for the 3300/03-01-00:

Parameter	Specification Details
Model Number	3300/03
Full Order Code	3300/03-01-00
Manufacturer	Bently Nevada (Baker Hughes)
Module Type	System Monitor / Keyphasor Interface
Input Voltage	18 to 24 VDC (Supplied via rack backplane)
Power Consumption	2.0 Watts Maximum
Communication Port	RS232 Serial Port (Internal/Front Access)
Signal Input	Keyphasor Proximity Probe Input
Frequency Response	DC to 10 kHz
Internal Diagnostics	OK LED status for module and Keyphasor probe
Accuracy	±5% for displacement/vibration measurements
Dimensions (HxWxD)	33.0 cm x 5.1 cm x 20.3 cm
Weight	0.7 kg (Net)
Operating Temp	-20 °C to +65 °C
