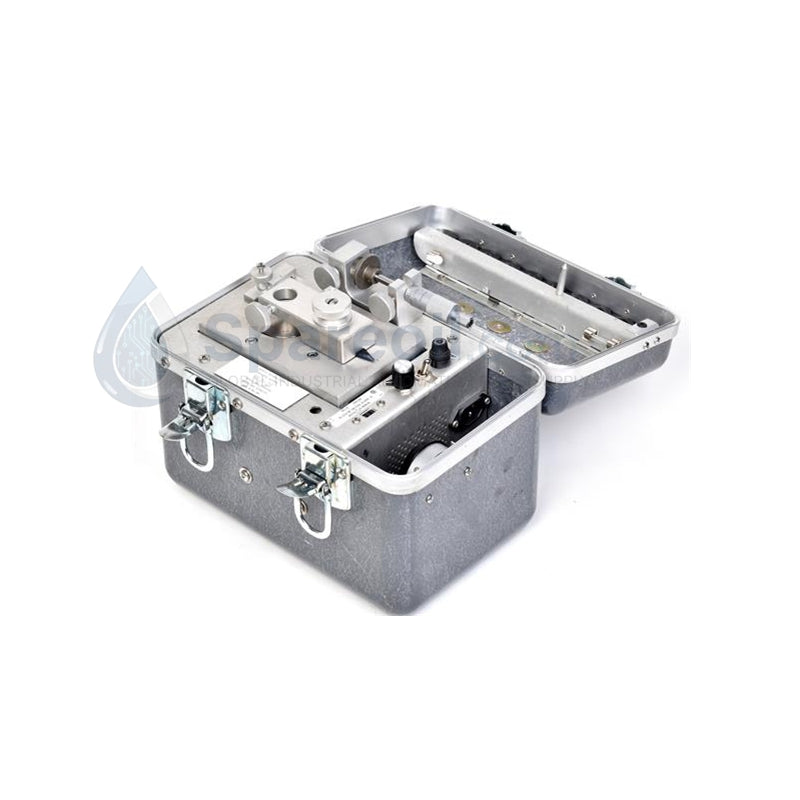

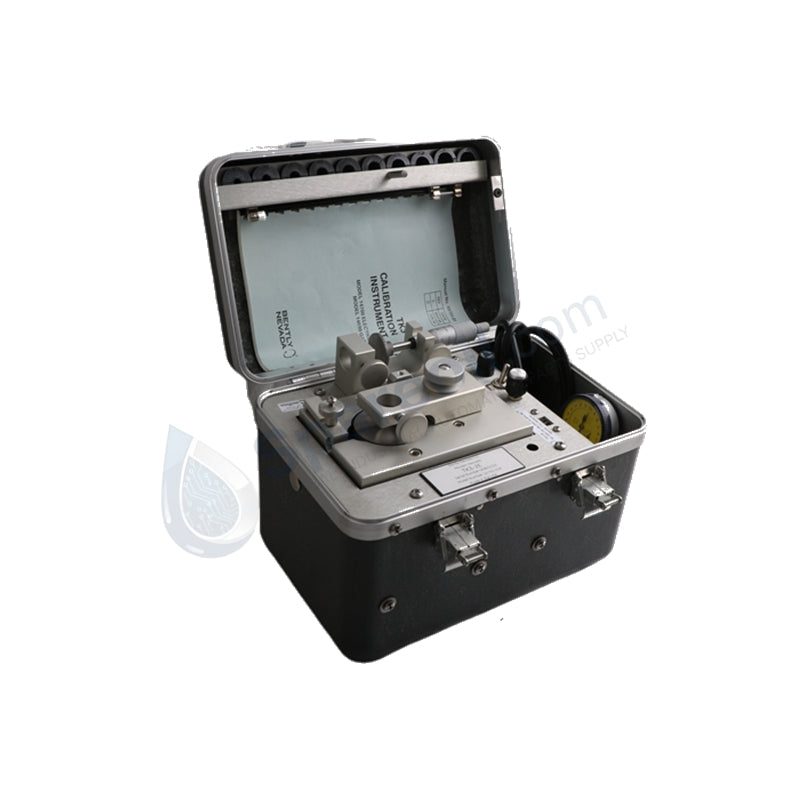

Bently Nevada TK3-2E Portable Vibration Calibrator

14700-01 | Bently Nevada | TK3-2E Calibration Instrument

14700-01 | Bently Nevada | TK3-2E Calibration Instrument

Availability: 10 left in stock

Product Description Professional Calibration for Vibration Monitoring Systems The Bently Nevada TK3-2E (Order Number 14700-01) is a high-precision calibration instrument designed to verify...

SKU: TK3-2E

Manufacturer: Bently Nevada
Product No.: TK3-2E
Product Type: Portable Vibration Calibrator
Payment:T/T, Western Union
Weight: 5200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Description

Professional Calibration for Vibration Monitoring Systems

The Bently Nevada TK3-2E (Order Number 14700-01) is a high-precision calibration instrument designed to verify the performance of proximity transducer systems. As a critical tool for machinery protection, it allows technicians to simulate both static shaft position and dynamic vibration. By moving a calibrated target toward or away from a proximity probe tip, the TK3-2E confirms that the Proximitor® sensor output and the associated monitor readouts are perfectly aligned, ensuring the integrity of SIL-rated machinery protection loops.

Advanced Dual-Verification Capabilities

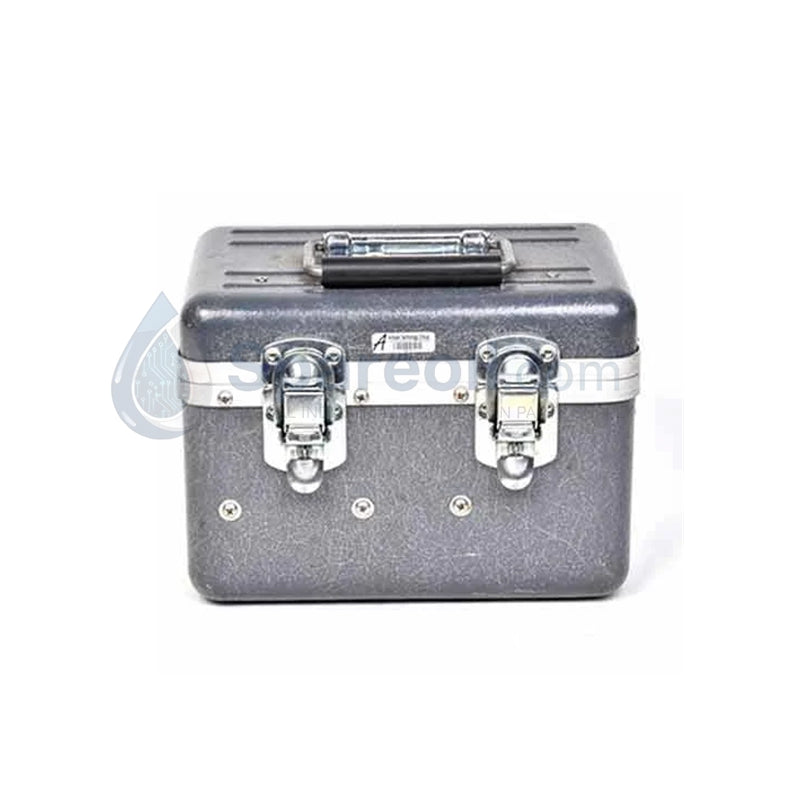

This electric-driven unit features a dual-purpose design: a precision spindle micrometer for DC (position) calibration and a motorized wobulator for AC (vibration) simulation. The TK3-2E is engineered to withstand industrial rigors while maintaining laboratory-level accuracy, featuring a rugged housing that meets IP54 standards when closed. Whether used for pre-installation checks or routine preventive maintenance, the TK3-2E 14700-01 provides the mechanical displacement necessary to confirm that sensors are functioning within their linear range and that alarm setpoints are accurately triggered.

Detailed Technical Specifications

Specification	Details
Manufacturer	Bently Nevada (Baker Hughes)
Model Number	TK3-2E
Part/Order Number	14700-01
Power Requirements	95-125 Vac or 190-250 Vac, 50/60 Hz, 1A min
Vibration Amplitude	50 μm to 254 μm (2 to 10 mils) peak-to-peak
Micrometer Range	0 – 25.4 mm (0 – 1000 mils)
Probe Compatibility	5 mm to 19 mm (0.197 in to 0.75 in) diameters
Environmental Protection	IP54 (Dust and water resistant when closed)
Operating Temperature	0 °C to 50 °C (Short-term); 40°C Continuous
Maximum Altitude	2000 meters
Storage Temperature	-18 °C to 65 °C (0 °F to 150 °F)
Weight	5.22 kg (11.5 lb)
Dimensions (HxWxD)	195 mm x 299 mm x 248 mm
