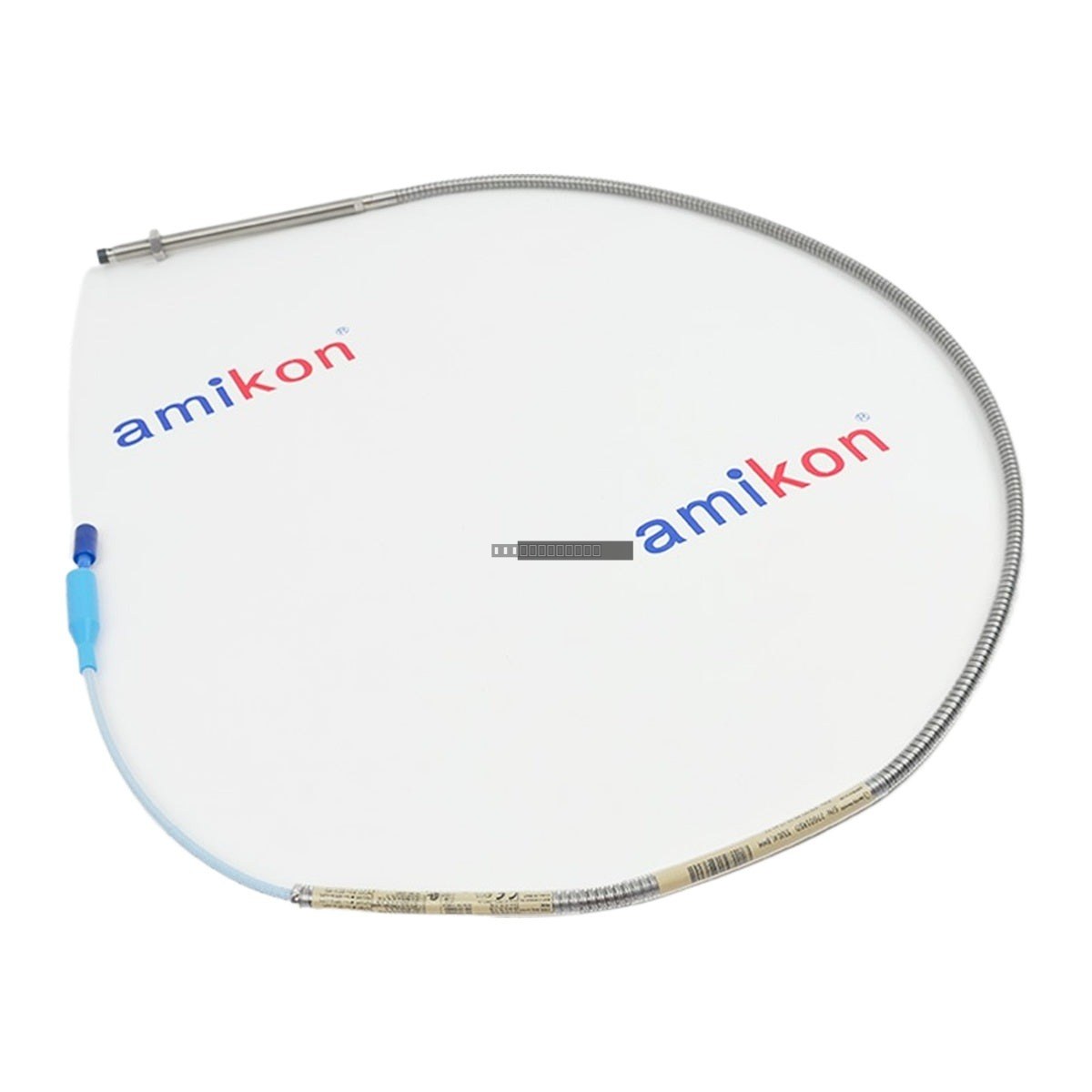

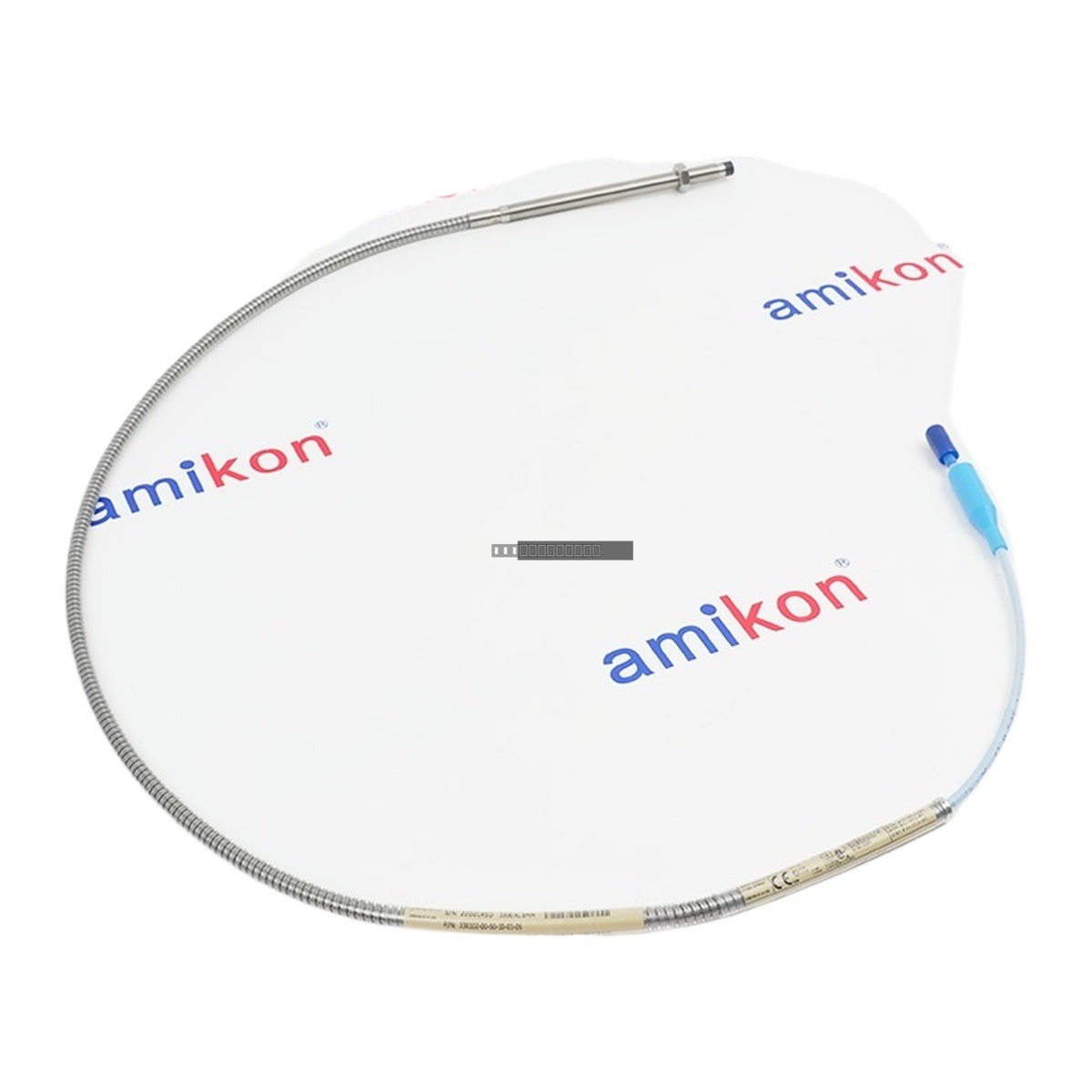

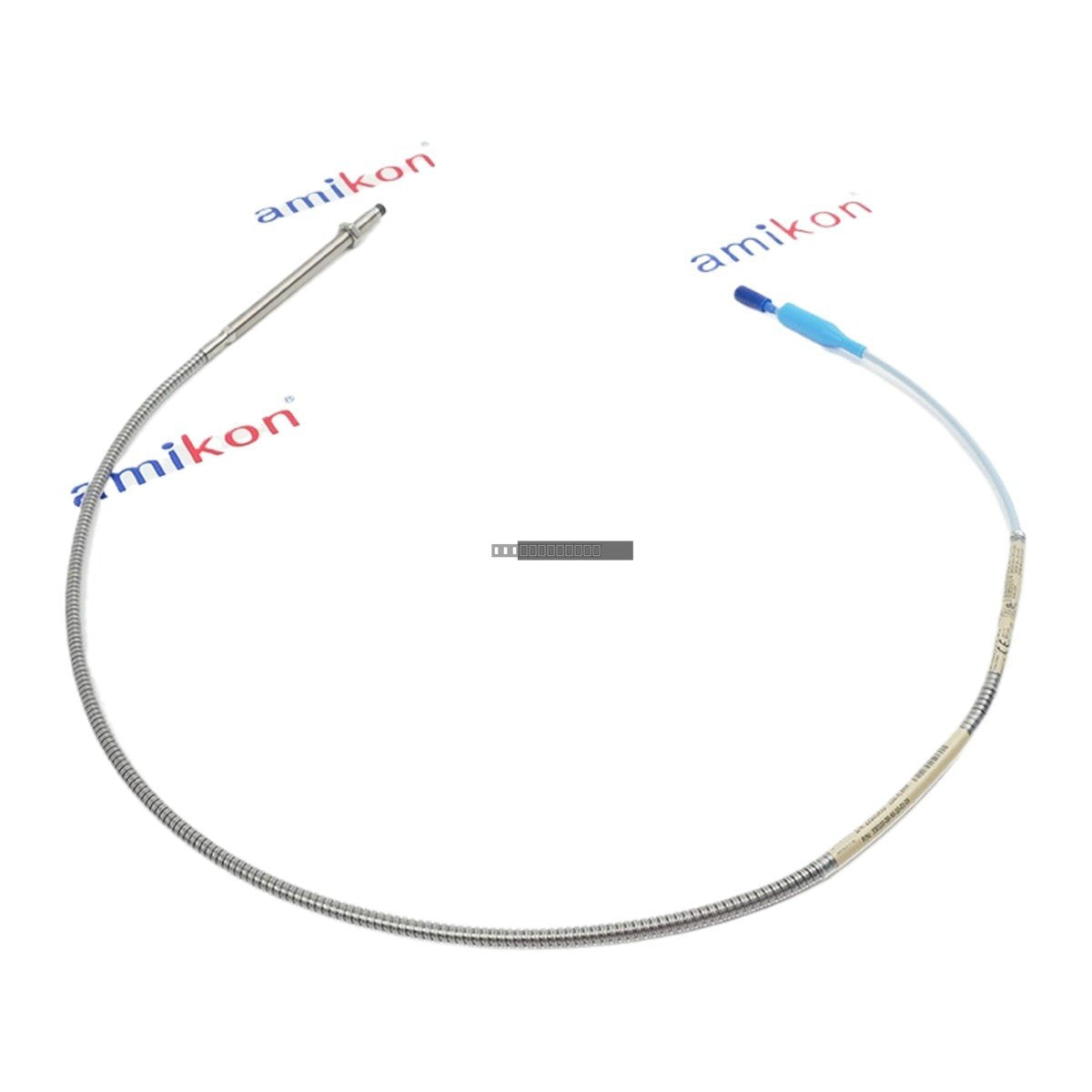

Bently Nevada 330102-00-50-10-01-05 3300 XL 8 mm Proximity Probe

Bently Nevada 330102-00-50-10-01-05 3300 XL 8 mm Proximity Transducer

Availability: 9 left in stock

The Bently Nevada 330102-00-50-10-01-05 is a high-performance 3300 XL 8 mm proximity probe designed for critical machinery monitoring. As a...

SKU: 330102-00-50-10-01-05

Manufacturer: Bently Nevada
Product No.: 330102-00-50-10-01-05
Product Type: Proximity Transducer
Product Origin: USA
Payment:T/T, Western Union
Weight: 150g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Bently Nevada 330102-00-50-10-01-05 is a high-performance 3300 XL 8 mm proximity probe designed for critical machinery monitoring. As a core component of the 3300 XL transducer system, this probe provides precise, non-contact measurement of radial vibration, axial position, and speed in industrial rotating equipment.

Features

System Compatibility: Fully compatible with Bently Nevada 3300 XL Proximitor sensors and extension cables, allowing for complete interchangeability without the need for individual component calibration.
Robust Design: Features a 3/8-24 UNF thread with integrated armor for enhanced mechanical protection in demanding industrial environments.
Agency Approvals: Certified for hazardous locations including CSA, ATEX, and IECEx standards.
Advanced Performance: Complies with API 670 standards for linear range, accuracy, and temperature stability.

Applications

Steam and gas turbines in power generation facilities.
Centrifugal and reciprocating compressors in oil and gas processing.
High-capacity industrial motors and generators.
Critical process pumps in chemical and manufacturing plants.

Technical Specifications

Model Number	330102-00-50-10-01-05
Probe Type	3300 XL 8 mm Proximity Probe
Unthreaded Length	0.0 in
Overall Case Length	5.0 in
Total Length	1.0 meter (3.3 feet)
Connector Type	Miniature coaxial ClickLoc connector
Cable Protection	Armored
Agency Approvals	CSA, ATEX, IECEx
Weight	0.15 kg

Installation Guidelines

Initial Gapping: Rotate the probe into the mounting bracket while monitoring the DC voltage output from the Proximitor sensor. A standard gap of 1.27 mm (50 mils) typically corresponds to a -10.0 Vdc output.
Torque Requirements: Tighten the probe case to a recommended torque of 68 N-m (50 ft-lb) to ensure stability.
Handling: Ensure the probe tip remains free of contaminants and avoid mechanical shock to the ceramic tip.
Cable Routing: Use shielded cabling and route away from high-EMI sources to maintain signal integrity.

FAQ

What is the primary function of the 330102-00-50-10-01-05?

This probe is used to measure radial vibration and axial displacement in rotating machinery, providing essential data for condition monitoring and predictive maintenance systems.

Is this probe interchangeable with other 3300 XL components?

Yes, the 3300 XL system is designed for total component interchangeability, meaning probes, extension cables, and Proximitor sensors can be replaced without requiring bench calibration.

What is the linear range of this transducer system?

The system provides a linear range of approximately 2.0 mm (80 mils), starting from about 0.25 mm (10 mils) from the target.
