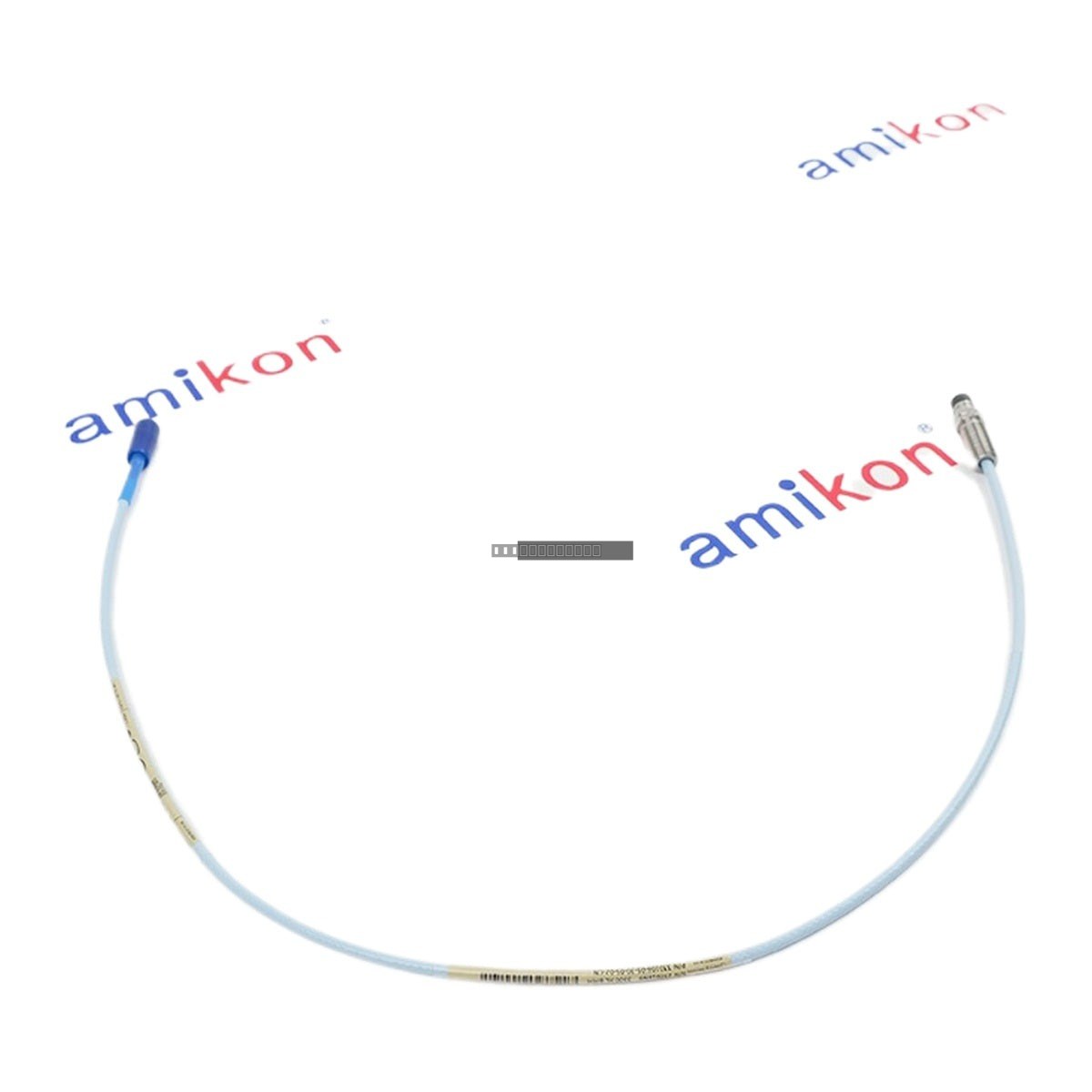

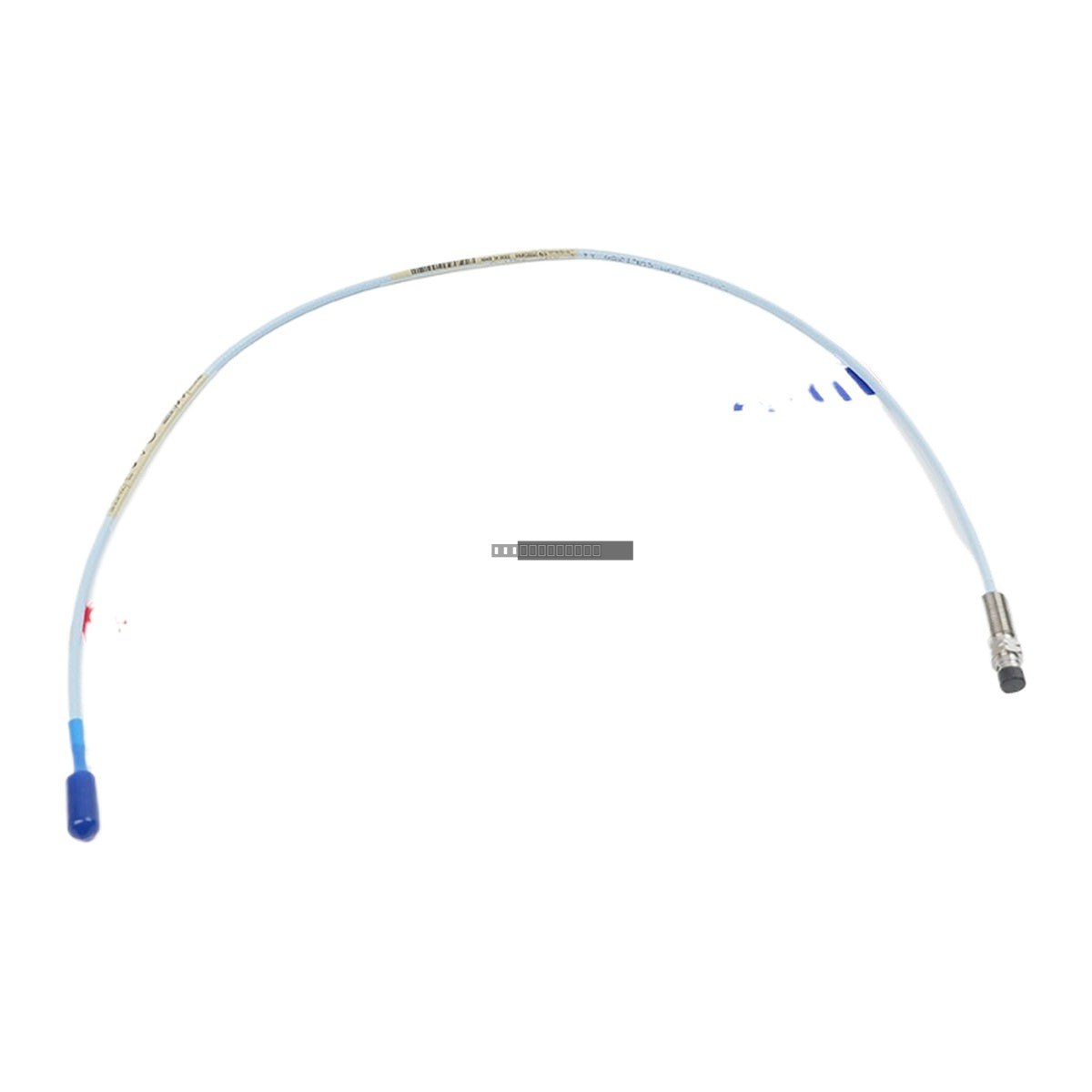

Bently Nevada 330106-05-30-05-02-CN 3300 XL 8 mm Reverse Mount Probe

Bently Nevada 330106-05-30-05-02-CN 3300 XL 8 mm Reverse Mount Proximity Probe

Availability: 6 left in stock

DescriptionThe Bently Nevada 330106-05-30-05-02-CN is a high-performance 3300 XL 8 mm reverse mount proximity probe designed for precise vibration and...

SKU: 330106-05-30-05-02-CN

Manufacturer: Bently Nevada
Product No.: 330106-05-30-05-02-CN
Product Type: Proximity Probe
Product Origin: USA
Payment:T/T, Western Union
Weight: 50g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Bently Nevada 330106-05-30-05-02-CN is a high-performance 3300 XL 8 mm reverse mount proximity probe designed for precise vibration and position monitoring in industrial rotating machinery. As part of the 3300 XL series, this probe is engineered to work seamlessly with the Bently Nevada Proximitor sensor system, providing reliable gap, amplitude, and position data for critical assets such as turbines, compressors, and pumps.

Features

Reverse mount configuration for installation in space-constrained environments.
M10 x 1 thread design for secure mounting.
Fully interchangeable with 3300 XL 8 mm and 5 mm system components.
Equipped with a miniature ClickLoc coaxial connector for reliable signal transmission.
Includes hazardous area agency approvals (CN/NEPSI).

Applications

Oil and Gas: Monitoring pumps, compressors, and turbines in refineries and extraction facilities.
Power Generation: Integrated into 3500 series protection systems for large-scale turbine monitoring.
Petrochemical: Precision monitoring of high-speed rotating equipment.
Heavy Manufacturing: Used in rolling mills and smelters to monitor shaft vibration and position.

Technical Specifications

Model	330106-05-30-05-02-CN
Probe Type	3300 XL 8 mm Reverse Mount
Thread Size	M10 x 1
Total Length	0.5 meter (1.6 feet)
Connector Type	Miniature ClickLoc coaxial
Agency Approvals	CN (NEPSI)
Output Resistance	50 Ohm
Cable Capacitance	69.9 pF/m (21.3 pF/ft) typical
Weight	0.05 kg

Installation Guidelines

Ensure the probe is installed in a location free from excessive mechanical stress on the cable.
Use caution when handling the probe tip to prevent damage to the sensing element.
Ensure the connector is clean and free of debris before mating with the extension cable.
Maintain the minimum permissible cable bend radius to avoid signal degradation or cable damage.
Always power down the associated Proximitor sensor before connecting or disconnecting the probe.
Ensure proper grounding of the monitoring system to prevent EMI interference.

FAQ

What is the primary function of this probe?

This probe measures the distance between the probe tip and the observed target (e.g., a machine shaft), providing essential data for vibration and position analysis in the 3300 XL monitoring system.

What does the CN suffix indicate?

The CN suffix signifies that this specific unit is certified for use in hazardous areas according to Chinese (NEPSI) standards.

Is this probe compatible with older 3300 systems?

Yes, 3300 XL 8 mm components are electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components, provided the mounting requirements are met.
