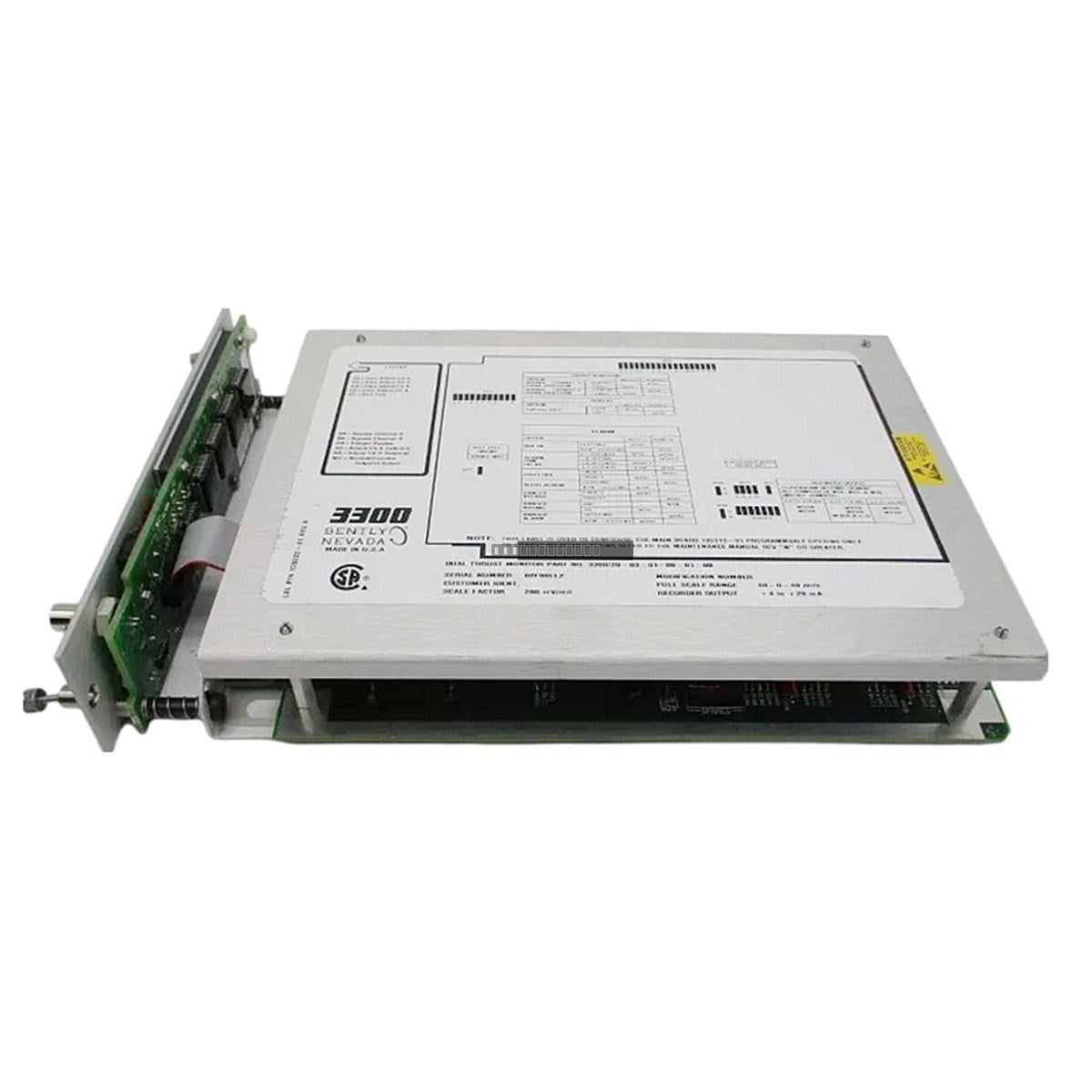

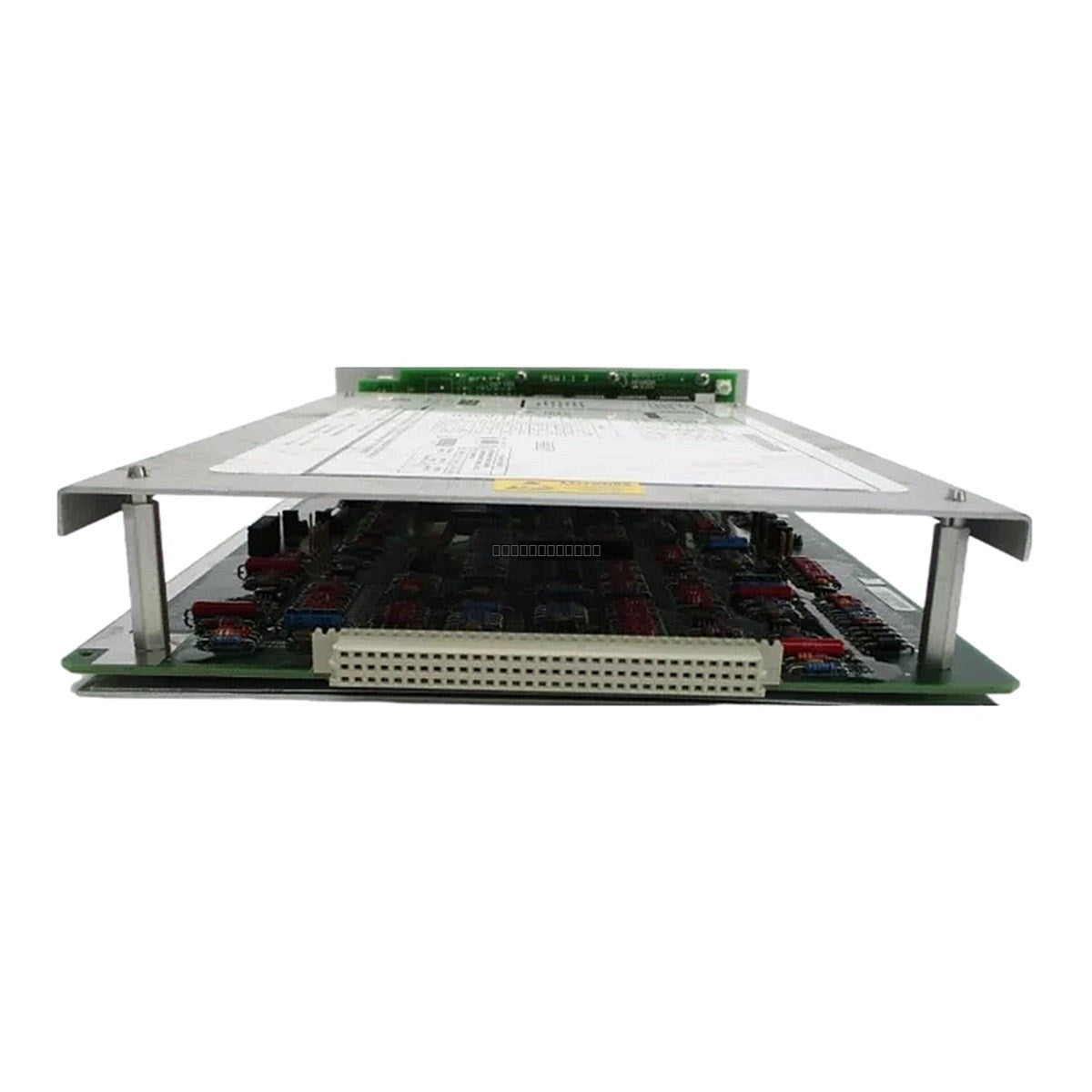

Bently Nevada 3300/40-13-01-01-00-00 Eccentricity Monitor Module

Availability: 1 left in stock

DescriptionThe Bently Nevada 3300/40-13-01-01-00-00 is a dedicated Eccentricity Monitor Module engineered for the 3300 rack-based monitoring system. This module provides...

SKU: 3300/40-13-01-01-00-00

Manufacturer: Bently Nevada
Product No.: 3300/40-13-01-01-00-00
Product Type: Eccentricity Monitor Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Bently Nevada 3300/40-13-01-01-00-00 is a dedicated Eccentricity Monitor Module engineered for the 3300 rack-based monitoring system. This module provides precise, continuous measurement of shaft displacement, specifically focusing on eccentricity and rotor bow in large-scale rotating equipment such as industrial turbines and compressors. By tracking shaft behavior during slow-roll conditions, the module facilitates early detection of potential misalignment or mechanical issues, supporting effective predictive maintenance strategies and operational safety.

Features

Designed for integration into the standard 3300 series monitoring rack.
Provides continuous monitoring of shaft eccentricity with programmable alarm setpoints.
Includes dedicated LED indicators for system status, including OK, Bypass, Alert, and Danger states.
Supports proximity probe inputs via compatible Proximitor sensors.
Features user-programmable sensitivity settings (200 mV/mil or 100 mV/mil).
Equipped with standard relay outputs for automated Alert and Danger alarm signaling.

Technical Specifications

Model	3300/40-13-01-01-00-00
Brand	Bently Nevada
Series	3300
Operating Temperature	0 to 60 deg C
Power Consumption	Approx. 1.5 W
Signal Accuracy	±0.33% typical (at 25 deg C)
mA Output	+4 to +20 mA
Voltage Output	+1 to +5 VDC / 0 to -10 VDC

Installation Guidelines

Ensure the 3300 rack is powered down before inserting or removing the module to prevent electrical damage.
Verify that the module is fully seated in the rack slot to ensure proper backplane communication.
Use shielded cabling for all proximity probe connections to minimize EMI interference.
Ensure the module is installed in a clean, dry environment within the specified operating temperature range of 0 to 60 deg C.
Follow standard electrostatic discharge (ESD) precautions when handling the module circuitry.

FAQ

What is the primary function of the 3300/40 monitor?

The 3300/40 is designed to measure shaft eccentricity, which helps identify rotor bow and slow-roll displacement in rotating machinery, allowing operators to prevent catastrophic failure through early alarm detection.

Is this module compatible with existing 3300 racks?

Yes, this is a standard 3300 series module designed for seamless integration into existing Bently Nevada 3300 rack-based monitoring systems.

What are the typical output signals for this unit?

The module provides both current outputs (+4 to +20 mA) and voltage outputs (+1 to +5 VDC or 0 to -10 VDC) to interface with external control or data acquisition systems.
