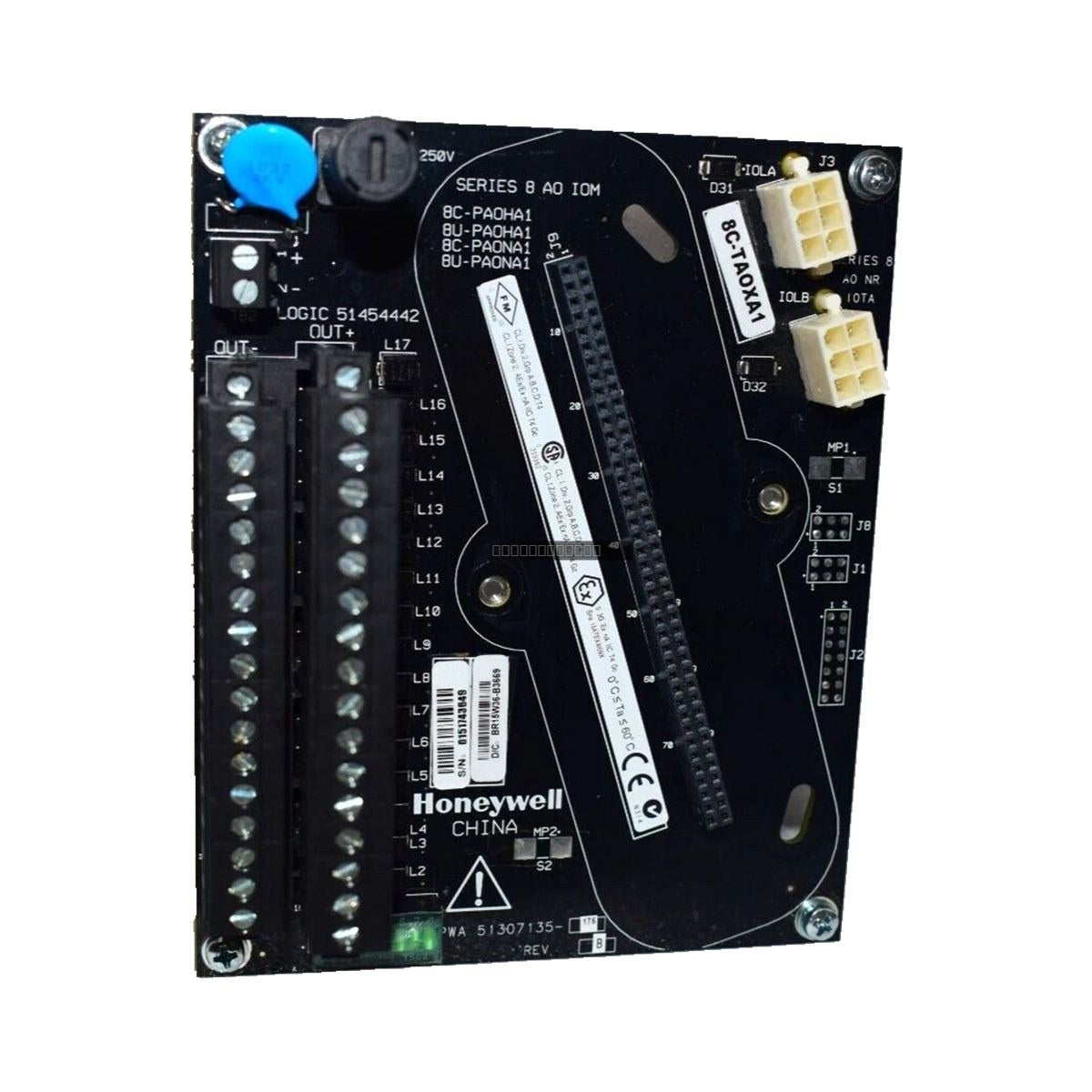

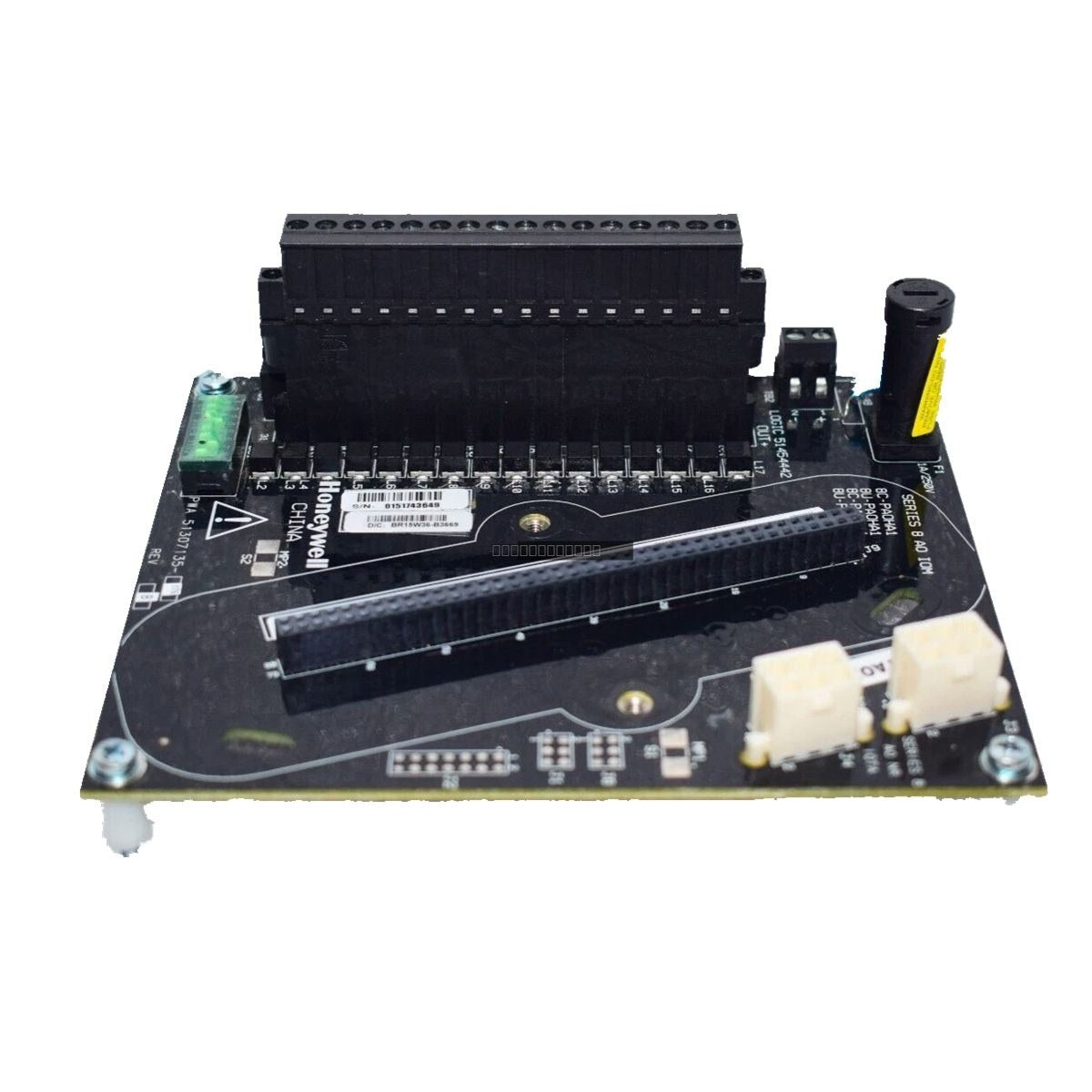

Honeywell 8U-TAOXB1 Analog Output IOTA

Honeywell 8U-TAOXB1 Analog Output IOTA

Availability: 8 left in stock

DescriptionThe Honeywell 8U-TAOXB1 is an Analog Output IOTA (Input/Output Termination Assembly) engineered for the Experion PKS Series C control platform....

SKU: 8U-TAOXB1

Manufacturer: Honeywell
Product No.: 8U-TAOXB1
Product Type: Analog Output IOTA Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Honeywell 8U-TAOXB1 is an Analog Output IOTA (Input/Output Termination Assembly) engineered for the Experion PKS Series C control platform. This module features 16 isolated analog output channels capable of delivering 4-20 mA signals, specifically designed to support high-reliability process automation, including chemical refining, power generation, and pharmaceutical manufacturing. The unit is provided in a red, uncoated configuration and is built to withstand demanding industrial environments while providing high-precision control for field actuators and valves.

Features

16 isolated analog output channels supporting 4-20 mA current loops.
Settable output range from 2.9 mA to 21.1 mA for versatile field device interfacing.
Supports online insertion and removal (OIR) to facilitate maintenance without system downtime.
Redundancy-ready architecture with a maximum switchover gap of 10 ms.
Optimized for Series C IOTA cabinet mounting.
High-accuracy signal transmission with stable output ripple characteristics.

Applications

This module is optimized for integration into distributed control systems (DCS) within critical industrial sectors, including thermal power plants, petrochemical processing, offshore drilling platforms, and complex turbine control systems requiring continuous, high-availability output signals.

Technical Specifications

Model	8U-TAOXB1
Series	Experion PKS Series C
Output Channels	16
Output Current Range	2.9 mA to 21.1 mA
Load Resistance	50-800 Ohm
Calibrated Accuracy	+/- 0.2% of full scale at 25 deg C
Resolution	+/- 0.05% of full scale
Response Time	80 ms (settles within 1% of final value)
Power Consumption	4.6 W
Operating Temperature	0 to 60 deg C
Storage Temperature	-40 to 85 deg C

Installation Guidelines

Ensure the cabinet environment meets the specified temperature and humidity ranges.
The module supports live insertion/removal; however, always verify system power status before performing physical maintenance.
Use shielded cabling for analog output signals to minimize electromagnetic interference (EMI) in high-noise industrial areas.
Ensure proper grounding of the IOTA assembly to the cabinet chassis to maintain signal integrity and safety.
Verify that the load resistance is within the 50-800 Ohm range to maintain optimal output performance.

FAQ

Is this module compatible with Series C controllers? Yes, the 8U-TAOXB1 is specifically designed for the Honeywell Experion PKS Series C platform.

Does this module support redundant configurations? Yes, the hardware architecture is designed to support redundancy, with a maximum switchover time of 10 ms during transition events.
