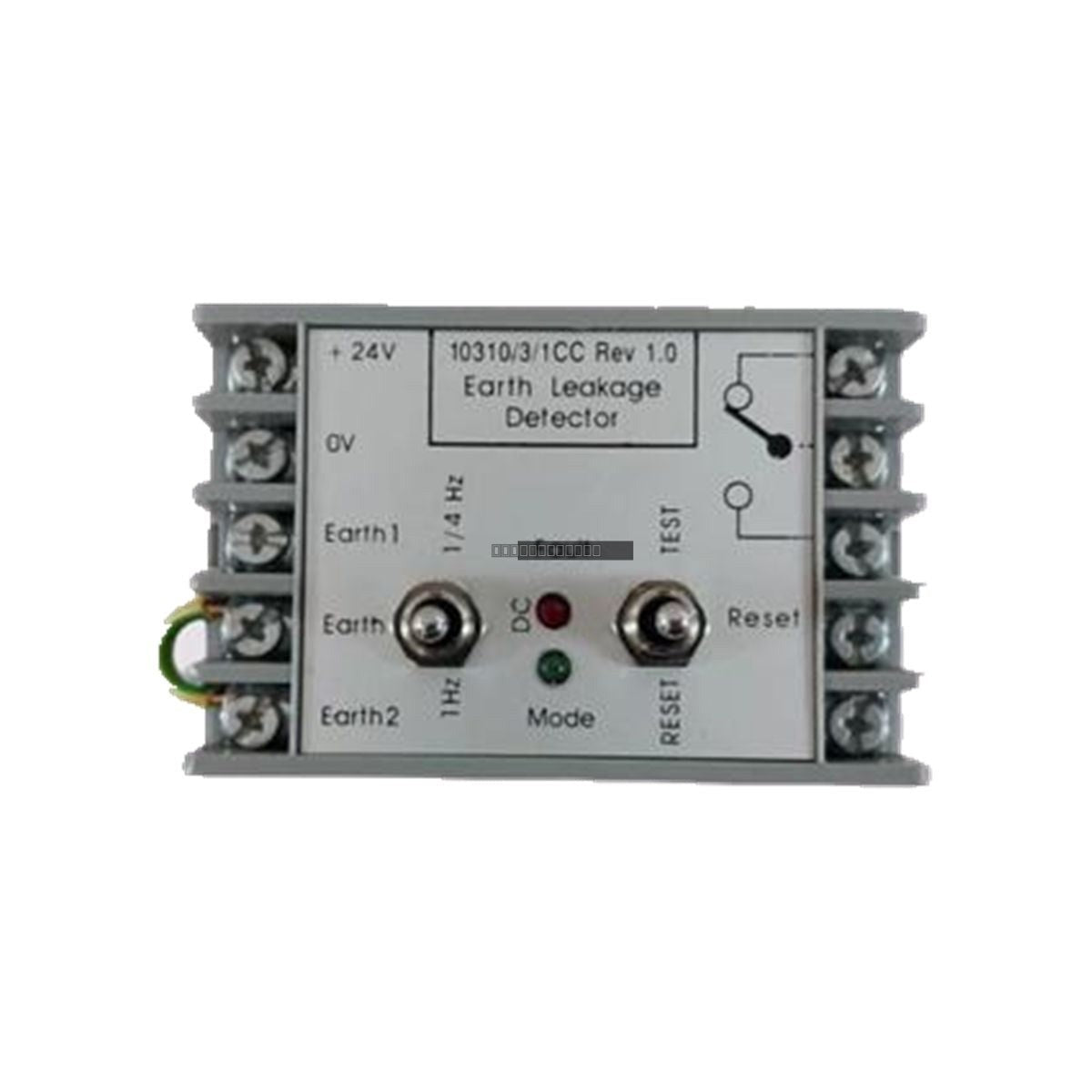

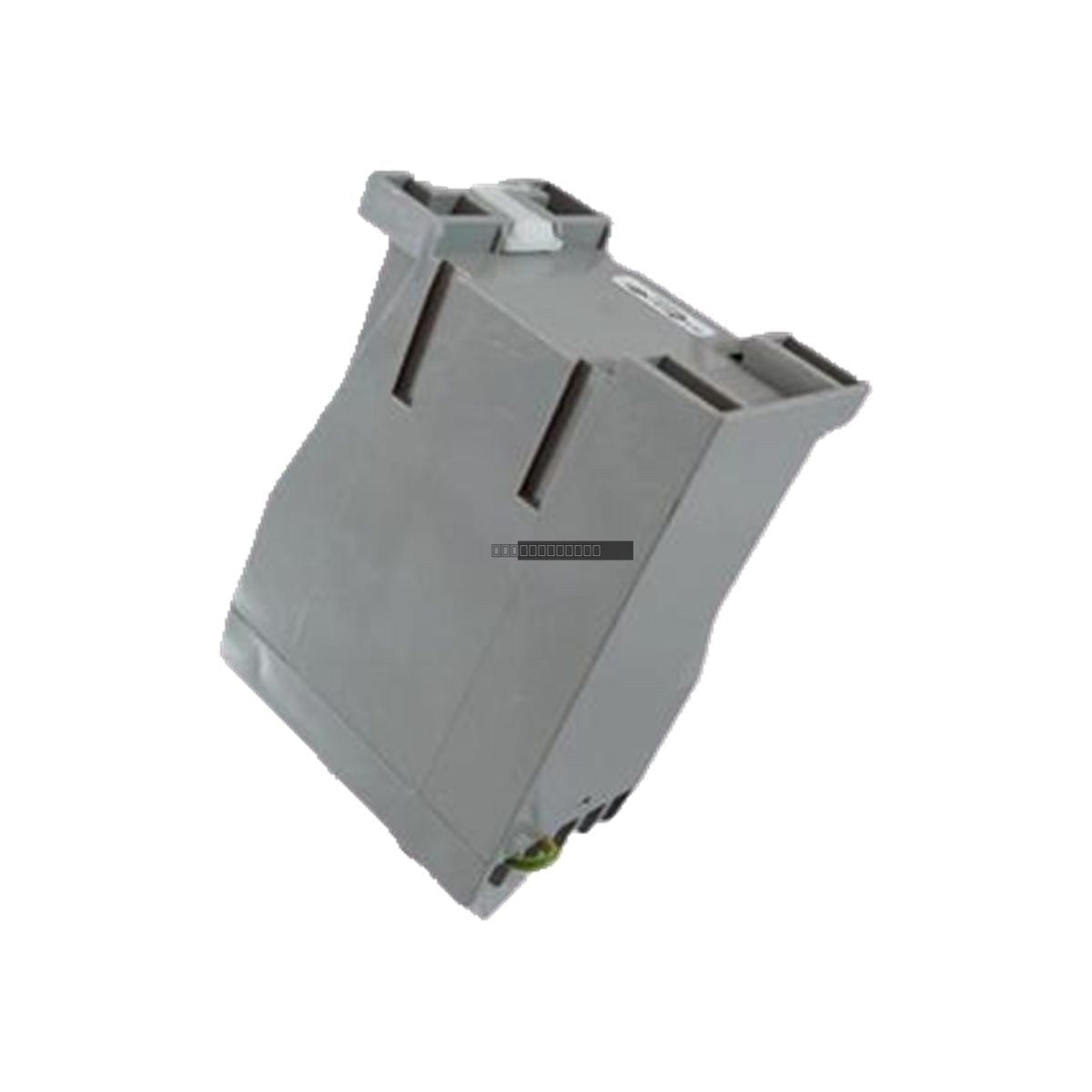

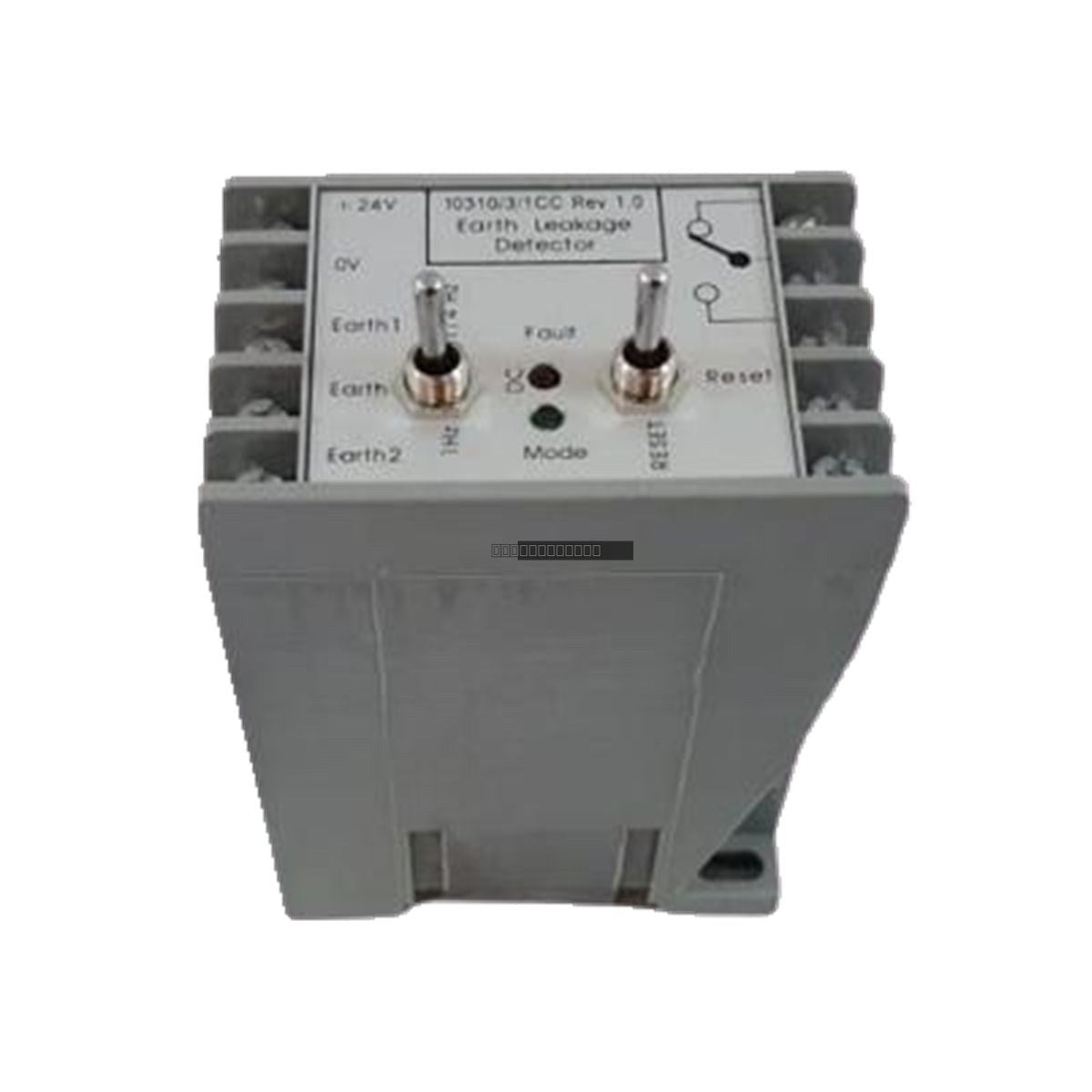

Honeywell 10310/3/1 Electronic Earth Leakage Detector

Availability: 1 left in stock

DescriptionThe Honeywell 10310/3/1 is an electronic earth leakage detector designed for industrial safety and monitoring applications. This module provides reliable...

SKU: 10310/3/1

Manufacturer: Honeywell
Product No.: 10310/3/1
Product Type: Earth Leakage Detector
Product Origin: USA
Payment:T/T, Western Union
Weight: 140g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Honeywell 10310/3/1 is an electronic earth leakage detector designed for industrial safety and monitoring applications. This module provides reliable earth fault detection, ensuring operational integrity within control systems by monitoring for leakage currents that exceed defined safety thresholds. It is engineered for integration into standard control environments requiring precise fault detection and reporting.

Features

Electronic earth fault detection with a set threshold of 5.5 mA (± 1 mA).
Designed for 24 V DC supply voltage operation.
Integrated reset input functionality supporting a range of 18 - 70 V DC.
High isolation rating of 1500 V DC / 1000 V AC to protect sensitive circuitry.
Compact module design suitable for industrial panel mounting.

Technical Specifications

Model	10310/3/1
Supply Voltage	24 V DC
Earth Fault Threshold	5.5 mA (± 1 mA)
Reset Input Voltage	18 - 70 V DC
Reset Input Current	1.1 mA at 24 V DC
Max. Earth Current	25 - 32 mA
Max. Output Current	2 A
Max. Output Voltage	36 V DC / 30 V AC
Initial Contact Resistance	30 mOhm
Operating Temperature	-5 degC to +50 degC (23 degF to +122 degF)

Installation Guidelines

Ensure the module is installed in a clean, dry environment within an appropriately rated industrial enclosure.
Verify that the supply voltage matches the 24 V DC requirement before powering on the unit.
Maintain proper clearance around the module to allow for adequate heat dissipation during operation.
Use shielded cabling for input and output connections to minimize electromagnetic interference (EMI).
Always disconnect power before performing any wiring, inspection, or maintenance on the module to prevent electrical shock or damage to the device.
Ensure all terminals are tightened to the correct torque to prevent loose connections, which can lead to increased contact resistance.

FAQ

What is the primary function of the Honeywell 10310/3/1?

This module serves as an electronic earth leakage detector, specifically designed to monitor for earth faults and provide a signal when the current exceeds a 5.5 mA threshold.

Can this device be reset remotely?

Yes, the module features a reset input that accepts a voltage range of 18 - 70 V DC, allowing for remote reset capabilities within your control system.

What is the operating temperature range for this unit?

The device is designed to operate reliably in temperatures between -5 degC and +50 degC (23 degF to +122 degF).
