Bently Nevada 149992-01 16-Channel Relay Output Module

Availability: 7 left in stock

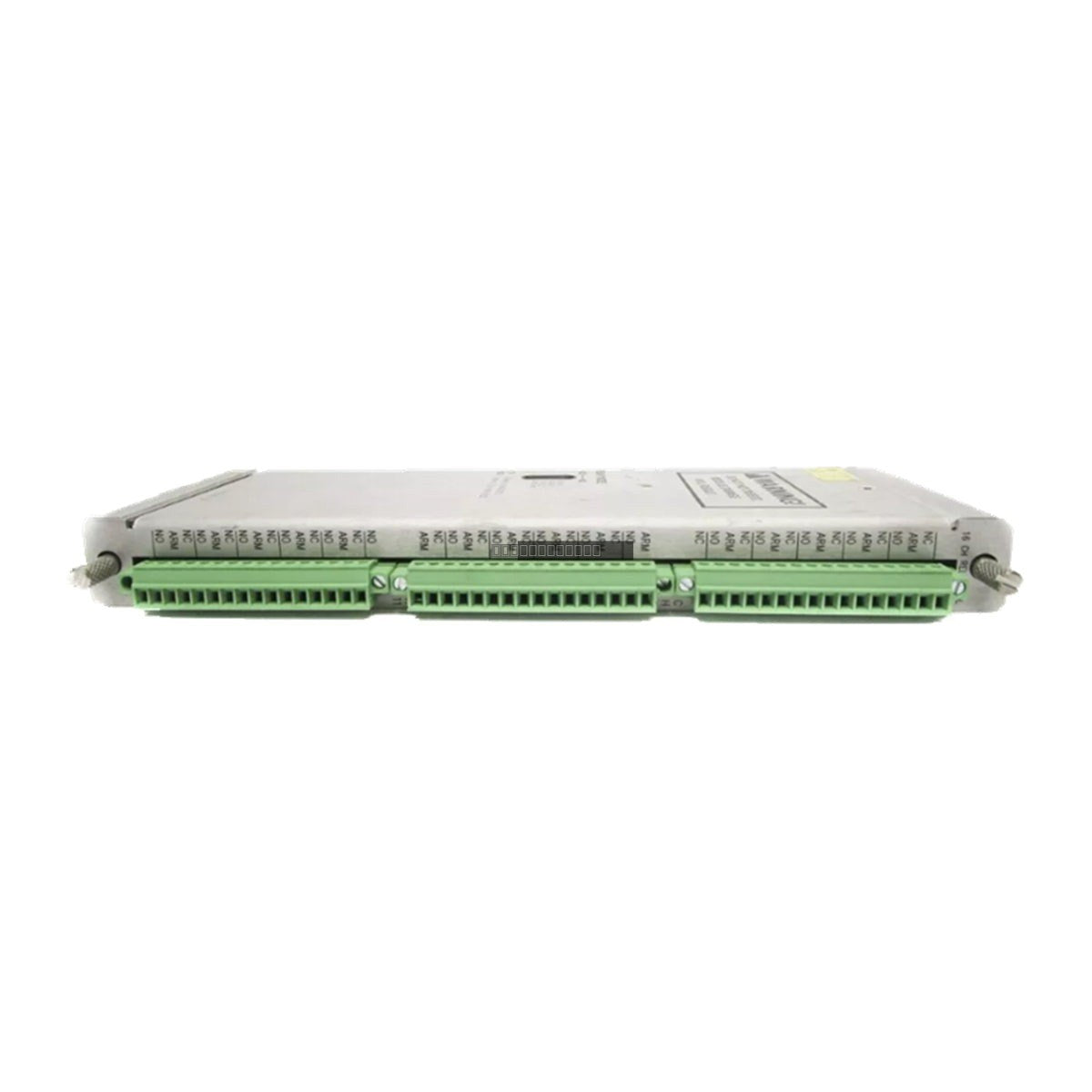

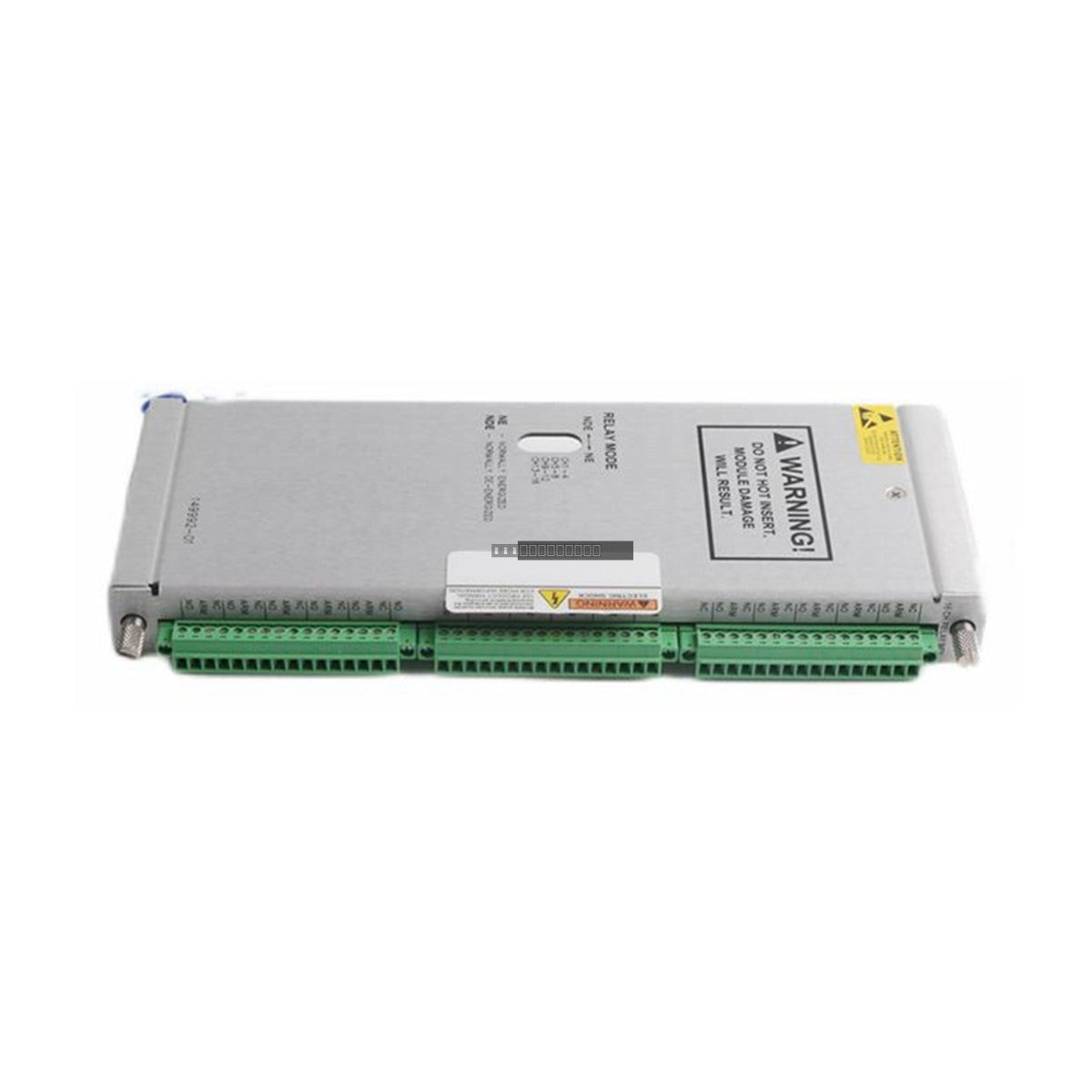

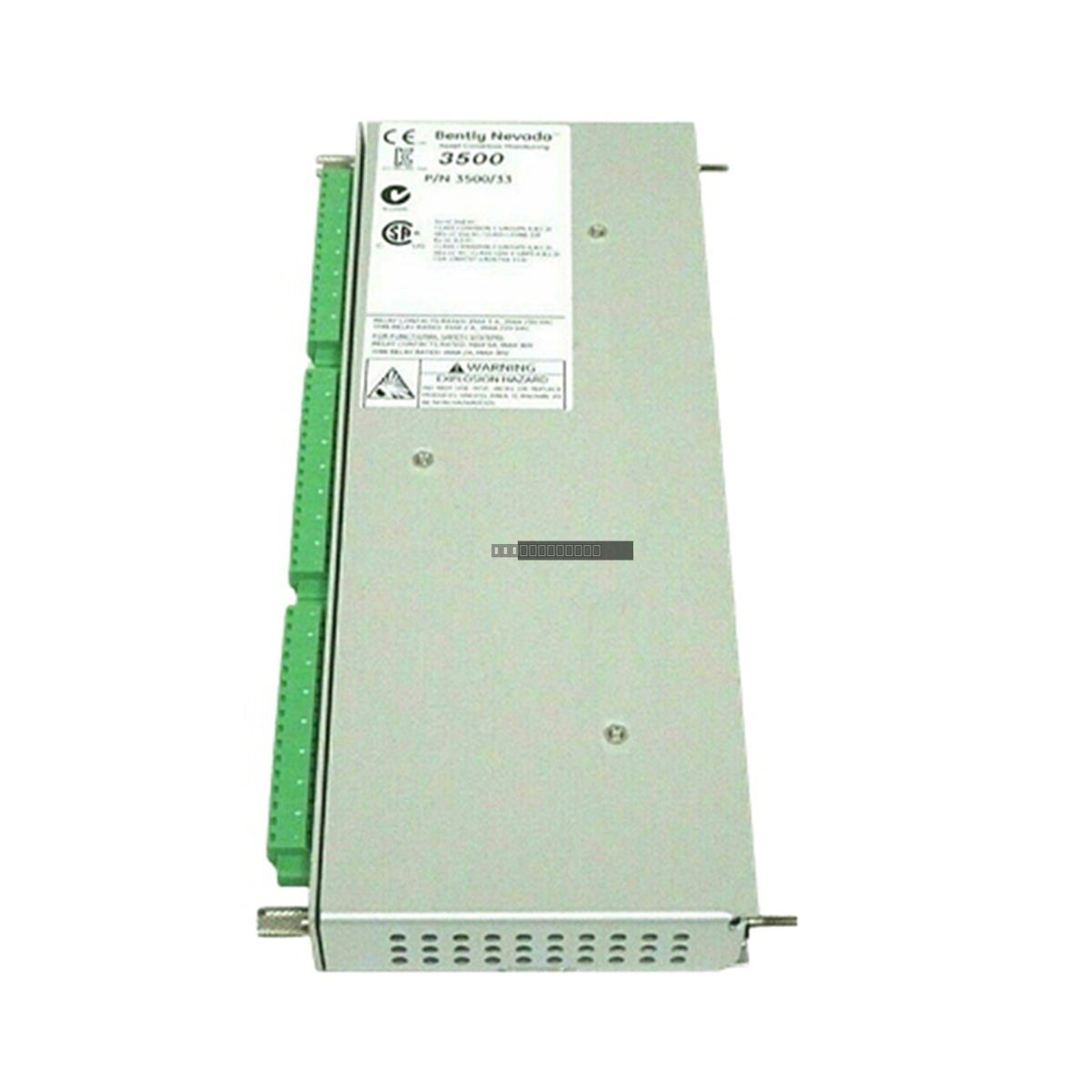

The Bently Nevada 149992-01 is a high-density, 16-channel relay output module engineered for the 3500 Machinery Protection System. This module...

SKU: 149992-01

Manufacturer: Bently Nevada
Product No.: 149992-01
Product Type: Relay Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Bently Nevada 149992-01 is a high-density, 16-channel relay output module engineered for the 3500 Machinery Protection System. This module facilitates the conversion of machinery protection events—such as Alert or Danger statuses—into hardwired control signals, enabling effective alarm annunciation, equipment interlocking, and emergency shutdown sequences in critical rotating machinery.

Features

High-Density Design: Provides 16 independent SPDT relay outputs within a single full-height rack module.
Flexible Logic: Each relay features integrated Alarm Drive Logic, supporting AND/OR voting logic configurations.
Application Versatility: Compatible with inputs from any monitor channel or combination of monitor channels within the same 3500 rack.
System Integration: Programmable via 3500 Rack Configuration Software to meet specific site-wide safety and control requirements.

Applications

This module is essential for protecting critical industrial assets, including:

Steam and gas turbines (bearing and stator monitoring)
Large-scale pumps and motors
Industrial gearboxes (lubrication and friction monitoring)
Fans, blowers, and extruders
Nuclear, thermal, and hydropower generation infrastructure

Technical Specifications

Model	149992-01
Output Channels	16 (SPDT)
Power Consumption	5.8 W (typical)
Power Supply	24 V DC (via backplane)
Operating Temperature	-30 degC to +65 degC
Storage Temperature	-40 degC to +85 degC
Humidity	Up to 95% (non-condensing)
Contact Rating	250 VAC / 125 VDC at 5 A

Installation Guidelines

Slot Placement: The module is designed for installation in any available slot to the right of the Transient Data Interface (TDI) or Rack Interface Module (RIM).
System Requirements: Ensure the 3500 rack is running compatible firmware/software versions (Rack Config v3.3, Data Acquisition v2.40, and Data Display v1.40 or later).
Safety First: Always de-energize the 3500 rack before inserting or removing any module to prevent electrical damage or system faults.
Handling: Use appropriate ESD protection when handling the module to prevent damage to sensitive internal circuitry.
Wiring: Ensure all field wiring is routed to the corresponding I/O module terminals, maintaining proper separation from high-voltage AC lines to minimize EMI.

FAQ

Is this module compatible with all 3500 series racks?

The 149992-01 is designed for the 3500 series machinery protection platform. Please verify your specific rack configuration and software versions to ensure full compatibility with your existing monitoring setup.

What is the function of the Alarm Drive Logic?

The Alarm Drive Logic allows you to assign specific relay outputs to trigger based on programmable logic, including Alert/Danger statuses, Not-OK conditions, or individual Proportional Parameters (PPLs) from any monitor channel in the rack.
