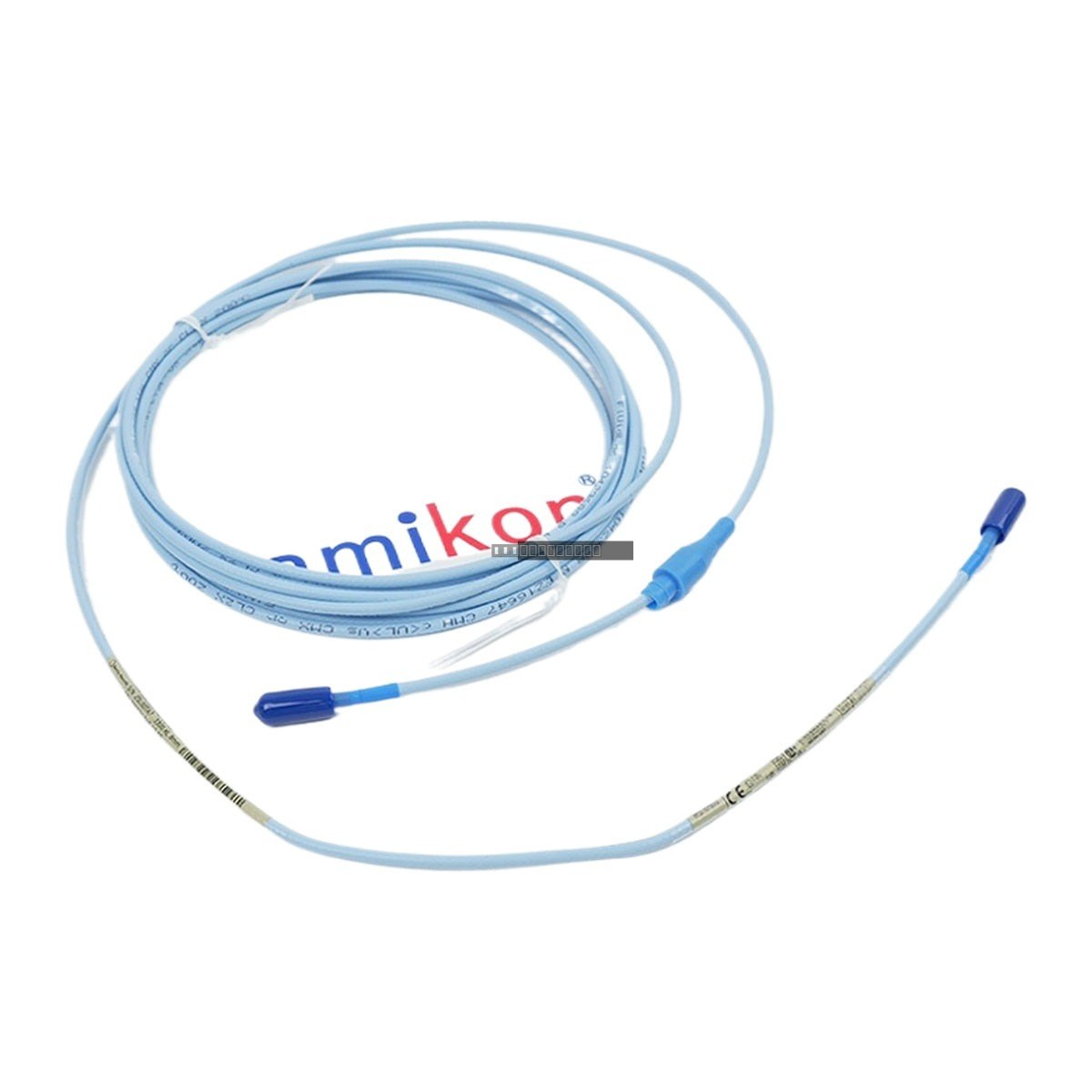

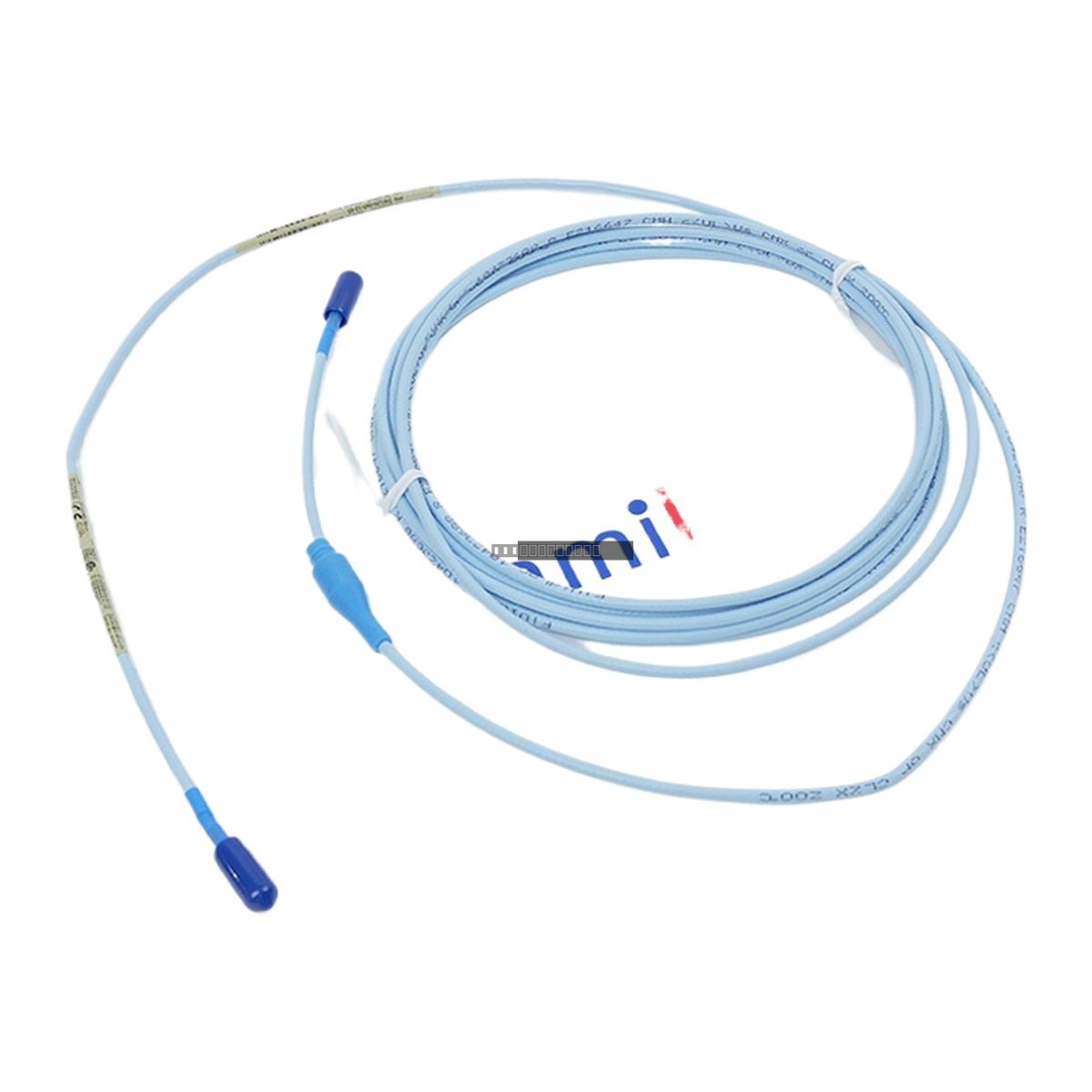

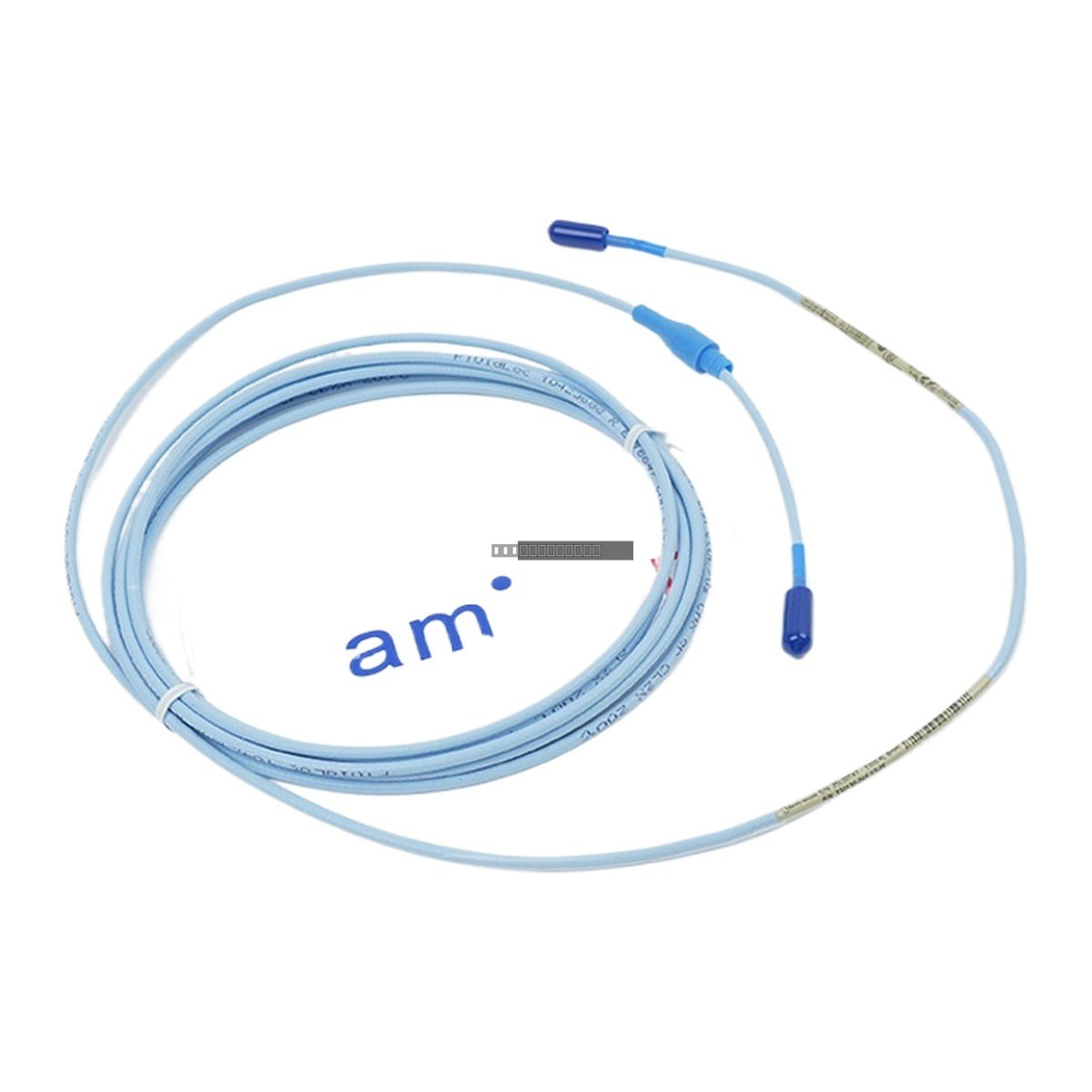

Bently Nevada 330130-045-12-05 3300 XL Extension Cable

Bently Nevada 330130-045-12-05 3300 XL Standard Extension Cable

Availability: 9 left in stock

DescriptionThe Bently Nevada 330130-045-12-05 is a 3300 XL standard extension cable designed for use within the 3300 XL 8mm Proximity...

SKU: 330130-045-12-05

Manufacturer: Bently Nevada
Product No.: 330130-045-12-05
Product Type: Vibration Monitor Cable
Product Origin: USA
Payment:T/T, Western Union
Weight: 150g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Bently Nevada 330130-045-12-05 is a 3300 XL standard extension cable designed for use within the 3300 XL 8mm Proximity Transducer System. This cable provides the essential electrical pathway for transmitting eddy current signals from the proximity probe to the Proximitor sensor. It is engineered to ensure high signal integrity and system stability in demanding machinery condition monitoring applications, including vibration and position measurements on fluid-film bearing machines.

Features

4.5-meter (14.8-foot) cable length
FluidLoc cable construction with integrated connector protector
Compatible with 3300 XL 8mm probes and Proximitor sensors
Supports static (position) and dynamic (vibration) measurement signals
Robust design for thermal cycling and mechanical stress resistance
Agency approvals: CSA, ATEX, and IECEx

Applications

Vibration and shaft position monitoring for fluid-film bearing machines
Performance monitoring for industrial compression systems
Rotational speed and Keyphasor phase-related measurements
Harsh industrial environments requiring resistance to oil and liquid leakage

Technical Specifications

Model	330130-045-12-05
Cable Length	4.5 meters (14.8 feet)
Cable Type	FluidLoc with connector protector
Capacitance	69.9 pF/m (21.3 pF/ft) typical
Output Resistance	50 Ohm
Operating Temperature	-51 degC to +177 degC
Agency Approvals	CSA, ATEX, IECEx

Installation Guidelines

Ensure all connectors are clean and dry before mating to prevent signal interference.
Verify that the total system electrical length (probe + extension cable) matches the Proximitor sensor requirements (typically 5m or 9m total).
Do not exceed the minimum bend radius of the coaxial cable to prevent damage to the internal structure.
Ensure the connector protector is properly seated to maintain an environmental seal against contaminants.
Handle with care to avoid mechanical stress on the CableLoc and TipLoc interfaces.

FAQ

What is the 330130-045-12-05?

The Bently Nevada 330130-045-12-05 is a 3300 XL 8mm Proximity Transducer System extension cable, featuring a 4.5-meter length, standard cable construction, and specific agency approvals.

What is the function of the 330130-045-12-05 cable?

This cable connects a 3300 XL proximity probe to a 3300 XL Proximitor sensor. It is part of an eddy current transducer system used to measure radial vibration, axial position, and speed on rotating machinery.

Can I use a different length cable than the one originally installed?

No. The 3300 XL system must have a matched electrical length. The total electrical length of the probe plus the extension cable must match the Proximitor sensor, typically 5 or 9 meters total.

What is the typical gap voltage setting for a 3300 XL probe system?

When installed and properly gapped, the typical gap voltage is around -9 V to -11 V DC when the shaft is centered in the probe's linear range.
