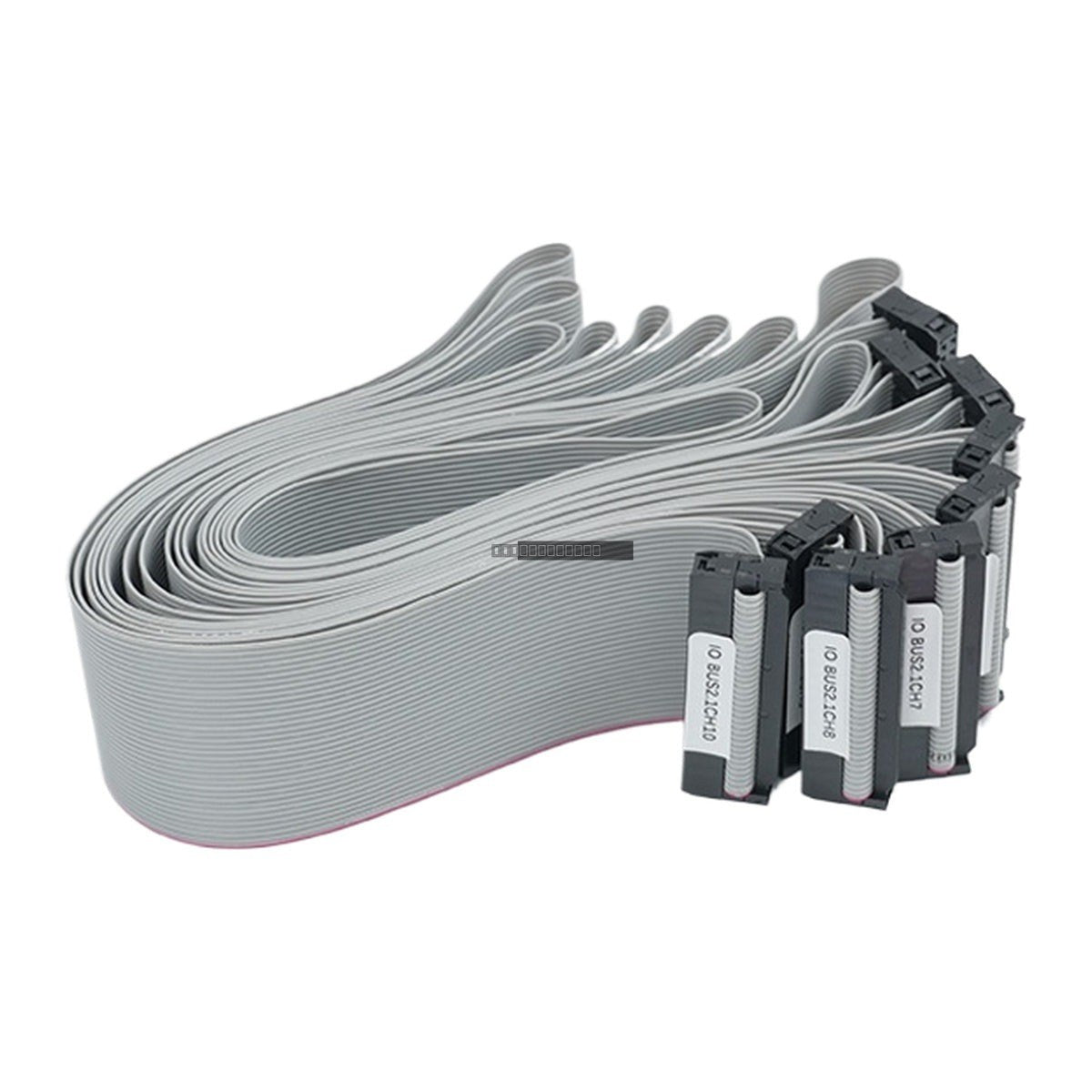

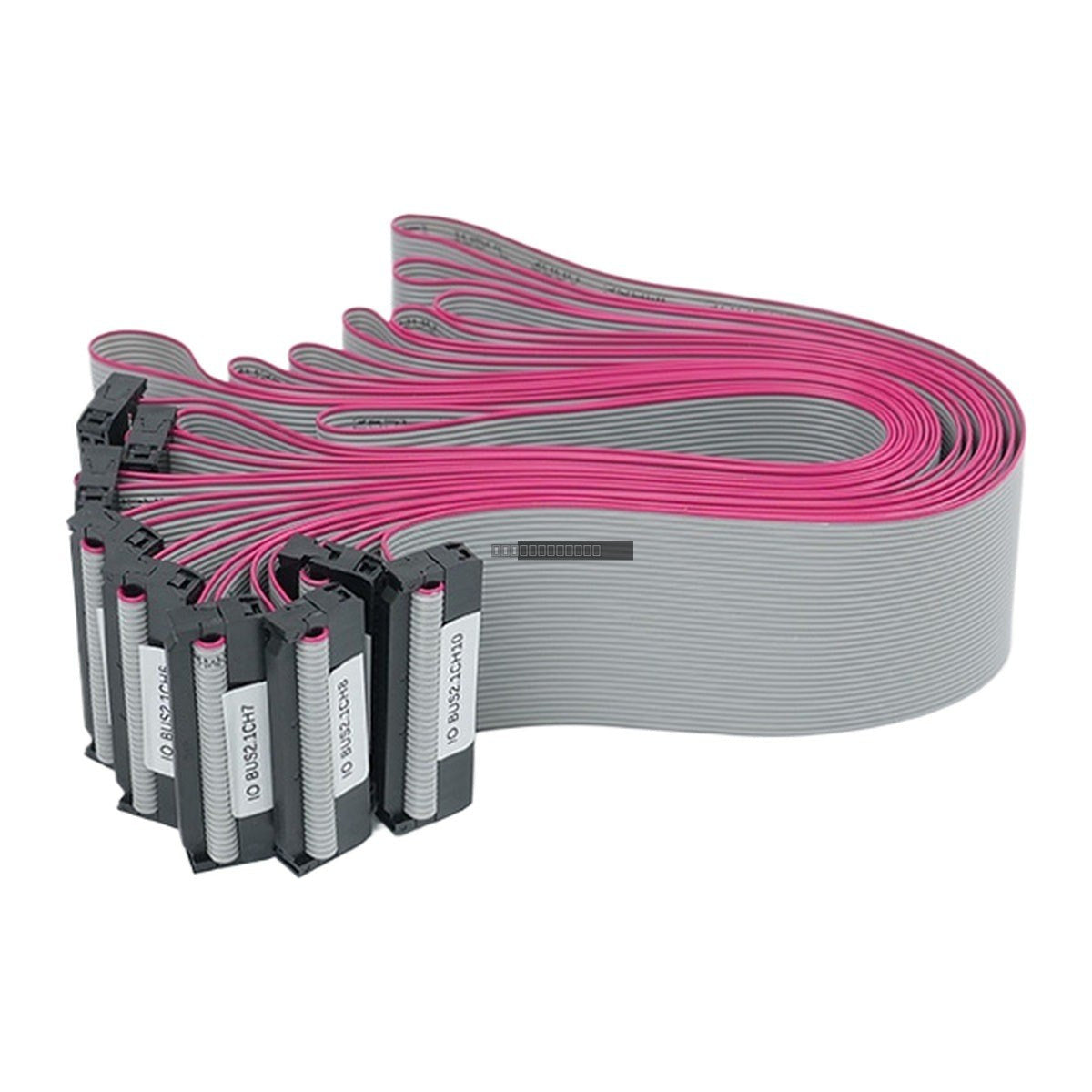

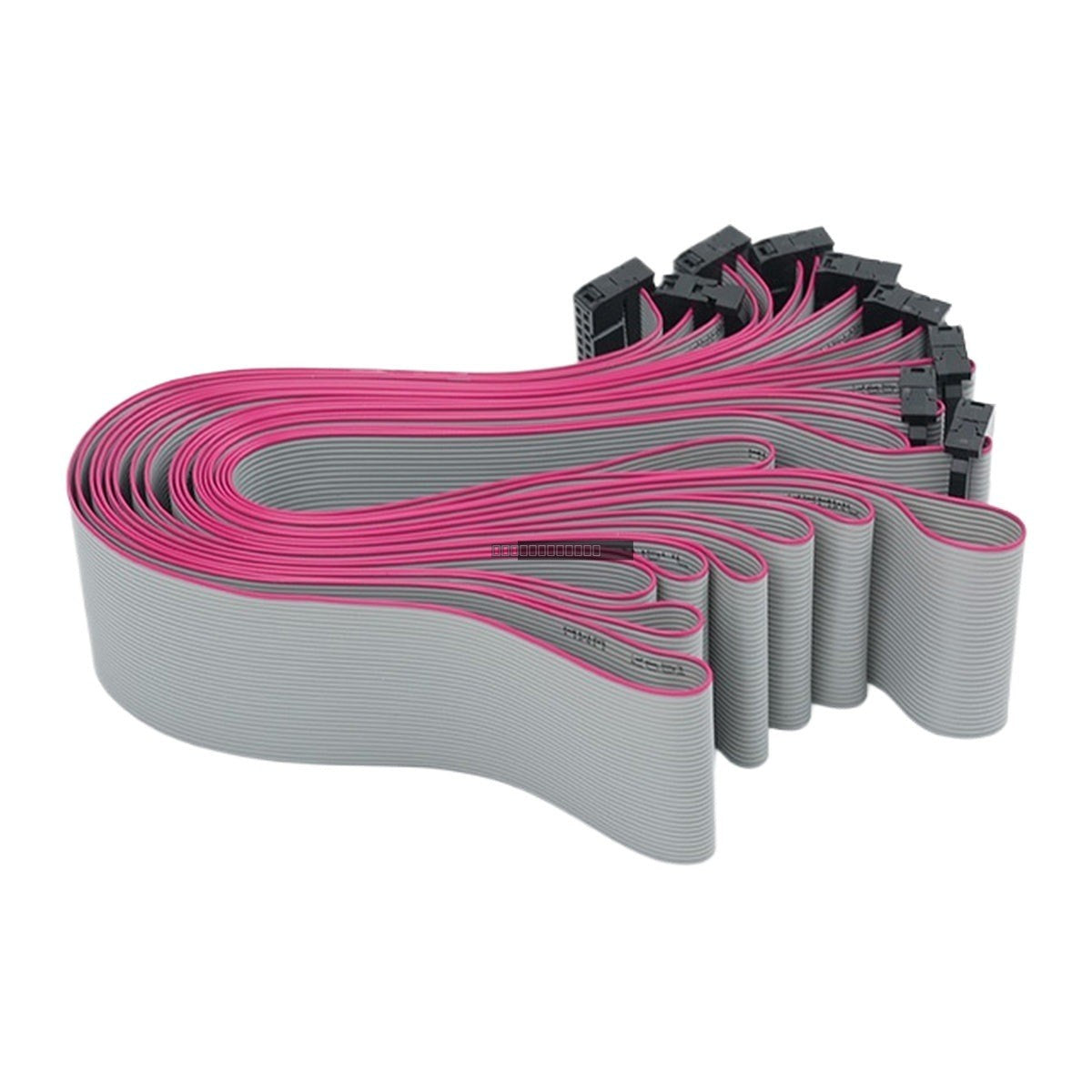

Honeywell FS-IOBUS-CPIO I/O Bus Cable for Safety Manager

Availability: 8 left in stock

The Honeywell FS-IOBUS-CPIO is a specialized 34-pole I/O bus cable designed for the Honeywell Safety Manager system. It provides the...

SKU: FS-IOBUS-CPIO

Manufacturer: Honeywell
Product No.: FS-IOBUS-CPIO
Product Type: I/O Bus Cable
Product Origin: USA
Payment:T/T, Western Union
Weight: 250g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Honeywell FS-IOBUS-CPIO is a specialized 34-pole I/O bus cable designed for the Honeywell Safety Manager system. It provides the critical communication link between the Controller Chassis (CPCHAS) and the I/O Chassis (IOCHAS), facilitating the transmission of scan, test, and update data between the QPP module and the I/O modules.

Features

Facilitates communication between Controller Chassis and I/O Chassis
34-pole female latch connector design
Supports both redundant and non-redundant system configurations
Shielded construction to ensure signal integrity and noise reduction in safety-critical environments
Compatible with Safety Manager A.R.T. and standard Safety Manager architectures

Applications

Oil & Gas Refineries: Managing emergency shutdown (ESD) and fire & gas (F&G) systems
Chemical Plants: Coordinating safety logic to prevent hazardous chemical reactions
Power Generation Facilities: Ensuring reliable communication between control and I/O chassis for mission-critical monitoring
Pharmaceutical & Biotech: Providing a scalable, flexible control system that meets strict regulatory standards

Technical Specifications

Model	FS-IOBUS-CPIO
Connector Type	34-pole latch (female)
Operating Temperature	-20 degC to +70 degC
Power Supply	24 V DC
Power Consumption	180 VA
Approvals	UL, CSA
Tariff Code	8537101190

Installation Guidelines

Ensure the system is powered down before connecting or disconnecting the I/O bus cable.
At the Controller chassis, connect the cable to the backplane connector marked "IO bus".
At the I/O chassis, connect the cable to the IO backplane (IOB-0001S/R) at the connector marked "IO bus".
For optimal EMI protection, route the cable along the middle horizontal bar at the back of the housing, keeping it separated from high-voltage power and watchdog cables.
Ensure the latching mechanism is fully engaged to prevent intermittent signal loss.

FAQ

What is the primary function of the FS-IOBUS-CPIO?

It serves as the communication backbone between the controller chassis and the I/O chassis, ensuring reliable data transfer between the QPP module and the I/O modules in a safety system.

Is this cable compatible with redundant systems?

Yes, the FS-IOBUS-CPIO is designed for use in both redundant and non-redundant controller and I/O configurations.

Which chassis types does this cable support?

It is designed to connect controller chassis such as the CPCHAS-0001 series to I/O chassis including the IOCHAS-0001S/R series.
