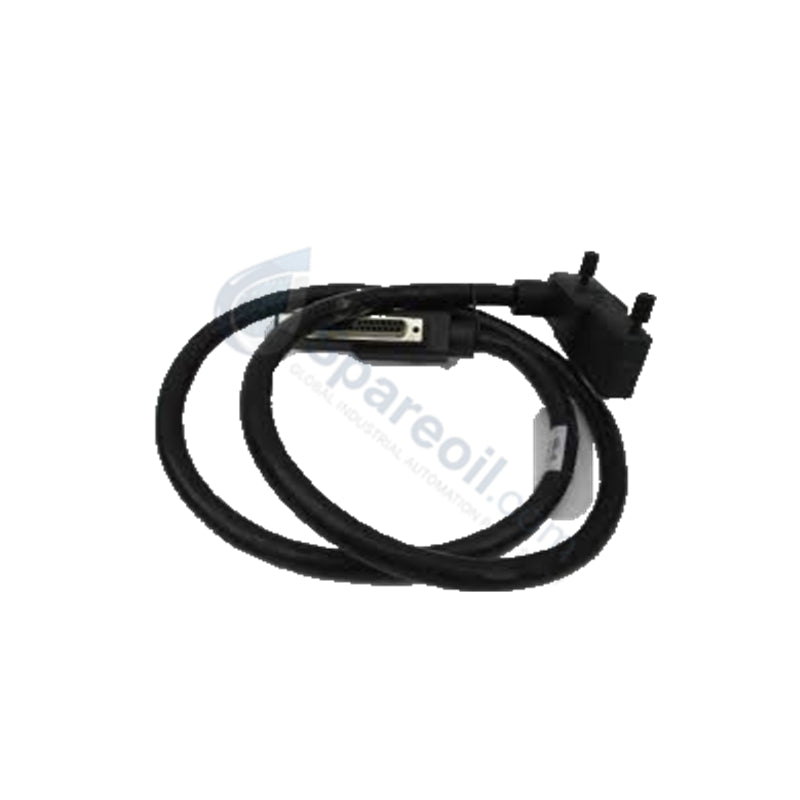

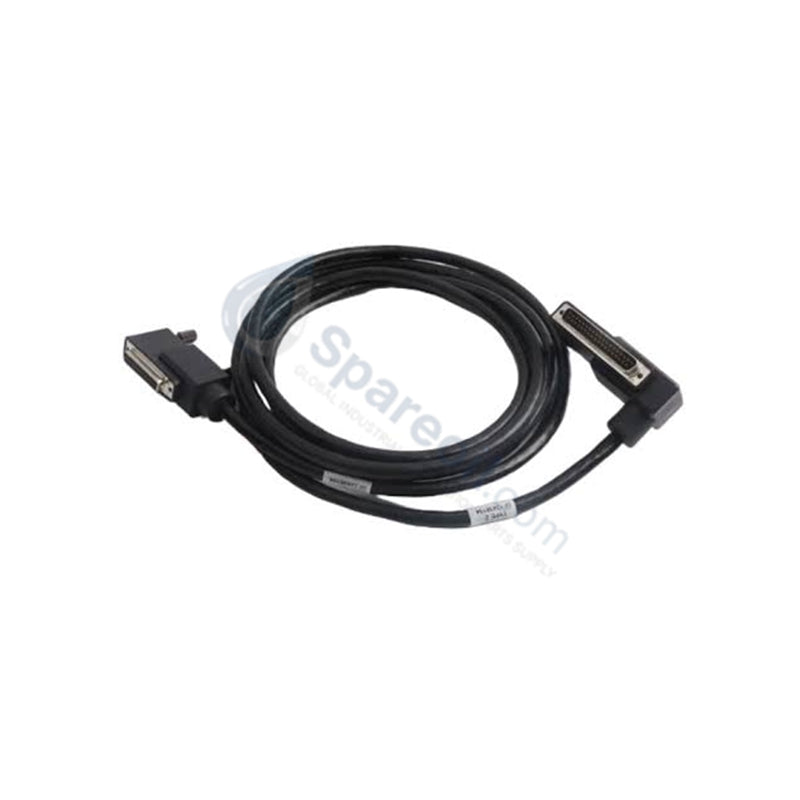

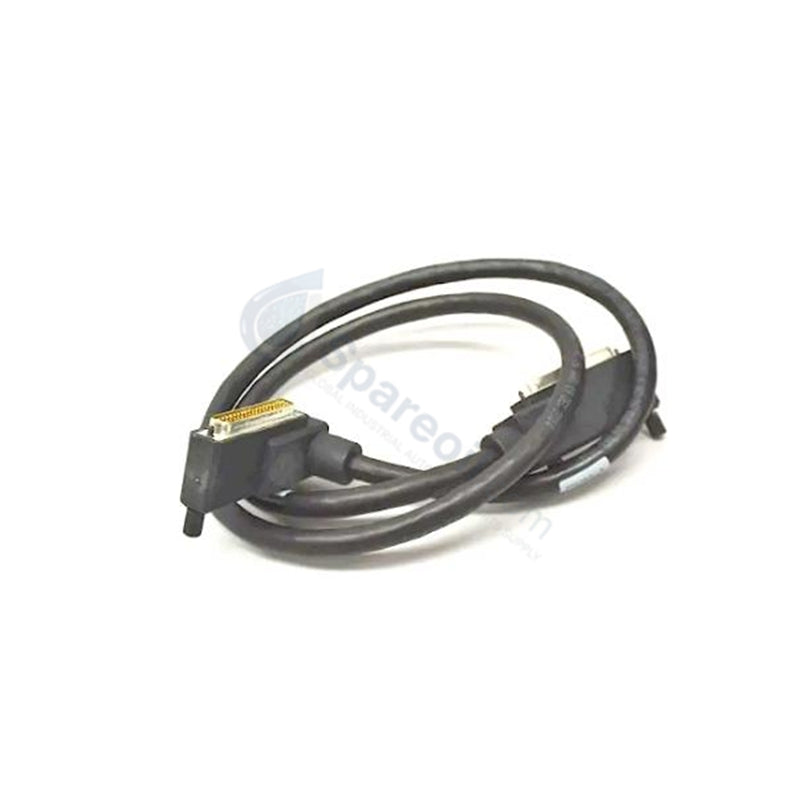

Foxboro P0926GJ I/A Series Termination Assembly Cable

The Foxboro P0926GJ, also cataloged as the P0926GJ Termination Assembly Cable, operates as a dedicated hardware component for wiring termination and signal routing within Foxboro I/A Series DCS platforms. It provides direct physical connectivity to route field signals—including 4-20 mA, RTD, thermocouple, and discrete I/O—between field devices and corresponding Fieldbus Modules (FBMs). The assembly supports up to 24 channels while providing galvanic isolation between field-side wiring and internal system logic.

Hardware Specifications

Parameter Specification
Model P0926GJ
Brand Foxboro (Schneider Electric)
Origin USA
Weight 0.43 kg
Dimensions 10.00 x 8.00 x 3.00 cm
Operating Temp -20 to +70 deg C
Power Consumption Passive field termination assembly
Cable Type / Length Cable Type 5 / 1.00 m
Channels Supported Up to 24 channels (FBM dependent)
Signal Types 4-20 mA, RTD, Thermocouple, Discrete Signals
Isolation Galvanic isolation between field wiring and logic
Connector Type Removable terminal blocks (spring clamp or screw type)
Wiring Capacity 18 to 22 AWG copper conductors
Enclosure Rating IP20
Mounting Standard 35 mm DIN rail or panel baseplate

4-20 mA HART Loop Protocol & Galvanic Isolation

The Foxboro P0926GJ acts as an isolated signal interface designed to transport 4-20 mA analog loops, RTD, thermocouple, and discrete field signals via a 1.00 m Type 5 cable assembly. Built-in galvanic isolation isolates field instrument wiring from sensitive backplane electronics, suppressing common-mode electrical noise and mitigating ground loop interference across process control environments. This physical separation maintains signal integrity for high-density I/O configurations connected to host FBM modules.

Frequently Asked Questions

Q: Does the P0926GJ termination assembly require active firmware updates or system calibration?

A: No, the P0926GJ is a passive wiring interface and signal routing assembly that requires no internal firmware or field calibration. Channel assignments and signal processing parameters are defined within host EcoStruxure Foxboro DCS software tools upon pairing with the targeted FBM.

Q: How are field wiring harnesses serviced during hardware maintenance?

A: The unit features removable terminal block connectors (spring clamp or screw type) compatible with 18 to 22 AWG copper wire. This allows technicians to replace the hardware assembly without detaching individual field conductors.

Field Installation Guidelines

Mount the termination assembly chassis on a 35 mm DIN rail or attach it directly to a panel baseplate inside an IP54-rated cabinet. Provide a minimum vertical clearance of 50 mm above and below the housing to maintain natural convection cooling and allow adequate space for field wiring ducts.

Route low-voltage field instrument cables away from high-voltage AC power distribution lines to avoid inductive noise coupling. Strip 18 to 22 AWG copper conductors to standard specifications and secure them into the removable terminal blocks using specified screw torque ratings. Ground all cable shields at a single point on the main cabinet ground bus to preserve galvanic isolation performance. Connect the integral 1.00 m Type 5 cable securely to the assigned FBM baseplate interface port.
