Siemens 6EP8106-0AC20 BT200 Test Connector

Siemens 6EP8106-0AC20 SIMATIC DP BT200 Test Connector

Availability: 0 left in stock

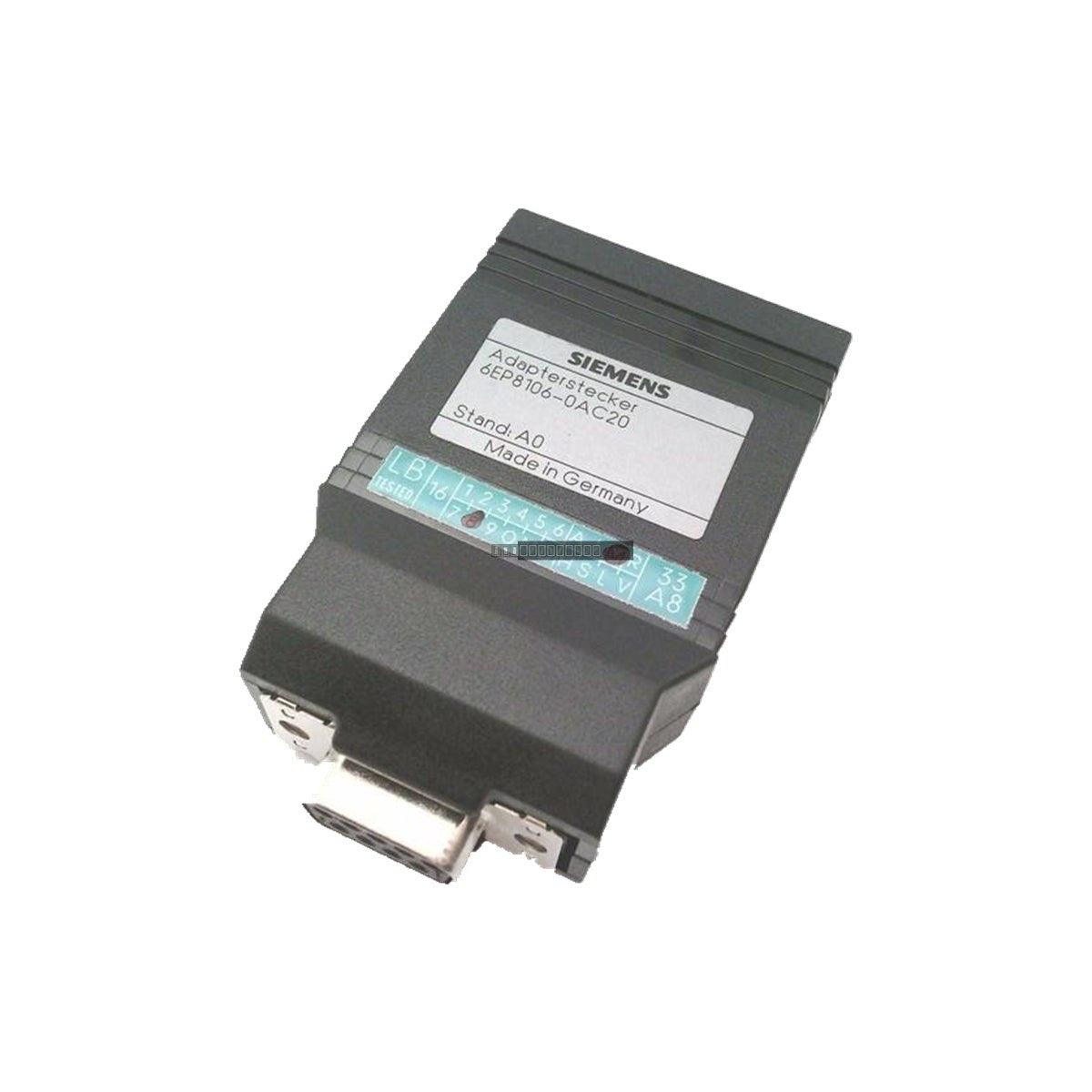

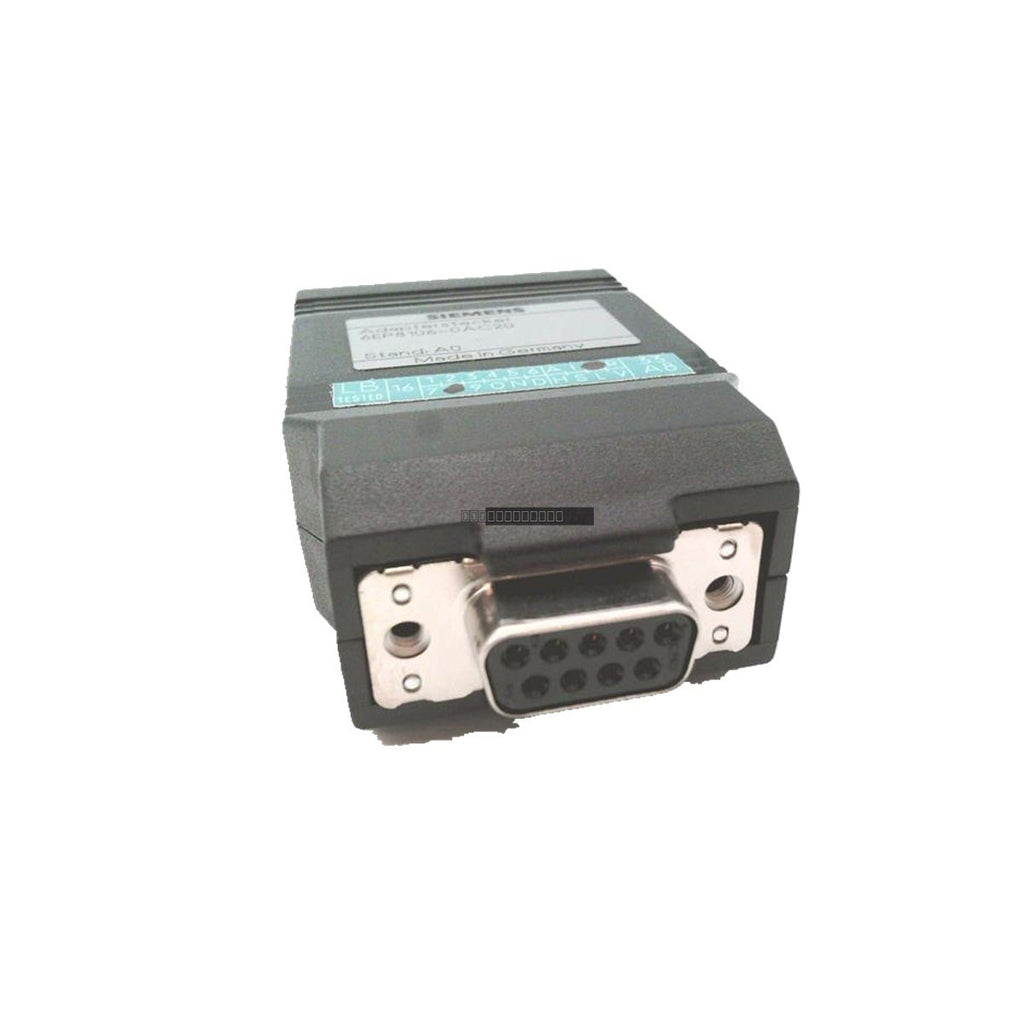

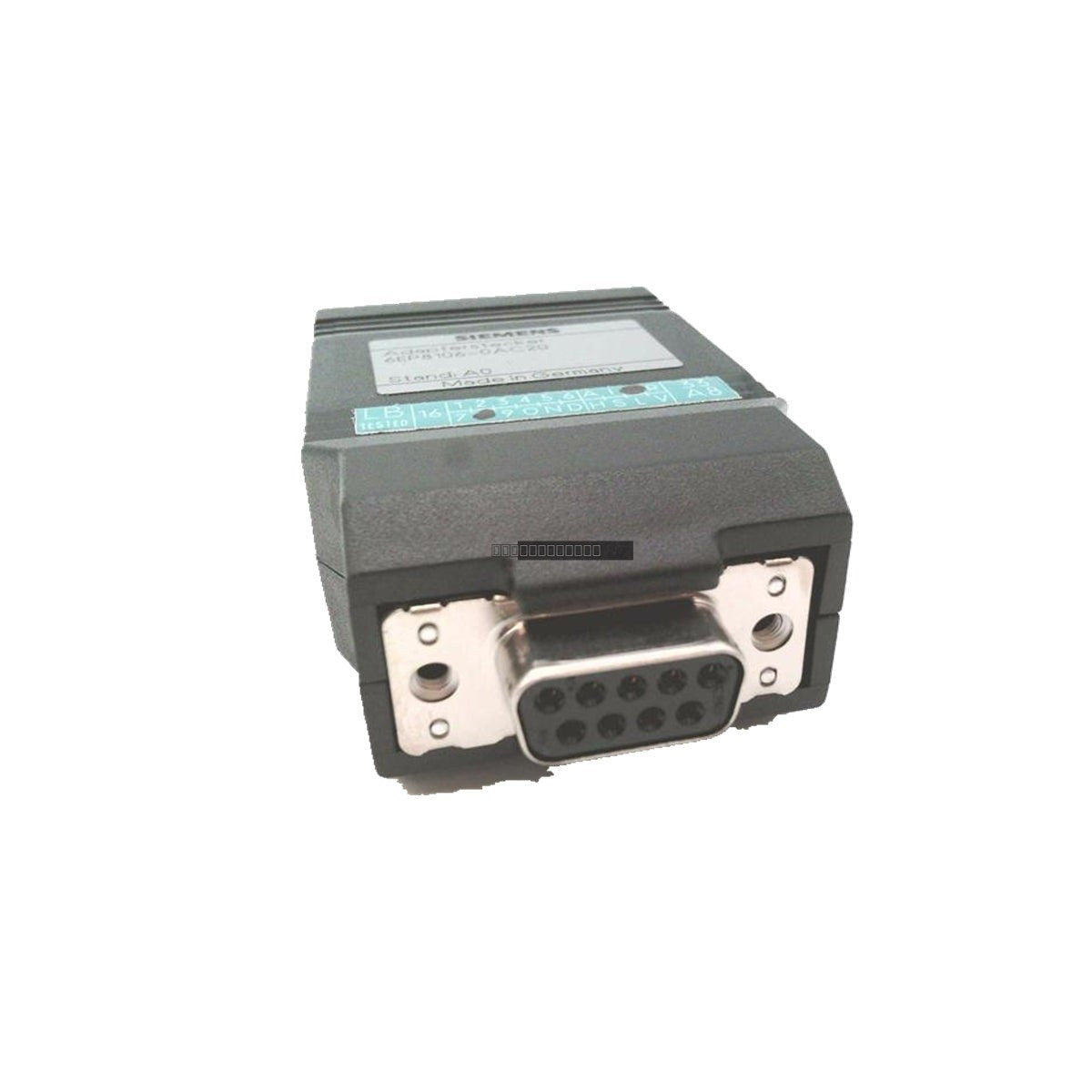

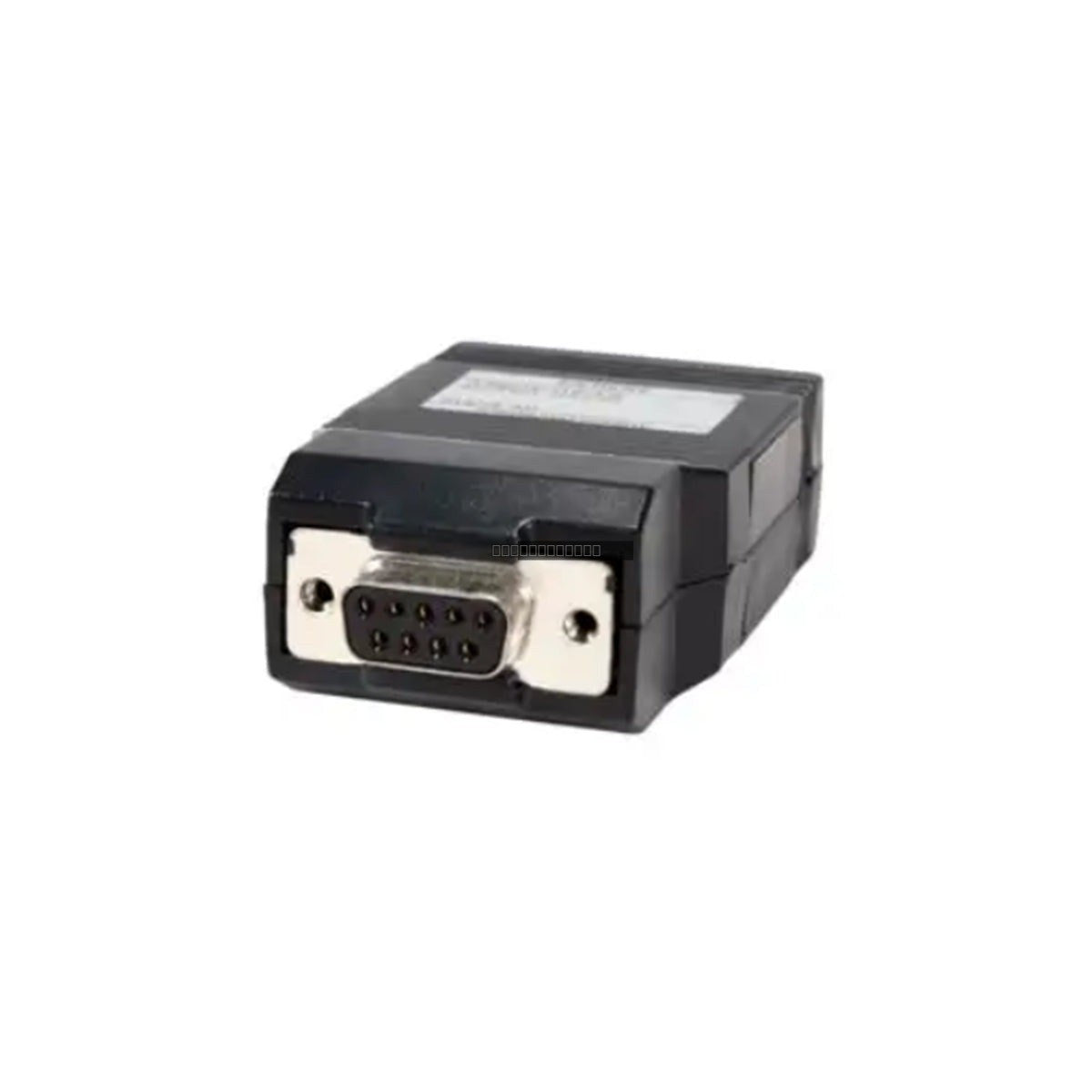

The Siemens 6EP8106-0AC20 is a dedicated test connector designed for use with the BT200 Bus Tester, serving as a critical...

SKU: 6EP8106-0AC20

Manufacturer: Siemens
Product No.: 6EP8106-0AC20
Product Type: Test Connector
Product Origin: Germany
Payment:T/T, Western Union
Weight: 30g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Siemens 6EP8106-0AC20 is a dedicated test connector designed for use with the BT200 Bus Tester, serving as a critical interface for the maintenance and validation of SIMATIC DP PROFIBUS networks. This component allows field technicians to establish a secure, high-fidelity physical connection between the diagnostic tool and the PROFIBUS bus system, enabling detailed analysis of network health, cable integrity, and communication signal quality.

Features

Designed specifically for compatibility with the Siemens BT200 Bus Tester.
Facilitates accurate physical layer diagnostics, including detection of wire breaks, short circuits, and improper termination.
Optimized for signal integrity to ensure diagnostic accuracy during network audits.
Constructed from industrial-grade, flame-retardant materials for durability in demanding plant environments.
Enables efficient troubleshooting of PROFIBUS DP segments, reducing downtime in automated industrial processes.

Applications

This test connector is an essential tool for commissioning, routine maintenance, and fault-finding in industrial automation systems. It is widely utilized in sectors such as power generation, automotive assembly, and chemical processing where reliable PROFIBUS DP communication is mandatory. By allowing for rapid assessment of the physical layer, it supports both preventative maintenance schedules and emergency repair workflows.

Technical Specifications

Model	6EP8106-0AC20
Brand	Siemens
Series	SIMATIC DP
Product Type	BT200 Test Connector
Operating Temperature	0 to 60 deg C
Compatibility	Siemens BT200 Bus Tester

Installation Guidelines

Ensure the BT200 Bus Tester is powered down before connecting or disconnecting the test interface.
Inspect the connector pins for debris or damage prior to insertion to prevent signal interference or physical damage to the bus port.
Verify that the connection is fully seated to maintain consistent impedance levels during measurement.
When performing network tests, ensure the cable segment is isolated according to plant safety protocols to avoid accidental disruption of active I/O traffic.
Store in a dry, static-free environment when not in use to maintain the integrity of the electrical contacts.

FAQ

Is the 6EP8106-0AC20 compatible with other Siemens bus testers?
This model is specifically engineered for the BT200 Bus Tester. Use with other devices is not recommended and may lead to inaccurate diagnostic data.

What is the primary function of this connector?
It acts as the physical bridge between the BT200 tester and the PROFIBUS DP network, allowing the tester to perform electrical measurements on the bus cable and termination points.
