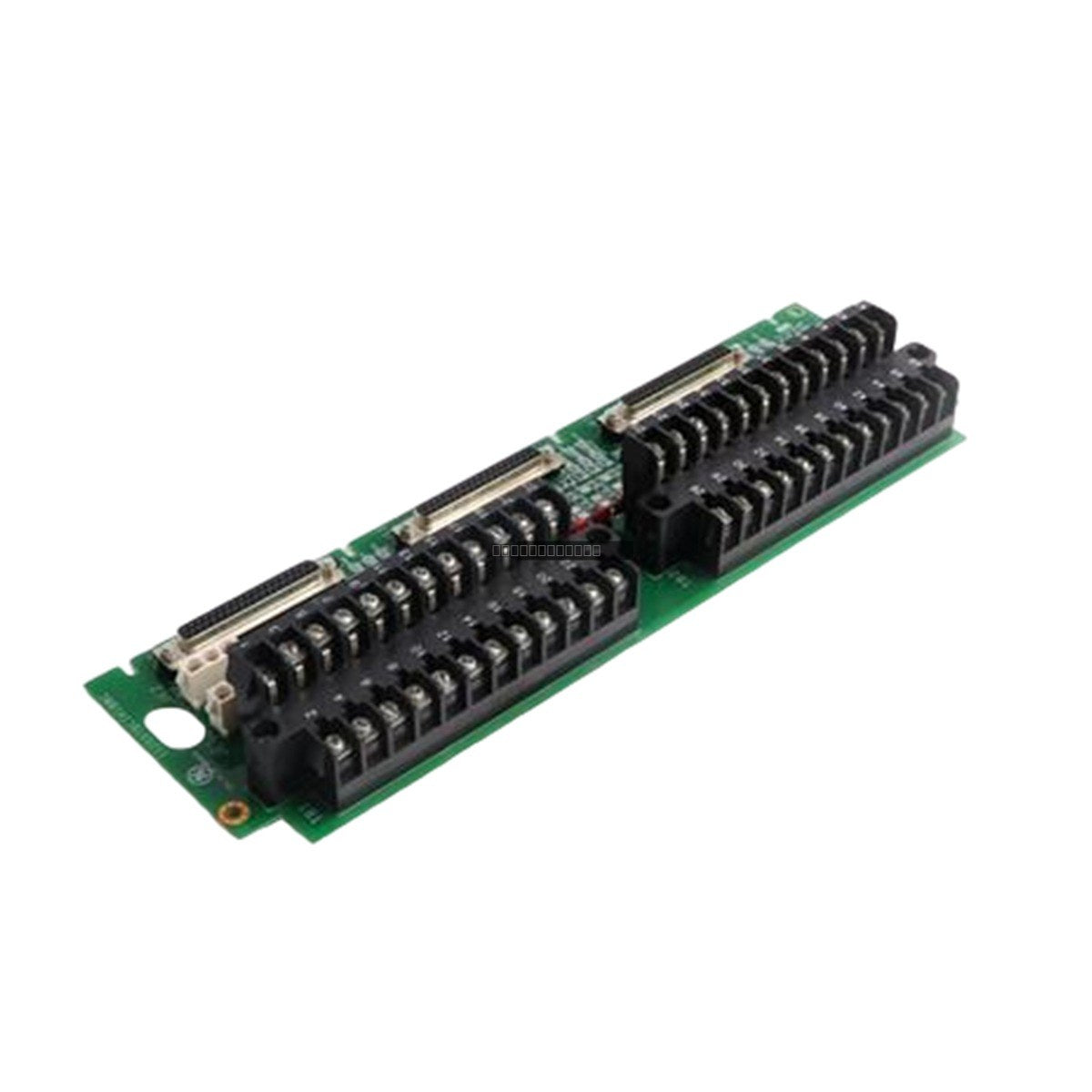

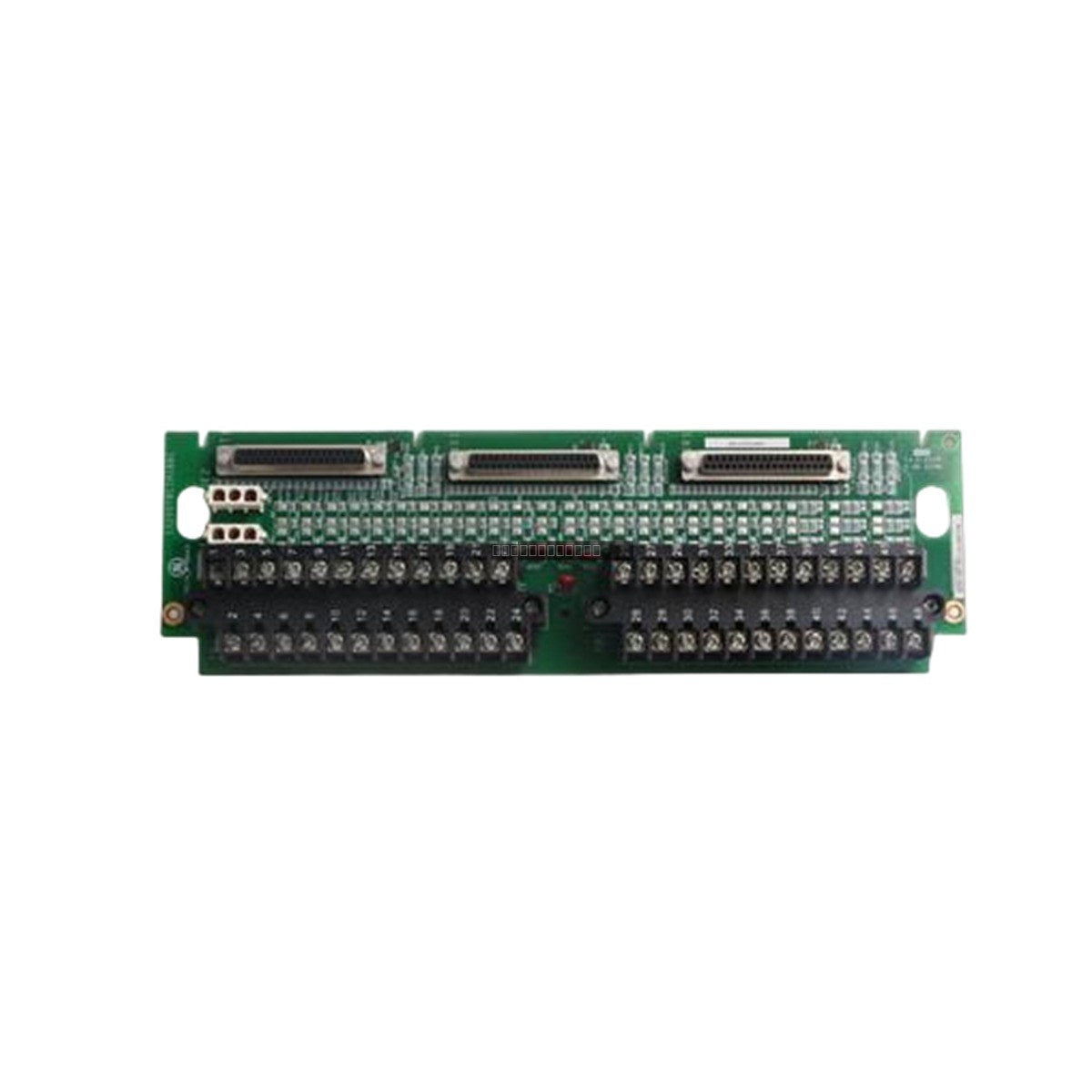

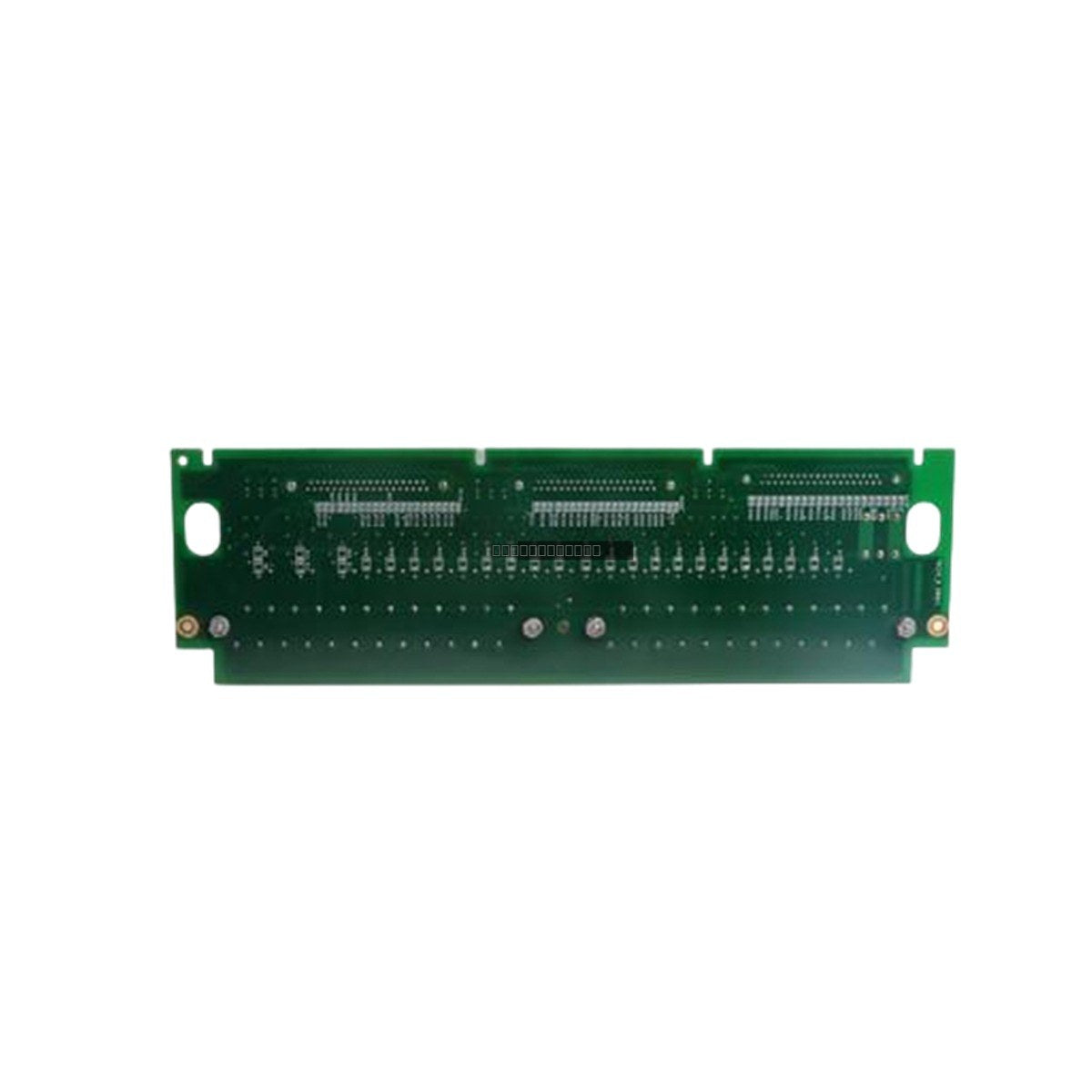

General Electric IS200TBCIH1B Mark VIe Terminal Contact Board

Availability: 10 left in stock

The General Electric IS200TBCIH1B is a Terminal Contact Board designed for the Mark VIe Speedtronic control system. This component serves...

SKU: IS200TBCIH1B

Manufacturer: General Electric
Product No.: IS200TBCIH1B
Product Type: Terminal Contact Board
Product Origin: USA
Payment:T/T, Western Union
Weight: 540g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The General Electric IS200TBCIH1B is a Terminal Contact Board designed for the Mark VIe Speedtronic control system. This component serves as a critical interface for signal termination and distribution, facilitating reliable connectivity between field devices and the control platform.

Features

Engineered for integration within the GE Mark VIe control environment.
Supports a wide voltage range for inputs, accommodating 0 to 120 V AC/DC.
Integrated galvanic isolation rated up to 1.5 kV AC/DC to protect control circuitry from transient surges.
Compact design optimized for high-density terminal wiring configurations.
Robust construction suitable for demanding industrial temperature environments.

Technical Specifications

Model	IS200TBCIH1B
Component Type	Terminal Contact Board
Operating Voltage	24 V DC (±10%)
Input Voltage Range	0–120 V AC/DC
Power Consumption	<5 W
Galvanic Isolation	1.5 kV AC/DC
Digital Input Compatibility	30 V DC / 120 V AC
Operating Temperature	-40 degC to +70 degC
Humidity Tolerance	5–95% non-condensing

Installation Guidelines

Ensure the control system is powered down before installing or removing the terminal board to prevent electrical shock or hardware damage.
Verify that all field wiring is properly secured and follows the designated terminal mapping for the IS200TBCIH1B.
Use appropriate ESD protection measures when handling the board to prevent static discharge damage to sensitive components.
Ensure adequate ventilation in the cabinet to maintain the specified operating temperature range.
Confirm that all signal cables are properly routed away from high-voltage AC lines to mitigate electromagnetic interference (EMI).

FAQ

Is the IS200TBCIH1B still in production?
No, this model has been discontinued by the manufacturer. We provide high-quality replacement units for maintenance and system support.

What is the primary function of this board?
The IS200TBCIH1B functions as a terminal contact board, providing the physical interface and termination points for digital inputs within the Mark VIe Speedtronic architecture.
