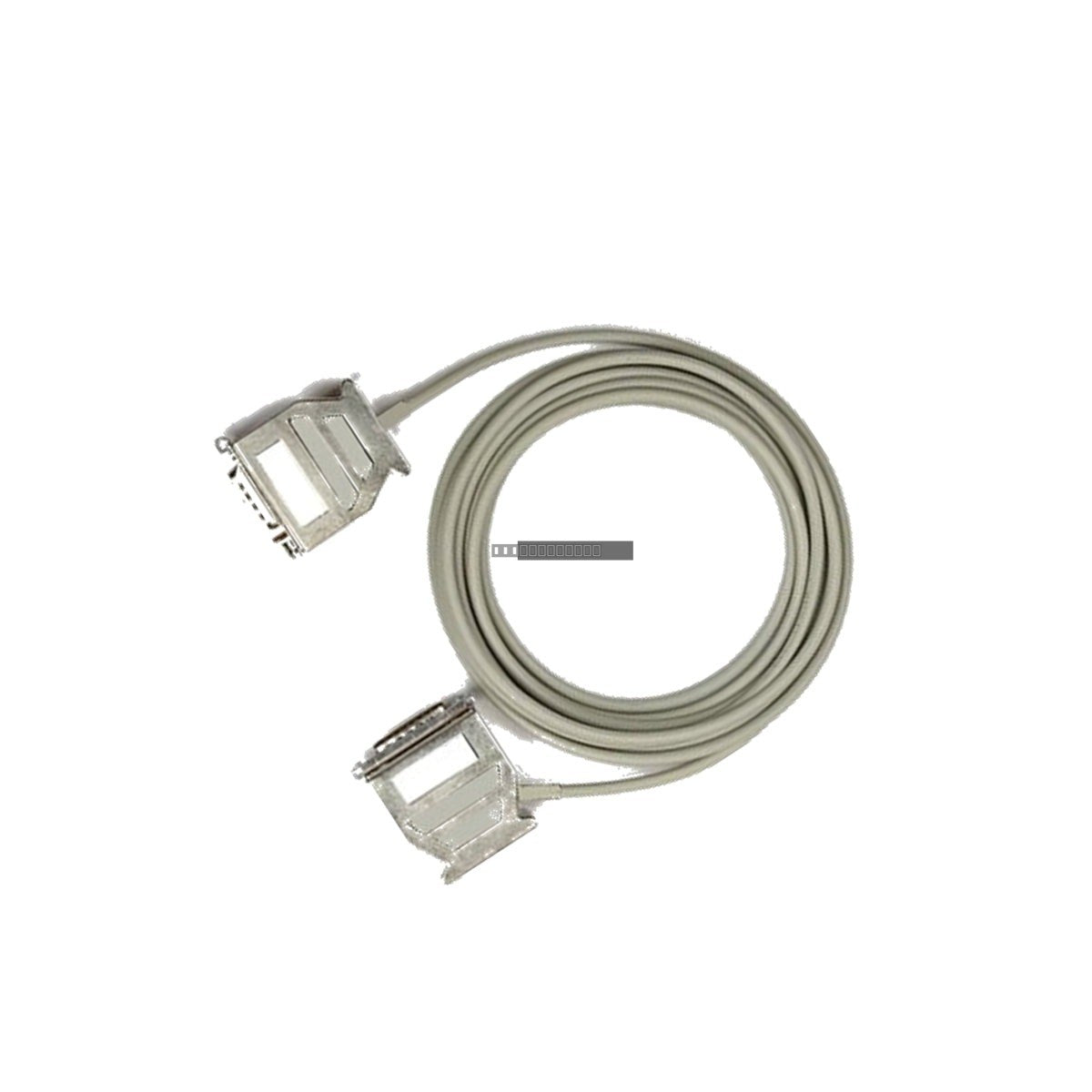

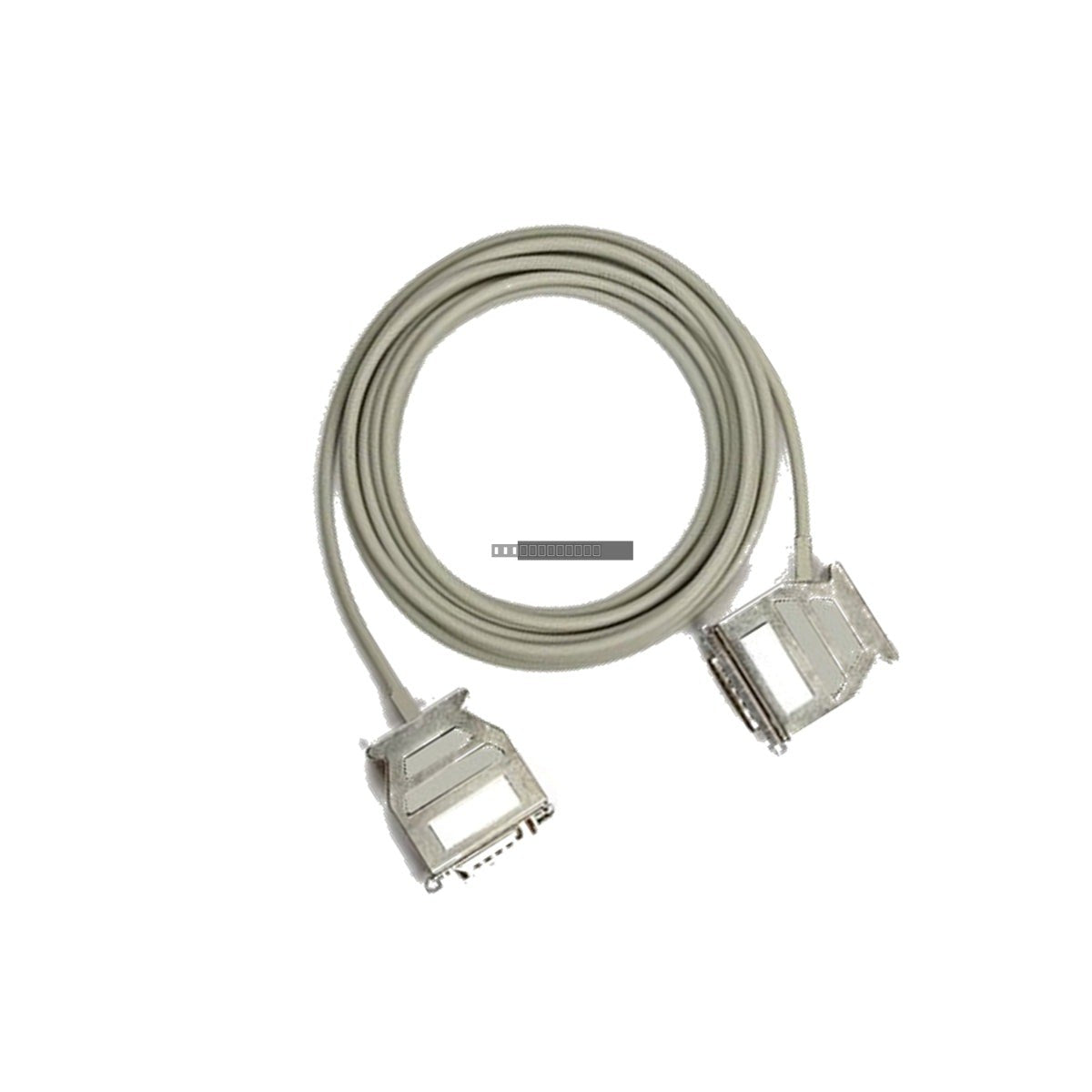

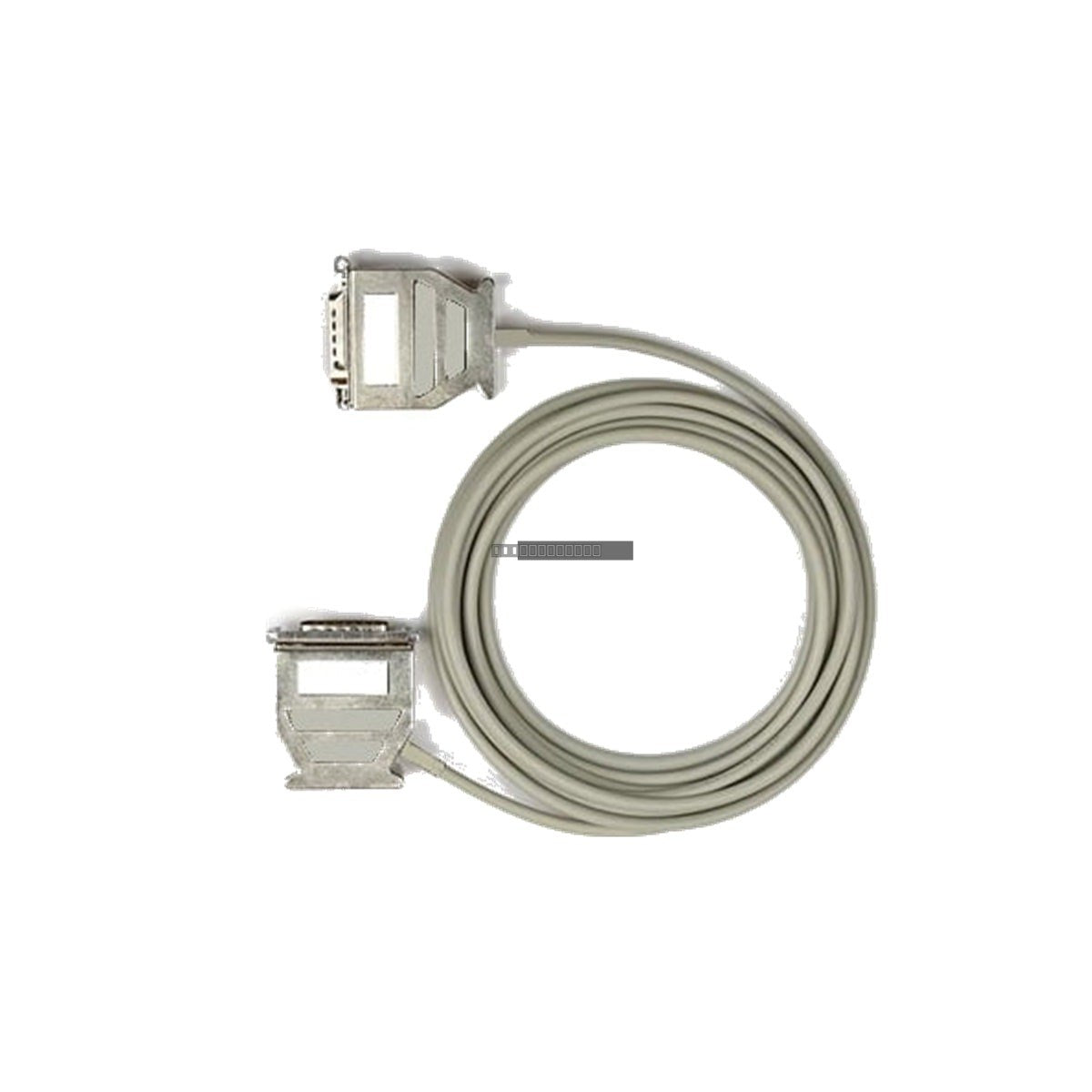

Siemens 6XV1 440-2AH32 Simatic S5 Interface Cable

Siemens 6XV1 440-2AH32 Simatic S5 Connecting Cable

Availability: 3 left in stock

The Siemens 6XV1 440-2AH32 is a specialized interface cable engineered for reliable communication between Simatic S5 programmable logic controllers and...

SKU: 6ES5210-2LA61

Manufacturer: Siemens
Product No.: 6ES5210-2LA61
Product Type: Communication Cable
Product Origin: Germany
Payment:T/T, Western Union
Weight: 240g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Siemens 6XV1 440-2AH32 is a specialized interface cable engineered for reliable communication between Simatic S5 programmable logic controllers and peripheral operator panels or text displays (OP/TD). Designed for demanding industrial environments, this cable assembly ensures consistent TTY (20 mA current loop) data transmission, effectively mitigating signal noise and interference in complex automation setups.

Features

Reliable TTY Protocol: Supports 20 mA current loop communication, ideal for long-distance serial links in high-EMI environments.
Robust Shielding: Features a high-density braided copper shield to protect data integrity against radio frequency and electromagnetic disturbances.
Industrial-Grade Construction: Equipped with secure Sub-D connectors and integrated strain relief to withstand mechanical vibration and physical stress.
Passive Operation: Requires no external power supply, as it utilizes the host PLC interface port for loop current.
Plug-and-Play: Pre-assembled for rapid integration into existing S5-90U through S5-155U automation systems.

Applications

This cable is widely utilized in industrial automation, including power distribution substations, metal processing plants, and high-speed manufacturing lines. It is essential for maintaining stable communication between the central processor and human-machine interface (HMI) devices, preventing communication timeouts and signal degradation during critical operations.

Technical Specifications

Model	6XV1 440-2AH32
Cable Length	3.2 m
Protocol	TTY (20 mA current loop)
Connector Type	Sub-D
Operating Temperature	-20 to 60 deg C
Power Consumption	Passive (0 W)
Series	Simatic S5 Accessories

Installation Guidelines

Ensure the PLC and operator panel are powered down before connecting or disconnecting the cable.
Secure the Sub-D connectors using the integrated locking screws to prevent loosening due to machine vibration.
Route the cable away from high-voltage power lines and heavy-duty motor cables to minimize potential inductive noise.
Avoid sharp bends or excessive pulling on the cable assembly to maintain the integrity of the internal shielding.
Verify that the port configuration on the S5 controller supports the 20 mA TTY standard before deployment.

FAQ

Is this cable compatible with all Simatic S5 models?
The 6XV1 440-2AH32 is designed for use with Simatic S5 series controllers, specifically models ranging from S5-90U through S5-155U that support TTY interface communication.

Does this cable require external power?
No, this is a passive component. It operates by drawing the necessary loop current directly from the host PLC's interface port.
