Product Description

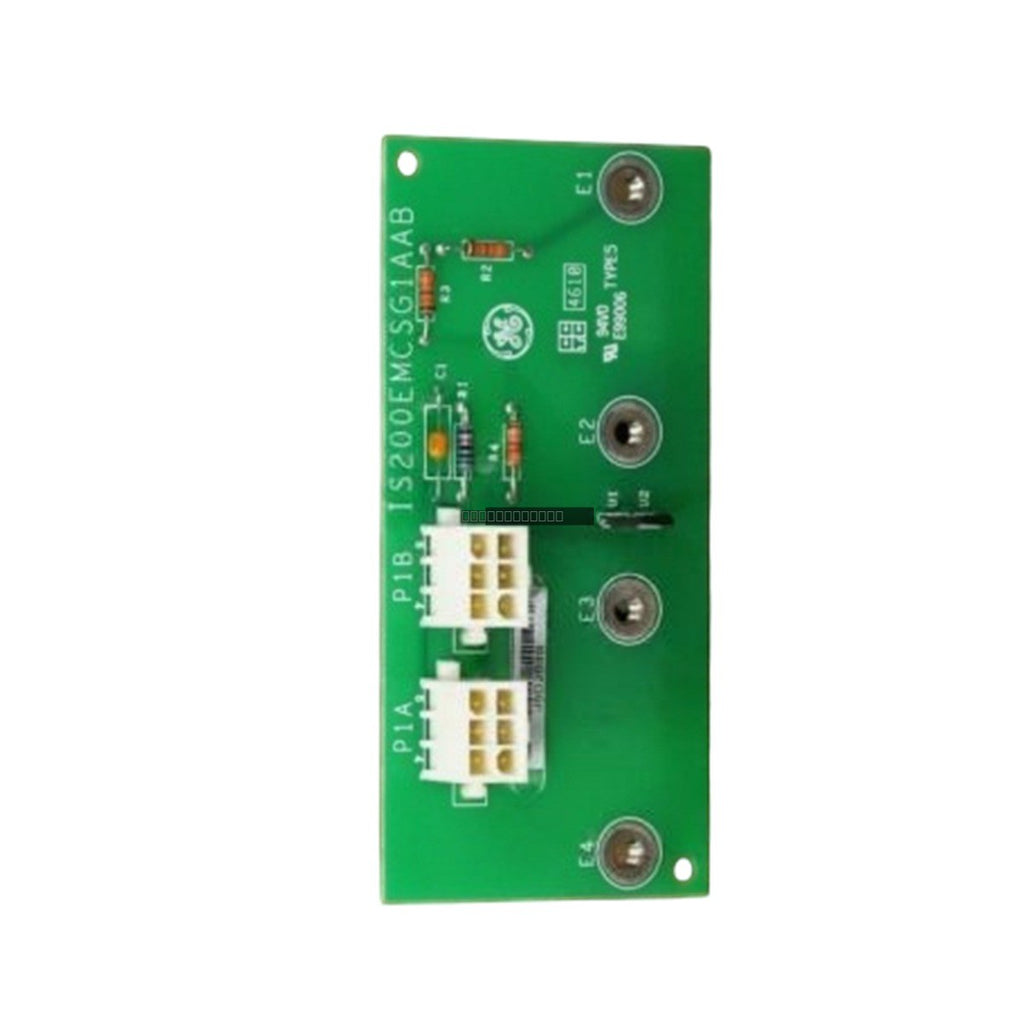

The IS200EMCSG1A is a specialized Multibridge Connector Sensor Card engineered by General Electric for the Mark VI Speedtronic turbine control system. This printed circuit board assembly is designed to monitor current distribution within parallel bridge rectifier configurations. By tracking multi-phase conduction vectors, the module provides essential diagnostic data to the control system, helping to prevent power imbalances that could lead to unexpected subsystem trips or operational downtime in critical industrial environments.
Features
- Designed for integration within GE Mark VI turbine control architectures.
- Equipped with four onboard conduction sensors (E1-E4) for precise monitoring.
- Features two independent signal conditioning circuits (U1 and U2) for reliable data evaluation.
- Utilizes six onboard plug interfaces for robust system connectivity.
- Dual-row, 6-position terminal blocks provide secure power and signal routing.
- Supports standard 5 VDC and 24 VDC logic power rails.
Applications
This sensor card is primarily utilized in demanding industrial infrastructure, including heavy-duty power generation plants, thermal processing facilities, and oil and gas refineries where precise bridge rectifier monitoring is required to maintain system stability.
Technical Specifications
| Brand | GE General Electric |
| Model | IS200EMCSG1A |
| Series | Mark VI |
| Total Conduction Sensors | 4 (E1, E2, E3, E4) |
| Signal Conditioning Circuits | 2 (U1, U2) |
| Operating Temperature | 0 to 60 deg C |
| Storage Temperature | -40 to 85 deg C |
| Relative Humidity | 5 to 95% (non-condensing) |
Installation Guidelines
- Ensure the control system is powered down before installing or removing the module.
- Handle the PCB using proper ESD (Electrostatic Discharge) precautions to prevent damage to integrated circuits.
- Verify that all six plug interfaces are seated securely to ensure proper electrical contact.
- Ensure the environment remains within the specified 0-60 deg C range and is free from excessive vibration or moisture.
- Route signal cables away from high-voltage power lines to minimize potential EMI interference.
FAQ
What is the primary function of the IS200EMCSG1A?
This card serves as a sensor interface for monitoring conduction profiles in bridge rectifier circuits within the Mark VI control system.
Is this module compatible with other GE control series?
The IS200EMCSG1A is specifically engineered for the Mark VI Speedtronic turbine control system; it is not intended for use in legacy systems unless explicitly specified by GE documentation.
