Siemens 6ES7392-1AJ00-0AA0 S7-300 20-Pin Front Connector

Siemens 6ES7392-1AJ00-0AA0 SIMATIC S7-300 20-Pin Front Connector

Availability: 2 left in stock

DescriptionThe Siemens 6ES7392-1AJ00-0AA0 is a 20-pole front connector designed for the SIMATIC S7-300 PLC platform. It serves as the primary...

SKU: 6ES7392-1AJ00-0AA0

Manufacturer: Siemens
Product No.: 6ES7392-1AJ00-0AA0
Product Type: PLC I/O Connector
Product Origin: Germany
Payment:T/T, Western Union
Weight: 60g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

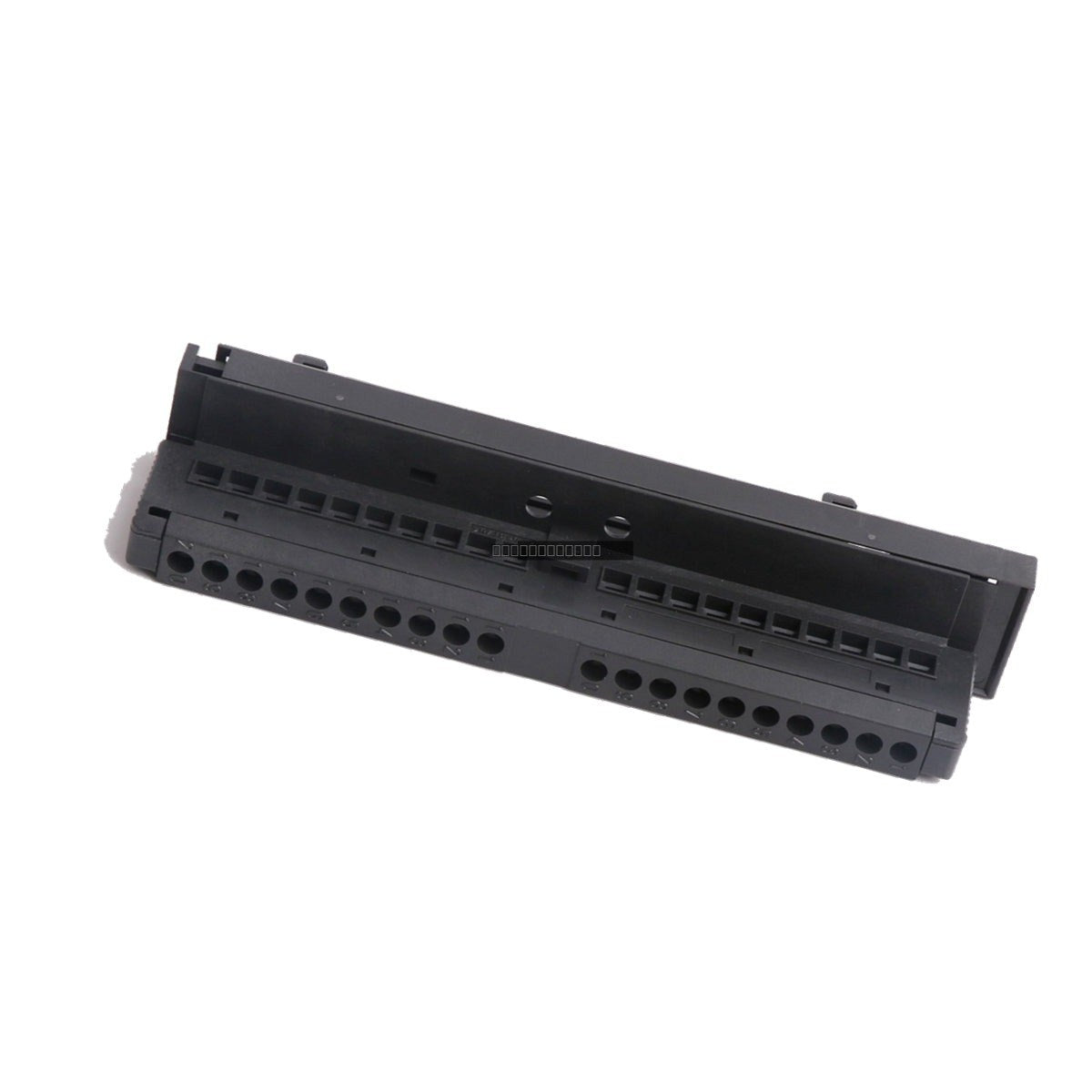

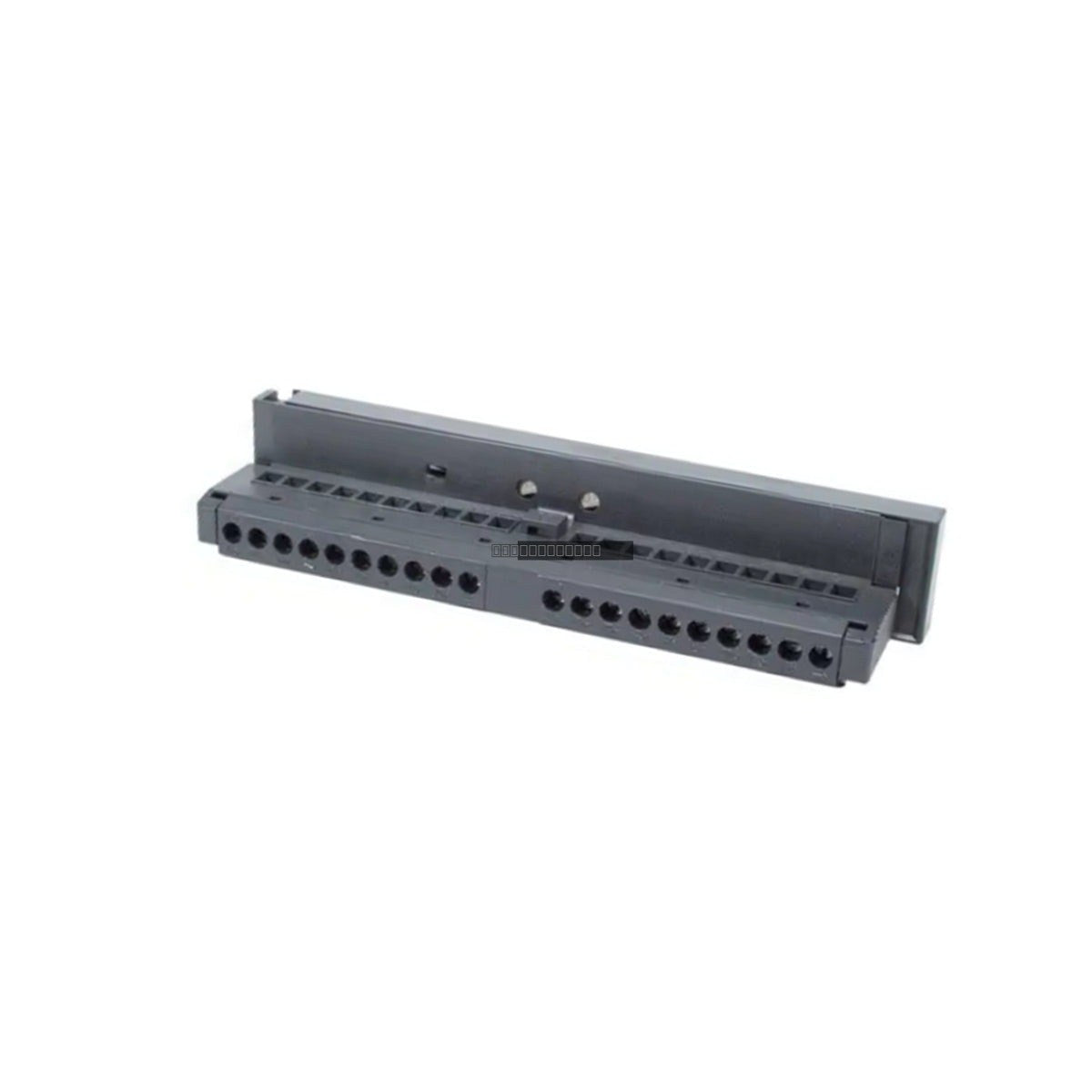

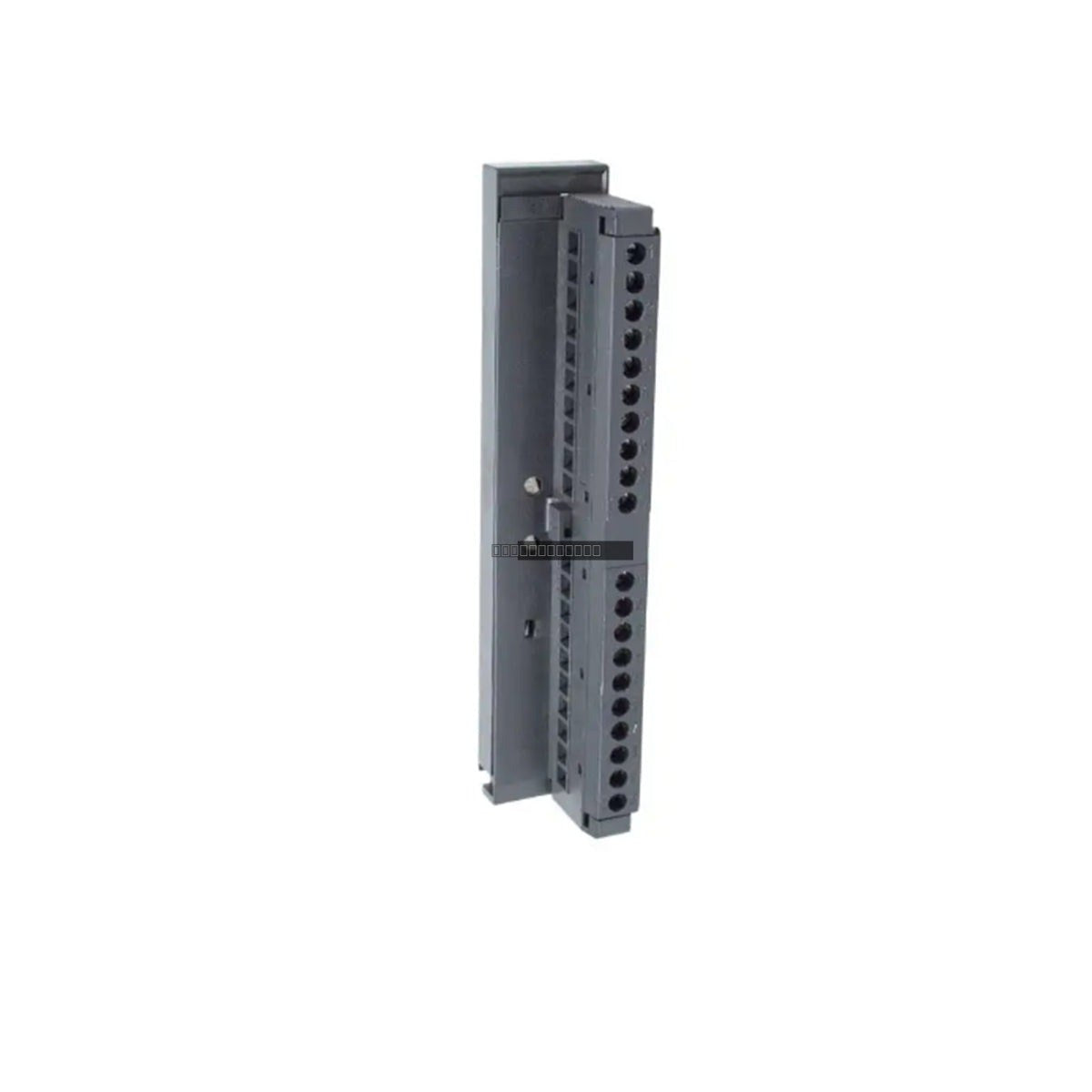

The Siemens 6ES7392-1AJ00-0AA0 is a 20-pole front connector designed for the SIMATIC S7-300 PLC platform. It serves as the primary physical interface between field wiring and S7-300 signal modules, including digital input, digital output, analog input, and analog output modules. This connector features screw-type terminals, facilitating secure and reliable electrical connections for industrial automation environments.

Features

20-pole configuration for high-density I/O termination
Screw-terminal design for robust, vibration-resistant connections
Supports conductor cross-sections from 0.25 mm² to 1.5 mm²
Integrated mechanical coding to prevent incorrect module insertion
Front-access wiring allows for rapid module replacement without disconnecting individual field wires
Integrated strain relief for organized cable management

Applications

Manufacturing automation and assembly lines
Process control in water and wastewater treatment
HVAC and building management systems
Chemical dosing and food/beverage processing equipment
General machine control and material handling

Technical Specifications

Product Model	6ES7392-1AJ00-0AA0
Connection Method	Screw Terminals
Number of Poles	20
Conductor Cross-Section	0.25 mm² to 1.5 mm²
Tightening Torque	0.4 to 0.7 Nm
Stripped Conductor Length	6 mm
Operating Temperature	-20 degC to +60 degC
Storage Temperature	-40 degC to +85 degC
Tariff Code	8537101190

Installation Guidelines

Ensure the PLC system is powered down before inserting or removing the front connector from any module.
Strip wires to exactly 6 mm to ensure proper seating within the terminal block.
Use a conical screwdriver with a 3 to 3.5 mm blade width for terminal screw adjustment.
Tighten screws to the specified 0.4 to 0.7 Nm torque range; do not overtighten to avoid damaging plastic threads.
Utilize the integrated plastic strap for strain relief to prevent mechanical stress on the terminal connections.
Verify the mechanical coding elements are correctly aligned before plugging the connector into the module.

FAQ

Does this connector have a coding mechanism to prevent inserting it into the wrong module?

Yes, it includes mechanical coding elements that physically prevent the connector from being plugged into an incompatible module type, ensuring safety during maintenance.

Can I replace a faulty S7-300 module without rewiring?

Yes, the front connector is designed to be unclipped from the faulty module and reconnected to the replacement unit, significantly reducing downtime and potential wiring errors.

What wire types are supported?

The terminals accept solid and flexible conductors from 0.25 mm² to 1.5 mm², with or without end sleeves. It supports one conductor per terminal or two conductors in a shared ferrule up to 1.5 mm² total.
