Honeywell MC-GAIH22 High Level Analog Input Module

Availability: 10 left in stock

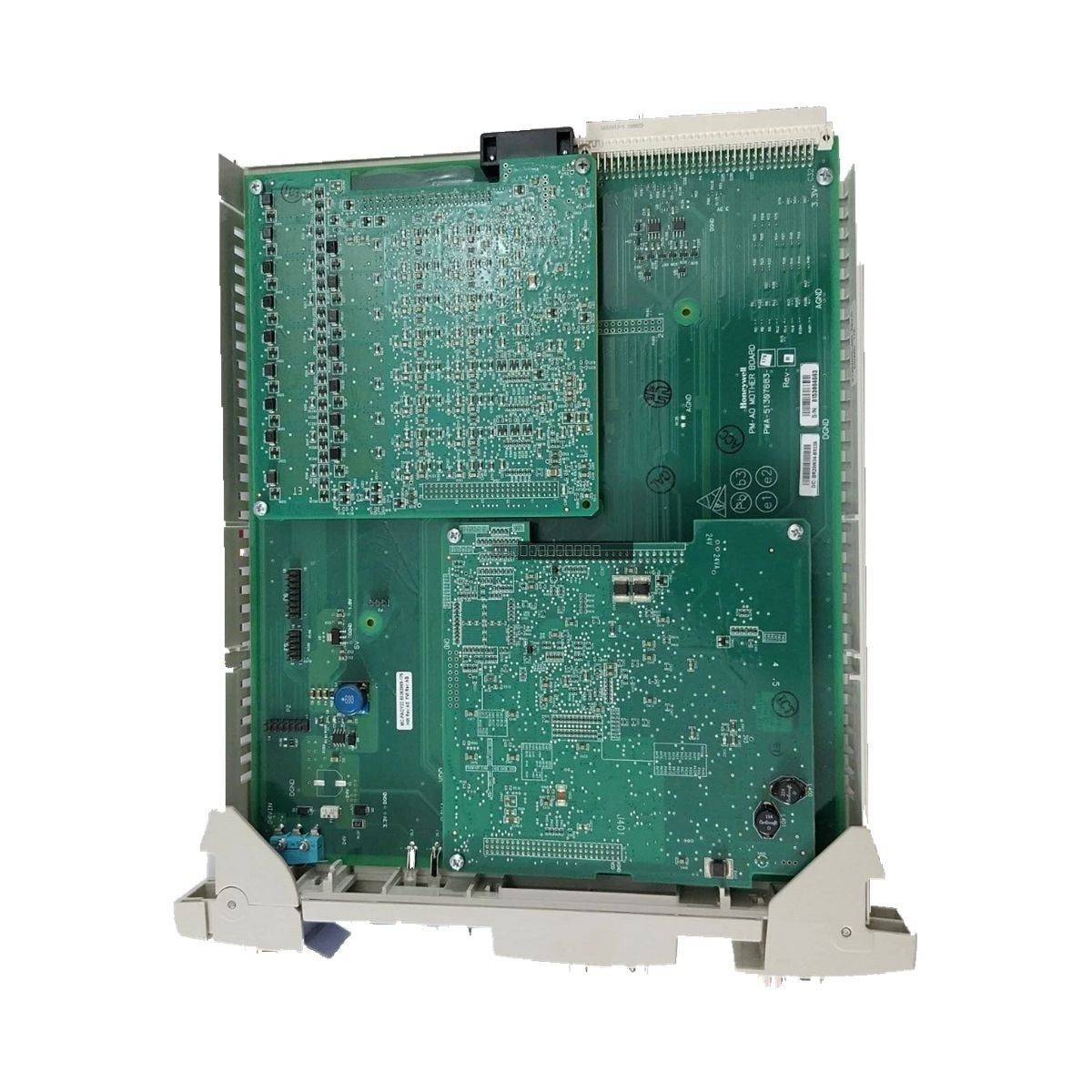

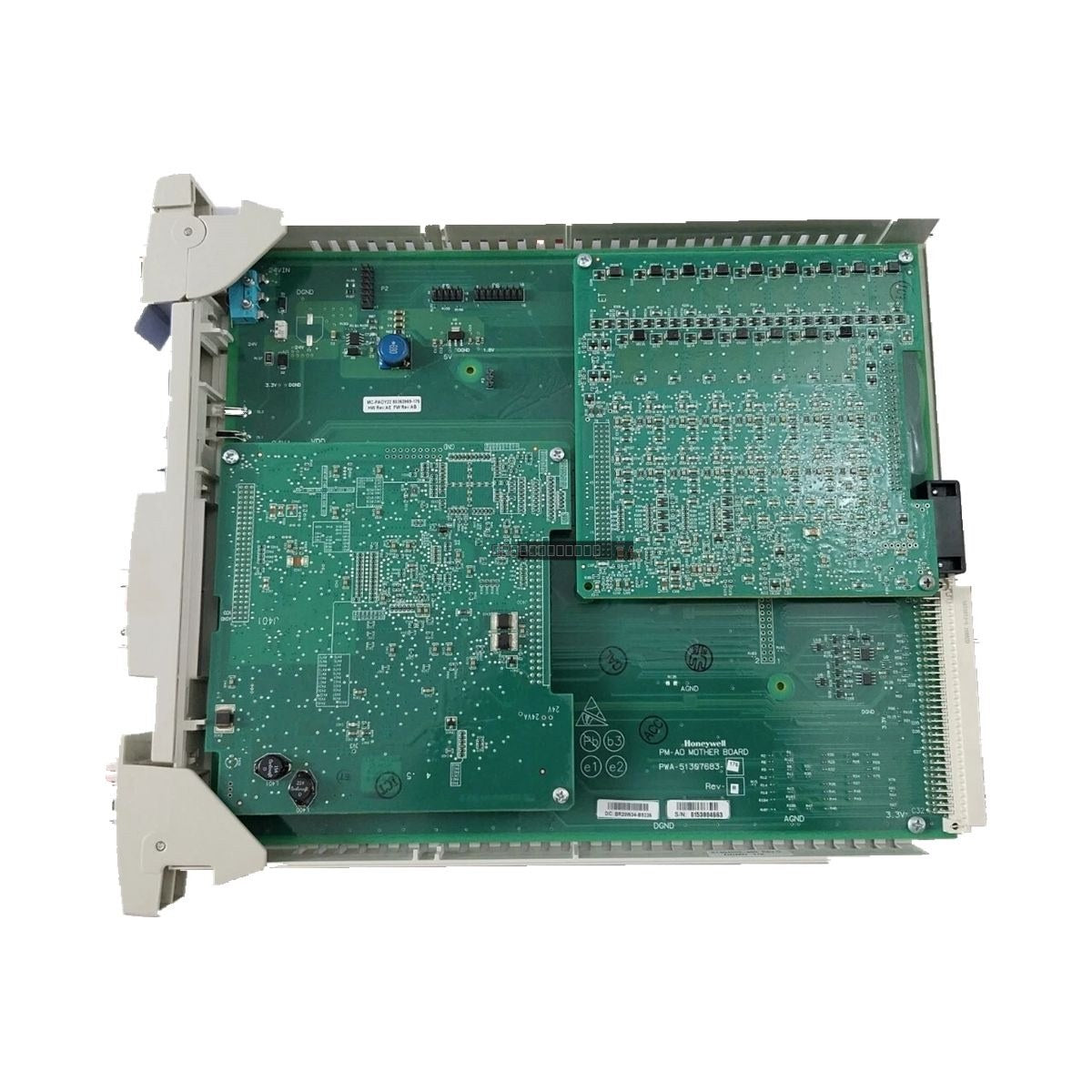

DescriptionThe Honeywell MC-GAIH22 (MCGAIH22) is a high-level analog input module engineered for the precise acquisition of voltage and current signals...

SKU: MC-GAIH22

Manufacturer: Honeywell
Product No.: MC-GAIH22
Product Type: Analog Input Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Honeywell MC-GAIH22 (MCGAIH22) is a high-level analog input module engineered for the precise acquisition of voltage and current signals within Honeywell distributed control systems. This module is designed to maintain signal integrity in demanding industrial environments, including chemical processing plants, power generation facilities, and offshore production platforms. Its robust architecture ensures reliable monitoring of critical process variables such as pressure, flow, temperature, and level.

Features

Supports high-level analog voltage and current signal acquisition.
Utilizes compression terminal connections for secure, vibration-resistant field wiring.
Integrated signal conditioning and filtering to suppress electrical interference from nearby power equipment.
Modular design facilitates efficient maintenance and system diagnostics.
Optimized for stable performance in high-noise industrial environments.

Applications

The MC-GAIH22 is suitable for integration into Honeywell DCS and process automation systems where dependable analog signal processing is required for continuous operation. It is commonly deployed in refinery control systems and large-scale industrial infrastructure.

Technical Specifications

Model	MC-GAIH22
Input Type	High-level analog voltage and current
Input Channels	16 Channels
Voltage Rating	24 VDC
Power Consumption	6 W (typical)
Operating Temperature	0 to 60 deg C
Storage Temperature	-40 to 85 deg C
Relative Humidity	5 % to 95 % non-condensing
Mounting Method	Rack or cabinet

Installation Guidelines

Ensure the control system is powered down before inserting or removing the module to prevent electrical damage.
Use shielded cabling for all analog signal inputs to minimize EMI/RFI interference.
Verify that all compression terminal connections are tightened to the specified torque to ensure mechanical stability under thermal cycling.
Maintain adequate ventilation within the cabinet to ensure the ambient temperature remains within the 0 to 60 deg C operating range.
Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connectors.

FAQ

Is the MC-GAIH22 compatible with all Honeywell DCS platforms?

The MC-GAIH22 is designed for the Honeywell MC series. Please verify your specific controller revision and system documentation to ensure compatibility with your existing I/O rack configuration.

Does this module support hot-swapping?

The module supports hot replacement in many configurations; however, this is dependent on the specific controller and system software settings. Always consult your system manual before performing maintenance on a live system.
