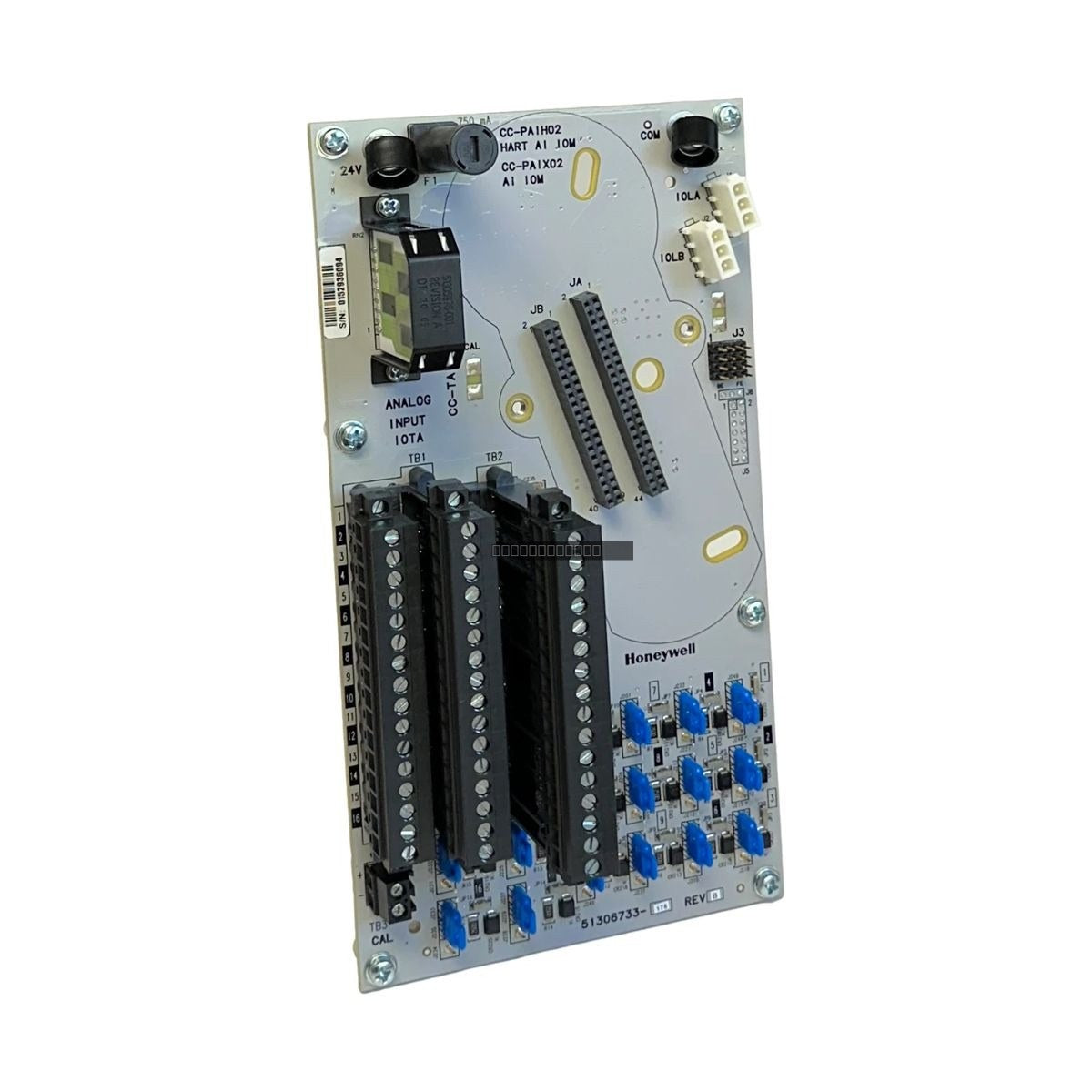

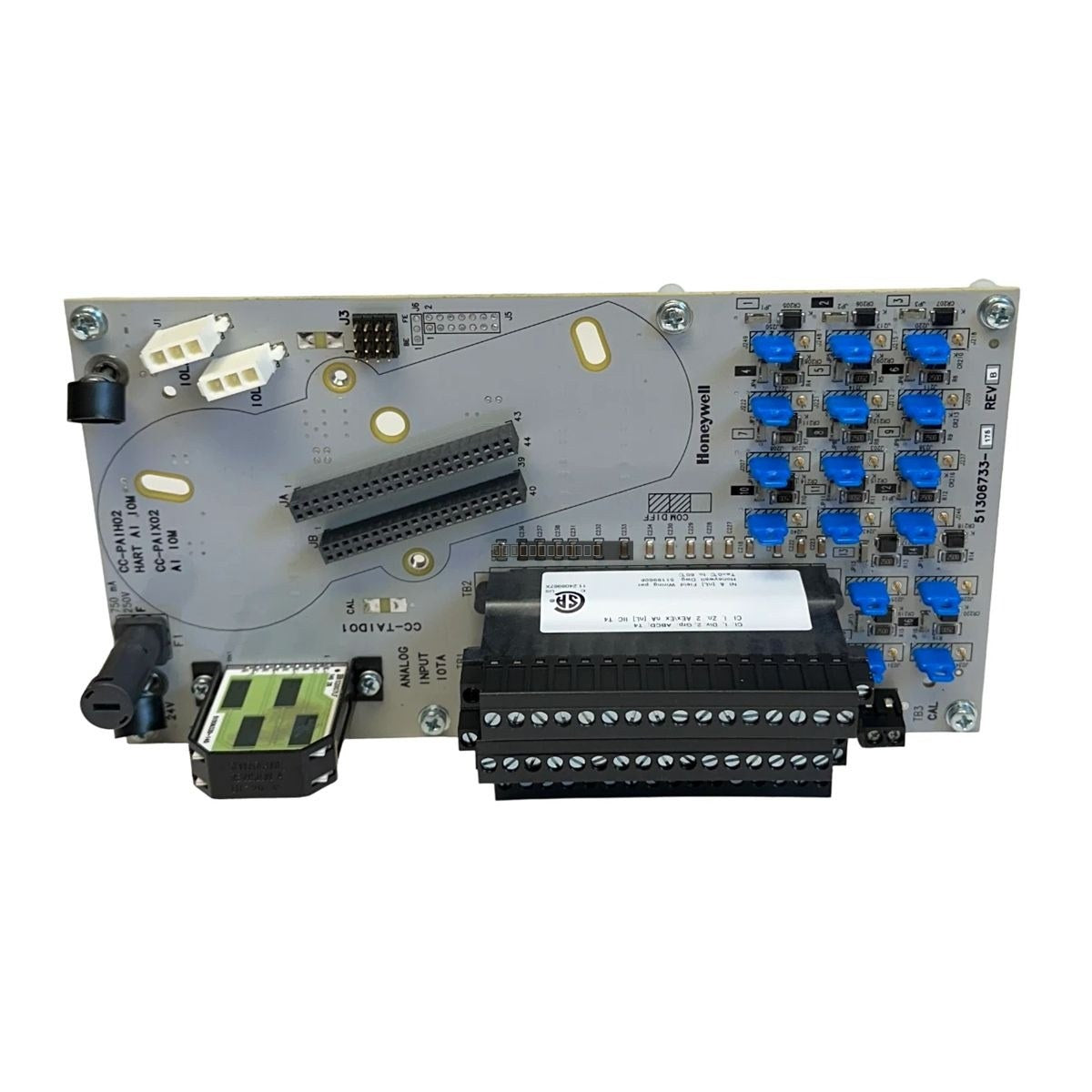

Honeywell CC-TAID01 51306733-175 Analog Input Module

Availability: 2 left in stock

DescriptionThe Honeywell CC-TAID01 (51306733-175) is a high-performance Analog Input Module designed for use within the Experion PKS distributed control system....

SKU: CC-TAID01

Manufacturer: Honeywell
Product No.: CC-TAID01
Product Type: Analog Input Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 340g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Honeywell CC-TAID01 (51306733-175) is a high-performance Analog Input Module designed for use within the Experion PKS distributed control system. This module provides 16 channels of analog input, supporting both 2-wire and self-powered transmitters. It is engineered to deliver reliable process data acquisition with integrated self-diagnostics and support for optional redundancy to ensure high availability in critical industrial control environments.

Features

16-channel analog input capacity for high-density signal monitoring.
Extensive self-diagnostics for proactive health monitoring and fault detection.
Supports optional redundancy configurations for mission-critical applications.
Integrated Open Wire Detection and Bad PV (Process Variable) detection.
Supplies non-incendive field power to connected instrumentation.
Fast loop scan rate of 50 ms for responsive process control.
High-resolution 16-bit A/D conversion.

Technical Specifications

Model Number	CC-TAID01 (51306733-175)
Input Channels	16
Input Type	2-wire or self-powered transmitters
Input Range	0-5 V, 1-5 V, 0.4-2 V, 4-20 mA (via 250 Ohm resistor)
A/D Resolution	16 bits
Input Scan Rate	50 ms
Common Mode Voltage	-6 to +5 V peak (dc to 60 Hz)
Normal Mode Filter	Single-pole RC, -3 dB at 6.5 Hz

Installation Guidelines

Ensure the control system is powered down before inserting or removing the module from the I/O rack.
Handle the module using proper ESD (Electrostatic Discharge) protection practices to prevent damage to internal circuitry.
Verify that field wiring is properly shielded and routed away from high-EMI sources to maintain signal integrity.
Ensure proper grounding of the I/O chassis according to Honeywell installation standards.
Check that the terminal block is securely seated and that all connections are tightened to the specified torque requirements.

FAQ

What is the primary function of the CC-TAID01 module?

The CC-TAID01 is an analog input module used in Honeywell Experion systems to interface field analog signals (such as 4-20 mA or voltage signals) into the control system for monitoring and regulation.

Does this module support redundant operation?

Yes, the CC-TAID01 is designed to support optional redundancy, allowing for seamless failover in applications where high availability is required.

What type of field devices can be connected to this module?

This module is compatible with 2-wire transmitters and self-powered transmitters, providing the necessary field power for 2-wire loops.
