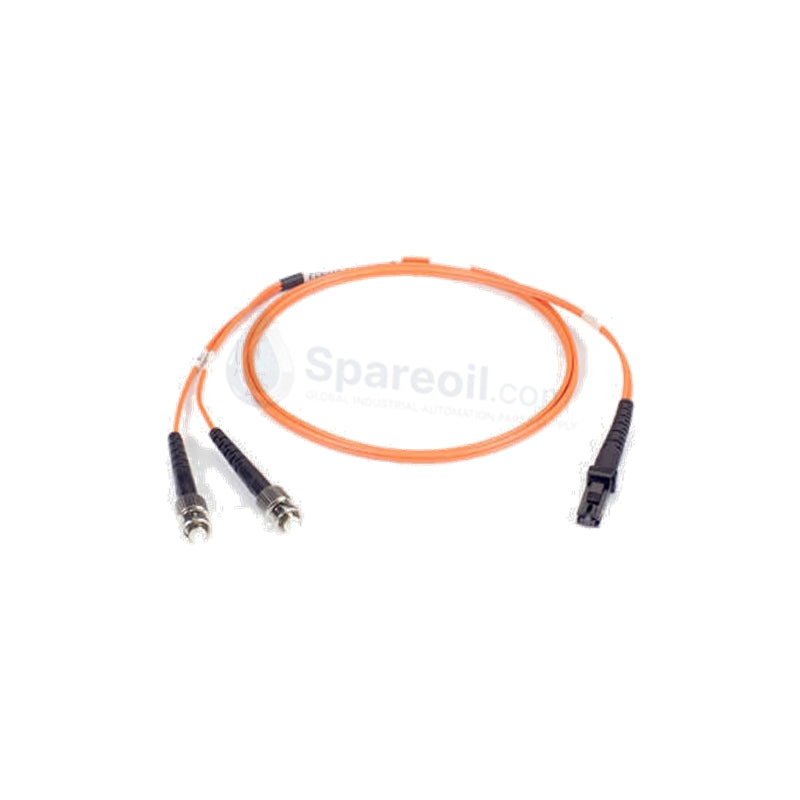

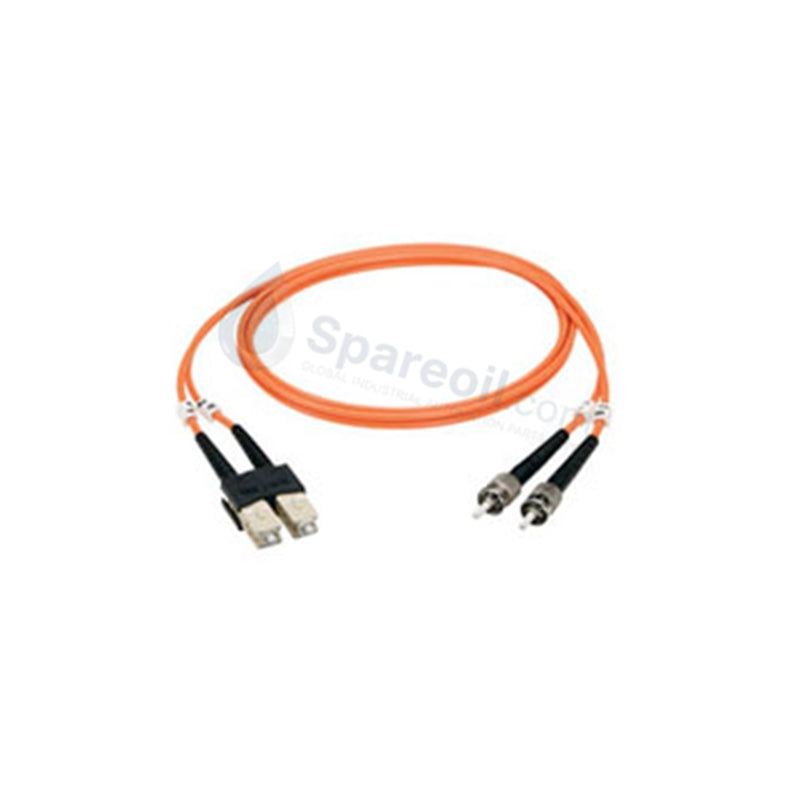

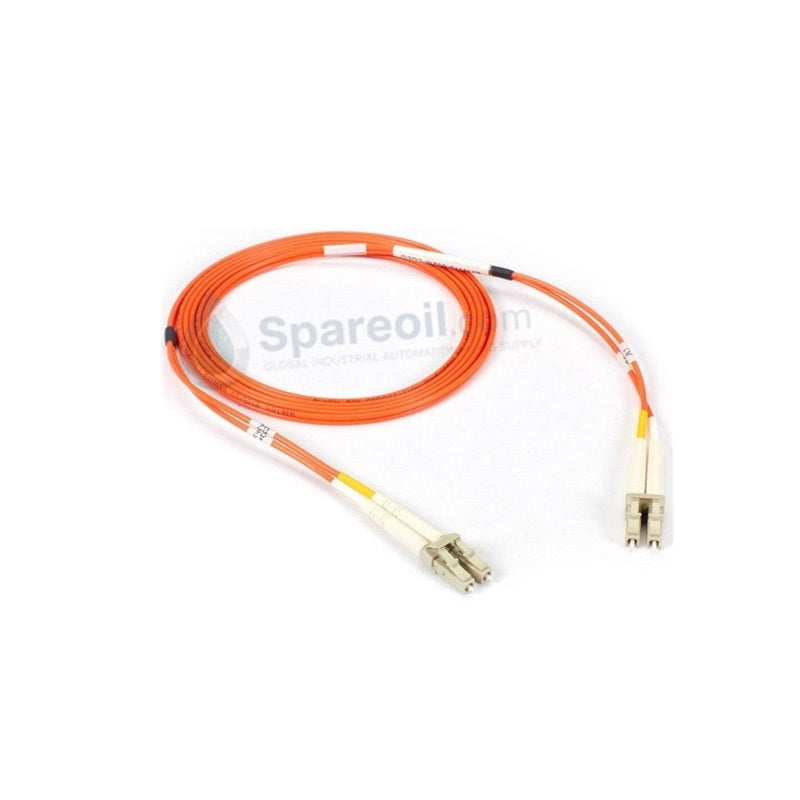

Foxboro EFN110-015M-STLC I/A Series Fiber Patch Cable

Configured for high-speed optical signal transmission in DCS network architectures, the Foxboro EFN110-015M-STLC (EFN110 Fiber Patch Cable) provides direct physical/electrical execution. The 15-meter optical assembly utilizes OM1 62.5/125 multimode fiber strands terminated with ST to LC connectors to bridge field communication modules, network switches, and host control processors. Featuring an OFNR flame-retardant PVC outer jacket, the assembly prevents signal attenuation, electromagnetic interference, and ground loop potential across long-distance cabinet-to-cabinet backplanes.

Hardware Specifications

Parameter Specification
Model EFN110-015M-STLC
Brand Foxboro
Origin China
Weight 3.00 lbs
Dimensions 15 meters length
Operating Temp -40 to +80 deg C
Power Consumption Passive Component
Fiber Cable Type OM1 62.5/125 Multimode Fiber
Connector Type ST to LC (Factory-Terminated)
Outer Jacket Rating OFNR (Riser) Flame-Retardant PVC
Network Support FOUNDATION Fieldbus / Industrial Ethernet / DCS Backplane
Enclosure/Protection Rating IP20 (When Installed)

Process Control & Digital Network Connectivity

The optical fiber construction provides continuous galvanically isolated data pass-through for 4-20 mA HART loop protocol diagnostic traffic and FOUNDATION Fieldbus network frames without risk of electromagnetic noise coupling. By isolating network segments optically, the patch cable eliminates channel-to-channel common-mode voltage differences between remote control racks. The factory-terminated ST and LC connectors maintain precise physical core alignment, minimizing insertion loss and preserving deterministic signal integrity across complex process control networks.

Frequently Asked Questions

Q: What physical bend radius limits must technicians maintain during cabinet installation?

A: Installers must observe a minimum dynamic bend radius of 20 times the outer cable diameter during installation and a static bend radius of 10 times the outer diameter once fixed in cable trays to prevent micro-bending optical attenuation.

Q: Can this cable withstand routing between separate control rooms without conduit protection?

A: The cable features an OFNR riser-rated PVC jacket suitable for vertical shaft and cable tray runs within industrial buildings, but installers should place it inside protective conduit if routing through areas exposed to severe mechanical impact or chemical splash.

Q: Does optical cable installation require grounding or shield bonding at the terminal cabinet?

A: No. Because optical glass fibers carry light signals rather than electrical currents, the cable offers native galvanic isolation, requiring no earth ground connections or shield drain wire terminations.

Field Installation Guidelines

Route the fiber cable through clean cable trays or dedicated wire ducts, keeping it separate from heavy high-voltage power lines to prevent physical crushing. Inspect the factory-terminated ST and LC optical connector faces before insertion, using lint-free optical wipes and isopropyl alcohol to clean the ferrules if dust is present.

Insert the ST connector into the corresponding bulkhead adapter and twist to engage the bayonet latch firmly. Push the LC connector into its transceiver socket until the retaining clip locks securely in place. Secure the cable along the tray using velcro straps rather than tightly cinched plastic cable ties to avoid pinching the optical core. Maintain cabinet ambient operating temperatures within the rated -40 to +80 deg C limit to prevent thermal expansion stress on the glass fiber cladding.
