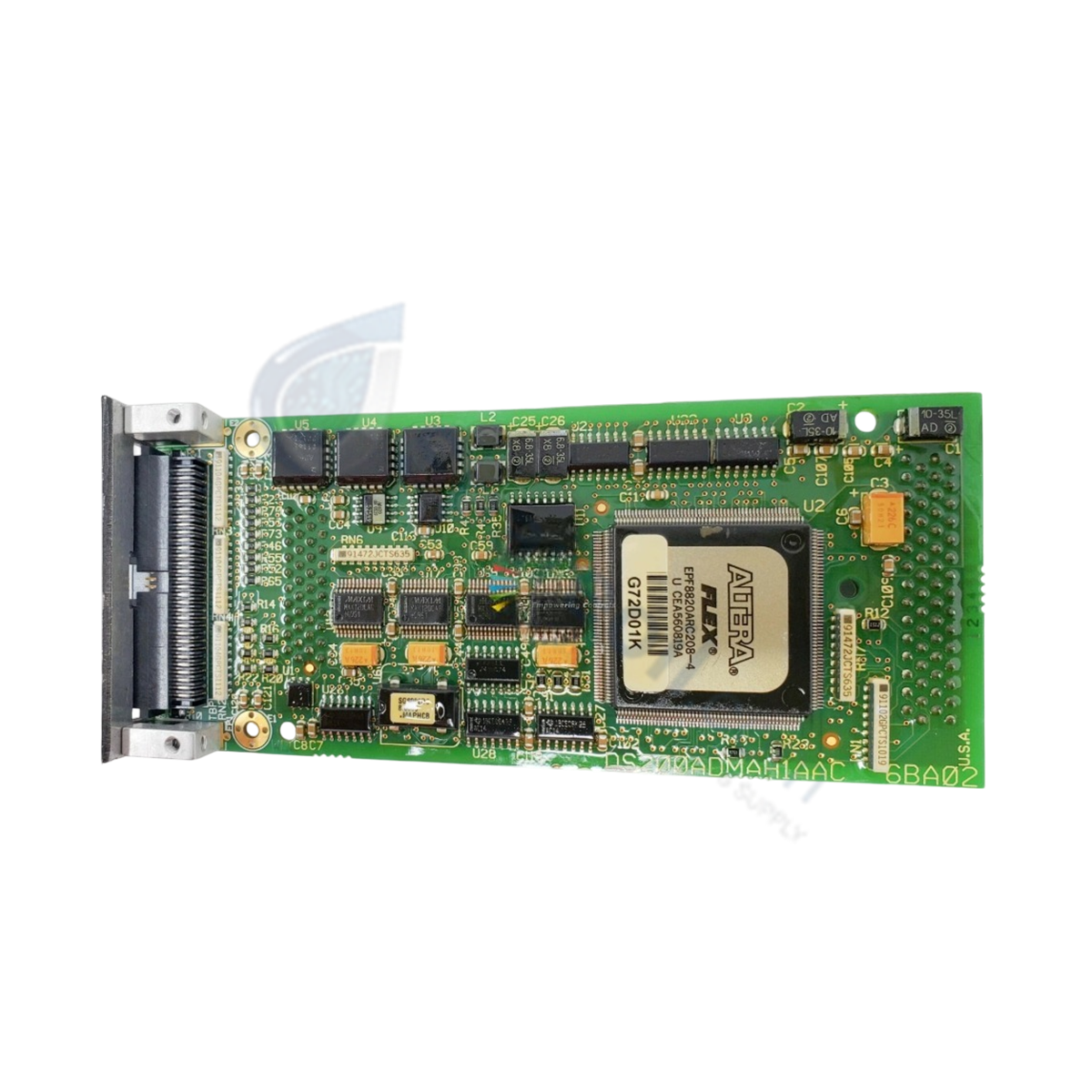

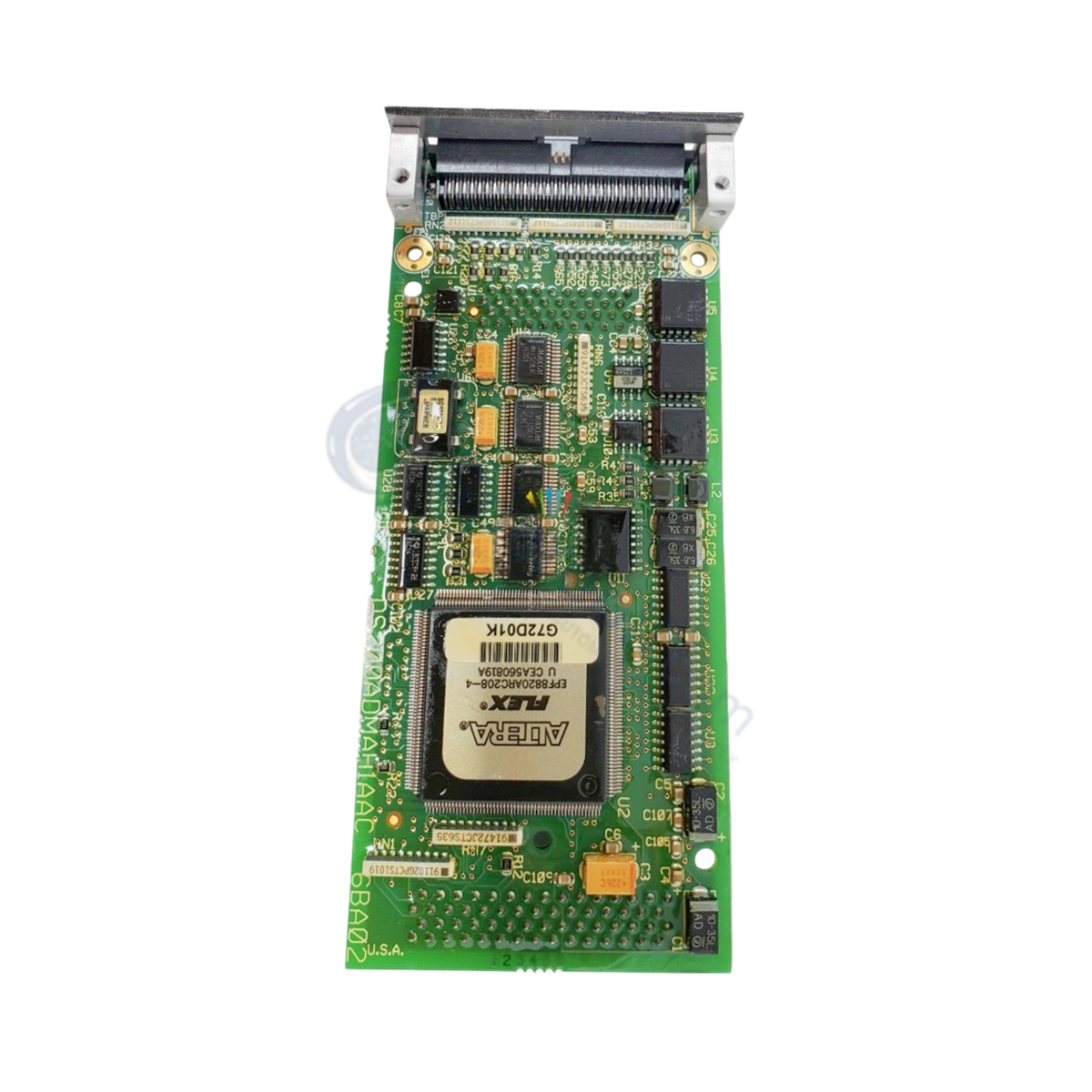

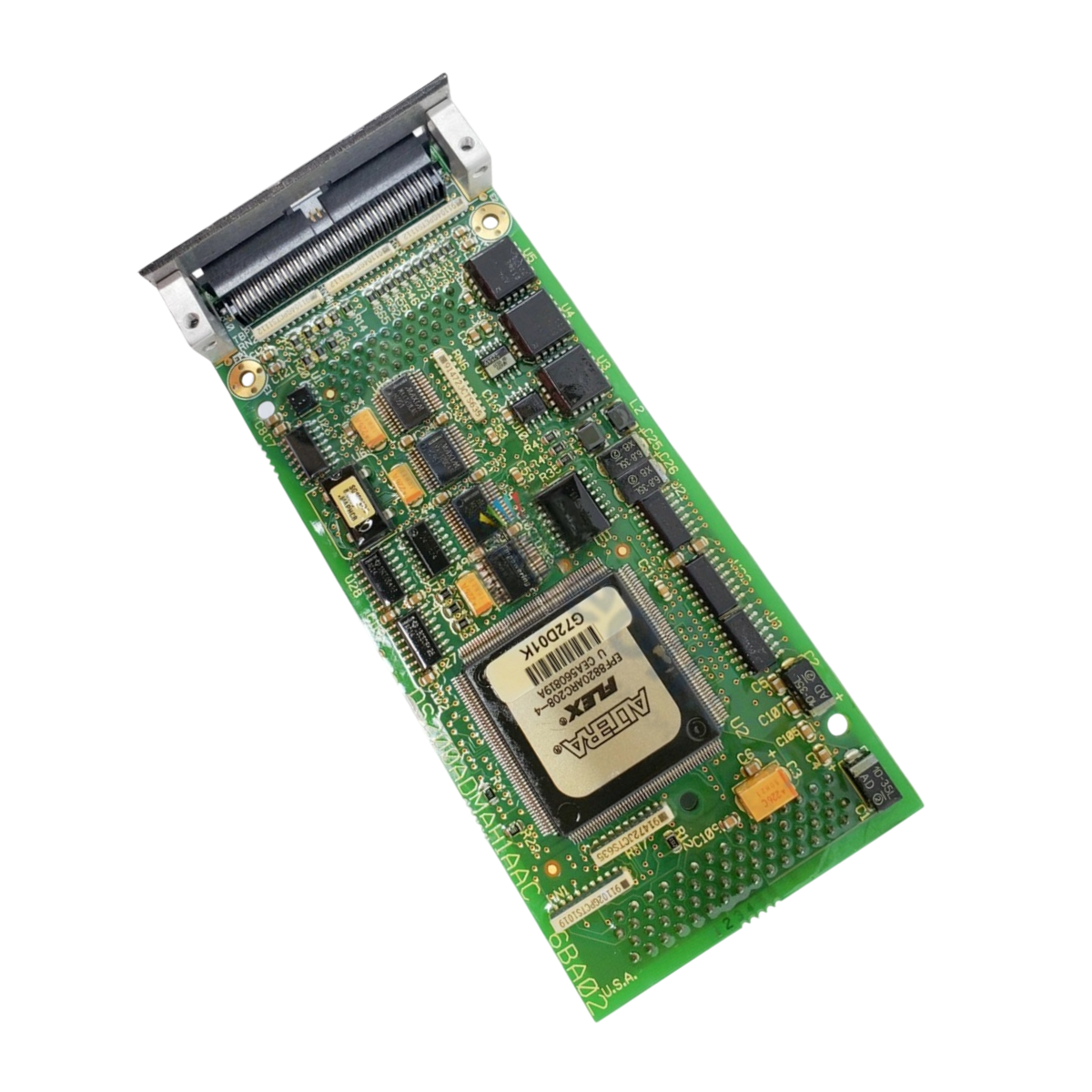

Configured for analog signal digitization and digital DSP interfacing in LS2100 Static Starter Control platforms, the GE DS200ADMAH1A (DS200ADMA Analog-to-Digital Module) provides direct physical/electrical execution.

Hardware Specifications

Parameter Specification
Model DS200ADMAH1A
Brand GE General Electric
Origin USA
Weight 4 oz
Dimensions Standard DS200 option board form factor
Operating Temp 0 to 60 deg C
Power Consumption Logic bus powered via DSPC carrier
Product Family LS2100 Static Starter Control
Functional Acronym ADMA
Manuals GEH-6373, GEI-100218
Standards UL, CE, CSA
Status LEDs Two: Green IMOK LED, Red FAIL LED
Analog Inputs Three channels
Analog Scaling 12-bit resolution, +/-10 V into 2K ohm / 500 pF load
Signal Interfacing EPLD-registered discrete inputs to host DSP
Connectors XA_ (60-pin high-density), XB_ (40-pin high-density), TBPL (60-pin ribbon header)

Backplane Bus & Network I/O Specifications

The board mounts directly onto the DS200DSPC Digital Signal Processor card as an option module, extending high-velocity signal conversion capabilities across the backplane bus interface. Onboard EPLD logic registers discrete digital input signals and routes them directly to the DSPC processor, enabling real-time adaptive signal control for silicon-controlled rectifiers (SCRs). High-density multi-pin connectors (XA_, XB_) and the TBPL ribbon header maintain deterministic signal pathways, while full firmware flash compatibility is governed by the host DSP motherboard architecture.

Frequently Asked Questions

Q: How does the DS200ADMAH1A interface physically with the host DSP processor card?

A: The board mounts as an option card on the DS200DSPC Digital Signal Processor card using three onboard high-density connectors: XA_ (60-pin), XB_ (40-pin), and TBPL (60-pin ribbon cable header).

Q: What output drive capability and resolution do the analog channels provide?

A: Four scaled analog channels drive a 500 pF load up to +/-10 V into a 2K ohm impedance with 12-bit analog-to-digital resolution.

Q: What indication do the onboard diagnostic LEDs provide during operation?

A: The green IMOK LED illuminates to confirm normal operational status and active logic processing, while the red FAIL LED indicates a module hardware fault or communication failure with the host DSP card.

Field Installation Guidelines

  1. Power Isolation: Disconnect and lock out main supply power to the LS2100 Static Starter cabinet before opening the chassis or attempting module installation.
  2. Anti-Static Safeguards: Wear a grounded wrist strap attached to the metal enclosure frame to prevent ESD damage to sensitive EPLD logic and ADC components during handling.
  3. Connector Engagement: Align the 60-pin XA_, 40-pin XB_, and 60-pin TBPL headers carefully with the host DS200DSPC board before pressing firmly to seat pin connections cleanly without mechanical stress.
  4. Mounting Security: Ensure all PCB retention standoffs and mechanical fasteners are fully secured to maintain grounding continuity and vibration immunity inside the drive enclosure.
