P0700HU Foxboro Termination Assembly

P0700HU Foxboro I/A Series Cable Termination Assemblies

P0700HU Foxboro I/A Series Cable Termination Assemblies

Availability: 10 left in stock

Foxboro P0700HU Termination Assembly The Foxboro P0700HU, also cataloged as the P0700HU Cable Termination Assembly, operates as a dedicated hardware...

SKU: P0700HU

Manufacturer: Foxboro
Product No.: P0700HU
Product Type: Cable Termination Assemblies
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

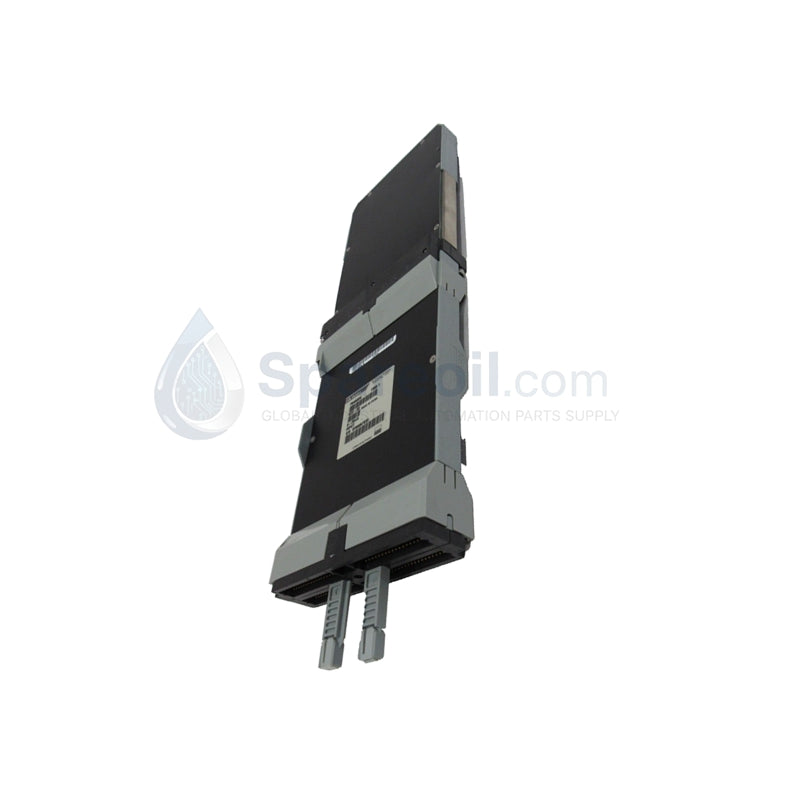

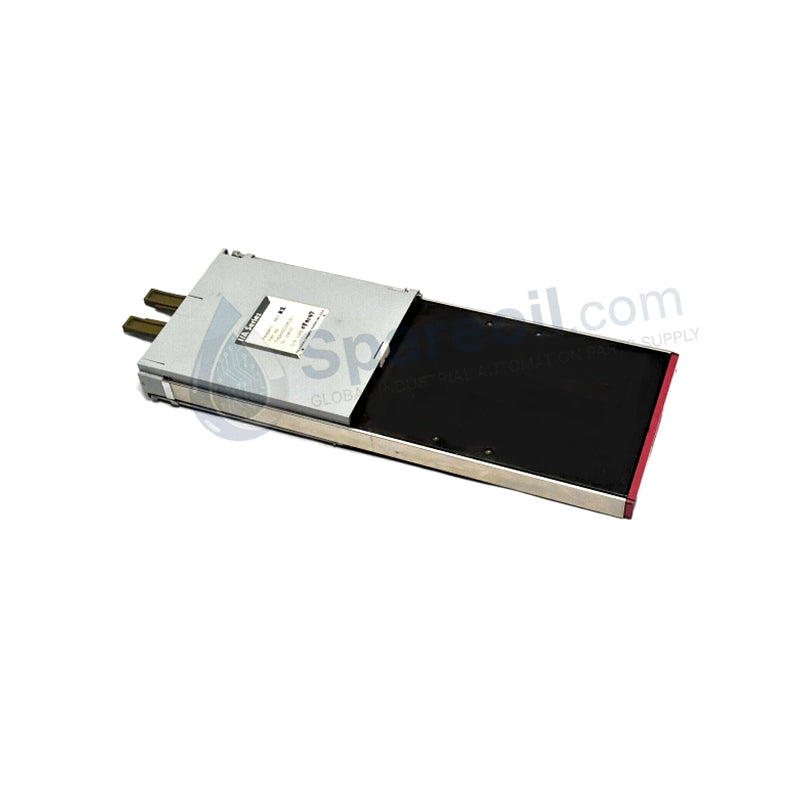

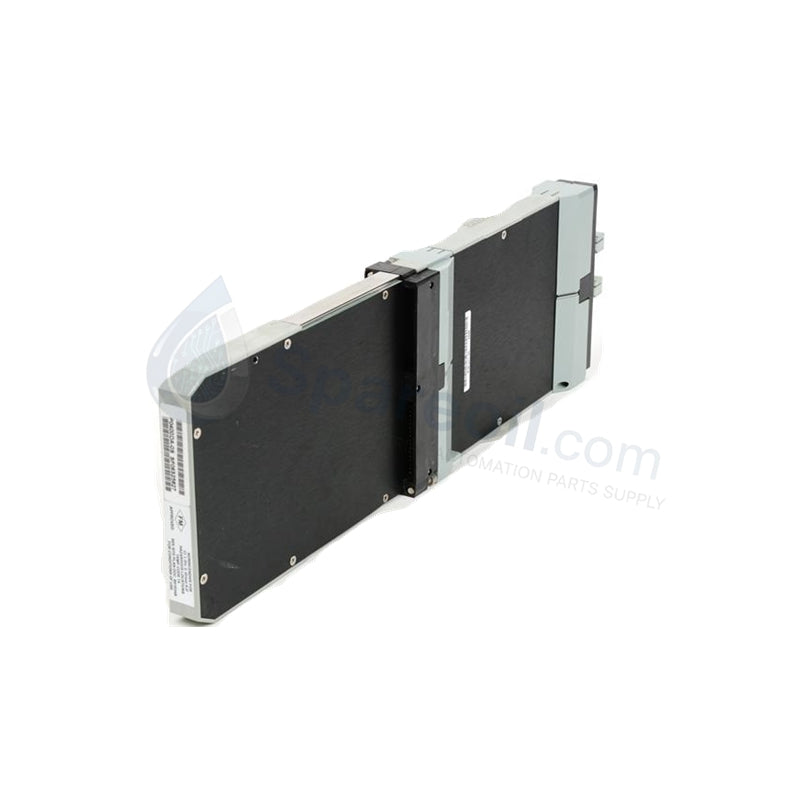

Foxboro P0700HU Termination Assembly

The Foxboro P0700HU, also cataloged as the P0700HU Cable Termination Assembly, operates as a dedicated hardware component for field signal wiring termination within Foxboro I/A Series DCS platforms. It interfaces multi-core shielded cables carrying 0-20 mA input signals directly to Fieldbus Module (FBM) baseplates, utilizing a dual clamp retention design to maintain electrical contact stability under high-vibration conditions.

Hardware Specifications

Parameter	Specification
Model	P0700HU
Brand	Foxboro
Origin	USA
Weight	2 kg
Dimensions	Standard Foxboro FBM termination assembly profile
Operating Temp	-40 to 85 deg C
Power Consumption	Passive physical connection assembly (N/A)
Ingress Protection	IP65
Supported Cable Types	Multi-core shielded cables
Environmental Rating	G3 harsh environment conformal coating
Humidity Range	5% to 95% RH, non-condensing

4-20 mA HART Loop Protocol & Channel Isolation

The P0700HU termination assembly provides isolated physical pathways for 0-20 mA and 4-20 mA analog input channels, routed through shielding grids designed for EMI/RFI suppression. The internal termination pathways preserve channel-to-channel isolation ratings specified by the associated FBM I/O modules, preventing stray ground currents from degrading measurement accuracy. By maintaining low-impedance connection points across the signal loop, the module ensures unattenuated pass-through for 4-20 mA HART loop protocol telemetry and precise reference voltage transfer for cold junction compensation (CJC) thermal monitoring circuits.

Frequently Asked Questions

Q: Does the P0700HU require external grounding conductors for the cable shielding?

A: The assembly incorporates integrated cable clamp grounding points that bond multi-core cable shields directly to the mounting frame ground path upon mechanical securing.

Q: How does the IP65 rating affect installation inside control cabinets?

A: The IP65 enclosure protection and conformal coating allow installation in harsh industrial enclosures rated for G3 corrosive gas environments, protecting internal connection terminals from dust and moisture ingress.

Q: Can the P0700HU be mounted directly to DIN rail structures?

A: Yes, the physical chassis supports mounting onto standard cabinet DIN rails as well as direct installation within Foxboro I/A Series control racks.

Field Installation Guidelines

Strip field cables to the specified strip length before inserting conductors into the P0700HU terminal blocks. Tighten both the outer jacket cable clamp and individual wire clamps to ensure physical strain relief and low-resistance grounding contact. Route multi-core signal lines through dedicated wire channels, maintaining separation from high-voltage AC lines to prevent electromagnetic interference. Fasten all assembly retaining screws securely to the cabinet mounting rail or baseplate frame to ensure continuous frame ground bonding.
