Programming Mecademic Robots Directly with Siemens S7 PLCs

Abstracting the Teach Pendant: A Shift in Robot Control Architecture

In traditional factory automation setups, industrial robots rely heavily on a dedicated teach pendant. Engineers program motion profiles locally on the robot controller, leaving the centralized Programmable Logic Controller (PLC) to merely toggle digital handshaking signals to trigger pre-defined routines. However, Mecademic micro-robots disrupt this classic division of labor by utilizing a direct-drive control system design.

Instead of acting as an independent controller, the Mecademic Meca500 operates much like a standard Variable Frequency Drive (VFD) or servo drive. It accepts direct motion variables and explicit drive commands over multi-protocol Ethernet channels. Consequently, the Siemens S7 PLC serves as the single source of truth, managing all path calculations and sequential logic. This unified architecture simplifies system integration, cuts commissioning times, and centralizes your entire industrial automation codebase within a single engineering platform.

Technical Prerequisites and Version Constraints

Before embarking on this integration, automation engineers must verify system compatibility. The Meca500 utilizes advanced startup routines rather than legacy handshake conditions. Therefore, the Siemens hardware requires firmware version 4.2 or higher.

To support this firmware, you must use Siemens STEP7 TIA Portal version 14 or above. Lower software versions lack the required hardware catalog updates to properly manage the robot's real-time communication profile.

Hardware Configuration and Bench Setup

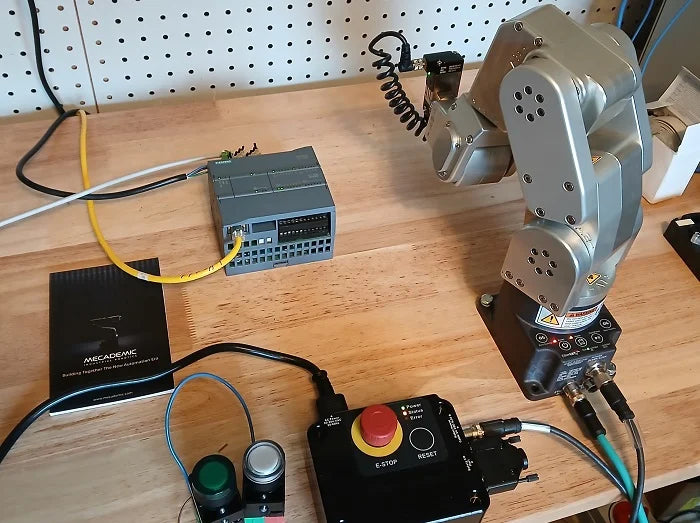

A standard validation bench consists of three primary components: the Siemens S7-1200 PLC, the Mecademic Meca500 robot arm, and an engineering PC. For initial testing, you can wire physical selector switches to the PLC digital inputs or install a Siemens I/O switch simulator board (part number 6ES7274-1XF30-0XA0).

The standard demonstration code maps specific control tokens to inputs %I0.0 and %I0.7. We highly recommend using latching selector switches instead of momentary pushbuttons to maintain steady state signals during the initialization sequence. Connect the PLC, the Meca500 controller, and your engineering PC to an unmanaged industrial Ethernet switch to establish the physical network layer.

Activating PROFINET on the Meca500

By default, the robot may not have industrial Ethernet protocols active. To enable PROFINET, power on the robot and open a web browser on your PC. Navigate to the MecaPortal web server using the default IP address 192.168.1.100 (or your specifically assigned static IP).

Ensure no other master devices are actively polling the robot. Take control of the unit through the browser interface and switch it to 'Control Mode'. Navigate to the Network Configuration menu in the top-left corner, enable the PROFINET communication protocol, and save the settings. The robot is now ready to receive external cyclic data frames.

Integrating GSDML Hardware Description Files

Siemens TIA Portal requires a General Station Description (GSDML) file to recognize the Meca500 as a valid PROFINET IO device. First, download the official Mecademic firmware package and extract the zipped archive. Inside, navigate to the protocols directory to locate the protocol files.

In TIA Portal, navigate to the top menu and select Options -> Manage general station description files (GSD). Browse to the extracted folder path, select the specific Meca500 GSDML file, and click install. Once completed, TIA Portal updates its hardware catalog, allowing you to drag and drop the robot directly into your network view.

Importing and Setting Up the Demo Project

Rather than writing complex communication blocks from scratch, you can leverage pre-built library functions. Download the official "Meca500 V10.2 Siemens Demo" project from the Mecademic integration portal. Open TIA Portal and select the downloaded archive, which carries a .zap16 file extension.

We strongly advise immediately using the Save As command to rename the project (e.g., Meca500_Production_Test) to preserve the original master template. Navigate to the Devices & networks view in the project tree to verify device properties. Double-click the network ports of both the PLC and the robot to confirm that their assigned IP addresses reside on the exact same subnet as your engineering PC. After validation, compile the hardware configuration and perform an Extended download to device to load the data into the S7-1200 PLC.

Analyzing and Validating Default Program Blocks

The sample project's Main organization block (OB1) organizes the baseline control architecture into two functional networks. Network 1 calls the Meca500_Control function block, which handles low-level communication, error resets, and robot enabling. Toggling the physical digital inputs %I0.0 and %I0.7 triggers this activation loop.

Network 2 controls the basic motion sequencer, instructing the robot to move through a pre-defined path of XYZ Cartesian points. To safely test this default routine, clear all physical hazards from the robot’s working envelope. Once the area is secure, use a watch table to modify memory bit %M2.0 to 1, which fires the motion sequence.

Engineering Custom Two-Point Motion Control

To customize the application, we can implement a dual-position toggle sequence using two additional pilot buttons. Wire these new green and white pushbuttons to digital inputs %I1.1 and %I1.2. Within the project tree, create a new Function Block (FB) inside the Examples folder and name it Two_Points.

This new block requires structured variables to interface cleanly with the underlying Meca500 driver blocks. Define the following variables inside the block's interface table:

Developing the Ladder Logic Sequence

Within the Two_Points function block, construct the network logic using standard ladder components. In Rung 1, use the green button input (%I1.1) to trigger a MoveJoints command, forcing all axis values back to their zero positions (0, 0, 0, 0, 0, 0).

In Rung 2, use the white button input (%I1.2) to trigger a linear move command (MoveLin). Define precise target coordinates within the instruction, ensuring the points are physically reachable and clear of fixtures.

Finally, open your Main routine (OB1) and drag the Two_Points FB into a new network rung. TIA Portal will automatically prompt you to generate a shared Data Block (DB); assign the global Meca500_Interface tag to connect the block to the core robot driver instance. Download the modified code to the S7-1200 PLC to enable dual-position control via your physical pushbuttons.

Production Application Scenario: High-Speed Sorting

In modern warehouse and factory automation environments, this direct-PLC control methodology offers massive efficiency gains for vision-guided sorting systems. Consider a high-speed picking line where a 2D smart camera identifies misaligned products on a conveyor belt.
