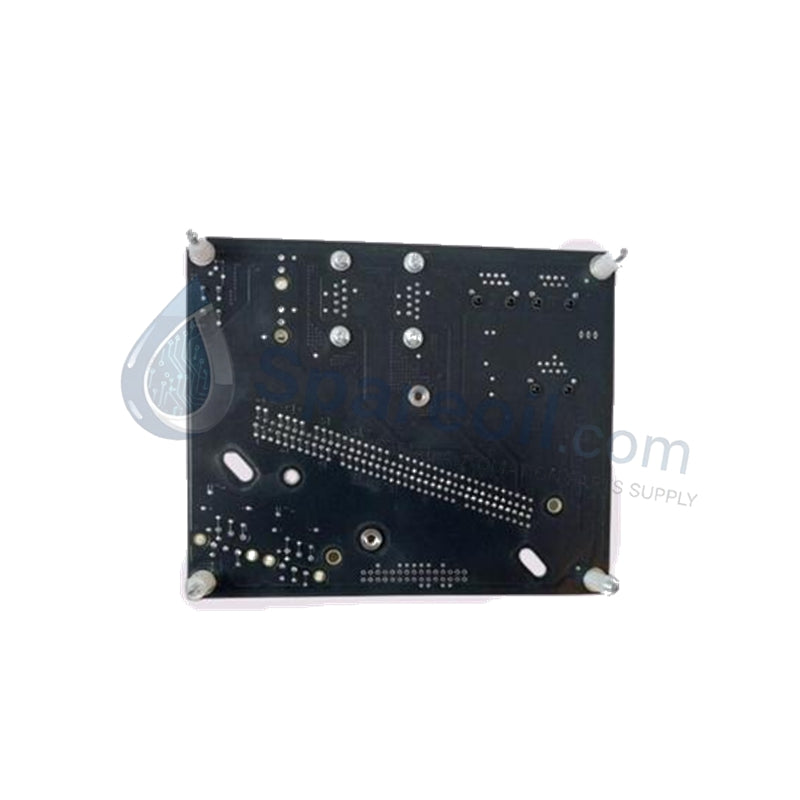

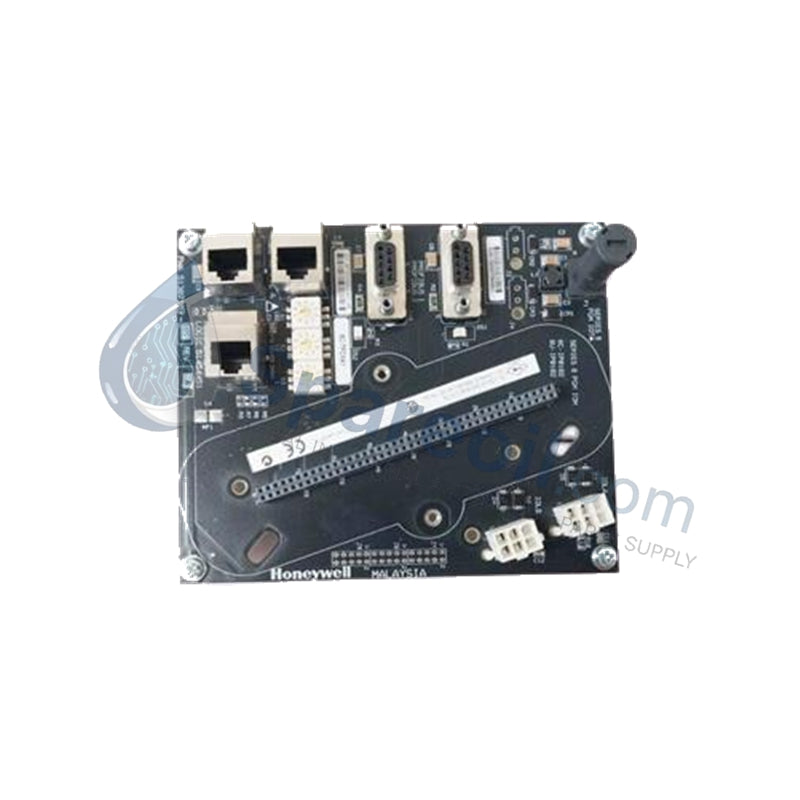

Honeywell 8C-TP0XA1 C300 Redundant PROFIBUS Gateway

Availability: 99 left in stock

Product Overview The Honeywell 8C-TP0XA1 (51307153-175) functions as a high-performance PROFIBUS-DP Gateway within the Experion PKS C300 architecture. It establishes a critical...

SKU: 8C-TP0XA1

Manufacturer: Honeywell
Product No.: 8C-TP0XA1
Product Type: PROFIBUS DP Gateways
Product Origin: USA
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Honeywell 8C-TP0XA1 (51307153-175) functions as a high-performance PROFIBUS-DP Gateway within the Experion PKS C300 architecture. It establishes a critical communication bridge between C300 controllers and decentralized field devices, including actuators, motor starters, and remote I/O. We supply this module as 100% Brand New and Original, sealed in factory packaging to ensure peak network integrity in mission-critical process environments such as oil refineries and power generation plants.

Technical Specifications

Feature	Specification Details
Communication Protocol	PROFIBUS DP (RS-485)
Data Transfer Rate	Up to 12 Mbps (Auto-sensing)
Hardware Interface	9-pin D-sub (Optically Isolated)
Network Connections	FTE A/B CAT5e connectors
Redundancy	Supports fully redundant system architectures
Current Consumption	430 mA @ 24 VDC
Operating Temperature	0 °C to +60 °C
Dimensions	22 mm x 124 mm x 126 mm
Compliance	UL, CE, RoHS

Engineering Advantages

Optimized Latency Management: The 8C-TP0XA1 processes signal conversion with minimal latency, ensuring real-time response between PROFIBUS field devices and the C300 control logic.
Redundant System Stability: This module supports dual-fault-tolerant (FTE) connections and redundant gateway pairing. This configuration prevents process trips by maintaining communication even if a single hardware path fails.
Simplified DIN-Rail Integration: The compact 22mm width allows for high-density installation in standard I/O cabinets. This design solves the problem of limited rack space in brownfield control room upgrades.
Hardware-Level Signal Isolation: Optical isolation on the 9-pin D-sub interface protects the C300 backplane from external voltage surges or electrical noise originating in the field cabling.
Instant Visual Diagnostics: Integrated LED arrays provide real-time status for power, communication health, and fault conditions, allowing technicians to identify network issues without connecting a laptop.

FAQs

Can the 8C-TP0XA1 handle varying transmission speeds?

Yes. The module supports transmission rates up to 12 Mbps and automatically synchronizes with the speed of the PROFIBUS DP segment.
Does this module support redundant C300 configurations?

Absolutely. The 8C-TP0XA1 is specifically designed for use in redundant gateway pairs to ensure high availability for critical loops in the Experion PKS environment.
What is the difference between 8C-TP0XA1 and 8C-TAOXA1?

While both belong to the Series 8 family, the 8C-TP0XA1 is a PROFIBUS Gateway module for network communication, whereas the 8C-TAOXA1 typically refers to the Analog Output Termination Assembly. Always verify your system's bill of materials before replacement.
Does the module require external power?

The module receives its 24 VDC power directly via the I/O chassis backplane, simplifying field wiring and reducing potential points of failure.
