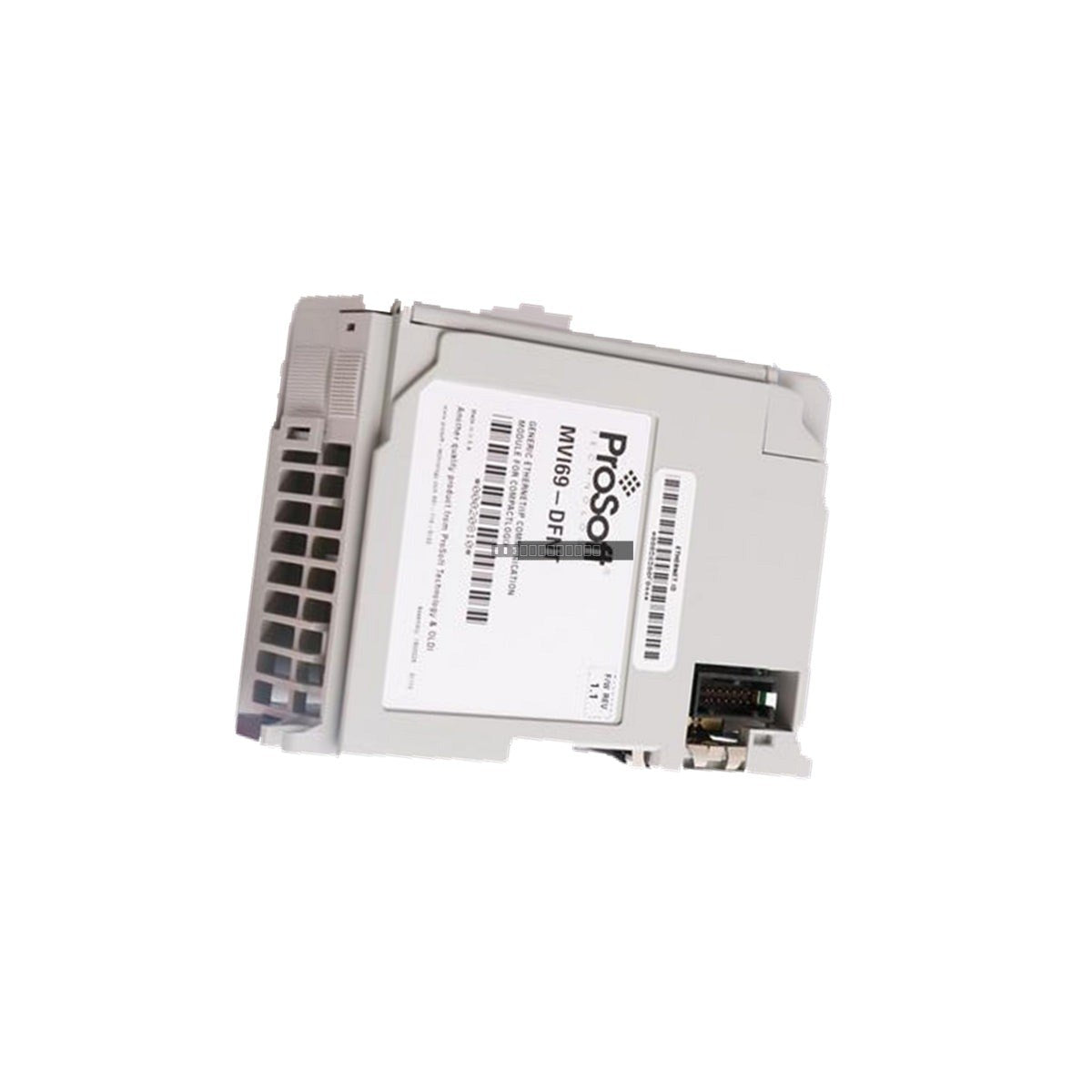

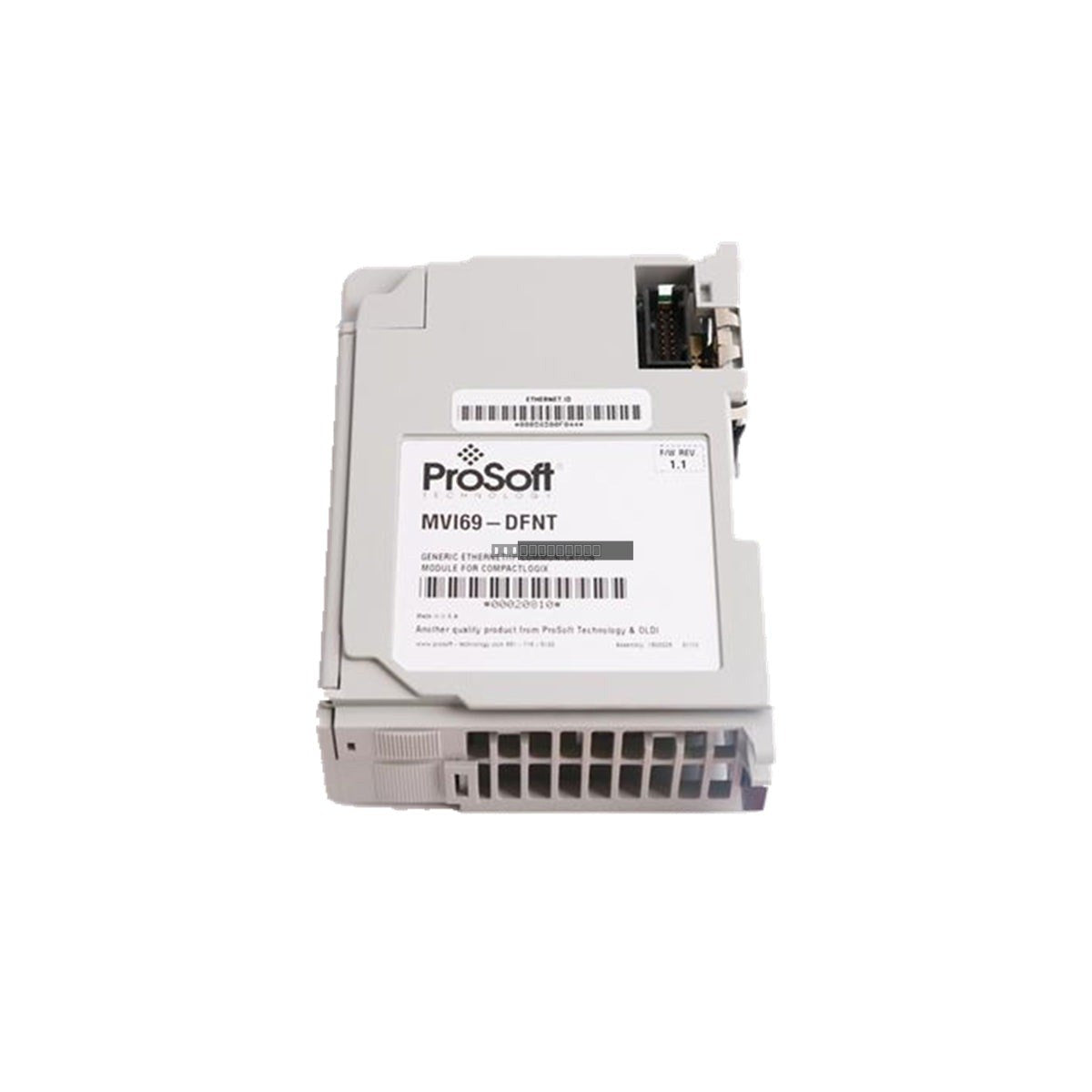

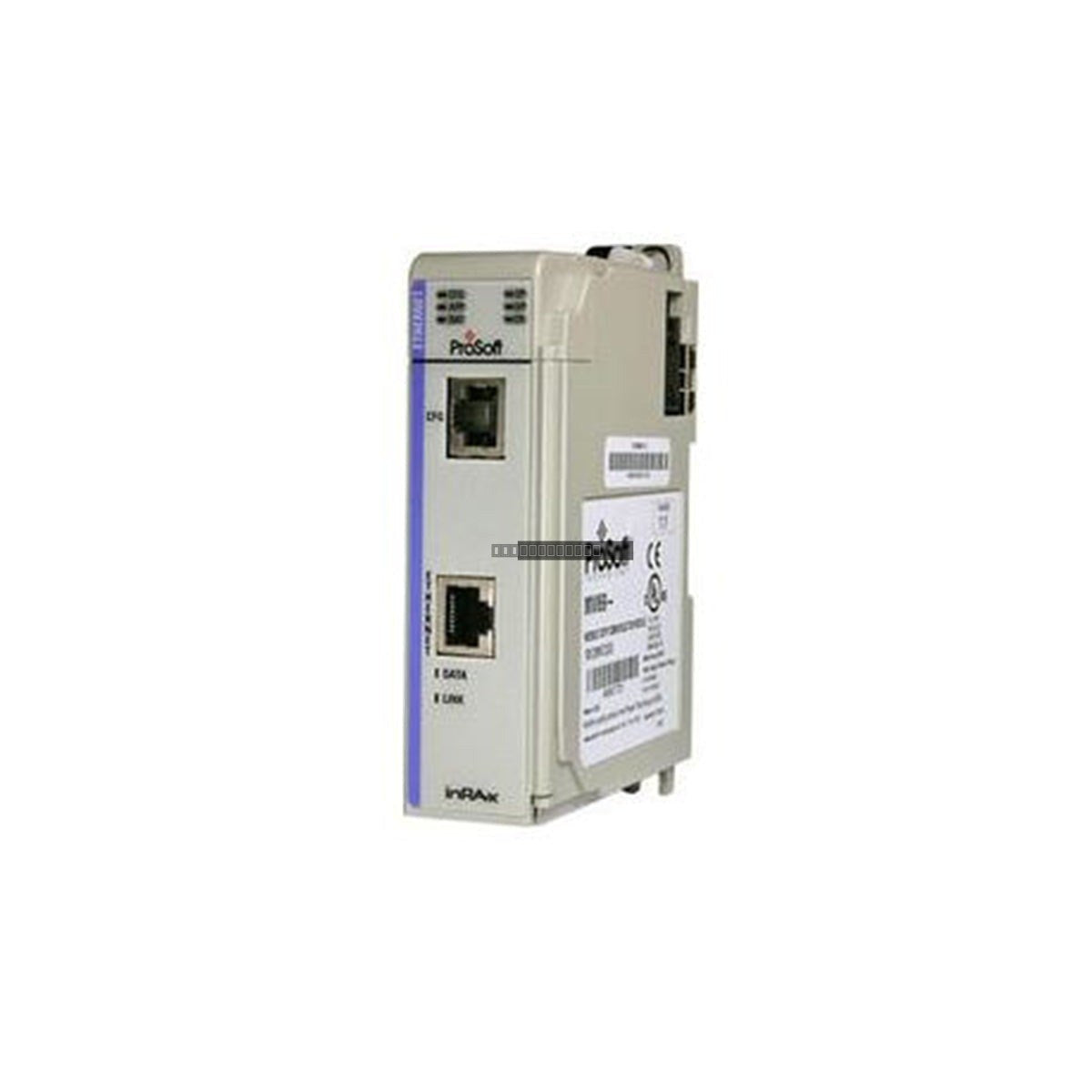

ProSoft MVI69-DFNT CompactLogix Communication Module

ProSoft MVI69-DFNT CompactLogix EtherNet/IP Communication Module

Availability: 9 left in stock

The ProSoft MVI69-DFNT is a high-performance communication module engineered to integrate seamlessly into Rockwell Automation CompactLogix and MicroLogix 1500 LRP...

SKU: MVI69-DFNT

Manufacturer: Prosoft
Product No.: MVI69-DFNT
Product Type: Communication Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The ProSoft MVI69-DFNT is a high-performance communication module engineered to integrate seamlessly into Rockwell Automation CompactLogix and MicroLogix 1500 LRP systems. This single-slot module provides robust EtherNet/IP connectivity, allowing for efficient data exchange between your controller and remote EtherNet/IP devices. By supporting both client and server functionalities, it enables complex explicit messaging, which is essential for maintaining high-speed data flow in industrial automation and manufacturing control applications.

Features

Backplane Integration: Designed specifically for direct mounting on the 1769 backplane, ensuring stable and reliable communication with the host processor.
Broad Compatibility: Supports a wide range of CompactLogix processors, including L20, L30, L31, L32, and L35, with additional support for L43 and L45 units using RSLogix 5000 v16.03 or newer.
Protocol Versatility: Functions as a dedicated EtherNet/IP Client/Server interface with support for up to 100 user-configurable commands.
System Efficiency: Features 20 server connections to handle requests from external equipment, reducing latency and optimizing network traffic management.

Applications

This module is ideal for industrial environments requiring reliable network isolation and dedicated port management. Common applications include material handling systems, process control, and complex manufacturing lines where integration between legacy MicroLogix controllers and modern EtherNet/IP networks is required.

Technical Specifications

Model	MVI69-DFNT
Brand	ProSoft Technology
Power Requirement	800 mA at 5 VDC
Slot Usage	Single Slot
Operating Temperature	0 to 60 deg C
Communication Protocol	EtherNet/IP (Explicit Messaging)
Command Capacity	100 Configurable Commands

Installation Guidelines

Ensure the controller is powered down before inserting or removing the module from the 1769 backplane.
This module is designed for standard industrial environments; ensure adequate ventilation to maintain operation within the 0 to 60 deg C temperature range.
Use shielded Ethernet cabling for network connections to minimize EMI interference in high-noise industrial settings.
Verify that the backplane power supply is capable of handling the 800 mA current draw at 5 VDC required by the module.

FAQ

Is this module compatible with all CompactLogix processors?
The MVI69-DFNT supports most standard CompactLogix processors like the L20, L30, L31, L32, and L35. For L43 and L45 models, ensure your system is running RSLogix 5000 version 16.03 or later.

Does this module require external power?
No, the module draws its operating power directly from the 1769 backplane, requiring 800 mA at 5 VDC.
