Brand New 1768-M04SE 4-Axis Motion Module Fast Shipping

Availability: 20 left in stock

Product Overview The Allen-Bradley 1768-M04SE serves as a high-performance motion synchronization gateway for the CompactLogix 1768 platform. This module coordinates up to...

SKU: 1768-M04SE

Manufacturer: Allen Bradley
Product No.: 1768-M04SE
Product Type: Motion Control Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 700g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

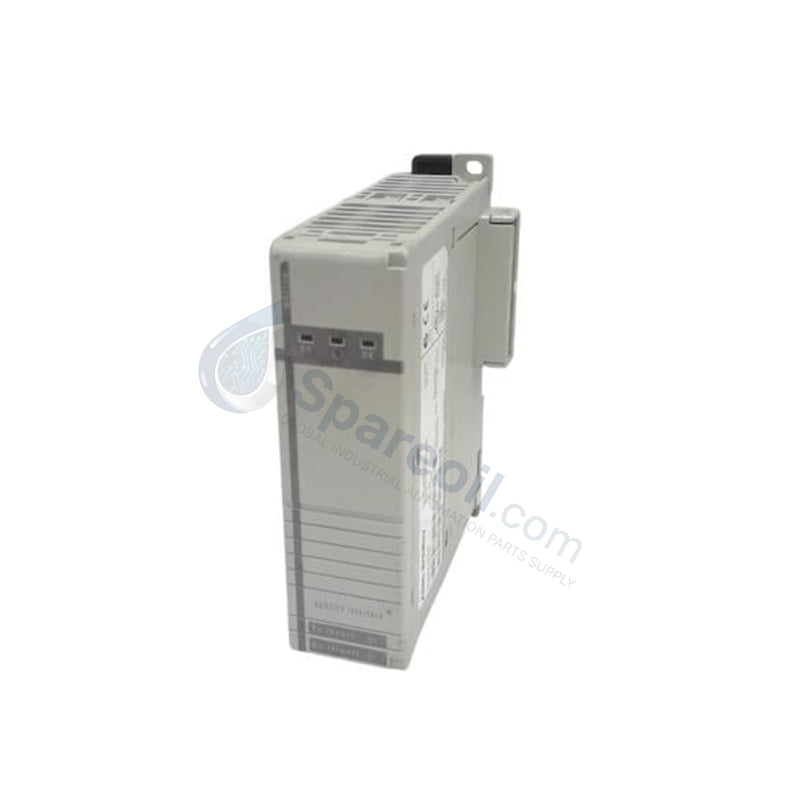

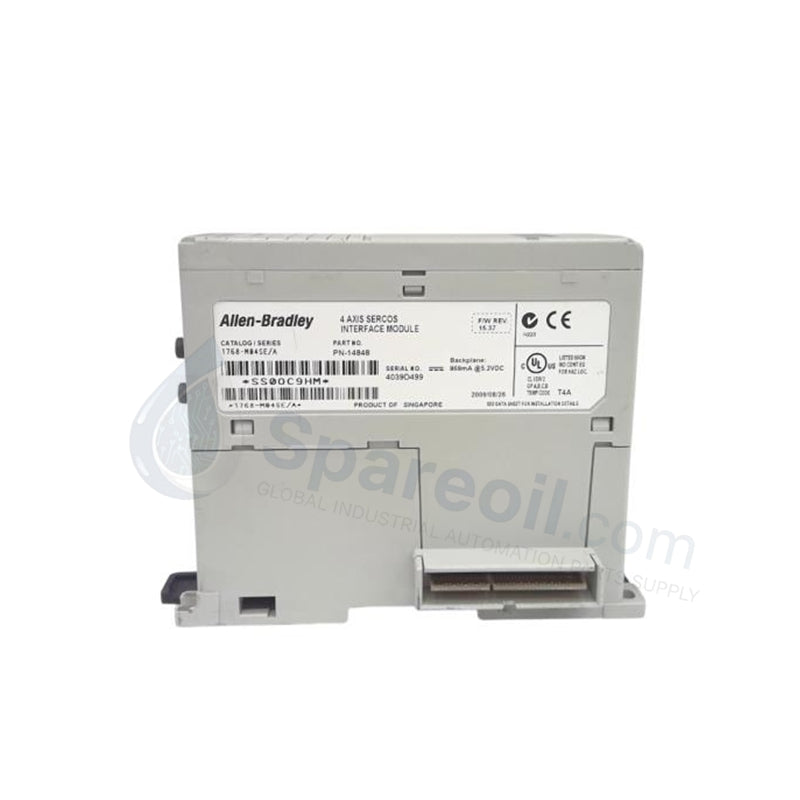

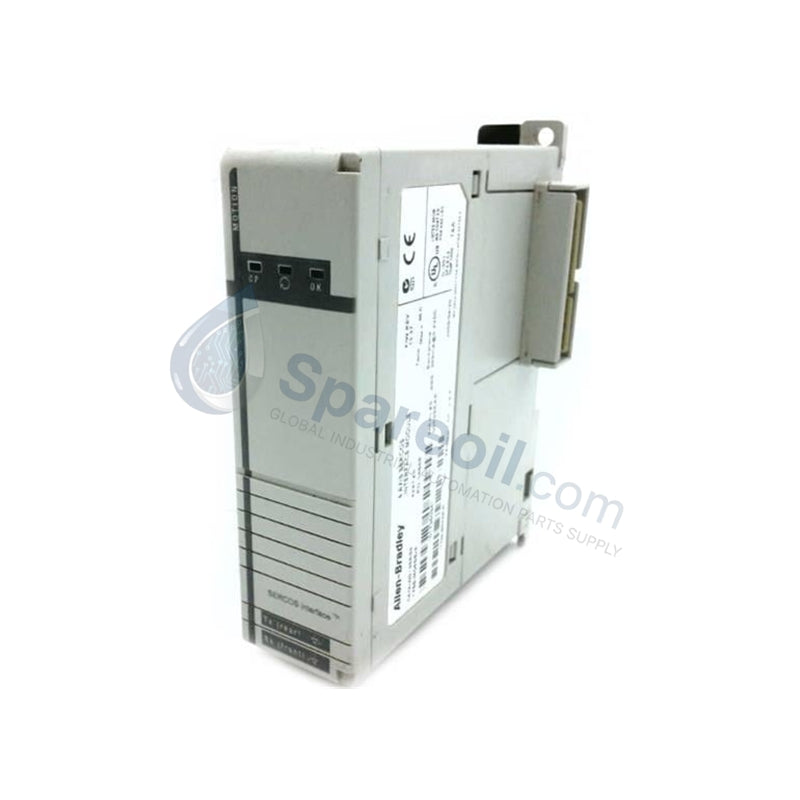

The Allen-Bradley 1768-M04SE serves as a high-performance motion synchronization gateway for the CompactLogix 1768 platform. This module coordinates up to four axes of motion using the SERCOS (Serial Real-time Communication System) interface, providing a deterministic digital link between the controller and servo drives. We supply this unit as 100% Brand New and Original, ensuring precise execution of complex motion profiles including electronic gearing and camming.

Technical Specifications

Parameter	Specification Details
Axes Supported	Up to 4 SERCOS Drives
Compatible Drives	Kinetix 2000, 6000, 7000; Ultra 3000 SERCOS
Data Rate	4 Mbps or 8 Mbps (Selectable)
Cycle Time	0.5 ms (8M rate/4 drives) or 1.0 ms (4M rate/4 drives)
SERCOS Class	Class B (Position or Velocity control)
Fiber Optic Connector	F-SMA standard screw-type
Core Diameter	980 µm (Plastic) / 200 µm (Glass)
Power Dissipation	5.04 Watts
Operating Temp	0°C to 60°C (32°F to 140°F)
Series	1768 CompactLogix

Engineering Advantages

Immunity to Electromagnetic Interference (EMI): The 1768-M04SE utilizes fiber-optic cabling for all drive communications. This optical isolation completely eliminates ground loops and electrical noise interference, which frequently cause signal corruption in traditional copper-based motion systems.
Deterministic Real-Time Control: By employing the SERCOS protocol, the module guarantees synchronized updates for all four axes. This determinism is critical for high-speed packaging and printing applications where even microsecond jitters can cause mechanical misalignment.
Simplified Topology: The "daisy-chain" fiber optic ring reduces wiring complexity significantly. Engineers connect the module to the first drive, then loop through subsequent drives back to the module, creating a redundant path that simplifies troubleshooting and installation.
Deep Kinetix Integration: The module integrates natively with Studio 5000 Logix Designer. This allows engineers to perform drive configuration, auto-tuning, and motion diagnostics directly through the controller software without needing third-party commissioning tools.
Advanced Motion Capabilities: This hardware supports sophisticated Motion Instructions (MAG, MAP, MCTP), enabling complex synchronization such as virtual master axes, high-speed registration, and non-linear camming.

FAQs

Which Kinetix drives work with the 1768-M04SE?

This module specifically supports SERCOS-enabled drives, including the Kinetix 2000, 6000, 7000, and the Ultra 3000 series with SERCOS interface. It does not support Kinetix 350 or 5500 drives, as those utilize EtherNet/IP for motion.

What type of fiber optic cable should I use?

The 1768-M04SE features F-SMA screw-type connectors. You can use 980 µm plastic fiber (POF) for short distances within a single cabinet or 200 µm Hard Clad Silica (HCS) glass cable for longer runs or environments with wider temperature swings.

Does this module occupy a standard CompactLogix slot?

No, the 1768-M04SE attaches to the left side of a 1768-L43 or 1768-L45 controller. It utilizes the high-speed 1768 backplane, which provides the necessary bandwidth for motion control that the standard 1769 backplane cannot support.

What is the maximum number of axes I can control in one system?

While a single 1768-M04SE supports 4 axes, the 1768-L43 controller supports up to 2 of these modules (8 axes total), and the 1768-L45 supports up to 4 modules (16 axes total), depending on your application's processor overhead.
