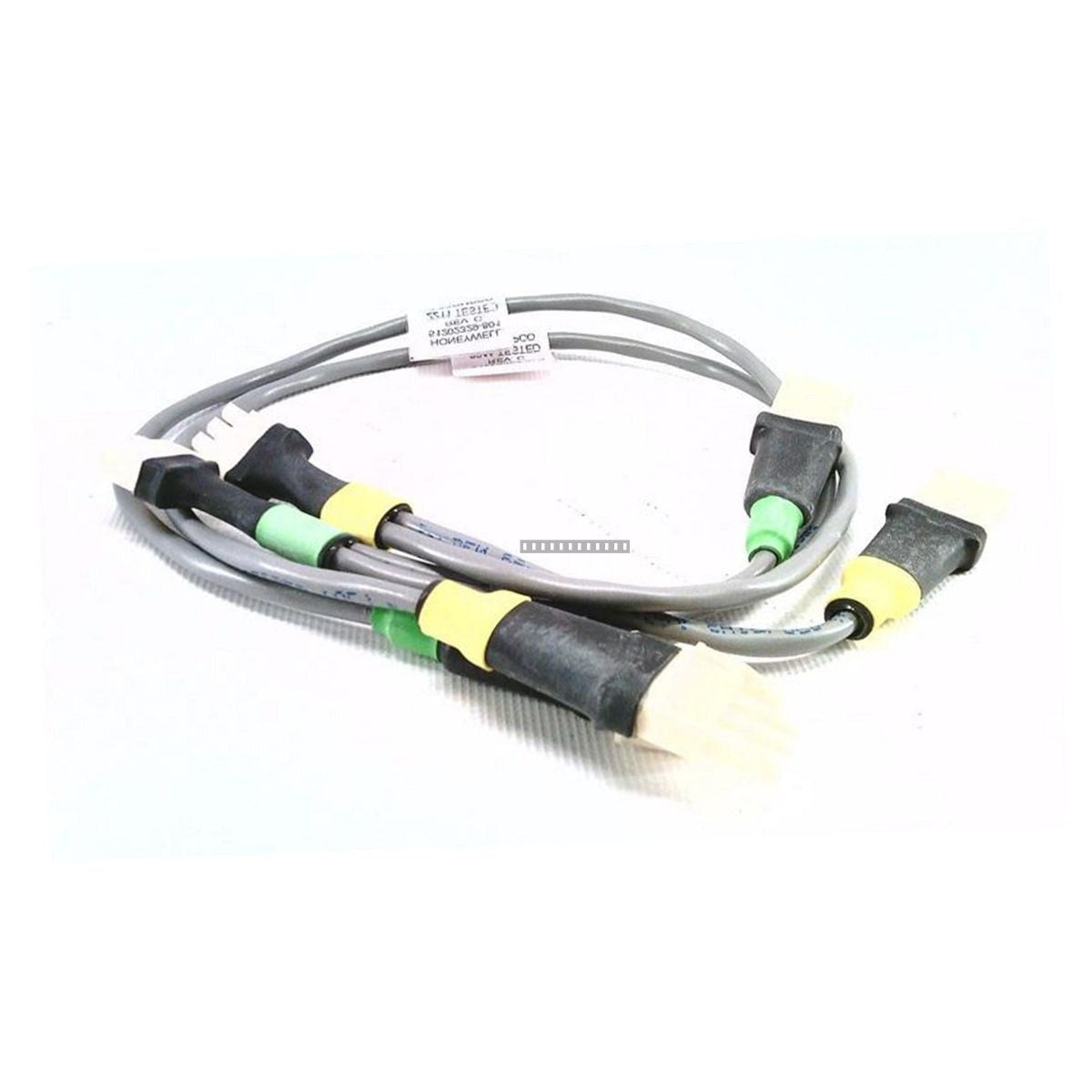

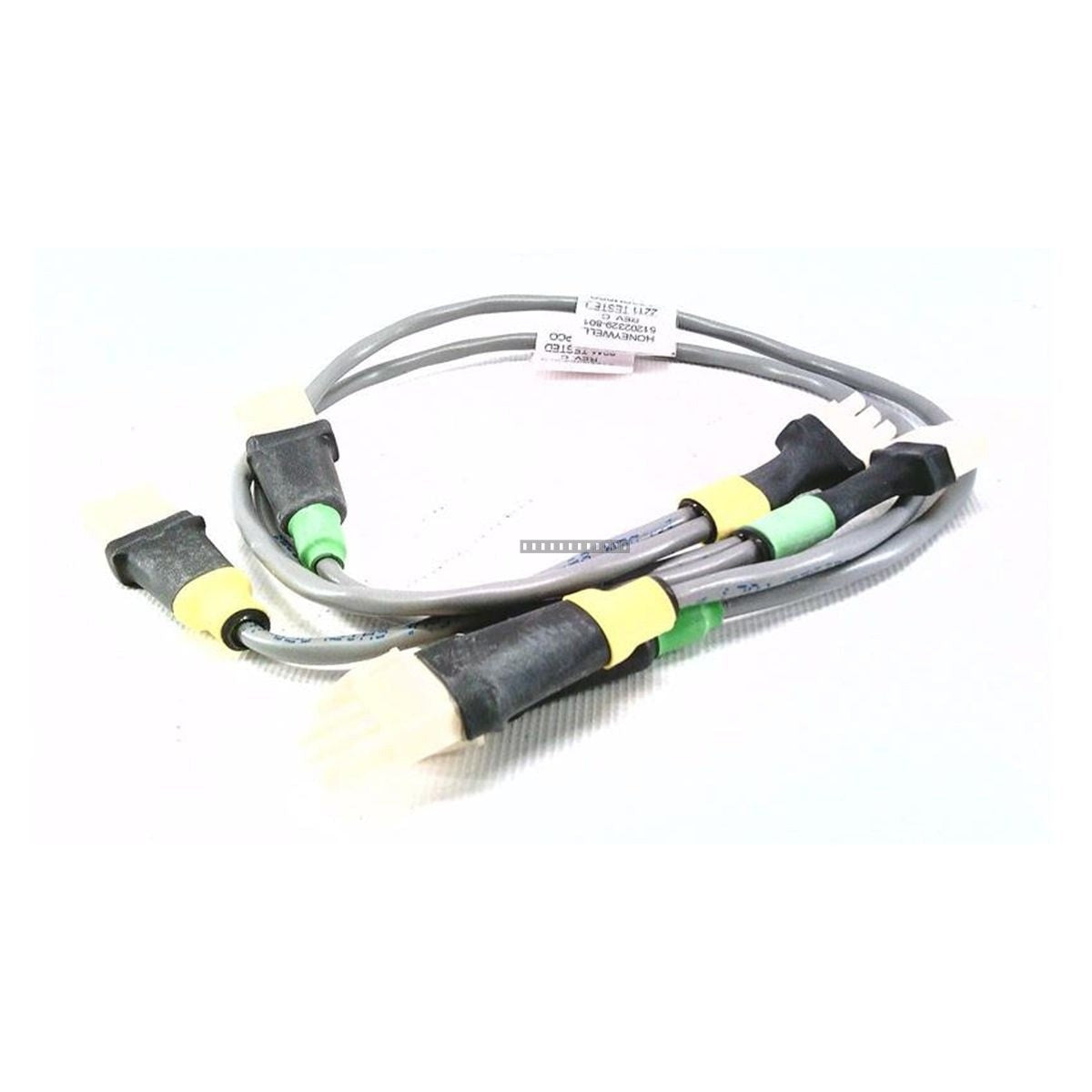

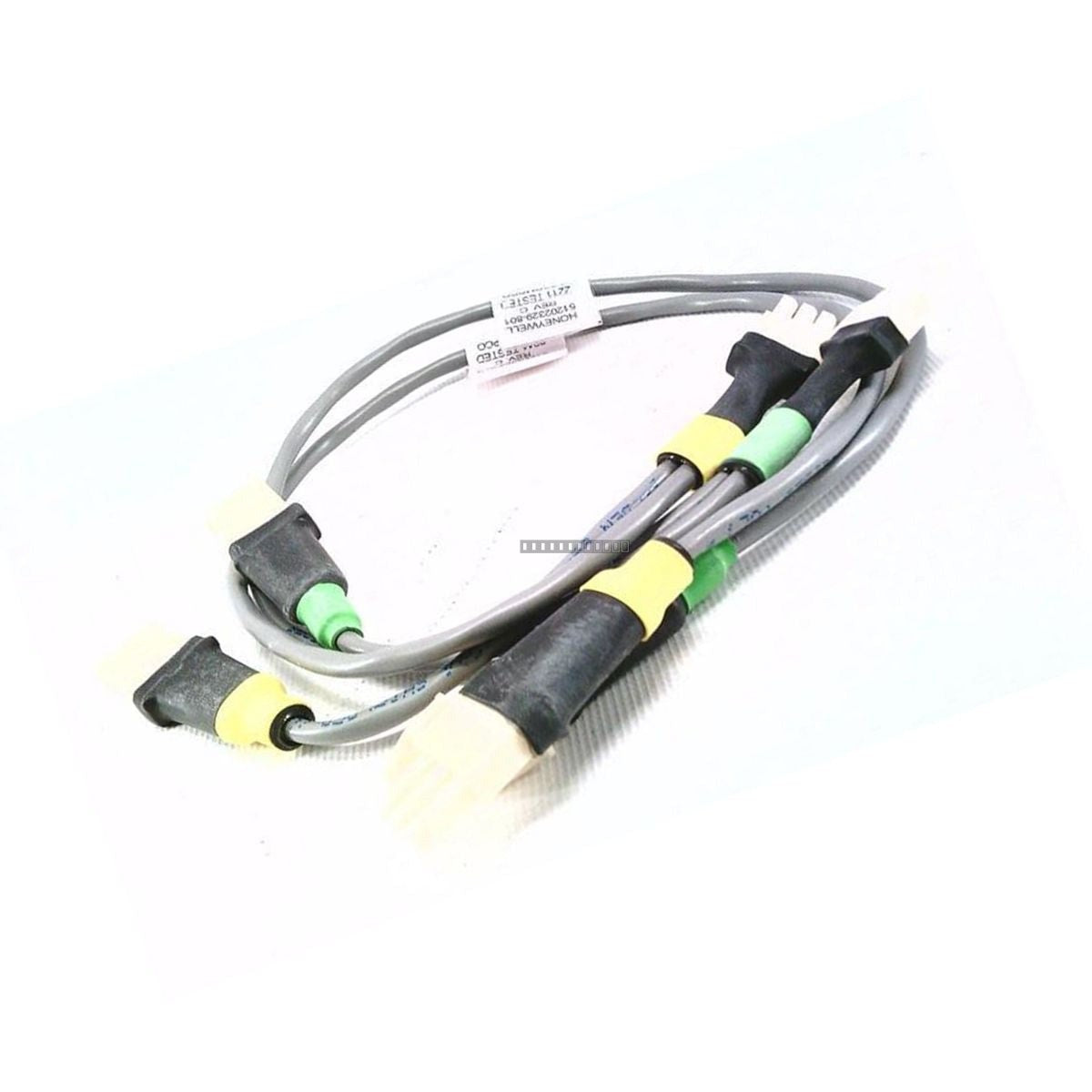

Honeywell 51202329-802 Experion LX I/O Link Cable

Availability: 9 left in stock

DescriptionThe Honeywell 51202329-802 is an I/O link cable assembly designed for use within the Experion LX control system architecture. This...

SKU: 51202329-802

Manufacturer: Honeywell
Product No.: 51202329-802
Product Type: I/O Link Cable
Product Origin: USA
Payment:T/T, Western Union
Weight: 150g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Honeywell 51202329-802 is an I/O link cable assembly designed for use within the Experion LX control system architecture. This component functions as a tap expander, providing a 1:2 expansion capability for drop connections to enhance system connectivity and I/O distribution. The assembly includes link protection and is designed to meet the rigorous demands of industrial automation environments.

Features

Functionality: Acts as a 1:2 tap expander for I/O drop connections.
Construction: Features a durable gray jacket with integrated link protection (Revision C).
Shielding: Equipped with dual-layer shielding (foil and braid) to minimize electromagnetic interference (EMI) in industrial settings.
Flexibility: Rated for a flex life of 50,000 cycles, ensuring reliability in dynamic installations.
Conductor Specifications: Utilizes 26 AWG (7x34 strand) conductors for consistent signal integrity.

Technical Specifications

Product Model	51202329-802
Product Type	I/O Link Cable / Tap Expander
Voltage Rating	60V DC
Current Rating	1A per conductor
Operating Temperature	-40 degC to +85 degC
Conductors	26 AWG (7x34 strand)
Shielding	Dual-layer (foil + braid)
Flex Life	50,000 cycles
Tariff Code	8537101190

Installation Guidelines

Ensure the system is powered down before connecting or disconnecting any I/O link cables to prevent electrical damage or signal disruption.
Route cables away from high-voltage power lines and high-EMI sources to maintain signal integrity.
Observe the minimum bend radius during installation to protect the internal conductors and shielding.
Ensure that all connections are fully seated and secured to prevent intermittent communication errors.
Handle with care to avoid damage to the connectors or the cable jacket, especially in high-vibration environments.

FAQ

What is the primary purpose of the 51202329-802?

This module serves as a tap expander, allowing for a 1:2 expansion of drop connections within the Honeywell Experion LX I/O link network.

Is this cable shielded?

Yes, it features dual-layer shielding consisting of both foil and braid to provide robust protection against electrical noise.

What is the operating temperature range?

The cable is rated for operation in environments ranging from -40 degC to +85 degC.
