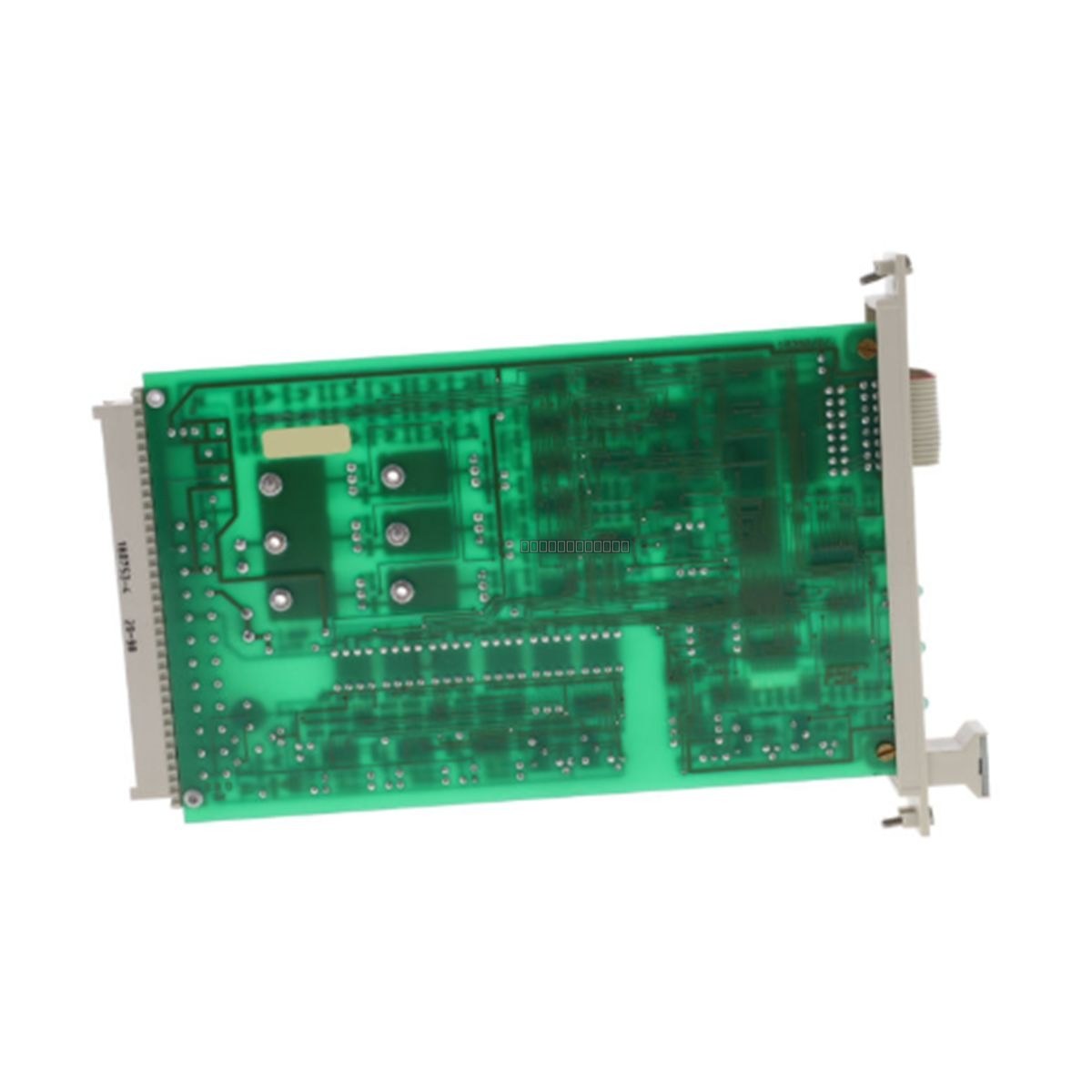

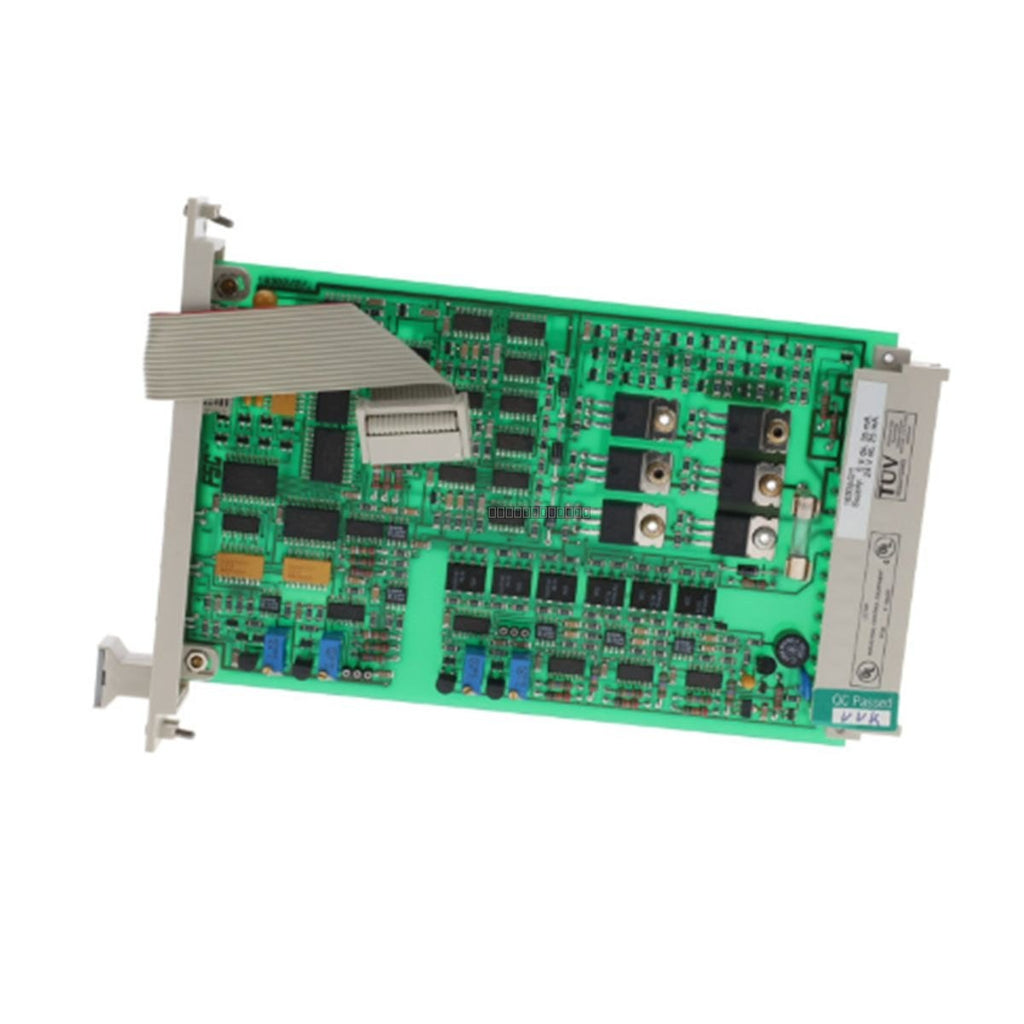

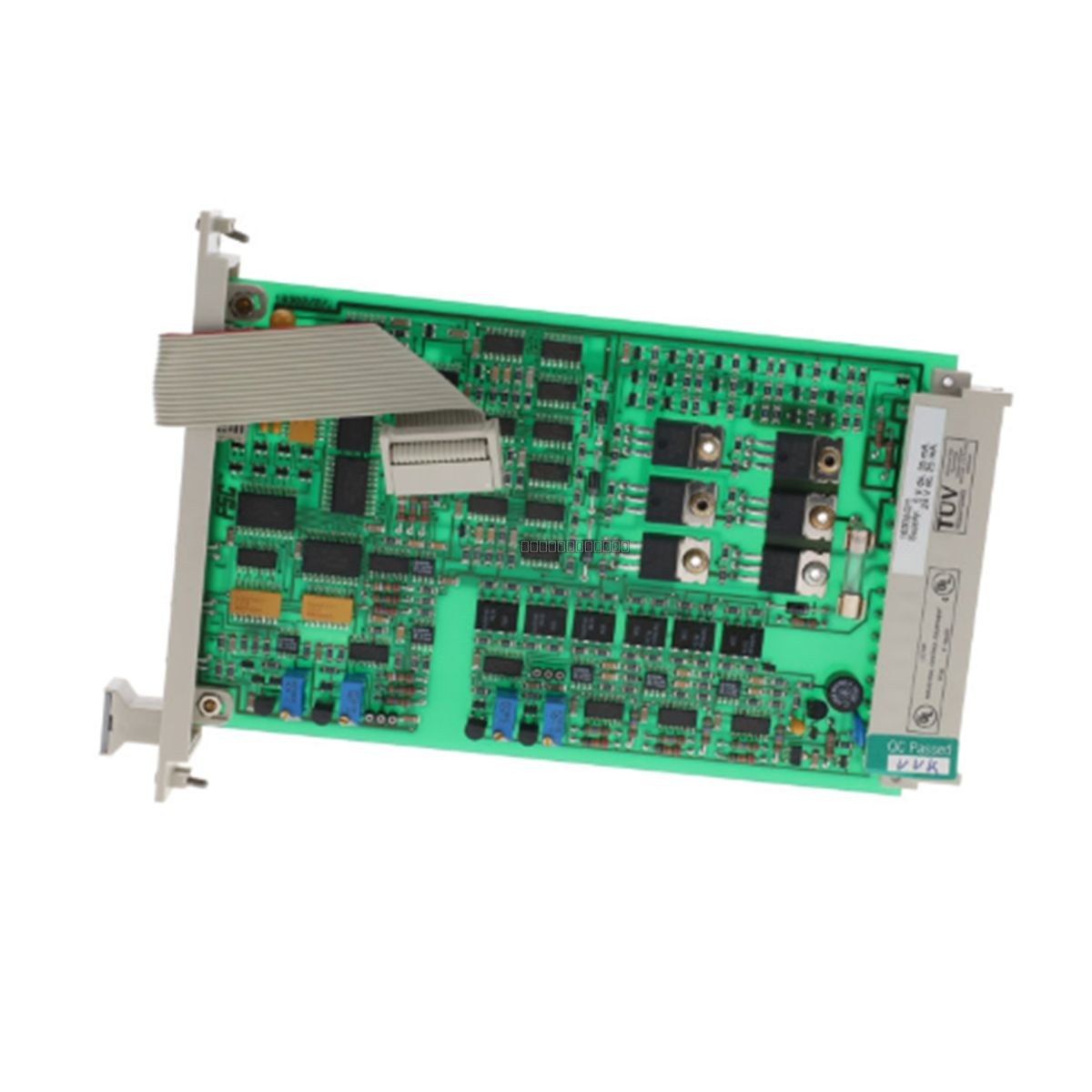

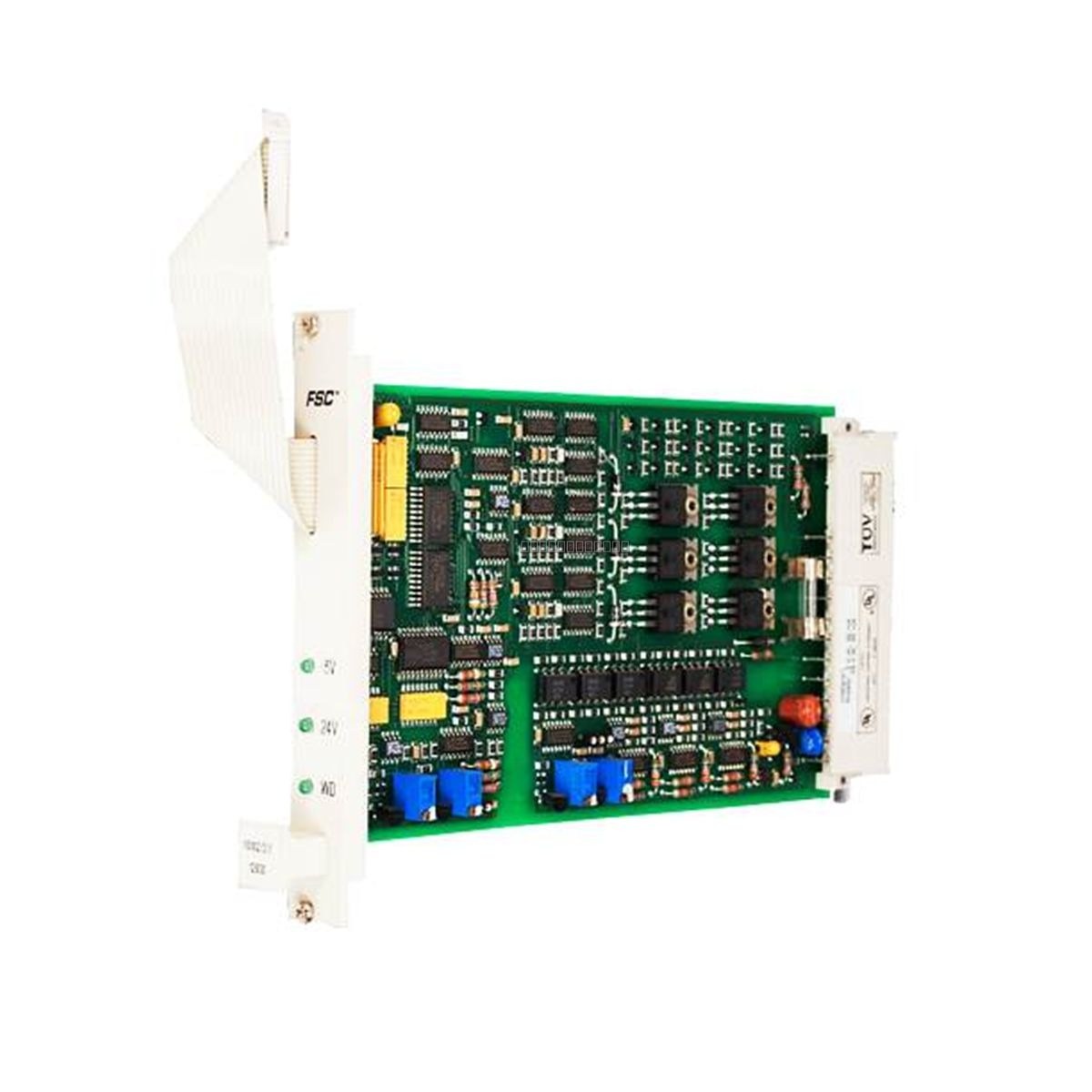

Honeywell 10302/2/1 FSC Watchdog Repeater Module

Availability: 8 left in stock

DescriptionThe Honeywell 10302/2/1 is a Watchdog Repeater (WDR) module designed for use within the Fail-Safe Controller (FSC) system. This module...

SKU: 10302/2/1

Manufacturer: Honeywell
Product No.: 10302/2/1
Product Type: Watchdog Repeater Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 150g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Honeywell 10302/2/1 is a Watchdog Repeater (WDR) module designed for use within the Fail-Safe Controller (FSC) system. This module serves a critical role in monitoring the 5 Vdc and 24 Vdc power supplies provided to I/O modules. It ensures system integrity by transmitting a secure watchdog signal to output modules, maintaining fault-tolerant control in safety-critical environments.

Features

Monitors 5 Vdc and 24 Vdc power supply rails for I/O modules.
Required in configurations where the watchdog current exceeds 900 mA.
Supports horizontal bus connection within the FSC rack.
Equipped with a DIN 41612 type F male connector (rows d, b, and z utilized).
Essential for systems where 24 Vdc supply voltages may exceed 31.0 Vdc.

Applications

Fail-Safe Controller (FSC) systems requiring redundant power monitoring.
Industrial automation systems managing non-redundant and redundant I/O combinations.
Safety-critical monitoring for chemical dosing and injection pump systems.
High-speed textile inspection and packing line automation.
Sanitary production lines requiring Clean-in-Place (CIP) safety monitoring.

Technical Specifications

Model	10302/2/1
Function	Watchdog Repeater Module
Power Requirements (5 Vdc)	35 mA
Power Requirements (24 Vdc)	25 mA
Space Requirements	4 TE, 3 HE (4 HP, 3U)
Connector Type	DIN 41612, Type F
Software Version	>= 3.00
Approvals	CE, TUV, UL

Installation Guidelines

Ensure the system is powered down before inserting or removing the module from the rack.
The module requires a horizontal bus connection; verify proper seating in the FSC backplane.
Handle with care to prevent electrostatic discharge (ESD) damage to sensitive internal components.
Ensure the 24 Vdc supply remains below 37 Vdc under all fault conditions to protect connected I/O modules.
Verify that the watchdog output is correctly wired to the corresponding input of the monitored output modules.

FAQ

What is the primary function of the 10302/2/1?

The 10302/2/1 acts as a watchdog repeater to monitor power supply integrity (5 Vdc and 24 Vdc) and relay watchdog signals to output modules, ensuring fault-tolerant operation in FSC systems.

When is a watchdog repeater required?

It is required in configurations where the watchdog current exceeds 900 mA, when 24 Vdc supply voltages can exceed 31.0 Vdc, or when combining redundant and non-redundant I/O configurations.

What are the power requirements for this module?

The module requires a 5 Vdc supply at 35 mA and a 24 Vdc supply at 25 mA for operation.
