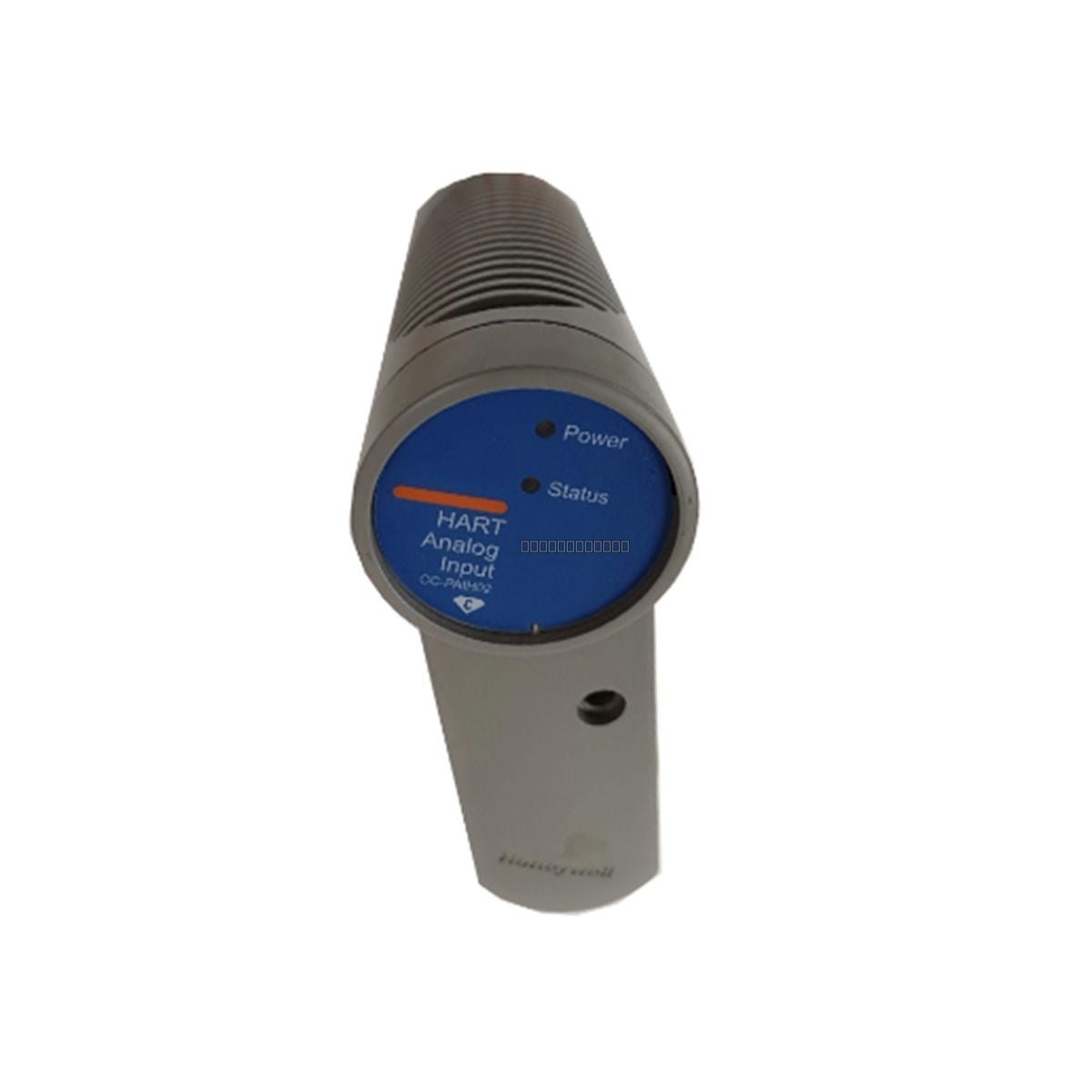

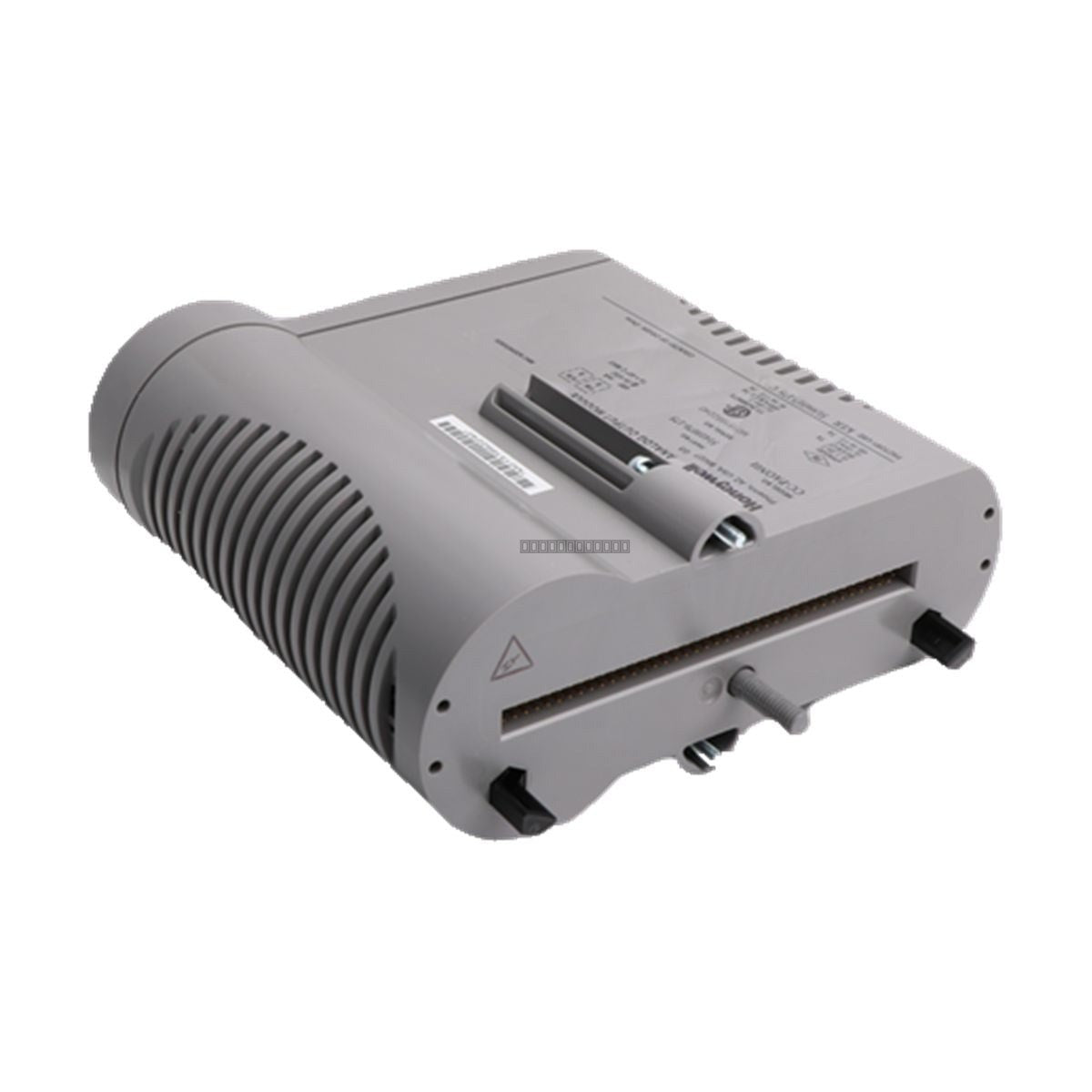

Honeywell CC-PAIH02 51405038-375 Analog Input Module

Honeywell CC-PAIH02 51405038-375 High-Level Analog Input Module

Availability: 0 left in stock

DescriptionThe Honeywell CC-PAIH02 (51405038-375) is a 16-channel High-Level Analog Input (HLAI) module designed for the Experion PKS Series C control...

SKU: CC-PAIH02

Manufacturer: Honeywell
Product No.: CC-PAIH02
Product Type: Analog Input Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Honeywell CC-PAIH02 (51405038-375) is a 16-channel High-Level Analog Input (HLAI) module designed for the Experion PKS Series C control system. This module serves as an advanced replacement for the CC-PAIH01, offering enhanced performance, faster scan rates, and improved diagnostic capabilities. It supports both 4-20 mA current loops and various voltage inputs, providing bi-directional HART digital communication for remote configuration and monitoring of smart field devices.

Features

16-channel high-level analog input with HART communication support
Supports 4-20 mA (2-wire or self-powered) and voltage inputs (0-5 V, 1-5 V, 0.4-2 V)
Extensive self-diagnostics including Open Wire Detection and Bad PV Detection
Provides non-incendive field power, eliminating the need for external fusing
Supports optional redundancy for high-availability applications
Fast loop scan rate of 50 ms

Applications

Oil and Gas: Monitoring high-pressure and temperature variables in refineries and extraction sites.
Petrochemical and Chemical: Managing critical process parameters and complex analytical data for quality control.
Power Generation: Integrating smart sensors into centralized control platforms for precise energy management.
Building Automation: Managing industrial-scale HVAC, lighting, and security systems.

Technical Specifications

Model	CC-PAIH02 (51405038-375)
Channels	16
Input Range	4-20 mA, 0-5 V, 1-5 V, 0.4-2 V
A/D Resolution	16 bits
Input Scan Rate	50 ms
Common Mode Rejection	70 dB (dc to 60 Hz)
Input Impedance	> 10 M Ohm (powered)
Accuracy	±0.075% of full-scale at 23.5 degC

Installation Guidelines

Ensure the system is powered down before inserting or removing the module from the I/O rack.
Field wiring is landed on the IOTA’s detachable terminals, supporting up to 12 AWG (2.5 mm) stranded wire.
For 2-wire transmitters, the module provides 24V DC loop power via the IOTA.
Self-powered transmitters connect directly to input terminals without utilizing internal loop power.
Utilize the jumper bar to bridge multiple 'IN' terminals to a single power source; pins can be removed to isolate power for specific channels.
Maintain proper grounding and shielding practices to minimize EMI in industrial environments.

FAQs

What is the CC-PAIH02?

It is a 16-channel, High-Level Analog Input (HLAI) module with HART communication, designed for the Experion Series-C I/O system.

What input types does CC-PAIH02 support?

It supports 4-20mA, 1-5V, 0-5V, and 0.4-2V inputs.

Does it support HART?

Yes, it provides full HART protocol support for field device configuration and monitoring.

What is the difference from CC-PAIH01?

The CC-PAIH02 is the upgraded replacement, offering improved accuracy and faster sampling rates over the legacy CC-PAIH01 model.
