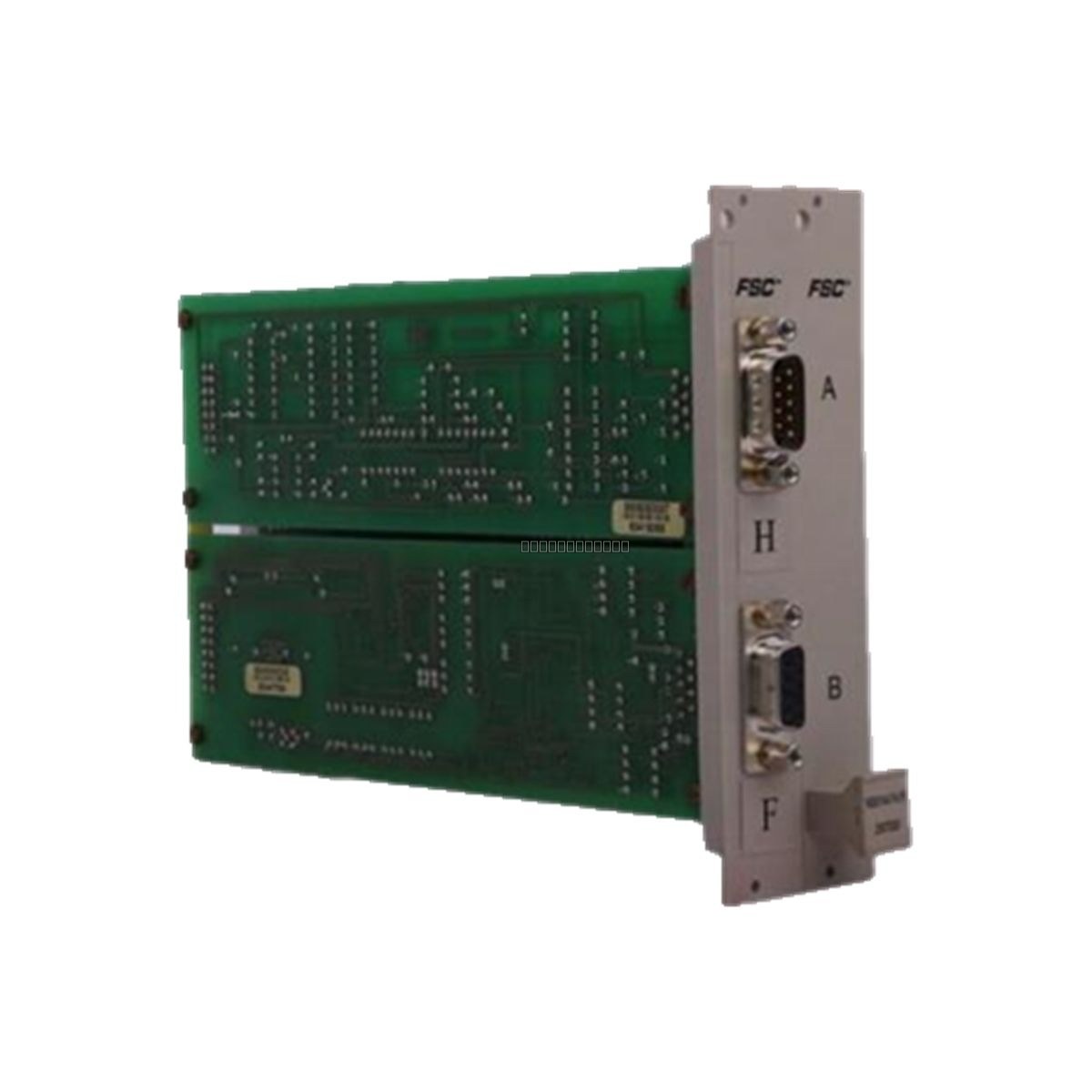

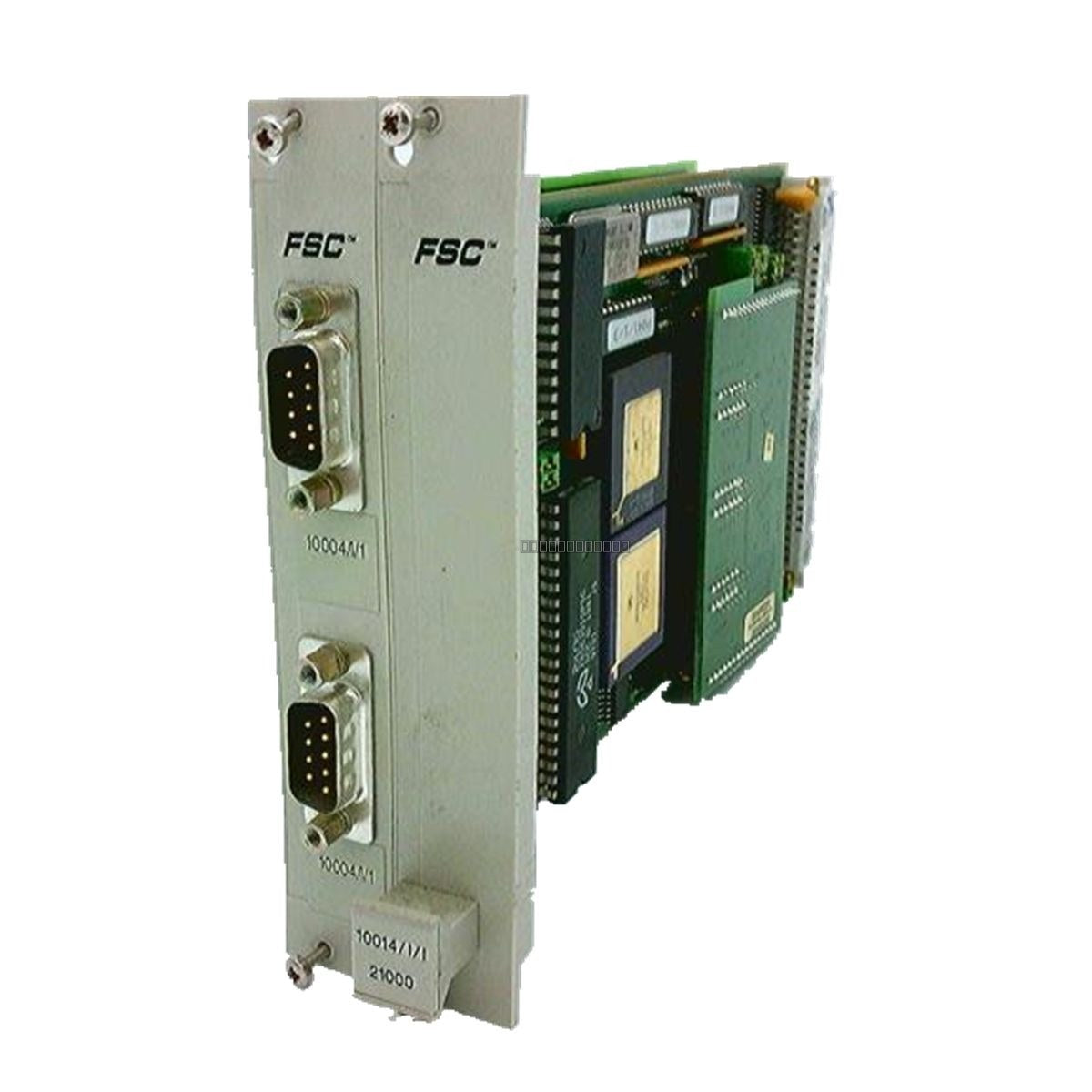

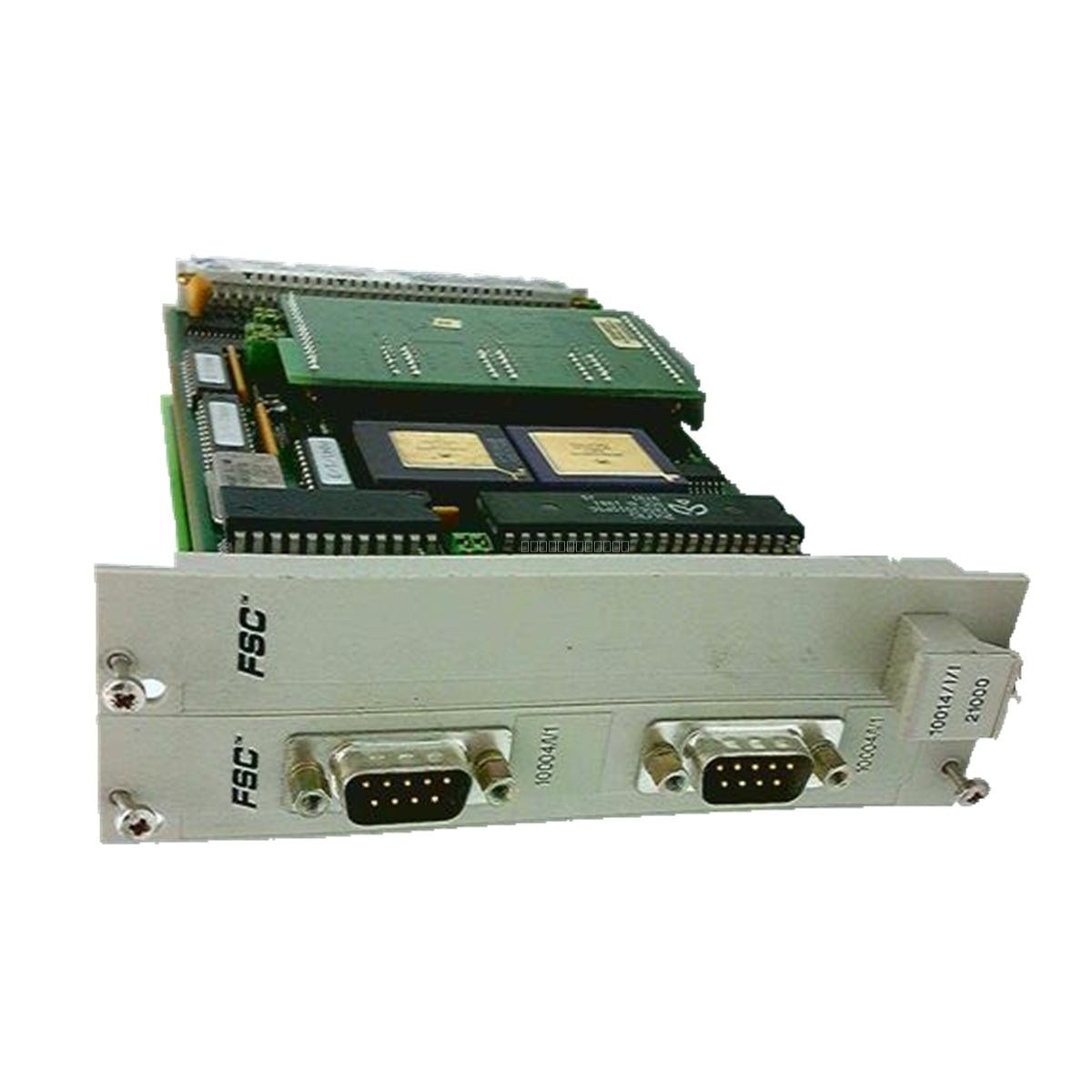

Honeywell 10014/I/I Dual Port Communication Module

Availability: 10 left in stock

DescriptionThe Honeywell 10014/I/I is a high-performance dual-port communication module engineered for robust data exchange within industrial control systems. This module...

SKU: 10014/I/I

Manufacturer: Honeywell
Product No.: 10014/I/I
Product Type: Communication Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 360g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Honeywell 10014/I/I is a high-performance dual-port communication module engineered for robust data exchange within industrial control systems. This module facilitates seamless connectivity between controllers, field devices, and supervisory systems, ensuring deterministic data flow in mission-critical environments such as power generation, chemical refining, and large-scale manufacturing.

Equipped with both EPROM and flash memory, the 10014/I/I provides reliable firmware storage and configuration retention, maintaining operational stability through power cycles. Its dual-port architecture supports concurrent data transmission, effectively increasing system throughput and enhancing communication redundancy.

Features

Dual-Port Architecture: Enables simultaneous, parallel communication channels for improved system efficiency and reduced latency.
Integrated Memory: Features EPROM for secure firmware storage and flash memory for flexible, reprogrammable configuration management.
Industrial Reliability: Designed with industrial-grade components and passive cooling to ensure long-term operation in demanding environments.
Seamless Integration: Engineered for direct mounting into standard Honeywell control racks and communication backplanes.
Deterministic Performance: Optimized for real-time control applications where consistent data integrity is required.

Applications

The 10014/I/I communication module is typically deployed in distributed control systems (DCS) and industrial automation networks. Common applications include:

Power plant control and monitoring systems.
Refining and petrochemical process automation.
Continuous manufacturing and assembly line control.
Real-time data acquisition and supervisory control interfaces.

Technical Specifications

Model	10014/I/I
Brand	Honeywell
Product Type	Communication Module
Interface	Dual Port
Memory	EPROM and Flash
Supply Voltage	24 VDC
Power Consumption	5 W
Operating Temperature	0 to 60 deg C
Relative Humidity	5 to 95 percent (non-condensing)
Mounting	Rack-mounted, backplane connection

Installation Guidelines

Power Status: Always ensure the system rack power is disconnected before installing or removing the communication module to prevent electrical damage.
ESD Precautions: Handle the module using proper electrostatic discharge (ESD) protection measures to avoid damaging sensitive internal circuitry.
Seating: Ensure the module is fully seated in the designated backplane slot and that all locking mechanisms are engaged to maintain a secure connection.
Cable Routing: Route communication cables away from high-voltage power lines and high-EMI sources to maintain signal integrity.
Environment: Ensure the installation location provides adequate ventilation to maintain the operating temperature within the specified 0 to 60 deg C range.

FAQ

What is the primary function of the 10014/I/I module?

The 10014/I/I acts as a communication bridge within Honeywell control systems, managing data exchange between controllers and field devices using a dual-port interface for increased throughput.

Does this module require external power?

No, the module is typically powered directly through the Honeywell control rack backplane at 24 VDC.

How is the configuration stored on this module?

The module utilizes integrated flash memory for reprogrammable configuration updates and EPROM for stable, non-volatile firmware storage.
