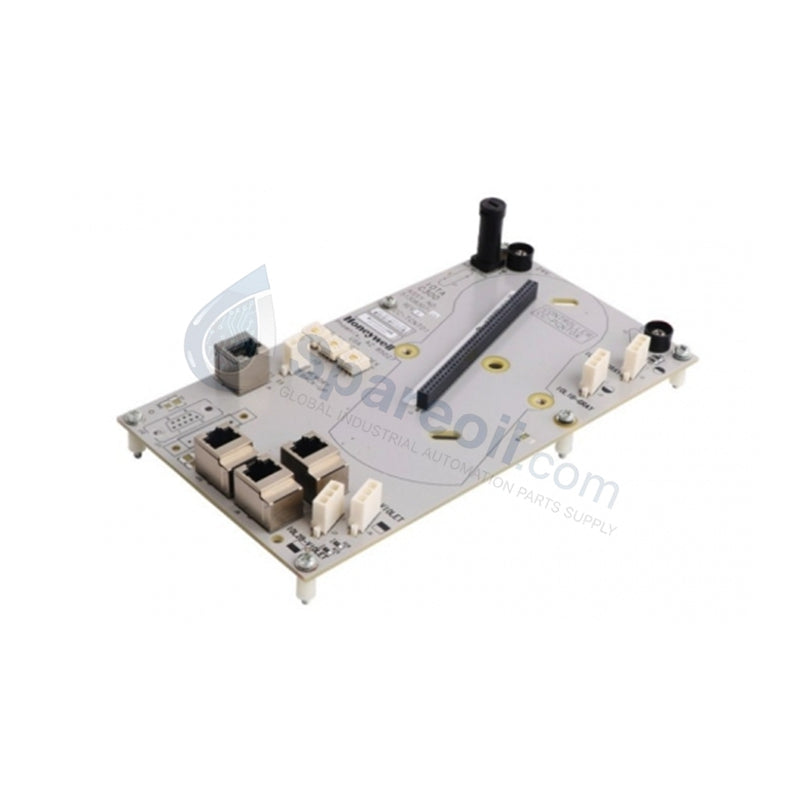

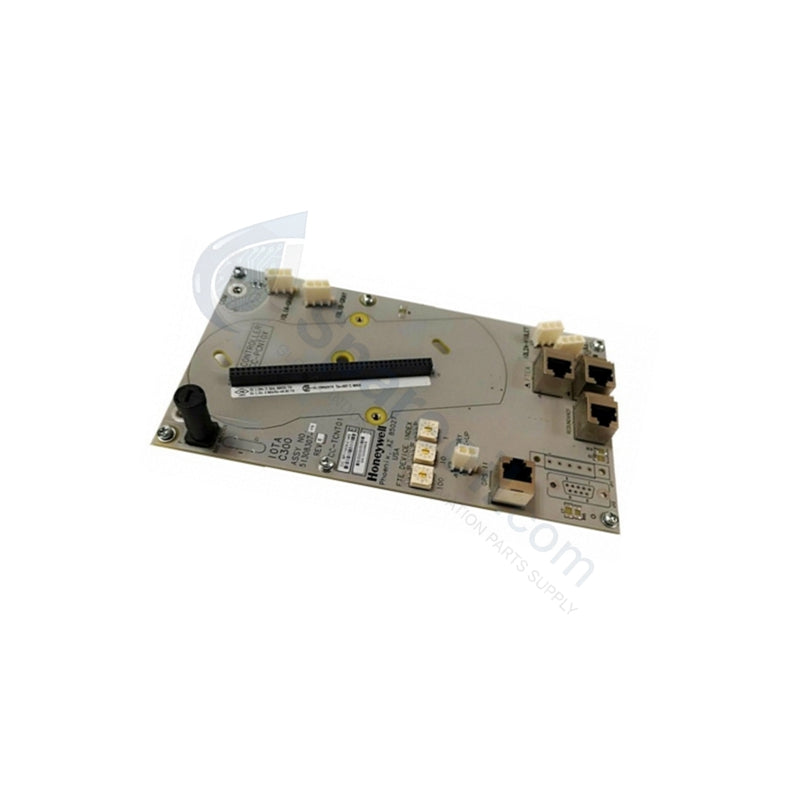

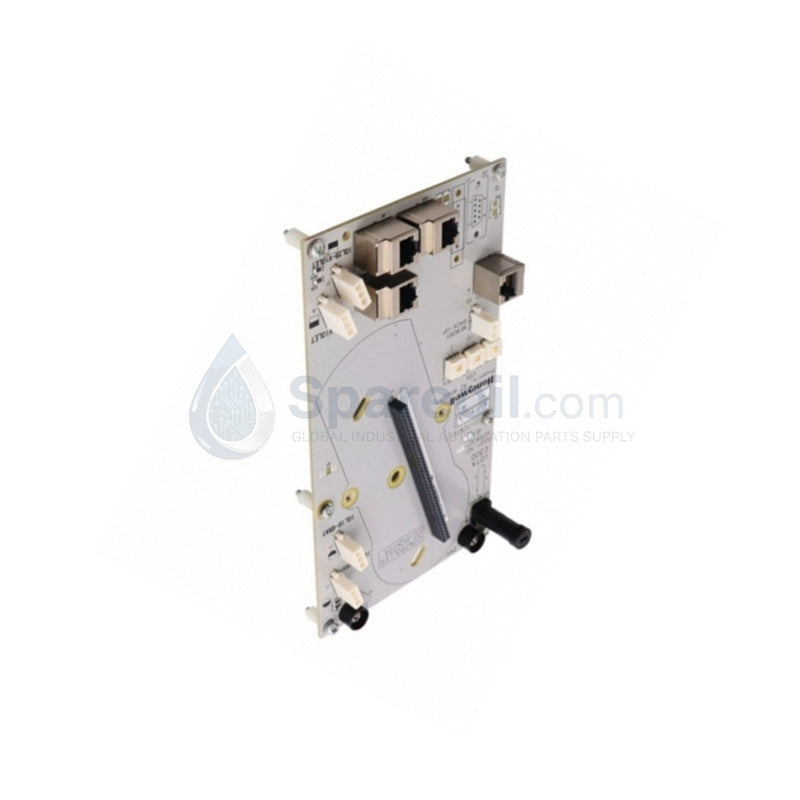

New CC-TP0X01 Honeywell I/O Termination Assembly IOTA

Availability: 99 left in stock

Product Overview The Honeywell CC-TP0X01 functions as a critical Input Output Termination Assembly (IOTA) within the Experion PKS Series C...

SKU: CC-TP0X01

Manufacturer: Honeywell
Product No.: CC-TP0X01
Product Type: Honeywell DCS Spares
Product Origin: USA
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Honeywell CC-TP0X01 functions as a critical Input Output Termination Assembly (IOTA) within the Experion PKS Series C hardware platform. This 100% brand-new, original terminal panel provides the physical and electrical interface required to link field instrumentation—including sensors, transmitters, and actuators—to the system's I/O modules. By centralizing field wiring into a rugged, organized interface, the CC-TP0X01 ensures that process signals reach the controller without degradation or interference.

Technical Specifications

The CC-TP0X01 utilizes industrial-grade materials to maintain low-impedance connections and superior signal clarity.

Specification	Details
Model Number	CC-TP0X01
Termination Type	Heavy-duty screw-type terminals
Compatible Series	Honeywell Experion PKS Series C
Channel Capacity	Supports high-density I/O configurations
Mounting	DIN rail compatible / Series C Carrier
Operating Voltage	24 V DC (Typical)
Operating Temp	0 °C to +55 °C
Humidity	5–95% RH (non-condensing)
Weight	0.4 kg
Protection	EMI/RFI Shielding, Industrial-grade Casing

Engineering Advantages

The Honeywell CC-TP0X01 streamlines field integration while solving common industrial installation challenges:

Superior Noise Rejection: The module incorporates high-performance EMI/RFI shielding. This protection actively blocks electrical noise generated by nearby high-voltage equipment, ensuring that sensitive analog and digital signals remain accurate during transmission.
Mechanical Wiring Stability: Industrial-grade screw-type terminals provide a secure, high-torque grip on field conductors. This mechanical stability prevents signal loss caused by vibration or thermal expansion, which is essential for maintaining uptime in rotating machinery or high-vibration zones.
Cabinet Space Optimization: The compact, vertical orientation of the Series C IOTA maximizes available cabinet real estate. Engineers can terminate hundreds of field wires in a significantly smaller footprint compared to legacy TDC 3000 or generic terminal block assemblies.
Simplified Maintenance Access: The logical layout of the CC-TP0X01 allows technicians to isolate and test individual loops rapidly. By providing clear terminal identification, the unit reduces the risk of wiring errors during routine maintenance or emergency troubleshooting.

FAQs

Can I use the CC-TP0X01 with redundant I/O modules?

The CC-TP0X01 typically serves non-redundant I/O configurations. If your application requires full controller and I/O redundancy, you should verify if a redundant-capable IOTA model is necessary for your specific Series C architecture.
Does this unit support both analog and digital signals?

Yes. The CC-TP0X01 provides the physical termination points for a wide range of Series C modules. The specific signal type (AI, AO, DI, or DO) depends on the I/O module you pair with this termination assembly.
What is the recommended installation environment for this IOTA?

While the CC-TP0X01 features a rugged design, you must install it within a protected control cabinet. For environments with corrosive gases (like $$H_2S$$ ), we recommend using the G3 conformal coated version of Honeywell Series C hardware.
Are special tools required for wiring?

Standard industrial screwdrivers suffice for the screw-type terminals. However, we recommend using ferrules on all stranded field wires to ensure the highest quality electrical contact and prevent wire fraying.
