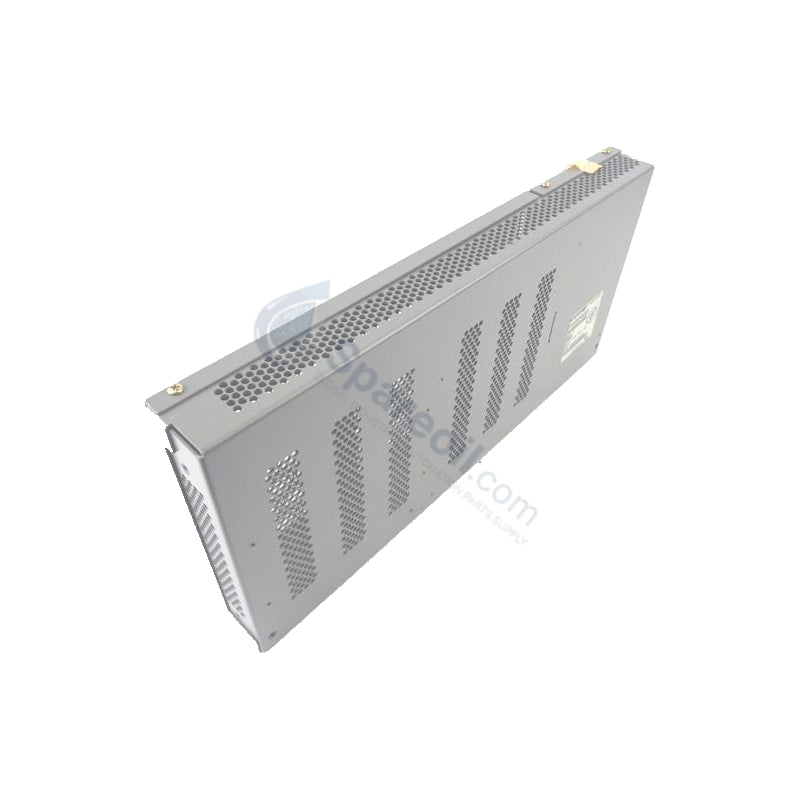

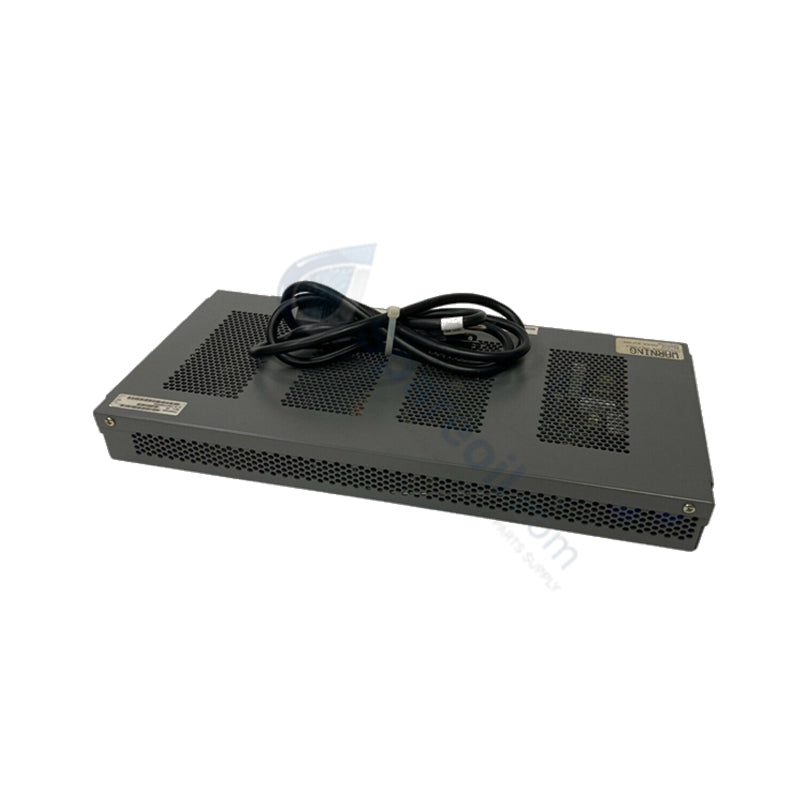

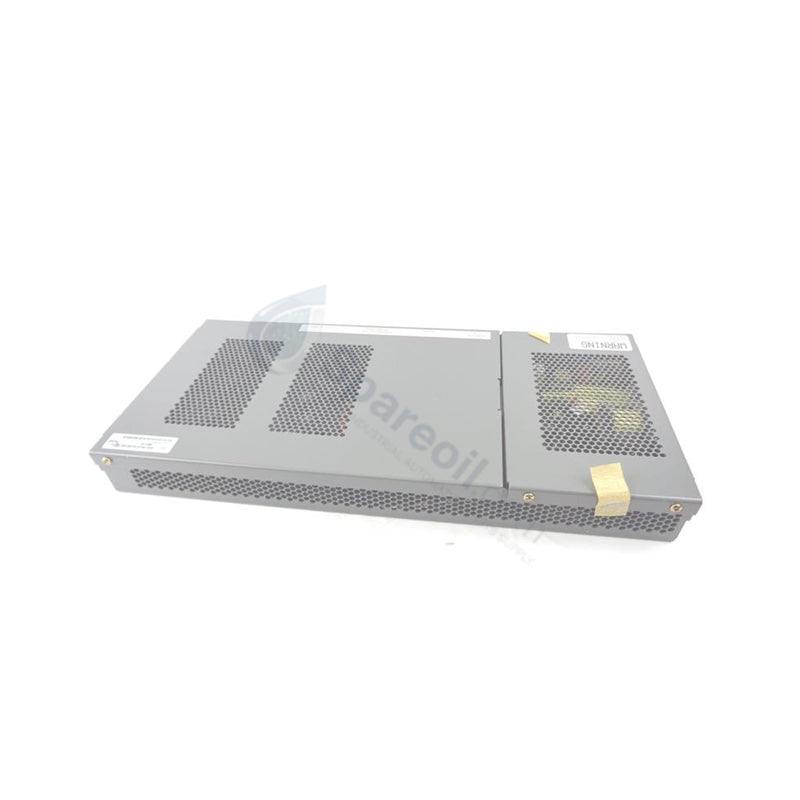

Foxboro P0904BS I/A Series Graphics Controller Module

The Foxboro P0904BS, also cataloged as the P0904BS I/O Graphics Controller Module, operates as a dedicated hardware component for graphical data processing and display interfacing within Foxboro I/A Series system architectures. Positioning itself between host Field Control Processors (FCPs), Fieldbus Modules (FBMs), and operator display stations, this module processes real-time field signal states directly into industrial control graphics networks.

Hardware Specifications

Parameter	Specification
Model	P0904BS
Brand	Foxboro (Invensys / Schneider Electric)
Origin	USA
Weight	6.45 lbs (2.93 kg)
Dimensions	Standard Foxboro I/A Series Enclosure Envelope
Operating Temp	-20 to +70 deg C
Power Consumption	Standard Backplane Drain
System Compatibility	Foxboro I/A Series System Architecture
Module Type	GCIO (Graphics Controller I/O) Module
Redundancy Support	Dual Redundant Fieldbus Communication Channels
Isolation	Channel-to-Channel / Galvanic System Isolation
Humidity Range	5% to 95% RH, non-condensing
Protection Level	Conformal Coated PCB Assembly
Mounting	Cabinet Rack / Baseplate Installation
Certifications	CE, UL, CSA Compliance

DCS Process Isolation and Signal Processing

The Foxboro P0904BS incorporates channel-to-channel isolation and galvanic protection across its internal processing paths to prevent electrical noise from corrupting system data lines. By isolating low-voltage graphic processing logic from plant-floor ground potential differences, the unit ensures stable bus communication even when interfacing with high-density analog loops utilizing 4-20 mA HART protocol field devices. Industrial-grade conformal coating on internal printed circuit assemblies protects active traces from chemical ingress and non-condensing humidity.

Frequently Asked Questions

Q: How does the P0904BS handle communication failure on the primary Fieldbus link?

A: The module supports dual-redundant Fieldbus communication channels, automatically maintaining uninterrupted graphics data transfer by switching to the secondary bus path without loss of operational monitoring.

Q: Can the P0904BS module be installed directly in harsh electrical environments?

A: Yes, internal galvanic isolation and conformal-coated printed circuit boards shield the controller logic against high-noise electrical interference and corrosive atmospheric conditions up to ISA S71.04 standards.

Field Installation Guidelines

Physical Assembly: Insert the GCIO module into the designated bay within the Foxboro I/A Series rack. Tighten front panel mounting screws to secure mechanical connection to the backplane.
Cable Routing: Connect bus data interface cables to dedicated rear ports. Maintain separation between high-voltage power wiring and low-voltage graphic/communication cables to limit inductive interference.
Earthing Procedures: Ensure the enclosure rack connects to the plant instrument grounding bus bar via a low-impedance grounding strap. Ground cable shields at the cabinet entrance point only.
